From Static Bricks to Modular Power Architecture
Power supply innovation at Computex refers to a shift from sealed, one-piece PSUs toward modular, scalable, and AI-aware power delivery systems that prioritise upgradability, safety, and high efficiency across both consumer and enterprise platforms. After years of incremental updates, multiple brands are now changing the basic PSU model at the same time. Thermaltake is separating the power stage from the cable interface, ASRock is stretching wattages from compact gaming units to multi‑kilowatt workstation blocks, and Seasonic is importing data‑centre thinking into desktop and enterprise AI power supplies. Together, these moves suggest that modular power supply design, smarter 12V-2×6 cable technology, and higher PSU efficiency ratings are becoming central design goals rather than premium extras. The focus has shifted from “how many watts?” to “how flexibly, safely, and efficiently can those watts be delivered?”.
Thermaltake’s Dockpower: Modular PSUs as Upgradable Components
Thermaltake’s Dockpower series treats the PSU as an upgradeable module rather than a fixed box. Each unit is split into a “Main Unit” that generates power and a “Dock” where all system cables connect, joined by server‑grade 30μ gold‑plated contacts. The practical promise is clear: upgrade to a higher‑wattage PSU without tearing apart carefully routed cables. Dockpower models launch in 750W, 850W, 1000W, and 1200W variants, all 80+ Gold rated and available in black or white. Prices span USD 119.99 to USD 179.99 (approx. RM550 to RM830). For builders who dread redoing cable management, this modular power supply design could be attractive, even if some upgrades will still demand new cabling for added hardware. The series also sets a precedent: PSUs may become semi‑permanent infrastructure, with only the power module swapped as systems grow.
ASRock’s Wattage Ladder: From SFX Gaming to 3200W Workstations
ASRock is expanding from motherboards into a complete PSU stack that spans small gaming rigs to extreme workstations. At the top, the Taichi WS series delivers 2600W, 3000W, and 3200W models aimed at AI‑heavy and multi‑GPU workloads, with Cable Over‑Temperature protection that can shut down the system when a GPU’s 12V-2×6 connector overheats. According to Overclock3D, ASRock displayed “PSU models with wattages that reach 3200W,” well beyond what most PSU vendors offer. Below that, Phantom Gaming SFX units at 850W and 1000W, plus Steel Legend ATX models from 850W to 1200W, combine 80+ and Cybenetics Platinum PSU efficiency ratings with the same connector protection. Even the more affordable Pro series at 750W to 1000W carries 80+ and Cybenetics Gold certifications. The message is consistent: high wattage PSU options are now paired with thermal‑aware safeguards for 12V-2×6 connectors.
Seasonic’s Enterprise AI Push and Silicon 12V-2×6 Monitoring

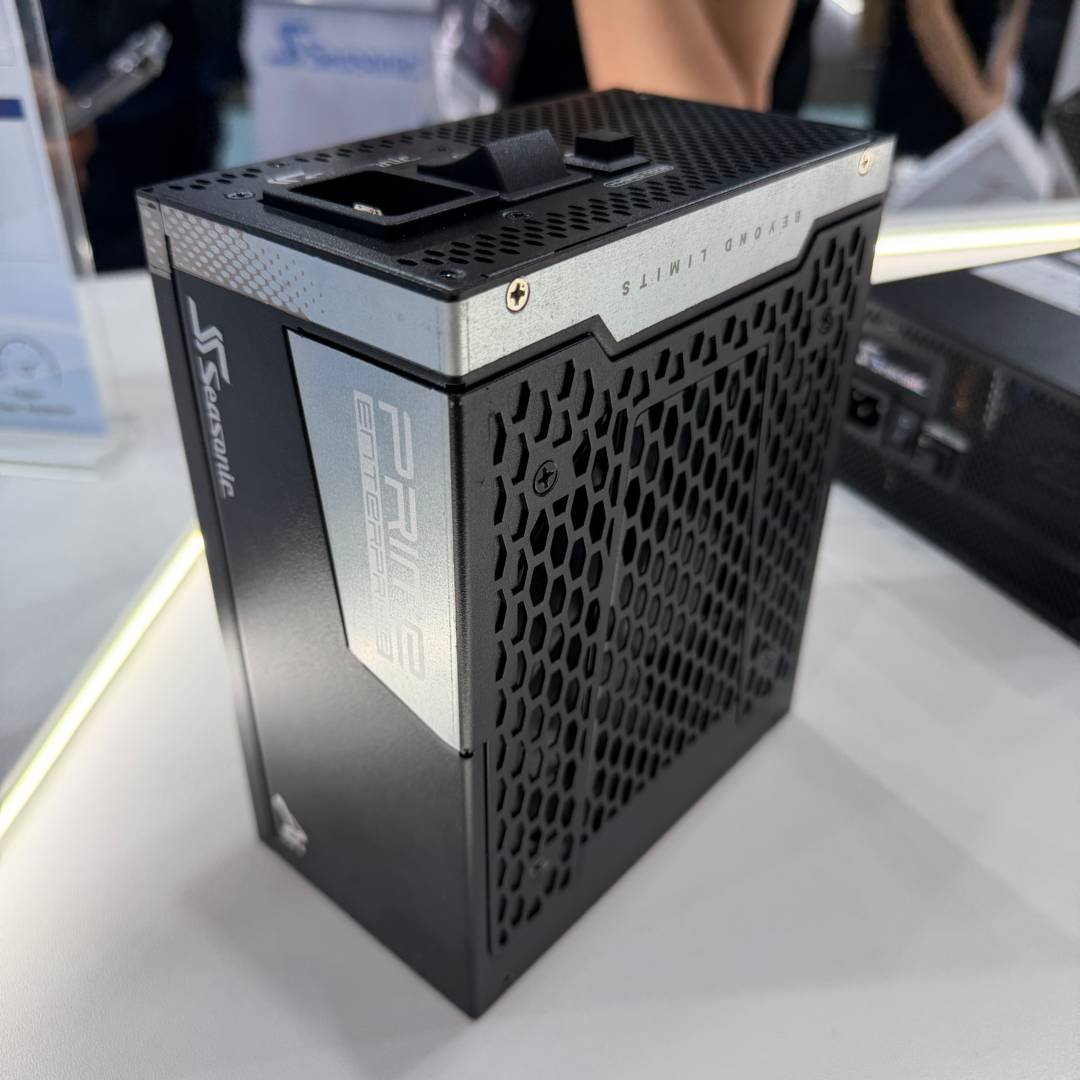

Seasonic is pushing PSU design toward enterprise AI power supplies that mirror server‑class thinking. On the data‑centre side, a CRPS server unit scales up to 5200W within a 1300W–5200W family, wearing an 80 PLUS Ruby badge with efficiency up to 96.5% at 50% load. For AI workstations, the PRIME Enterprise line (including TX‑1300 and TX‑1600) carries both 80Plus Titanium and Cybenetics Titanium PSU efficiency ratings and ATX 3.1 / PCIe 5.1 compliance. A key feature is OptiGuard, tied to a new silicon 12V-2×6 cable technology that embeds current and temperature sensing at the GPU connector. Club386 reports that OptiGuard can “detect abnormal electrical loads, current imbalance across individual power pins, and localised temperature increases,” then warn the user, reduce load, or cut power. That level of connector telemetry turns the once‑dumb GPU cable into an active safety system.
Toward an Industry-Wide Rethink of Power Delivery
Viewed together, Thermaltake, ASRock, and Seasonic outline a shared future for PC power architecture. Thermaltake introduces modular power supply design that decouples cabling from wattage, turning PSUs into swappable modules. ASRock spans 750W to 3200W with consistent 80+ and Cybenetics Platinum or Gold ratings, while adding protection for 12V-2×6 connectors across most of its range. Seasonic ties enterprise AI power supplies and server units to Titanium‑class PSU efficiency ratings and intelligent OptiGuard monitoring with silicon 12V-2×6 cable technology. The convergence is striking: modularity, higher efficiency, smart connector safety, and support for next‑generation GPU standards are moving from niche to baseline expectations. As AI workloads and multi‑GPU builds pull more power than ever, the PSU is becoming an active, monitored subsystem rather than a silent box at the bottom of the case.
