AI CAD Software Moves From Concept to Daily Tool
AI CAD software refers to computer‑aided design tools that embed artificial intelligence into core modeling and assembly workflows to automate repetitive tasks, guide design decisions from context, and improve design workflow efficiency in complex mechanical projects. After years of hype, that idea is now turning into practical features inside major CAD assembly tools. PTC, IMSI Design and IronCAD are rolling out AI assistants, smart search and automation aimed at real production bottlenecks rather than flashy demos. The focus is narrow but important: reducing manual work in large assemblies, speeding up mechanical design automation around fasteners and bills of materials, and cutting the time it takes to load, review and iterate on complex models. Together, these releases show that AI is becoming a standard expectation inside professional CAD environments, not an optional add‑on.
PTC Creo 13: In-Context AI Assistant and Faster Assemblies
PTC’s latest release of Creo 13 and Creo+ 13.3 centers on a new Creo AI Assistant that lives directly in the design environment. The assistant appears as a chat interface, drawing on product documentation and design practices to answer questions and guide users without leaving the CAD window. A beta feature can read information directly from the 3D model to highlight potential design issues, help with compliance details and surface embedded data. Alongside AI, PTC is targeting design workflow efficiency for teams working on large assemblies. According to PTC, assembly loading from Windchill over a wide‑area network is now “up to 70% faster” for remote users handling large CAD assemblies, which can shorten iteration loops. Expanded simulation coverage, 5‑axis toolpath updates and assembly‑aware generative design round out the release, tying AI guidance to broader mechanical design automation and manufacturing workflows.
TurboCAD Mac 17: AI Visualization and Part Search for 3D Workflows
TurboCAD Mac 17 brings AI into 2D drafting and 3D modeling through Copilot-based tools geared toward visualization and component search. Copilot Render converts 2D drawings and 3D models into visual concepts using natural‑language prompts, enabling users to explore multiple materials, lighting options and variations without changing underlying geometry. Copilot Part Finder adds natural‑language search across a library of more than 770,000 CAD components, including ANSI, ISO and DIN parts, so standard components can be located and reused quickly in mechanical assemblies. This supports mechanical design automation by cutting time spent hunting for fasteners or off‑the‑shelf parts. The release also improves CAD assembly tools with lightweight XREF loading that relies on display geometry to reduce memory use; for complex mechanical parts, IMSI Design says file size can be reduced by up to 10 times. New modeling tools and rendering materials further streamline design workflow efficiency.
IronCAD Mechanical 2027: Automation for Steel and Large Assemblies

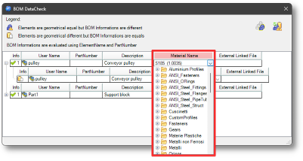

IronCAD Mechanical 2027 aims directly at repetitive mechanical and steel design work inside large assemblies. The enhanced Check BOM tool now verifies materials as well as naming consistency, flagging parts with different shapes but identical identifiers and identical shapes with different names, which helps prevent downstream manufacturing errors. An External Link Manager improves how internally linked elements are saved and converted into external links, making complex, reference‑heavy assemblies easier to maintain. For steel design, new tools such as Steel Joints and Place Hole & Fasteners combine joint placement and fastener insertion into single workflows, and automatically place bolts into all holes on a steel plate while creating matching holes in underlying members. Upgrades to Steel Stiffener, profile creation, and trimming, plus improvements to numbering and BOM generation, show a clear push toward mechanical design automation that reduces manual clicking and data cleanup in heavy assembly environments.
An Industry Shift Toward AI-Assisted Mechanical Design
Across PTC Creo, TurboCAD Mac and IronCAD, a pattern is clear: AI and automation are being woven into specific, high‑friction steps in mechanical design. PTC focuses on in‑context guidance, faster Windchill assembly loading and simulation‑aware workflows. TurboCAD targets concept visualization and standard‑part retrieval so designers can move from idea to assembly with fewer interruptions. IronCAD concentrates on BOM checks, fastener automation and steel tooling that cut manual work in large projects. These moves reflect a broader shift in AI CAD software away from abstract generative promises toward practical CAD assembly tools that speed everyday work. For design teams, the near‑term value is not full automation, but hundreds of small time savings that compound: assemblies that open faster, standard parts that are easier to find, and repetitive modeling tasks that require far fewer manual steps.
