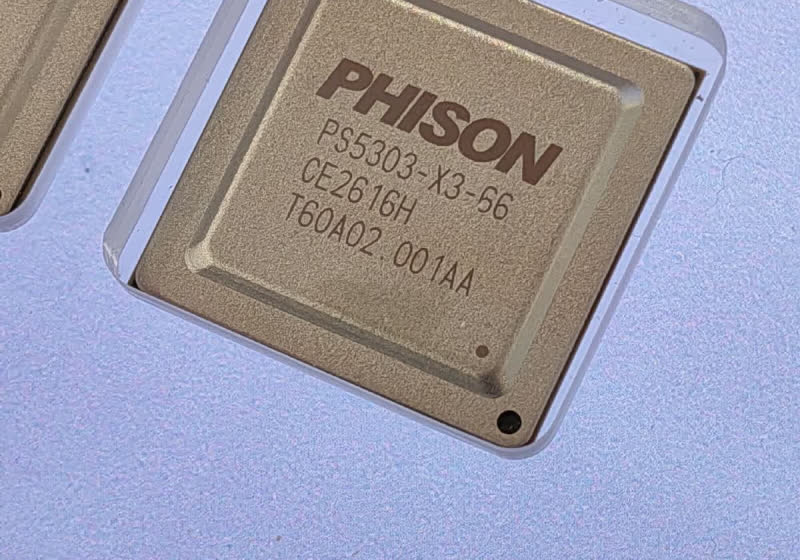

What Phison’s X3 PCIe 6.0 Controller Is and Why It Matters
Phison’s X3 is a next-generation PCIe 6.0 controller for NVMe solid-state drives that aims to deliver up to 28 GB/s storage throughput while holding peak power near 7 watts, redefining performance-per-watt for high-speed SSDs in power‑constrained client and enterprise systems. At Computex, Phison framed the X3 as its flagship PCIe 6.0 controller, using a PCIe 6.0 x4 interface and supporting NVMe 2.3. The target is roughly double the throughput of today’s high-end PCIe 5.0 SSDs, with up to 6.8 million IOPS in random workloads. According to TechSpot, Phison is moving X3 from early testing into reference designs that resemble real products, with sampling planned for December and volume shipments in mid‑2027. That timing means OEMs can begin planning low power SSD designs that exploit PCIe 6.0 bandwidth without accepting a big jump in heat and cooling requirements.
Efficiency Breakthrough: 28 GB/s at Around 7 Watts
The most striking figure around the Phison X3 is its efficiency target: about 4 GB/s per watt. At full speed, that implies peak power draw of around 7 watts while sustaining 28 GB/s storage throughput, a ratio that earlier generations struggled to reach at far lower speeds. For perspective, many current PCIe 4.0 and PCIe 5.0 drives can exceed 10 watts under load yet deliver far less bandwidth, often forcing bulky heatsinks or even active cooling. Phison’s design focus is performance-per-watt rather than headline speeds alone, allowing the controller to scale in both capacity and performance, with support for up to 2 petabytes per SSD. This efficiency also matters for thermal management: a 7‑watt controller is much easier to cool in dense servers, compact edge boxes, or thin laptops, opening more platforms to near‑enterprise PCIe 6.0 performance.
Power-Constrained Devices: From Thin Laptops to Edge Computing
Phison’s broader roadmap shows how X3’s efficiency philosophy is already influencing today’s designs. Its DRAM‑less E37T PCIe 5.0 client controller, aimed at power‑sensitive systems, delivers up to 14.9 GB/s reads and 13.2 GB/s writes while running at around 4.5 watts, with some configurations dipping below 2.3 watts. One laptop demo hit 14,239 MB/s in sequential reads without resorting to heavy cooling hardware. This direction points to what a low power SSD based on Phison X3 could mean for mobile and edge devices: high bandwidth without thermal throttling dominating the user experience. Thinner notebooks, fanless small form factor PCs, and compact edge AI appliances stand to gain the most, since every watt saved on storage can be reassigned to CPUs, GPUs, or accelerators—or used to keep noise and temperatures down.
Enterprise and Data Center: Performance-per-Watt as a Design Constraint
In data centers, SSD performance is no longer judged only on IOPS and GB/s; watts per operation now sit beside raw speed in deployment decisions. Phison is targeting initial X3 deployments in enterprise form factors such as E3.S and E1.S, with capacity scaling up to 2 petabytes per SSD. That density, coupled with PCIe 6.0 x4 bandwidth at 28 GB/s, allows operators to push more data through fewer drives and fewer lanes, potentially lowering the power and cooling footprint per unit of work. Under its Pascari brand, Phison is also building out enterprise drives that lean on NVMe and computational storage, with current PCIe generations already reaching about 14.8 GB/s and 3.3 million IOPS. As X3 arrives, those same workloads will benefit from an ecosystem tuned for efficient signaling, including PAM4 links, redrivers, and retimers that keep PCIe 6.0 viable at scale.
From Demos to Deployment: What OEMs Should Expect Next
PCIe 6.0 platforms remain limited to development environments, and Phison’s X3 demonstrations still run on specialized hardware, but the path to real products is clear. Phison plans to begin sampling X3 controllers in December and ramp volume shipments in mid‑2027, giving OEMs a predictable window to align platform roadmaps. As reference designs for E3.S and E1.S solidify, controller vendors, NAND makers, and system builders can qualify complete storage stacks around 28 GB/s PCIe 6.0 controller capabilities. Meanwhile, the E37T offers a bridge for current designs: a PCIe 5.0 controller with high throughput and lower power that can slot into laptops and desktops while PCIe 6.0 matures. For both client and enterprise markets, the message is consistent: future storage differentiation will be grounded in performance-per-watt and form‑factor flexibility, not only in record benchmark numbers.
