Gaming SSD Performance: What Actually Matters
Gaming SSD performance is the combined effect of how fast a drive can read scattered game data, how smoothly it works with your CPU and GPU, and whether it offers enough capacity for large modern titles without constantly forcing you to uninstall and reinstall games. Expensive PCIe 5.0 NVMe SSDs deliver eye-catching transfer speeds, but in real play their benefits over mainstream NVMe, SATA SSDs, or even microSD storage are smaller than marketing suggests for most players.
If you mainly care about smooth frame rates and stable performance, the blunt truth is that your money usually goes further on a better graphics card or CPU than on a flagship SSD. Moving from a hard drive to any SSD is transformative; moving from one already fast SSD to an even faster one often does far less. Modern PCIe 4.0 drives like the Samsung 990 PRO are already near the practical gaming limit, so PCIe 5.0 options such as the WD_BLACK SN8100 tend to be luxury extras rather than must-have upgrades.
SSD Speed Comparison: PCIe 4.0 vs PCIe 5.0 vs microSD
On paper, gaming SSD performance looks like a numbers race. The WD_BLACK SN8100 PCIe 5.0 drive offers nearly 15,000 MB/s sequential read speeds, roughly double the 7,450 MB/s figure of the Samsung 990 PRO PCIe 4.0 SSD. A typical UHS‑I microSD card tops out at about 200 MB/s reads, far below either NVMe option. That spread might suggest huge load time gains, but games rarely read one giant, perfectly sequential file. They pull many smaller chunks, hit the CPU for decompression, and bounce data through memory and the GPU. As a result, a Gen5 SSD that benches twice as fast does not cut loading times in half.

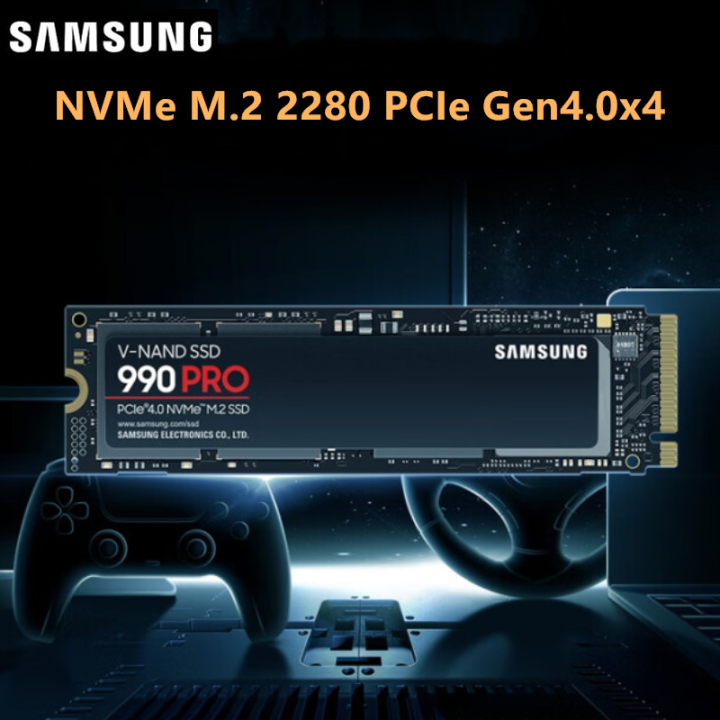

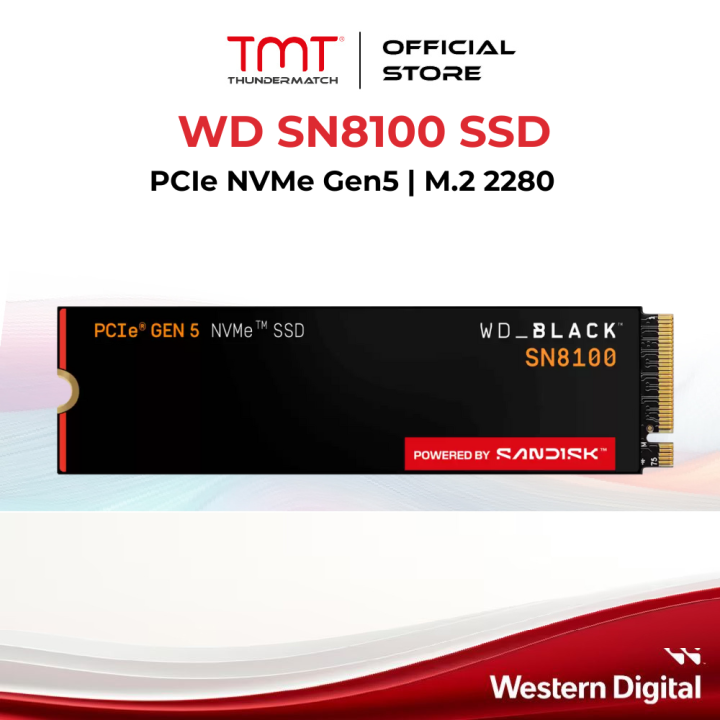

| Spec | A: Samsung 990 PRO (PCIe 4.0 NVMe) | B: WD_BLACK SN8100 (PCIe 5.0 NVMe) |
|---|---|---|
| Interface | PCIe 4.0 x4 | PCIe 5.0 x4 |
| Form factor | M.2 2280 | M.2 2280 |
| Capacity tested | 2TB | 2TB |
| Max sequential read | Up to 7,450 MB/s | Up to 14,900 MB/s |
| Max sequential write | Up to 6,900 MB/s | Up to 14,000 MB/s |
| Warranty/TBW | 5 years / 1,200 TBW | 5 years / 1,200 TBW |
According to one technical overview, “a Gen5 SSD capable of nearly 15,000 MB/s doesn’t suddenly make games load twice as fast as a 7,000+ MB/s Gen4 SSD.” The real leap is from hard drives to any SSD, which reduces loading delays, installation and update times, and library moves. Beyond that, even a budget NVMe drive or slower microSD can feel acceptable for secondary or less demanding content, because storage is only one part of the performance chain once a game is running.
Budget NVMe, microSD, and External SSD Gaming

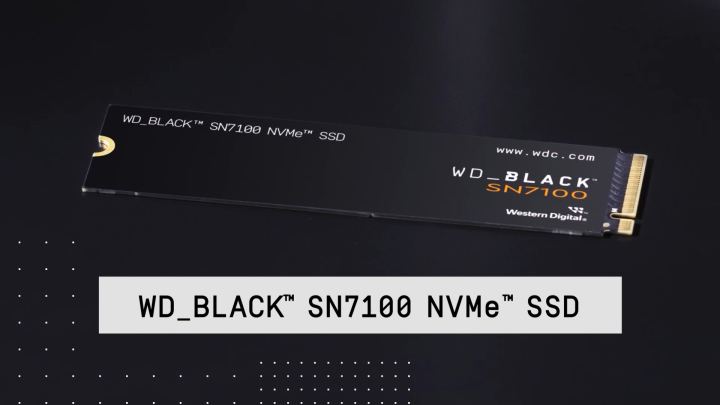

Budget NVMe storage is far better suited to gaming than many people think. Not every system needs a premium SSD; choosing a slightly less expensive Gen4 drive and investing the savings into a stronger graphics card will usually improve the actual gaming experience far more. Models such as the WD_BLACK SN7100 use a DRAM‑less design to cut cost and power draw while still delivering responsive performance for games. At the same time, many files filling a gaming PC are not performance‑sensitive: TV shows, movies, and personal archives can move to slower media without any impact on how games feel. In one real‑world case, shifting these files to a microSD card freed a sizable chunk of primary SSD space.
A microSD card will not replace a secondary SSD for heavy game installations, especially if you also care about write performance and future‑proofing. But it can be a flexible stopgap when a laptop has a spare card slot, giving you extra room while you wait for a larger SSD upgrade. External SSD gaming is another practical tactic: an external drive can expand a PC library and create breathing room without opening a laptop or rebuilding a desktop, and most Windows gaming PCs can install and run games directly from it as long as it stays on a fast port. On consoles such as the PlayStation 5, you can store PS5 games on compatible USB extended storage, then copy them back internally when you want to play, while many PS4 titles can run straight from the external SSD.
Capacity Planning Beats Chasing Peak Speeds
The most important storage decision for gaming is how much space you have, not whether your SSD’s spec sheet wins a benchmark screenshot. Game installs keep growing, and even a 1TB drive can fill quickly once the OS, launchers, recordings, and several big releases are installed. A 2TB primary SSD is a practical baseline for many setups, with room for the OS and a rotating library of current favourites. For most people, combining two separate 2TB or 4TB drives offers a more sensible balance of capacity and cost than jumping to a single huge, ultra‑premium SSD, which can be overkill when budget is limited.
Capacity planning is more reliable than chasing a single universal “sweet spot”: list the games that must stay installed, add their sizes, and include space for updates, DLC, mods, and temporary install files. Less frequently played games, large single‑player titles, archived installers, mods, and captured footage are often better candidates for external storage, whether that is a USB SSD or slower media. For a gaming‑focused PC, experts recommend putting extra money into your graphics card, processor, memory, or additional storage capacity rather than paying a large premium for a top‑tier PCIe 5.0 drive whose speed many titles cannot fully use.
Buy if / Skip if
- Buy the Samsung 990 PRO if you want near‑max PCIe 4.0 gaming SSD performance with reliable 2TB capacity and do not need Gen5 bragging rights.
- Skip the Samsung 990 PRO if your budget is tight and you would gain more from a stronger GPU, CPU, or extra RAM for better gaming performance overall.
- Buy the WD_BLACK SN8100 if you are building an enthusiast system where peak PCIe 5.0 speeds support mixed gaming and heavy content‑creation workloads.
- Skip the WD_BLACK SN8100 if you expect its nearly double sequential speed to halve your game load times, because gaming gains are far smaller than the benchmarks suggest.
- Buy the WD_BLACK SN7100 if you want budget NVMe storage that feels fast in games while saving money to spend on graphics or a larger total capacity.
- Skip the WD_BLACK SN7100 if you need the absolute highest SSD benchmarks for professional workflows rather than value‑focused gaming.
- Buy the microSD solution if your laptop has a card slot and you need cheap extra space for non‑performance‑sensitive media and archives while you delay a full SSD upgrade.
- Skip the microSD solution if you need a true secondary gaming SSD, because even large UHS‑I cards are far slower than NVMe and are not a full replacement.
- Buy the external SSD approach if you want flexible storage that can run PC games directly, offload rarely played titles, and move libraries between systems without opening hardware.
- Skip the external SSD approach if you are on PS5 and expect to run PS5 titles directly from USB storage, because those games must be copied back to internal storage before play.
