Ambient lighting is a tool, not décor
A monitor light bar is a slim, anti-glare LED fixture that mounts above your display to provide controlled desk ambient lighting, balancing screen brightness with the surrounding environment to reduce eye strain, improve perceived contrast, and keep your work surface visible without filling your field of view with distracting RGB effects.
If you care about eye strain reduction more than rainbow lighting, the real question is not “RGB or no RGB?”, but “controlled light or chaos?”. On one side, you have a purpose-built monitor light bar like the Xiaomi Mijia Monitor Light Bar 2, tuned for anti-glare and color accuracy. On the other, a DIY Arduino system with WS2812B LEDs that can sync in real time with your monitor for custom control and bias lighting. Both are miles ahead of random RGB panels stuck behind a screen, but they solve different problems: one is a precision desk tool; the other is a flexible, hackable lighting surface.
The practical stance: your lighting should fade into the background. Anything that calls attention to itself while you work is decoration, not a tool.

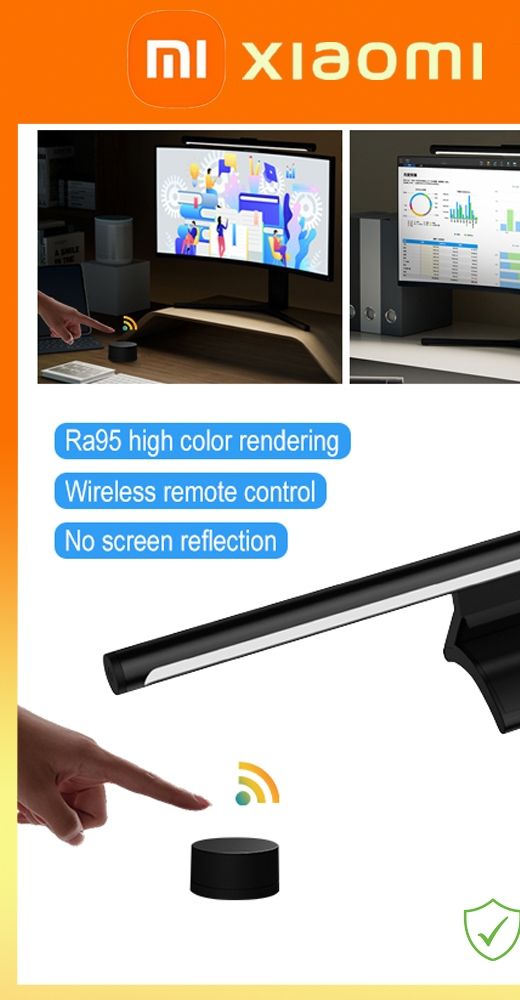

Xiaomi Mijia Monitor Light Bar 2: a focused desk tool
The Xiaomi Mijia Monitor Light Bar 2 is unapologetically utilitarian. Its core appeal is an anti-glare LED design that uses a redesigned asymmetrical lighting layout with a 20.8-degree shielding angle so light falls on the desk, not into your eyes or back onto the screen. That “light without visible glare” approach is exactly what long work sessions need: a clean pool of illumination that does not fight your monitor.
Under the housing are 108 custom full-spectrum LED chips tuned to cut down on harmful blue light and mimic morning sunlight. One quotable claim stands out: “Depending on how high you mount it — 40cm, 45cm, or 50cm above the desk — it can produce maximum illuminance ranging from 1,100 to 1,800 lux”. That is brighter than typical reading lamp standards and more than enough for spreadsheets, sketching, or hardware work. Color metrics like Ra 96 and R9 95 back up the idea that this light bar keeps documents and physical objects looking natural.
You also get practical hardware details that matter in daily use. The bar extends to 50cm with a clamp that grips screens 5mm to 65mm thick and supports curved monitors between 1000R and 1800R. Instead of leaning over your monitor to tap a button, a small wireless dial adjusts brightness and color temperature, saves presets for work or relaxation, and hooks into Xiaomi’s HyperOS Connect smart ecosystem. At 259 yuan (~$39), it is a budget-friendly desk upgrade for creators who want functional lighting instead of flashy panels.
| Spec / Feature | Xiaomi Mijia Monitor Light Bar 2 | DIY Arduino + WS2812B System |
|---|---|---|
| Primary role | Anti-glare monitor light bar for desk ambient lighting | Real-time ambient lighting that mirrors on-screen content |
| Light source | 108 custom full-spectrum LEDs with high color accuracy (Ra 96, R9 95, CQS 98, Rf 97) | WS2812B individually addressable LEDs; 60 LEDs per meter strip |
| Glare & beam control | Asymmetrical layout with 20.8° shielding angle to avoid eyes and screen reflections | No inherent shielding; depends on how you mount the strip |
| Brightness / output | 1,100–1,800 lux depending on mounting height (40–50cm) | Output depends on strip length and power; significant consumption at high brightness |
| Mounting & fit | 50cm bar with clamp for 5–65mm thick monitors, supports 1000R–1800R curves | Flexible strip that can be mounted around the monitor or desk edges |
| Control method | Wireless dial for brightness, color temperature, and presets; smart ecosystem support | PC software (Prismatik) + Arduino Nano interpreting Adalight protocol |
| Price / cost baseline | 259 yuan (~$39) | Cost equals Arduino Nano + WS2812B strip + power and materials (not priced in source) |
| Smart integration | HyperOS Connect ecosystem for broader smart home control | Prismatik on PC streams data using Adalight; no mention of broader home integration |
| Eye strain focus | Designed to reduce glare and blue light; mimics morning sunlight | Focuses on immersion and bias lighting; no dedicated anti-glare optics |
| Power caveats | No specific caveat mentioned; standard light bar power draw | Significant power consumption at high brightness; needs stable external supply |
DIY Arduino + WS2812B: customizable ambient sync for tinkerers

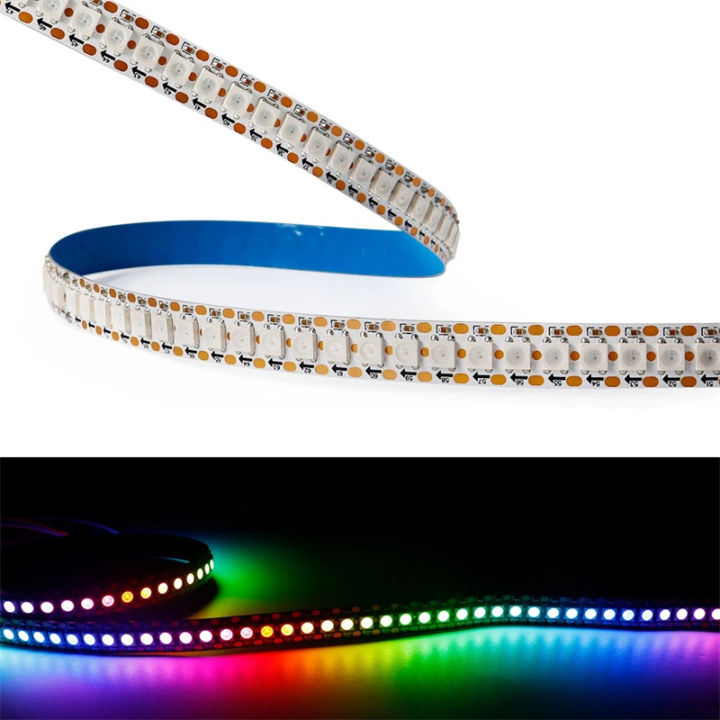

If the Xiaomi bar is a finished tool, the Arduino + WS2812B combo is a lighting construction kit. Using a WS2812B LED strip, each LED is individually addressable at 60 LEDs per meter, with an integrated driver in every package and a one-wire digital protocol. The system taps Prismatik on the PC, which divides the screen into regions, maps them to LEDs, and streams RGB data using the Adalight protocol. The result is real-time ambient lighting that extends your content onto the wall or edges of your setup and reacts instantly to on-screen changes.

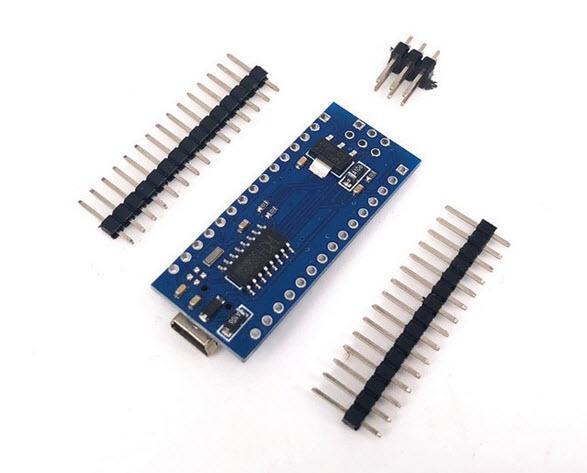

At the heart is an Arduino Nano running an improved Adalight implementation with better synchronization, data validation, and stability. It listens for a strict "Ada" header, LED count bytes, and a checksum, then renders a full RGB frame to the strip via FastLED. According to the project description, “The system successfully produces real-time ambient lighting that mirrors on-screen content with high accuracy and minimal latency” and maintains smooth transitions with no visible flicker. For video, gaming, and creative work, that low-latency bias lighting can reduce perceived contrast jumps and make your display feel larger.
This path is not plug-and-play. You need an external 5V power supply, careful wiring, and awareness that power consumption becomes significant at high brightness and demands a stable source. The upside is control: color zones, effects, and layouts are all yours to script. For people who dislike fixed-function devices and who enjoy tuning their environment, this DIY route can be a more interesting—and still budget-friendly—alternative to branded RGB panels, especially when you keep animations subtle and focused on bias lighting instead of light shows.
Where each approach excels—and where both fall short
Looking at eye comfort, the Xiaomi monitor light bar has a clear advantage. Its 20.8-degree shielding angle and asymmetrical optical design are explicitly built to keep light off your eyes and your screen. Combined with full-spectrum LEDs tuned to reduce harmful blue light and mimic morning sunlight, it behaves more like a careful task lamp than a decorative strip. For reading, editing, or pen-and-paper work, that precision wins.
The Arduino + WS2812B system wins on immersion and flexibility. It can extend colors beyond the display, match screen edges in real time, and update frames with high accuracy and minimal latency. That makes it better suited to media-heavy workloads, color-coded dashboards, or creative experimentation. Its improved Adalight implementation—complete with header checks, checksums, and frame-based updates—keeps communication stable and flicker-free. Where it loses is simplicity: cabling, software configuration, and external power all demand attention, and the strip itself lacks anti-glare optics.
Both share one quiet weakness: they can turn into distractions if you abuse them. Excess brightness from the WS2812B strip not only draws significant power but can overwhelm your field of view. Even the Xiaomi light bar, with its high 1,800-lux ceiling at some mounting heights, can cause fatigue if you crank it up unnecessarily. The point of desk ambient lighting is subtlety; leave the light shows to living-room TVs.
Conclusion: design for eyes first, aesthetics second
If your priority is eye strain reduction during long work sessions, an anti-glare monitor light bar with controlled optics is the most direct answer. Xiaomi’s Mijia Monitor Light Bar 2 brings 108 full-spectrum LEDs, a carefully shaped beam, wireless control, and smart integration into a compact package at 259 yuan (~$39), making it a straightforward upgrade over a traditional desk lamp for many setups.
For tinkerers and creators who want desk ambient lighting that doubles as an expressive canvas, a DIY Arduino Nano with a WS2812B strip and Prismatik delivers real-time monitor sync, smooth color transitions, and individually addressable zones without paying for branded RGB décor. The key is restraint: keep animations mild, bias lighting subtle, and brightness reasonable so your lighting serves your work instead of stealing the scene.
In a world full of RGB overkill, the most modern choice you can make is boring lighting that keeps your eyes comfortable and your desk visible—and stays out of the way while you focus.
