What 4-Rank DDR5 CUDIMMs Are and Why They Matter
4-rank DDR5 CUDIMM modules are quad-rank clocked unbuffered DIMMs that integrate a clock driver to maintain signal quality while delivering high-capacity RAM desktop configurations from fewer slots. Traditional DDR5 UDIMMs usually top out at two ranks per module, limiting per-stick capacity and forcing builders to populate all four DIMM slots to reach 256GB. That tradeoff came with a serious catch: more slots meant higher electrical load, reduced signal integrity, and lower achievable memory frequencies. 4-rank CUDIMM modules change this pattern by placing four ranks of DRAM behind an on-module clock driver that keeps timing cleaner even under heavy load. The result is DDR5 256GB memory configurations that run at aggressive DDR5-8000 specifications from only two slots, opening new options for compact builds and high-end desktops that need both speed and capacity without giving up stability.
From Four Slots to Two: How 256GB Became Practical

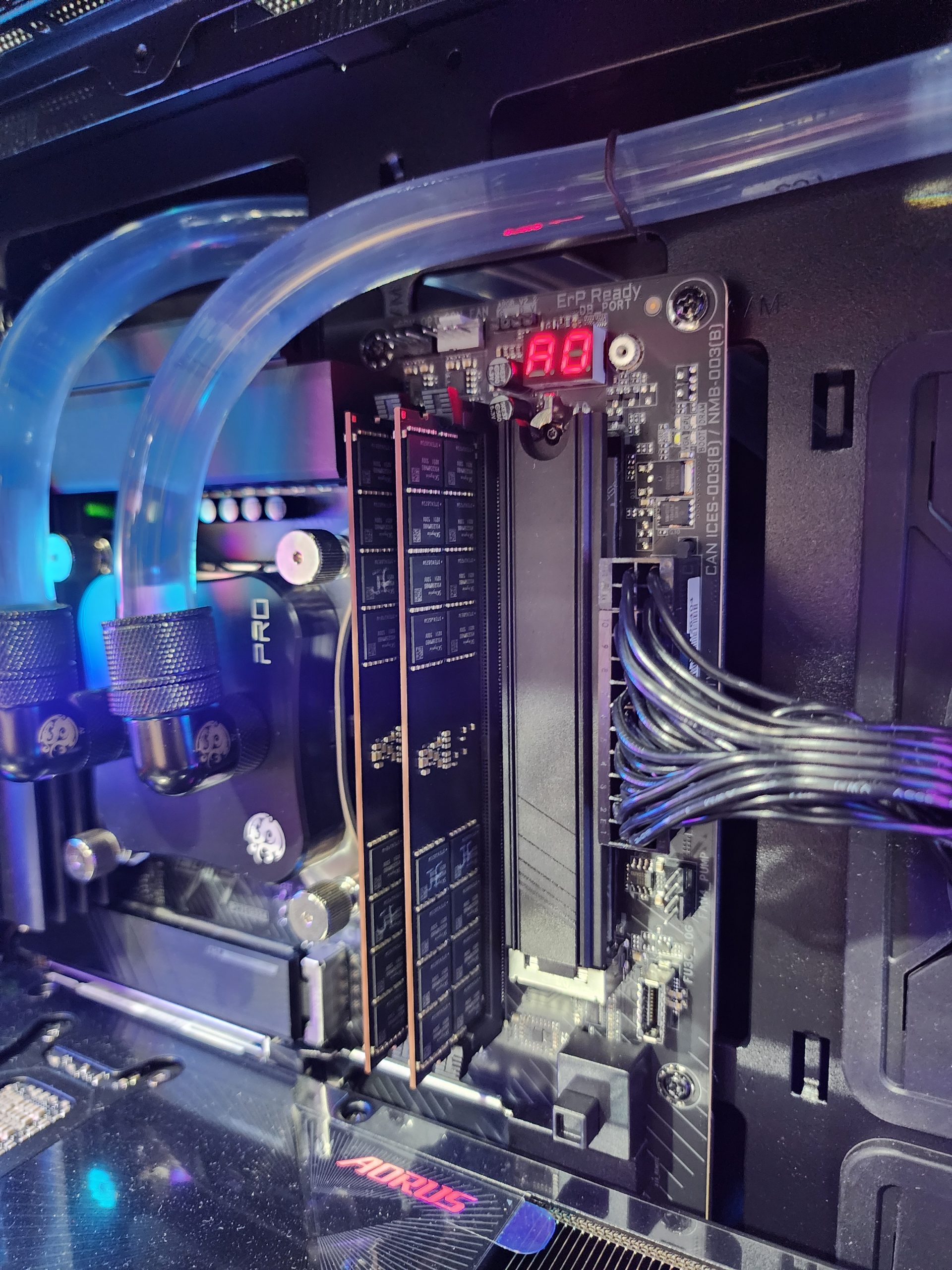

On earlier DDR5 platforms, hitting 256GB on a desktop meant filling four DIMM slots with 64GB dual-rank modules, then watching memory frequency step down to preserve stability. Signal reflections and voltage droop across fully populated channels often forced careful tuning or conservative XMP settings. Origin Code and GIGABYTE are now demonstrating an alternative: 128GB 4-rank CUDIMM sticks that provide 256GB from only two slots, validated on Intel’s Core Ultra 7 270K Plus paired with the GIGABYTE Z890 AORUS ELITE DUO X. According to The FPS Review, “Origin Code’s 4R CUDIMM DDR5-8000 kit packs 128 GB per stick while maintaining full DDR5-8000 speeds.” For builders, that means high-capacity RAM desktop layouts can keep top-end transfer rates without juggling four DIMMs, easing stress on the memory controller and simplifying layout choices on gaming and creator motherboards.
Balancing Capacity, Frequency, and Stability with 4R CUDIMM

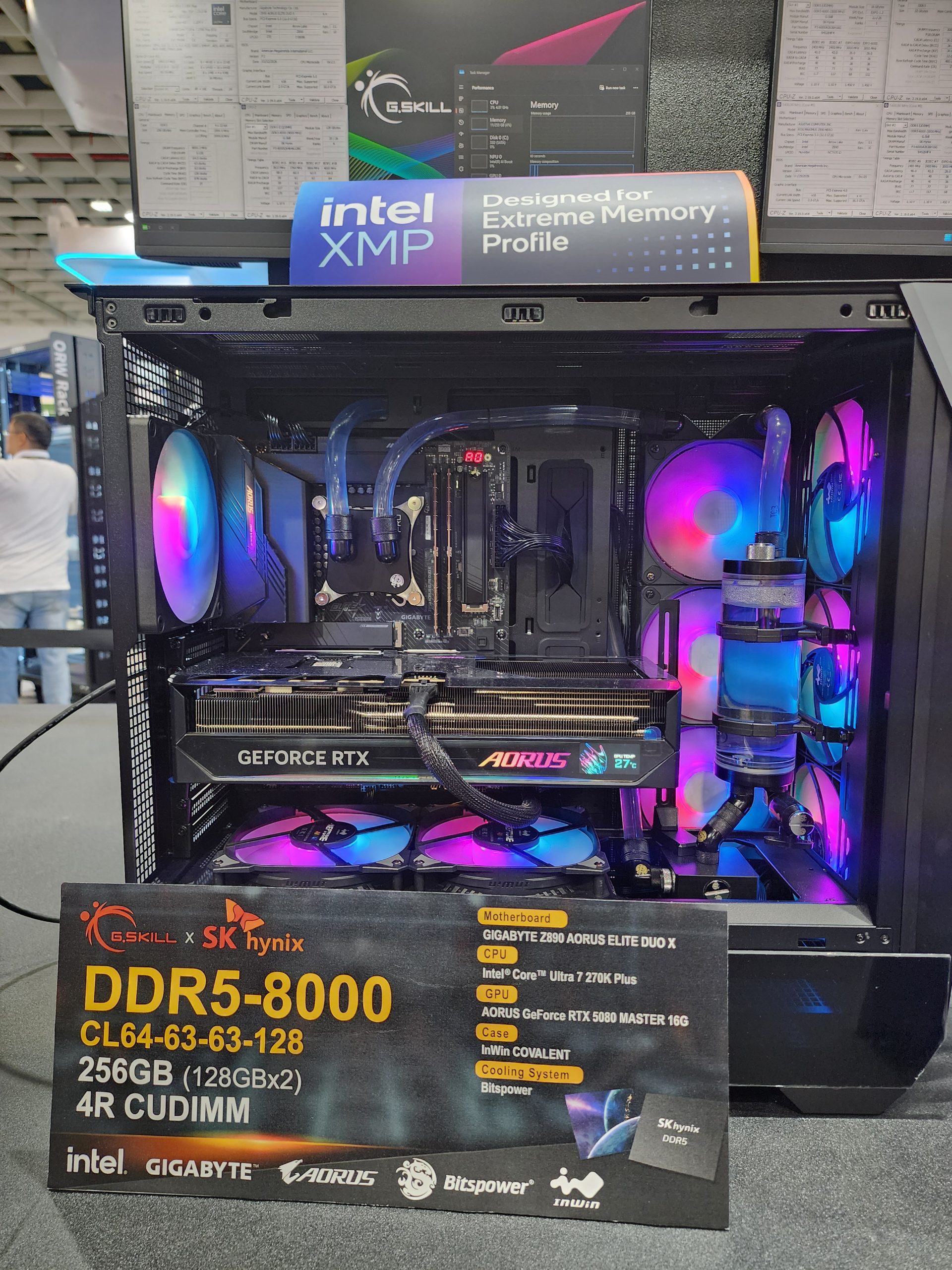

The core innovation in 4-rank CUDIMM modules is the integrated clock driver (CKD), which reshapes timing signals before they hit each rank, reducing jitter and skew. Standard dual-rank UDIMMs extend the memory bus directly, so each additional module increases electrical load and degrades margin at high frequencies. With a CKD, the DIMM undertakes part of the signal conditioning work normally handled by the motherboard and CPU. That allows quad-rank DDR5 sticks to reach DDR5-8000 specifications and beyond without sacrificing stability. Origin Code is offering two 256GB kits: a standard DDR5-8000 configuration at CL64 and 1.1V, and a tighter DDR5-8000 option at CL42 and 1.4V for latency-sensitive workloads. G.Skill mirrors this direction, running a DDR5-8000 4-rank CUDIMM demo at 256GB on the same GIGABYTE Z890 AORUS ELITE DUO X platform, signaling broad ecosystem tuning around this new module class.
Passive and Active Cooling for High-Speed DDR5

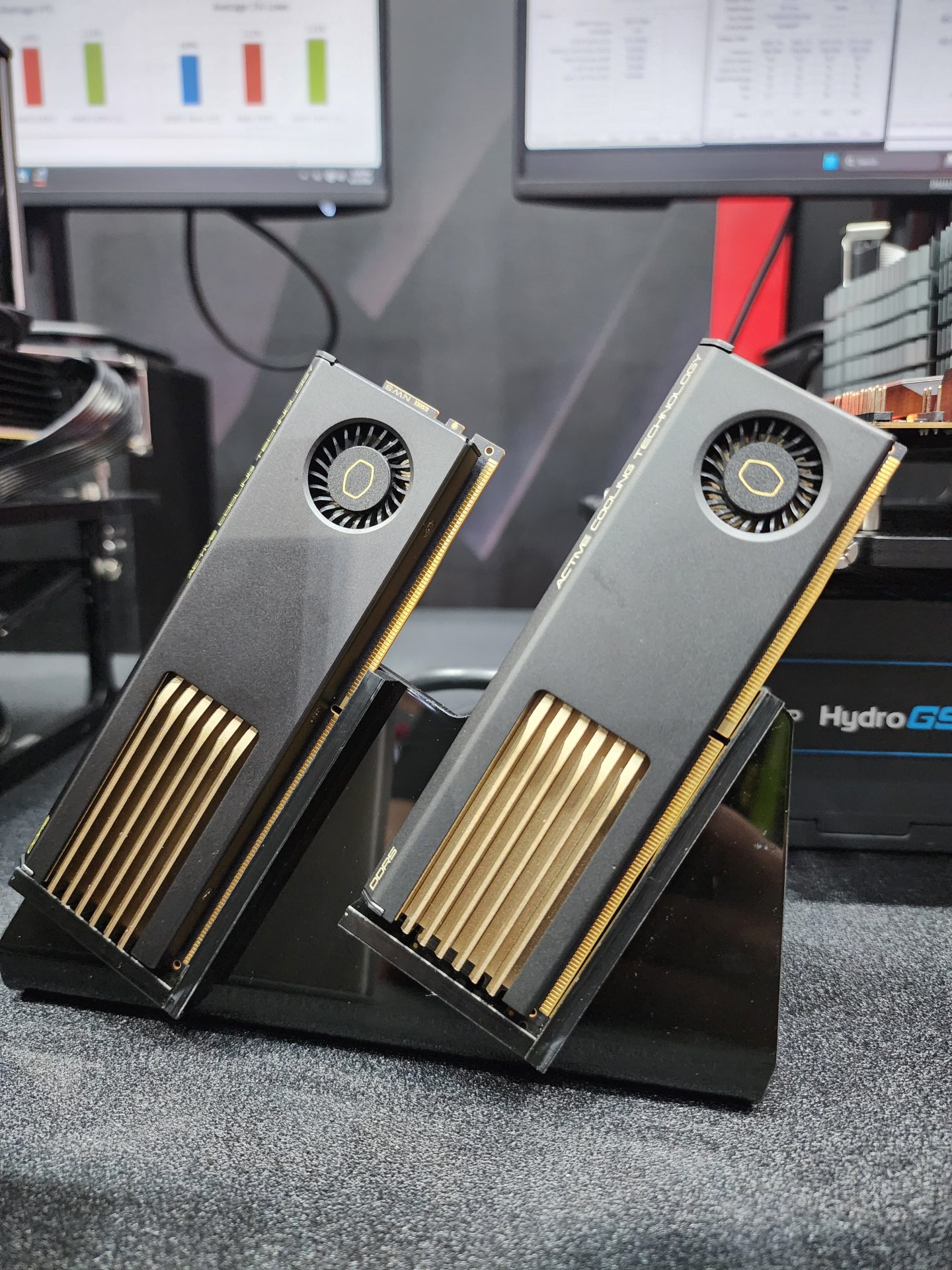

High-density, high-frequency memory puts thermal demands on both DRAM chips and on-module clock drivers, and vendors are taking different paths to manage heat. G.Skill’s demo rig includes a DDR5-8000 4-rank CUDIMM configuration using passive cooling only, relying on conventional heatsinks and case airflow to keep temperatures in check at 256GB and 8000 MT/s. Elsewhere in its lineup, G.Skill is pushing more aggressive cooling with the MasterDIMM AC series, co-developed with Cooler Master, which uses a thick heatsink and a small built-in fan for active cooling. These active-cooled modules target next-generation platforms, with advertised speeds up to 6000 MT/s at CL26 through AMD EXPO and up to 8400 MT/s under Intel XMP 3.0. The choice between passive and active designs means builders can match cooling complexity to their goals, from quiet high-capacity workstations to overclocked showpiece rigs.
Ultra-Low Voltage and High-Frequency Tuning
An important part of the 4-rank CUDIMM story is power efficiency. Origin Code’s standard DDR5-8000 kit operates at 1.1V, the JEDEC baseline for DDR5, proving that DDR5 256GB memory configurations can hit very high transfer rates without heavy overvolting. For users who prioritize latency, a second 8000 MT/s kit with CL42 timings pushes voltage to 1.4V, showing how far tuning can go when thermals and power budgets allow. G.Skill’s broader DDR5 lineup underlines the flexibility of CUDIMM designs, with demos ranging from DDR5-10933 CUDIMM at 48GB to DDR5-9200 CUDIMM at 32GB, plus multiple UDIMM kits tuned for DDR5-6000 with EXPO and XMP profiles. In AI-centric tests, G.Skill’s DDR5-6000 EXPO ULL modules delivered up to 32% better token generation performance than a DDR5-5600 CL46 kit, highlighting how combined capacity, speed, and latency gains can translate into tangible application-level benefits.
