Ryzen AI mini PCs: compact workstations built for local AI
Ryzen AI mini PCs are small-form-factor desktop systems built around AMD’s latest AI-focused processors, combining multi-core CPUs, integrated graphics, and dedicated NPUs to deliver high local AI performance for tasks such as machine learning, content creation, and software development without relying on cloud infrastructure. The GMKtec EVO-X1 Pro and Acemagic F9A embody this trend, but they take very different approaches to what a compact workstation should be. One is a high‑RAM, fixed‑spec box with clear pricing; the other is a Ryzen AI Max mini PC that leans into workstation‑class specs and expandability. If you work with models, media, or modern AI tools, the choice between them is less about raw numbers and more about how you plan to grow your workflow over the next few years.
The key takeaway: both machines are serious local AI performers, but the EVO-X1 Pro feels like a polished, ready-to-buy appliance, while the F9A looks like a more ambitious platform whose real value will depend on final pricing and configurations.

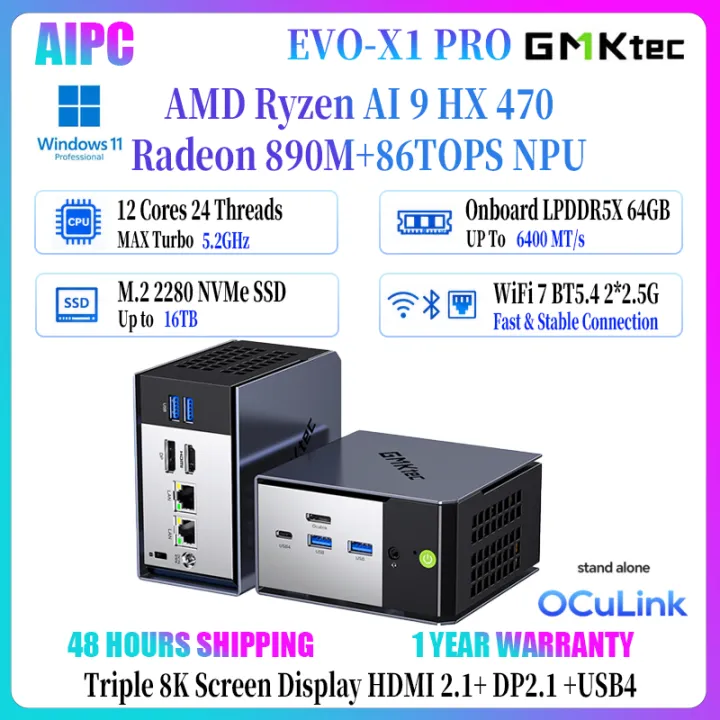

GMKtec EVO-X1 Pro: fixed high-end specs and known pricing
GMKtec’s EVO-X1 Pro targets professionals who want a compact workstation with strong local AI performance and don’t need to tinker with base specs. It is powered by the Ryzen AI 9 HX 470, a 12‑core, 24‑thread Zen 5 processor capable of boosting up to 5.2 GHz. This chip combines CPU muscle with Radeon 890M integrated graphics, which are described as sufficient for gaming and intensive graphical workloads without a discrete GPU. On the AI side, the system can deliver 86 TOPS of AI power, thanks in part to an NPU rated for 55 TOPS of AI performance, giving it solid local AI performance TOPS for on-device inference and tooling.
Memory and storage are straightforward: the EVO-X1 Pro starts at 64 GB RAM and 1 TB storage, with an option for 64 GB RAM and 2 TB storage. According to one hardware reporter, “The 64 GB + 1 TB configuration is priced at $1,599 (approx. RM7,380), while the one with 2 TB storage will cost $1,769 (approx. RM8,170)”. You also get modern connectivity such as Wi‑Fi 7, Bluetooth 5.4, dual 2.5 G LAN, multiple USB‑A ports, a USB 4.0 port, and an OCulink interface for adding an external GPU if needed. In short, this compact workstation’s specs feel balanced: high RAM by default, decent integrated graphics, and dependable local AI performance with a clear, up‑front cost.
| Spec | GMKtec EVO-X1 Pro | Acemagic F9A |
|---|---|---|
| Processor | Ryzen AI 9 HX 470 (12C/24T, up to 5.2 GHz) | Ryzen AI Max+ 395 (16C/32T) |
| AI compute | 86 TOPS total, 55 TOPS NPU | 126 TOPS total, 50 TOPS NPU |
| Memory options | 64 GB LPDDR5, no 32 GB option | Up to 128 GB LPDDR5X‑8000 |
| Storage | Up to 2 TB SSD (config options up to 2 TB) | Two PCIe 4.0 x4 M.2 NVMe slots |
Acemagic F9A: Ryzen AI Max+ and 2‑liter expandability
The Acemagic F9A takes a more aggressive stance on what a compact workstation can be. Built around AMD’s Ryzen AI Max+ 395 processor, it aims directly at AI developers, video editors, and professionals who need strong compute performance without dedicating space to a full desktop tower. The 16‑core, 32‑thread Zen 5 CPU is paired with RDNA 3.5 integrated graphics and an XDNA 2 NPU rated at up to 50 TOPS, contributing to a claimed 126 TOPS of total system compute. This figure suggests more headroom for local AI performance TOPS, particularly for heavier multi‑model workloads, even though the real benefit will depend on how your applications use CPU, GPU, and NPU together.
Where the F9A really stands out is its compact workstation specs and chassis design. It supports up to 128 GB of LPDDR5X‑8000 unified memory, doubling what the EVO-X1 Pro offers. Storage is handled by two PCIe 4.0 x4 M.2 slots for NVMe SSDs, allowing flexible high‑speed storage setups. The system includes an OCuLink PCIe 4.0 x4 interface and two 40 Gbps USB4 ports for high‑bandwidth expansion, alongside HDMI 2.1, dual 2.5 GbE, three 10 Gbps USB‑A ports, an SD 4.0 card reader, and Wi‑Fi 7 plus Bluetooth 5.4. All of this fits into a 2‑liter, 158 x 158 x 85 mm CNC‑machined aluminum unibody chassis with a customizable RGB light ring and a dedicated Copilot button. Notably, pricing and release timing have not yet been announced, which makes its ultimate value proposition speculative for now.
Which AI-focused mini PC makes more sense for professionals?
From a professional workflow perspective, the GMKtec EVO-X1 Pro looks like the safer short‑term purchase. Its known price brackets of $1,599 (approx. RM7,380) for 64 GB RAM and 1 TB storage and $1,769 (approx. RM8,170) for 64 GB RAM and 2 TB storage make budgeting straightforward, and 86 TOPS of AI power with a 55‑TOPS NPU will be plenty for most local inference, creative tools, and everyday AI assistants. It’s a good fit for users who value a compact, capable workstation that they can deploy now with predictable cost and configuration. The integrated graphics and OCulink port further lower the barrier to occasional GPU‑accelerated work.
The Acemagic F9A, by contrast, reads like an aspirational choice. Its Ryzen AI Max+ 395 processor, 126 TOPS of total compute, and support for up to 128 GB of LPDDR5X‑8000 unified memory point toward users running large language models and multi‑GPU experiments where memory capacity and local AI performance TOPS matter. Acemagic even claims that suitable configurations can run large language models with up to 120 billion parameters locally. Combine that with the 2‑liter chassis dimensions and extensive I/O—including OCuLink and dual USB4—and you get a more expandable platform. Yet without confirmed pricing, recommending it over the EVO-X1 Pro is premature. At this stage, the EVO-X1 Pro is the reliable known quantity, while the F9A is the promising wildcard whose attractiveness will hinge on how aggressively it’s priced.
