The Contamination Problem Holding Resin 3D Printing Back
For years, multimaterial resin printing has been more aspiration than reality. Standard resin 3D printers rely on a single vat filled with one photopolymer, because swapping materials mid-job risks contamination. Even minor cross-mixing can ruin mechanical properties, color accuracy, or biocompatibility, making 3D printer material switching impractical for production. Earlier experiments tried flushing shared tanks or using separate wash stations between resins, but these approaches wasted material, slowed print cycles, and still left traces of unwanted resin on each layer. As a result, designers were forced to segment products into separate prints—one for rigid parts, another for flexible or conductive features—and then bond or assemble them afterward. This extra labor narrowed resin printing innovation to primarily single-material use cases, from dental models to figurines, and made it difficult to produce truly functional, multi-property parts in a single build.
Inside the Polysynth P1’s Eight-Resin Architecture

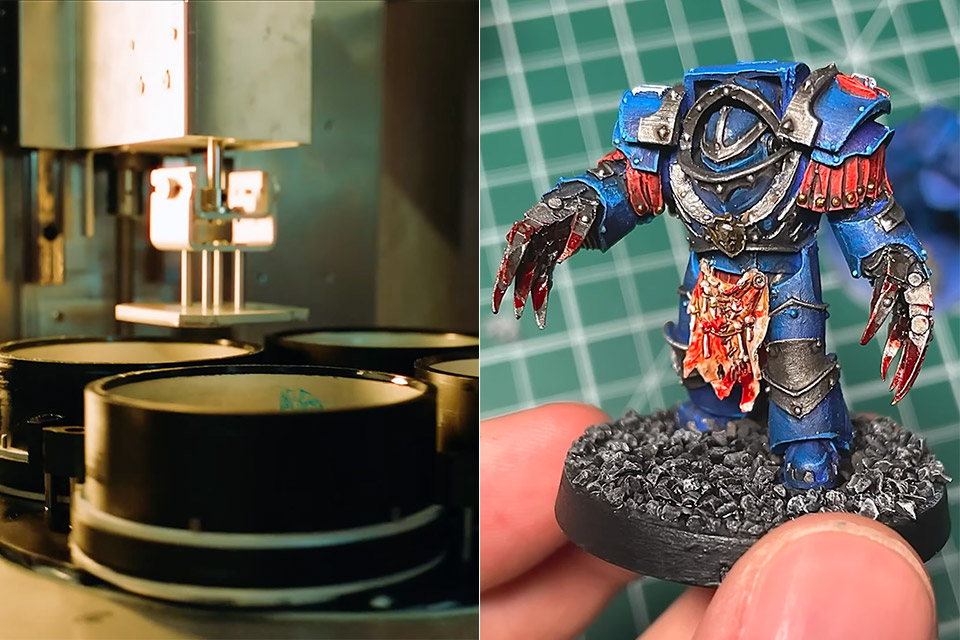

The Polysynth P1 printer tackles contamination at the hardware level with a carousel of eight miniature, circular resin tanks arranged around the build area. Each tank can hold a distinct material—from stiff structural resins to super-soft elastomers and even conductive formulations capable of carrying current. During a print, the build platform slips into one tank, and a DLP-style UV system cures the entire layer at once. After exposure, the platform rises and the carousel spins rapidly, using centrifugal force to fling uncured droplets back into the same tank. A servo-driven mechanical linkage then slams on the brakes, re-aligning the platform with micron-level accuracy before it descends into the next resin. Because each vat is small and isolated, there is just enough resin for the job, and the spinning step effectively wipes the part clean between materials without solvents or separate cleaning stations.
A Clean Breakthrough in Multimaterial Resin Printing
What makes the P1 stand out is how it turns a messy cleaning step into an integrated, repeatable motion. By spinning the platform between tanks, the system leaves each layer’s surface essentially immaculate, ready for a different resin on the next pass. This directly addresses the contamination issue that has historically blocked multimaterial resin printing. Unlike systems that swirl multiple resins in a shared volume, the P1’s small, dedicated tanks keep materials separated while minimizing waste. The result is seamless automated 3D printer material switching without manual intervention or lengthy wash cycles. Designers can specify where rigid, flexible, or conductive segments appear within a single model, and the printer executes those transitions layer by layer. Because the spin cycle adds only a few seconds, overall throughput remains competitive, preserving the high-speed advantage of DLP-based resin printing even in complex multimaterial jobs.
New Design Possibilities in Dentistry and Electronics

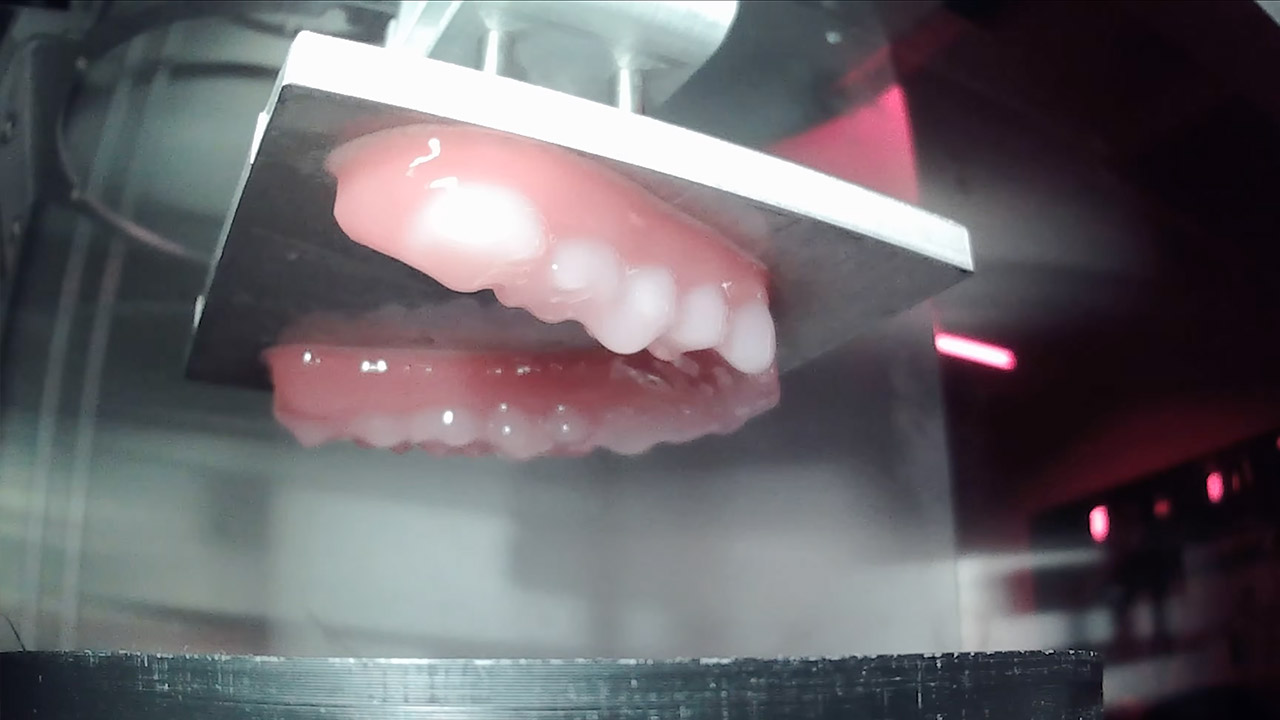

Polysynth is initially targeting dental labs, where clinical-grade, biocompatible resins are already part of daily workflows. With the P1, a full denture can be produced in one job, combining hard, tooth-colored segments with soft, gum-like material—no secondary molding, gluing, or assembly needed. The micron-level precision suits surgical guides and customized crowns that must blend ultra-hard zones with flexible regions in a single piece. Beyond healthcare, the P1 opens the door to functional electronics prototypes. Conductive resins can print traces and circuits embedded inside structural housings during the same build, so the finished part comes off the machine with wiring integrated, reducing or eliminating soldering and manual assembly. Demonstrations have shown simple circuit boards and flexible components printed together, hinting at future wearable devices with rigid frames, elastic straps, and built-in conductive channels—all created in a single multimaterial resin printing cycle.
From Prototype Breakthrough to Production Tool
While multimaterial resin printing has long been a lab curiosity, the Polysynth P1 aims to become a practical production platform. The machine is available for pre-order starting at USD 4,999 (approx. RM23,000), signaling a move beyond experimental rigs toward commercially accessible equipment. Leveraging fast DLP exposure, it cures full layers in one shot, and the added spin-and-switch step only introduces a short pause between materials. Some tuning is required for thicker or highly specialized resins, but the team has already optimized profiles for common dental and engineering applications. If Polysynth can deliver consistent print quality at this level of automation, resin printing innovation may finally catch up with filament-based systems in multimaterial capability. That would expand resin’s role from single-material showpieces to fully functional products, accelerating adoption in fields that need complex, integrated parts right off the build platform.
