Extreme metal additive manufacturing is no longer optional
Metal additive manufacturing for extreme environments describes 3D printing technologies specifically engineered to produce large, high-performance metal parts that can survive severe heat, stress, and contamination risks in mission-critical aerospace, energy, and industrial applications, using tightly controlled atmospheres, specialized materials, and advanced motion systems to achieve repeatable, certifiable results at meaningful production scales. The latest launches in this space show a clear shift: systems are no longer general-purpose machines with a titanium or refractory metals option box, but purpose-built platforms aimed at three hard problems—size, material compatibility, and thermal performance. iAM3D’s new laser directed energy deposition platform pushes the envelope on part scale, GEFERTEC’s titanium WAAM system chases purity and repeatability, and Elmet’s powder bed approach targets hypersonic heat exchanger design and reliability. Together, they mark metal additive manufacturing’s move from experimental to indispensable in the harshest environments.
Size as a design weapon: iAM3D’s XXL laser directed energy deposition
iAM3D’s LPW Z2500 is a large-format metal 3D printer that treats size as a strategic advantage rather than a convenience feature. With a 2000 × 2000 × 2500 mm build envelope, a 6 kW fiber laser, and an 8‑axis platform with simultaneous 5‑axis motion, it is plainly aimed at shops where components are measured in meters and replacement costs in six or seven figures. The system’s dual-mode laser directed energy deposition—powder-fed and wire-fed, switchable via an integrated beam switch—lets users choose between higher resolution and higher deposition rates up to several kilograms per hour without changing machines. A fully enclosed argon chamber held to 10 ppm oxygen is not a nice-to-have; it is what makes titanium, Inconel, tantalum, and other reactive or refractory materials viable at this scale. If its metallurgical quality and repeatability stand up to scrutiny, one XXL system replacing multiple machines could materially cut capital expenditure and floor space for heavy industry users.
Material purity over flexibility: arcTitan and titanium-first WAAM
In titanium, flexibility has been the enemy of reliability. GEFERTEC’s arcTitan takes the opposite stance: build a titanium WAAM system around one material and one problem—oxygen control. The machine combines a sealed build chamber flooded with shielding gas and a plasma-based wire-arc process, holding oxygen between 10 and 15 ppm throughout the build and eliminating the patchwork of external enclosures and gas workarounds typical of retrofitted platforms. According to managing director Johannes Zuckschwerdt, “the greatest challenge in the additive manufacturing of titanium is ensuring reproducible process conditions.” That quote gets to the core of the strategy: every subsystem, from gas management and sensors to wire feeding and parameters, was engineered specifically for titanium rather than adapted from a general-purpose machine. With a 2 × 0.7 × 1 meter envelope and up to 3 kg per hour deposition, arcTitan trades material agnosticism for confidence in certifiable aerospace and energy parts—an attractive deal for organizations that care more about repeatability than versatility.
Thermal performance as the main constraint: Elmet’s hypersonic focus

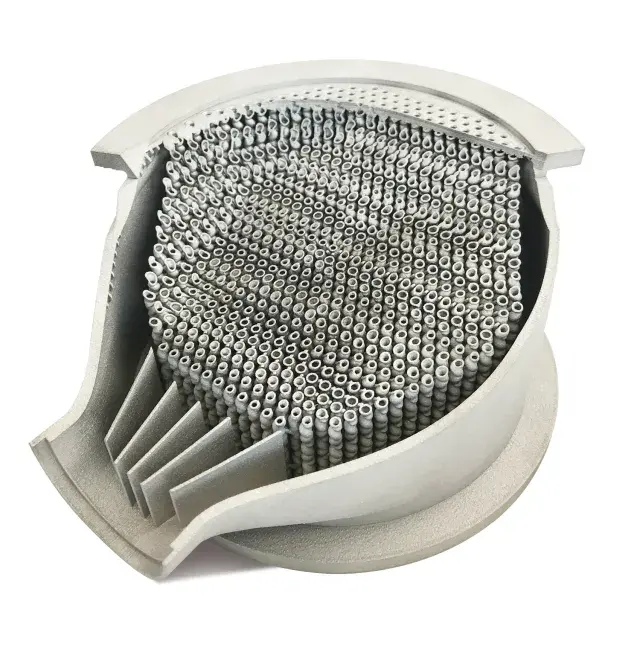

If iAM3D targets size and GEFERTEC targets purity, Elmet Technologies is aiming squarely at thermal performance. Its installation of a DMP Flex 350 Triple metal 3D printer is tied to one application: monolithic hypersonic heat exchangers from C103, a niobium–hafnium–titanium alloy built for extreme high-temperature aerospace use. The powder bed system’s low oxygen architecture keeps oxygen levels below 25 ppm, typically between 0 and 6 ppm, allowing powder reuse without degrading material properties in a costly refractory feedstock. By printing large heat exchangers as single components in a 350 × 350 × 350 mm volume with three lasers, Elmet can avoid brazed joints that are notorious failure points under intense thermal cycling and exploit thin walls and aggressive surface‑to‑volume ratios that conventional fabrication struggles to deliver. The plan to qualify and certify the system for production in 2026 underscores that this is not a research one-off—it is a push to bring hypersonic-grade thermal hardware into repeatable metal additive manufacturing.
Three paths, one direction: specialized AM for mission-critical work
Viewed together, these three systems argue that the future of metal additive manufacturing in extreme environments will be specialized, not universal. The XXL laser directed energy deposition platform is unapologetically about size and consolidation: one 8‑axis, dual-mode machine to cover powder and wire deposition, internal and external cladding, fabrication, and repair in a single enclosure. The titanium WAAM system sacrifices material breadth to secure a controlled atmosphere and reproducible process conditions for a single high-value material, aligning with aerospace and energy certification demands. The hypersonic heat exchanger route focuses powder bed fusion on a narrow class of refractory alloys, where low oxygen, powder reuse, and monolithic designs improve both economics and reliability. For ordinary industrial users, the impact is clear: fewer compromises. The choice is no longer between "one machine that kind of does everything" and "no additive at all"—it is between platforms tuned to their most important constraint. That is exactly what mission-critical applications have been waiting for.
