What Dolby Atmos Needs Before It Can Work
A Dolby Atmos setup is a home audio system where every device, cable, and connection in the chain supports Dolby Atmos so object-based spatial audio can travel from the source to your speakers without being downgraded or blocked at any point. If one part fails, the effect collapses into basic surround or stereo. This guide is for people who already have a modern TV, streaming box or Blu‑ray player, and either a soundbar or audio receiver and speakers, but are not hearing the immersive sound they paid for. The real prerequisite is patience: before buying new gear, you need to confirm cable specs, ports, and audio settings, because those small details decide whether Atmos turns on or silently falls back to a lower quality mode.
Dolby Atmos adapts to the devices and audio gear you have, which means it can play through phone speakers, TV speakers, soundbars, or full receiver-based systems. That flexibility is both helpful and confusing; the fewer boxes you add, the easier it is to keep track of what supports Atmos and what does not. The important rule is that every piece of the chain needs to support Dolby Atmos for it to work, including your source app, player, TV, HDMI cable, and audio receiver or soundbar. If you remember that rule while you troubleshoot, you can avoid wasting time on parts that were never capable of Atmos to begin with.
The Hidden HDMI Cable and Port Problems
Most broken Dolby Atmos setups come down to boring hardware: HDMI cable compatibility and port selection. HDMI cables look similar, but they follow different versions with different bandwidth and features. Older cables may have lived behind your TV for years, but they were designed before Atmos streaming became normal. To carry Dolby Atmos in its common streaming form over Dolby Digital Plus with ARC support, you need at least an HDMI 1.4 cable. For lossless Atmos over Dolby TrueHD from 4K UHD Blu‑ray, you need an HDMI 2.1 cable with eARC and support for the Dolby TrueHD codec, plus source, TV, and audio gear that all support eARC. If any link in that chain is weaker, Atmos either fails to start or drops to compressed quality.
Ports matter as much as cables. Your TV probably has several HDMI inputs with small labels, but only the ARC or eARC port can send Atmos out to a soundbar or receiver over one cable. When people plug their main device into a random HDMI input, a single HDMI cable can cause the entire Dolby Atmos chain to break. Use the wrong HDMI cable or port, and you could end up hearing Atmos sound at a lower quality than expected—or not at all. People invest hundreds or thousands into a home theater without realizing that an HDMI cable plugged into the wrong ports could throw a wrinkle into the entire setup. The upside is that correcting ports and cables is free if you already own a suitable cable; you are changing how you connect gear, not buying new speakers.
Using Your Audio Receiver the Right Way
Audio receivers are more than big boxes that hook up speakers; they are central hubs that can pass video, decode complex formats like Dolby Atmos, and add extra HDMI ports to your system. Many people use them mainly to gain inputs for consoles and streaming boxes, then forget about audio receiver configuration for spatial formats. Modern receivers worth their salt include Dolby Atmos, DTS:X, Dolby Digital, and more, and you should not buy one without those formats available. A receiver’s HDMI input section can hold several devices, and a single HDMI output feeds the TV, but that output also has to pass Atmos correctly. According to the article’s author, “my receiver…comes with six HDMI ports that let me plug in all of my devices,” a reminder that receivers can quickly fill up yet still organize your system.

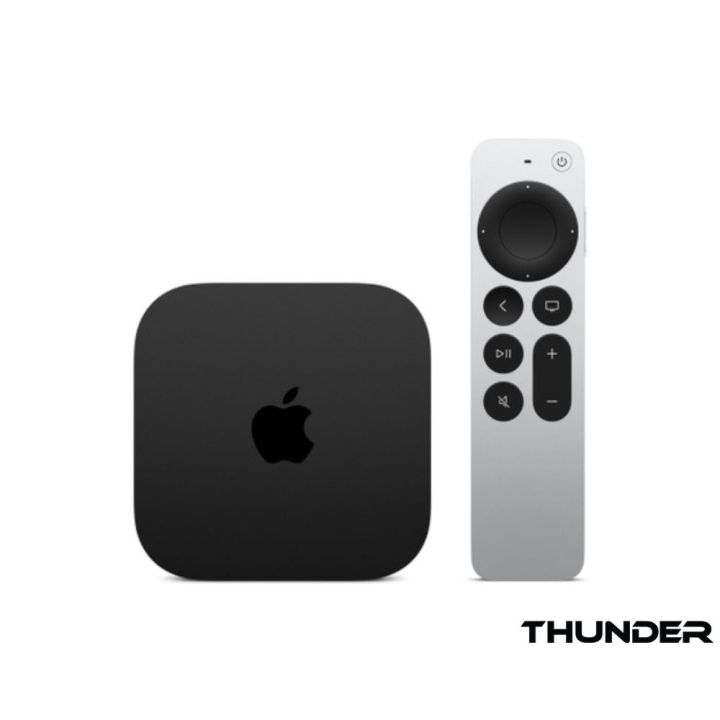

Where people slip up is assuming the receiver can fix anything, no matter what the source box sends. Not every streaming box supports every audio format. The Apple TV 4K, for example, includes Atmos, but does not offer unrestricted audio passthrough, which means a receiver cannot decode other formats if the Apple TV will not pass them along. In that scenario, the receiver is useless because the Apple TV is not letting the audio get to it in the right form. This is why Dolby Atmos troubleshooting always comes back to the full chain: the app must output Atmos, the streaming box must pass it, the receiver must support it, and the TV and HDMI connection cannot strip it out. Once you respect what the receiver can and cannot do, you can use its settings to route the right HDMI input to the right output and unlock Atmos without new hardware.
Step-by-Step: Fixing Atmos Without Calling a Pro
- Confirm that your source app, player, TV, soundbar or receiver all list Dolby Atmos support in their audio settings or specifications, because every part of a setup needs to support Dolby Atmos for it to work.
- Check each HDMI cable in your Dolby Atmos setup; replace any unknown or very old cable with one that meets at least HDMI 1.4 for streaming Atmos over Dolby Digital Plus, or HDMI 2.1 with eARC support for lossless Atmos via Dolby TrueHD.
- Move the HDMI cable feeding audio to your soundbar or receiver into the TV’s ARC or eARC HDMI port, and move the cable from the receiver or soundbar’s TV output into its ARC/eARC-labelled port so Atmos content can run through HDMI cables with ARC or eARC.
- On your receiver, assign the correct HDMI input to the device that plays Atmos (streaming box, Blu‑ray player), select that input, and enable Dolby Atmos or automatic decoding in the receiver’s audio mode menu, since most receivers worth their salt include that format.
- Test with known Atmos content from a streaming service or a 4K Blu‑ray disc, watching for an Atmos logo or status screen on your TV or receiver to confirm the object-based audio format delivers a spatial experience on your gear.
These steps look small, but they target the real gotchas. First, checking that each device supports Atmos keeps you from chasing a feature your hardware cannot provide. Second, swapping cables addresses silent failures where older HDMI versions lack bandwidth or ARC support, blocking Atmos even though everything else is compatible. Third, moving connections to ARC or eARC ports ensures audio can travel back and forth between TV and receiver over a single HDMI line. Finally, configuring the receiver guarantees that it is the device decoding Atmos, not falling back to basic Dolby Digital despite being capable of more. Once these are in place, you often find that unlocking Dolby Atmos required no upgrades—just better cable and port choices and a clearer understanding of what each box in the chain does.
What You Get When Atmos Finally Works
When a Dolby Atmos setup is working, the difference is obvious: sound stops feeling glued to the speakers and starts floating in space around you. The object-based audio format delivers a spatial experience on a wide range of supported gear, from TV speakers to full home theater stacks. Atmos shines with streaming platforms, but many enthusiasts find the best way to experience it is through physical media, preferably with a 4K Blu‑ray disc, where you can get lossless Atmos over Dolby TrueHD instead of compressed streams. Blu‑ray discs are the key to getting Dolby Atmos music and movies in lossless audio quality, and almost no one realizes it.
The main takeaway: fixing Atmos is usually worth the time, and often does not require new equipment. Since every part of a setup needs to support Dolby Atmos for it to work, you need to check the tiny details. The common failures—wrong HDMI cable, wrong HDMI port, misconfigured receiver, or a source box that will not pass the format—are annoying but manageable. Once you sort those out, you can enjoy immersive sound without paying for professional installation, and you can use your receiver’s versatility for more than simple speaker hookups, from extra HDMI ports to wireless listening. Watch for new devices that might sneak back in with weaker HDMI specs or limited audio passthrough; keep the chain Atmos-capable, and the system should stay immersive for years.
