What Google’s Open Fitbit Air Design Means for Makers
Designing and 3D printing custom Fitbit Air bands means using Google’s official hardware specifications, CAD drawings, and material guidelines to create personalized, skin-safe accessories that keep the tracker’s sensor module secure and accurate while offering unique styles and potentially lower costs than many off‑the‑shelf options. Google has released detailed 2D CAD drawings, hardware dimensions, and Fitbit Air design guidelines that explain sensor clearance, attachment tolerances, and contact pressure for reliable health readings. According to Google’s community announcement, the hardware specifications and accessory design guidelines for the Fitbit Air tracker are now publicly available so “anyone from independent designers and artisan makers to custom accessory brands can build accessories for the Fitbit Air.” For hobbyists who want to 3D print Fitbit bands, this open ecosystem turns the ultra‑light tracker into a customizable platform instead of a fixed product.
Download the Official Fitbit Air Design Files
To start creating DIY Fitbit Air accessories, first grab the official documentation. Google hosts the Fitbit Air design guidelines and 2D CAD drawings on a dedicated Google Store support page, where you can download PDF drawings and reference material. These documents describe the sensor module outline, sleeve holder geometry, and key mating dimensions needed for compatible custom fitness tracker bands. Android Authority notes that the files are not ready‑to‑print STL models, but they include enough dimensions and tolerances to rebuild the design in CAD software. You will see callouts for attach and detach forces, required clearances around the optical sensors, and reference materials for safe skin contact. Save all PDFs, measurement tables, and any DXF or similar formats to a project folder, since you will move between them and your CAD tool as you model your first 3D printable Fitbit Air band.
Rebuild the Band Geometry in CAD
With the PDFs in hand, the next step is to translate the 2D drawings into a 3D model. Open your preferred CAD software—Fusion 360, FreeCAD, or OpenSCAD all work—and begin by sketching the sensor “pebble” outline and sleeve holder profile at full scale. Use Google’s measurements, tolerances, and mating dimensions to define a parametric sketch so you can later adjust thickness, width, or style without losing compatibility. Android Authority describes how an AI assistant was able to use the PDF drawings to generate parametric OpenSCAD code and multiple band designs, which shows that the documentation is detailed enough for hobbyists to recreate the geometry. Focus on the snap‑in cradle for the tracker, ensuring the retaining features and wall thicknesses match the specified attachment forces. Once the core holder is accurate, extend the design into a full band or connector that suits your preferred strap style.
Choose Materials and 3D Printing Settings Safely

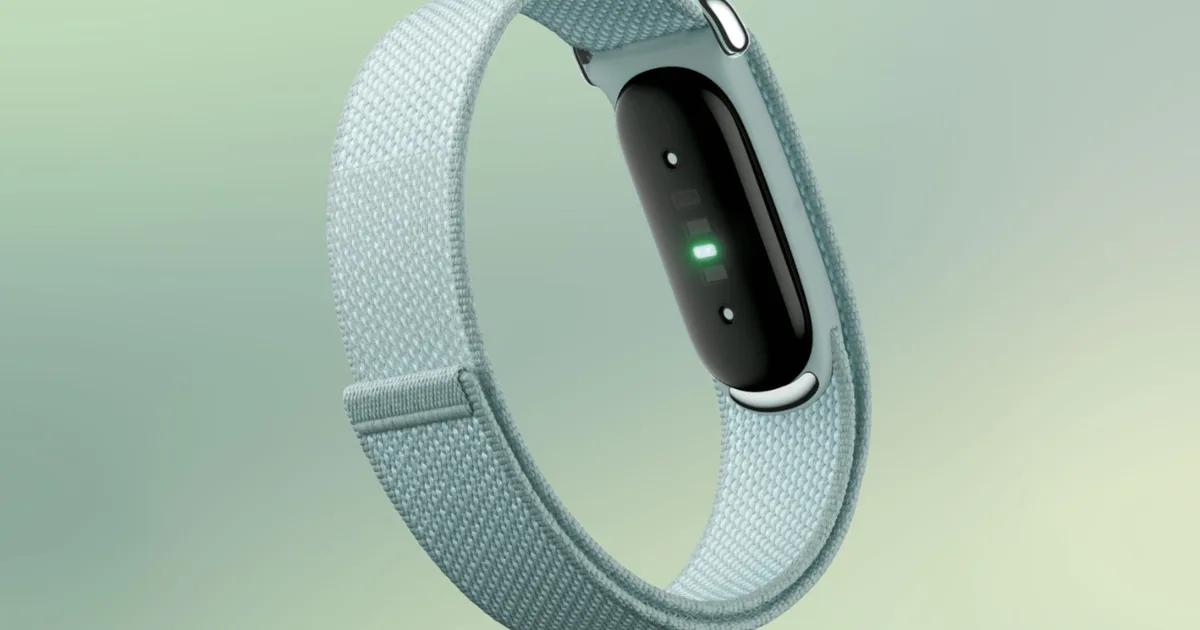

Before you 3D print Fitbit bands, think about comfort and skin safety. Google’s guidelines recommend gentle, thoroughly tested textiles, leathers, and metals for continuous skin contact, and they warn against irritants such as some forms of nickel and natural latex proteins. For fully printed bands, flexible filaments like TPU are typically more comfortable than rigid plastics, and they can provide the flex needed for the sleeve holder to “let users easily pop the sensor in and out” while staying secure. Aim for a fine layer height for smoother skin contact and consider rounding all edges in your model to avoid pressure points. Keep the optical sensor area fully open, with no translucent or colored material over the LEDs, and respect the contact pressure recommendations so health metrics stay reliable during movement.
Print, Test, and Iterate Your Custom Fitbit Air Bands
After slicing your model, 3D print a test sleeve section before committing to a full band. Check that the tracker snaps in with the right amount of force and that the module sits flush with your wrist, as Google’s Fitbit Air design guidelines emphasize consistent skin contact for accurate heart rate and blood oxygen measurements. Wear the prototype for a short session to feel for sharp edges, hot spots, or slipping. If needed, adjust tolerances, increase strap width, or soften curves in CAD, then reprint. According to Digital Trends, Google’s move away from a tightly controlled accessory ecosystem means makers can explore everything from minimalist silicone‑style straps to experimental housings that would not make sense for official accessories. Combine these open specs with low‑cost 3D printing and you have a flexible path to custom fitness tracker bands tailored to your style and comfort.
