Overview: Two Budget DAC Headphone Amps With Different Personalities
A budget DAC headphone amp is a compact digital-to-analog converter and headphone amplifier designed to improve desktop or console audio quality without costing as much as high-end hi-fi separates. In this comparison, the FiiO K11 R2R and Topping DX1 II take very different routes to that goal, but both promise high-fidelity sound and generous features for well under USD 200 (approx. RM920). If you care most about musical warmth and an upgrade path to powered speakers, the K11 R2R is the more audiophile-focused box. If you want balanced outputs, parametric EQ, optical I/O, and console compatibility tuned for flexible everyday use, the DX1 II is the smarter value play at USD 119 (approx. RM547). In short: the FiiO aims at listening pleasure; the Topping aims at versatility and measurements.
| Spec | FiiO K11 R2R | Topping DX1 II |
|---|---|---|
| DAC architecture | 24-bit R2R resistor ladder | ESS ES9039Q2M delta-sigma chip |
| Approx. price | Around USD 160 (approx. RM736) | USD 119 (approx. RM547) |
| Dimensions | 147 x 133 x 32.3 mm; >400 g | Compact desktop unit (footprint similar to other DX series) |
| Headphone outputs | 6.35 mm single-ended, 4.4 mm balanced | 3.5 mm headset/headphone, 4.4 mm balanced headphone |
| Output power (balanced, 32 Ω) | Up to 1.3 W per channel | 1,000 mW x2 into 32 Ω |
| Inputs | USB-C, optical, coaxial (in/out) | USB-C, optical in, optical out |
| Line outputs | RCA line/pre-out (fixed or variable) | RCA line out, 4.4 mm balanced line out |
| Gain / tuning | Three gain levels, NOS/OS modes | Multiple gain profiles, 10-band parametric EQ (PEQ) |
| Console support | USB UAC 1.0 for compatible consoles | UAC 1.0/2.0 for Switch and PlayStation consoles |
| Form factor | Full desktop DAC/amp/preamp, compact box | USB-powered desktop DAC/amp with broader ambitions |

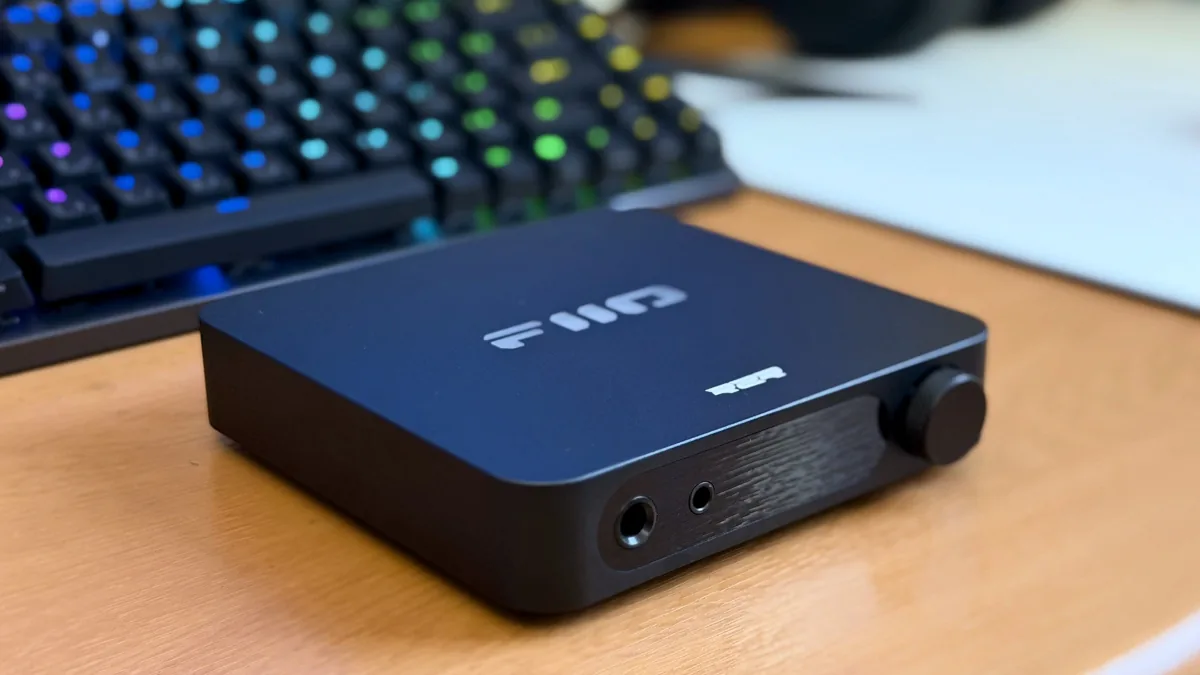

FiiO K11 R2R: Ladder DAC Charm and Speaker-Friendly Design
The FiiO K11 R2R stands out because it uses a 24-bit resistor-ladder DAC instead of a conventional delta-sigma chip. An R2R DAC is a carefully arranged ladder of resistors that converts digital data into an analog signal, a topology historically found in higher-priced gear but now squeezed into this budget-friendly box around USD 160 (approx. RM736). In practice, that architecture tends to deliver a smooth, full-bodied sound with a slightly organic feel, which many budget audiophiles now prefer over ultra-clinical chip-based designs. This unit is a complete desktop hub: USB-C, optical, and coaxial inputs, RCA line out that can run as a fixed or variable preamp, and both 6.35 mm single-ended and 4.4 mm balanced headphone outputs. For listeners building a small speaker system off the same DAC/amp, the K11 R2R’s preamp role and three gain levels make it more than a simple headphone toy.

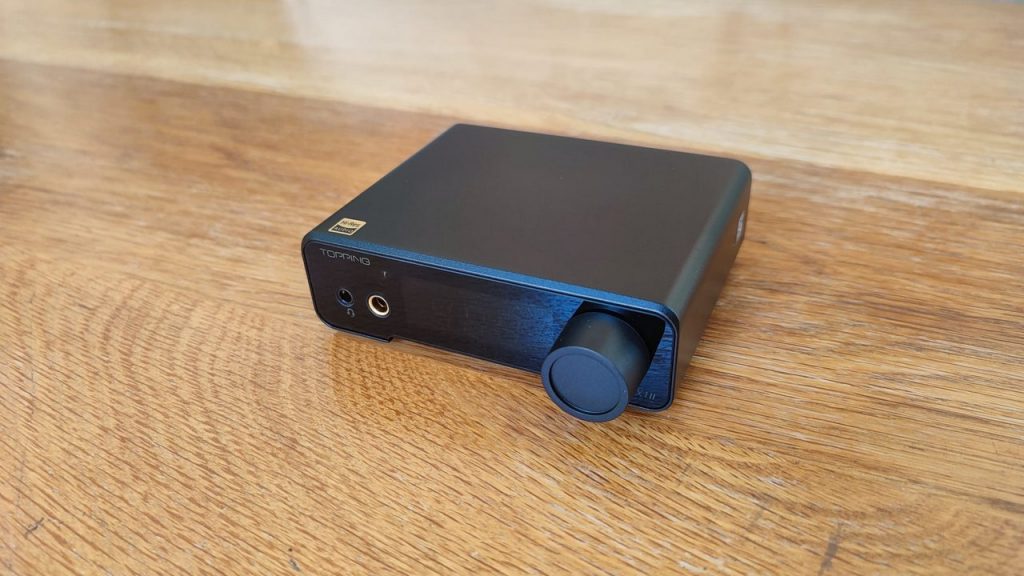

Topping DX1 II: Feature-Packed Flexibility for Everyday Listening
The Topping DX1 II is a measurement-focused budget DAC headphone amp built on ESS’s ES9039Q2M chip and an XMOS XU316 USB controller, aiming for low distortion and high dynamic range at USD 119 (approx. RM547). It adds a lot beyond the original DX1: a 4.4 mm balanced headphone output rated at 1,000 mW x2 into 32 ohms, a 3.5 mm single-ended headset jack, optical input and output, RCA line out, and a 4.4 mm balanced line out. It also supports both UAC 1.0 and 2.0, so it works with computers, tablets, Nintendo Switch, and PlayStation consoles. One standout is the built-in 10-band parametric EQ, which lets you tailor the sound for different headphones or tame treble peaks and bass bloat without external software. For many listeners, this makes the DX1 II feel like a control center for desktop, console, and powered-speaker use rather than just a USB dongle upgrade.
Real-World Use: Sound, Power, and Everyday Usability
Both units deliver compact, high-fidelity audio performance that suits small desks and portable-style setups. According to one review, the FiiO K11 R2R “has a few usability quirks that require some figuring out,” mainly because almost everything is controlled through a single multifunction dial and a small LCD with abbreviations. Once learned, it becomes intuitive, but the first days can be confusing. The DX1 II also packs a lot of control into a small box, and its gain/profile switching may not be as straightforward in practice as the feature list suggests. In power terms, both have more muscle than typical dongles: the FiiO can deliver up to 1.3 W per channel through its balanced output at 32 ohms, while the Topping’s balanced output offers 1,000 mW x2 into 32 ohms, ample for efficient planars and most dynamics at a desk. Neither is a brute-force amp, but they sit in a sweet spot for budget headphones.
Buy if / Skip if
- Buy the FiiO K11 R2R if you value a smooth, full-bodied R2R DAC sound and want a compact preamp for powered speakers.
- Skip the FiiO K11 R2R if you dislike learning layered controls and small-screen menus with abbreviations.
- Buy the Topping DX1 II if you want a sub-USD-150 (approx. RM690) DAC/amp with 4.4 mm balanced headphone output, parametric EQ, and console support.
- Skip the Topping DX1 II if you care more about a slightly organic, ladder-DAC presentation than about measurements and tuning tools.
- Buy the FiiO K11 R2R if your priority is a single desktop box handling USB, optical, coaxial sources with flexible RCA pre-out control.
- Skip the Topping DX1 II if you do not need optical output, balanced line out, or EQ and would rather pay extra for an R2R DAC flavor.
