Why 3D‑Printed PC Cases Are Perfect for Malaysian Modders
If you love unique rigs but not custom‑loop prices, a 3D printed PC case or bolt‑on shell is a smart middle ground. Instead of chasing limited‑edition hardware, you start with normal components and wrap them in a custom enclosure. Community projects like the Aperture Science Portal‑style case and a 3D‑printed retro ITX case prove that you do not need CNC machines or a full workshop. You need printable STL files, a basic tool kit, and time. For Malaysians, this approach fits well with tight space and budget: you can reuse an affordable chassis, choose locally available mini‑ITX or entry gaming parts, and send prints to local 3D printing services if you do not own a printer. The result is a Malaysia PC modding project that looks boutique but is built from accessible parts and shared community blueprints, not expensive, imported “showpiece” cases.
Tools, Skills, and Printing Options: From Portal Shells to Retro ITX
Both example builds show that design work and patience matter more than advanced tools. The Portal themed PC uses a standard DeepCool CH360 WH case with non‑invasive 3D‑printed parts, so there is no drilling or cutting into metal. The creator modelled panels in free CAD software, then attached prints with basic fasteners and adhesives. The retro 3D printed PC case is more involved: it consists of 17 files and about 20 printed parts, plus screws, threaded inserts, a few LEDs and switches, and some soldering to heat‑set inserts and wire the front panel. For Malaysians without a printer, STL files from platforms like Printables or Thingiverse can be uploaded to local 3D printing shops; you simply specify material and colour and then assemble at home. Essential skills are straightforward: careful measuring, light sanding, priming and painting, and reading assembly PDFs or community guides.

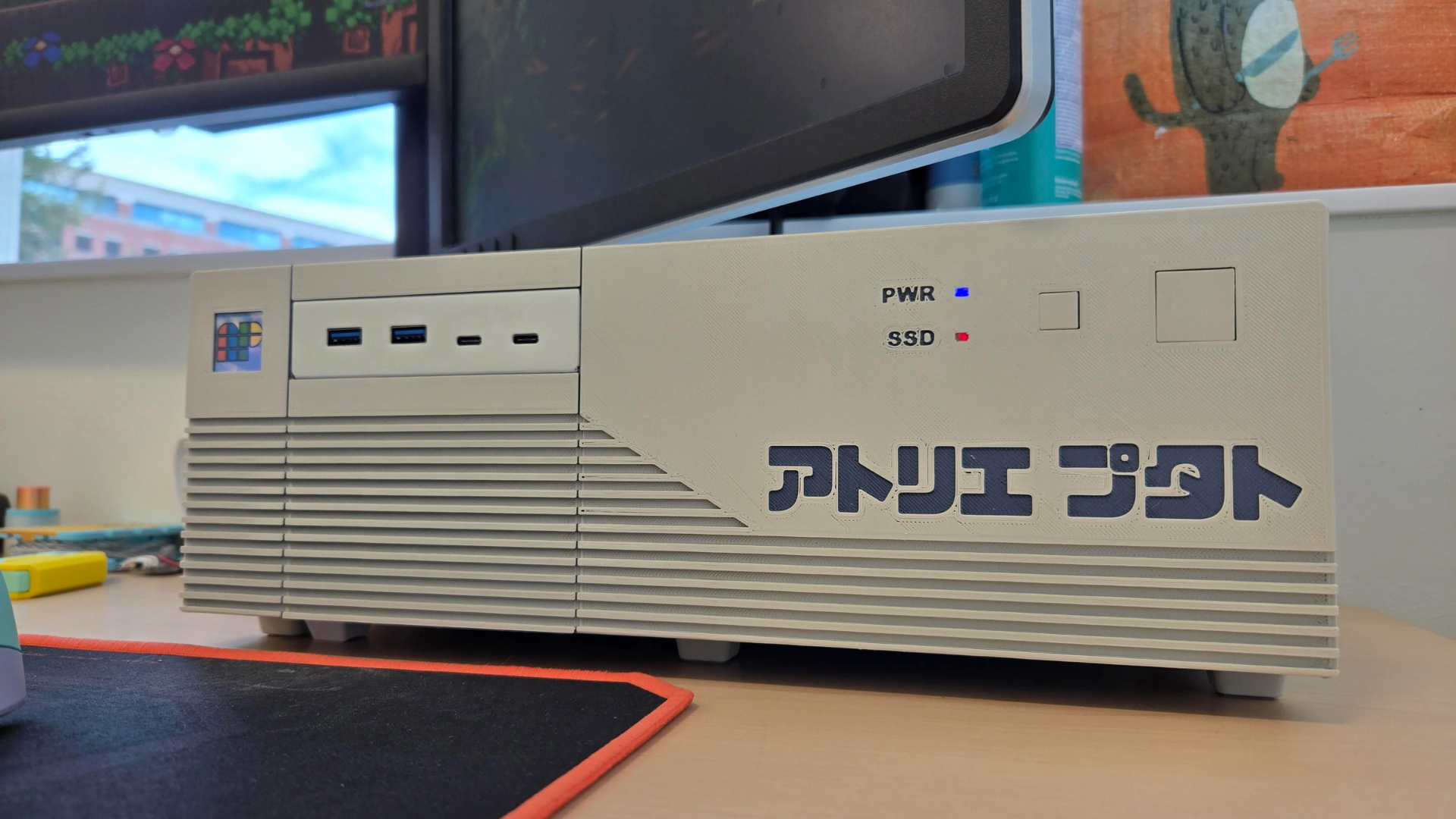

Planning Your ITX Custom Build: Components, Airflow, and Cable Management
The retro 3D printed PC case is designed for a mini‑ITX motherboard and a full‑size ATX PSU, with a front 3.5‑inch bay that is ideal for extra USB ports or a small card reader. There is no dedicated slot for a 2.5‑inch drive, but a SATA SSD can be taped above the PSU, which suits compact Malaysian setups that prioritise solid‑state storage. Its small volume means it cannot take a discrete GPU and relies on airflow from the CPU cooler and PSU fan instead of extra case fans, making it better for office use, lighter gaming, or a retro OS box. Before printing or buying parts, measure GPU length, cooler height, PSU depth, and cable reach. Do cardboard mock‑ups or test‑fits in an old case, and check that front intakes and PSU vents are not blocked by printed panels or bundled cables.

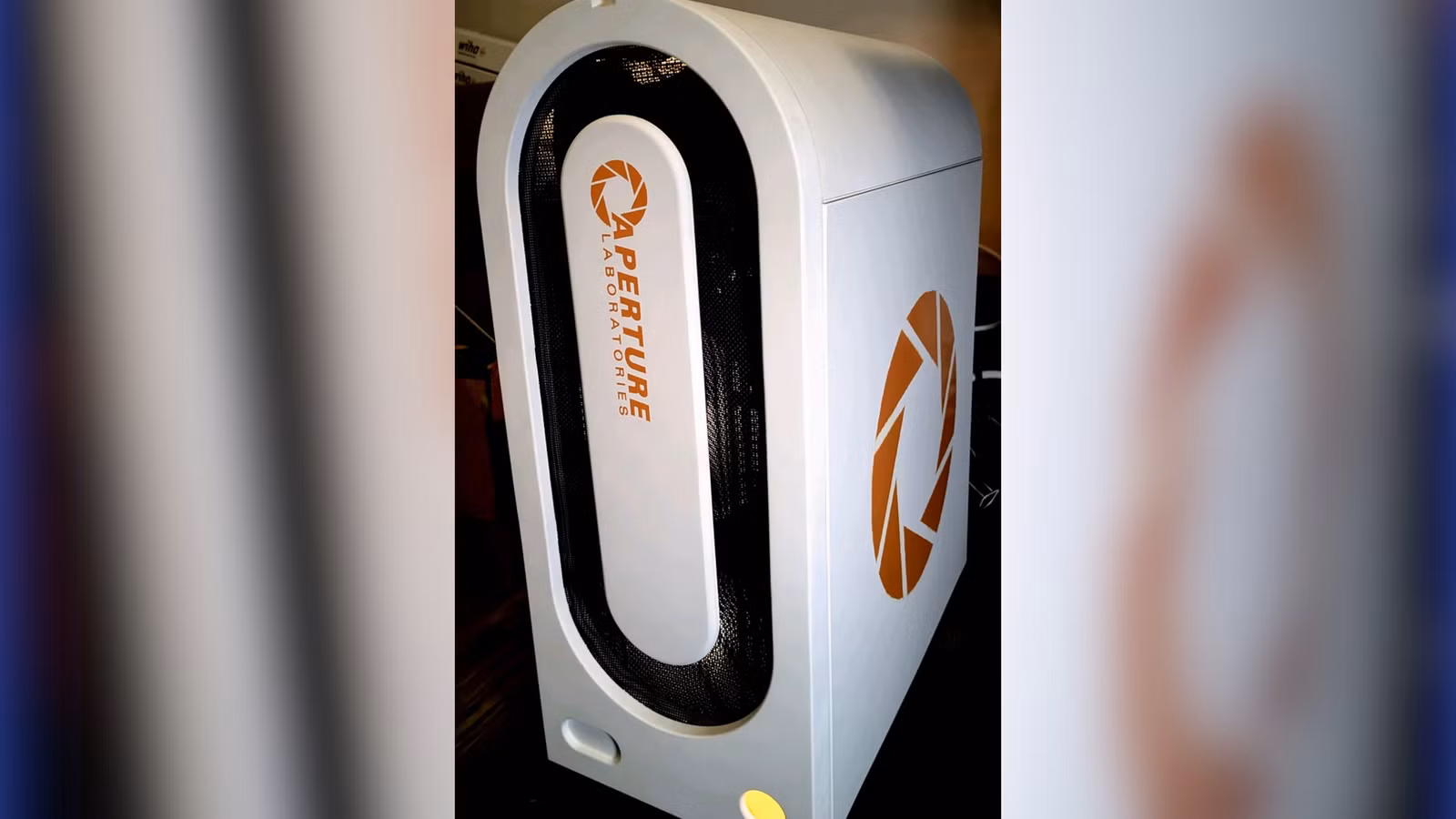

Building a Portal Themed PC: Assembly, Painting, and Lighting Tips
The Aperture Science 3D printed PC case starts from a regular DeepCool CH360 WH, then uses custom panels to mimic in‑game consoles. Because the mod is non‑invasive, the original chassis stays intact and reversible. After printing the parts, lightly sand visible surfaces, apply a plastic primer, then build up white and grey layers to match Portal’s clean lab aesthetic. Mask edges to keep lines crisp, and finish with a matte clear coat to hide minor print lines. Decals or vinyl stickers with Aperture logos can be added after clear coat for a sharp, game‑accurate look. Simple white or cool‑blue LEDs behind grills and side vents create that sci‑fi glow without complex RGB controllers. The original creator reports spending about USD 40 (approx. RM195) on 3D prints, USD 40 (approx. RM195) on the base case, and around USD 40 (approx. RM195) on miscellaneous supplies, showcasing what is possible with a modest budget.
Budgeting, Testing, and Joining the 3D Printing Community
Compared with branded “showpiece” cases, a DIY PC case mod lets you decide where the money goes: printing plastic panels, paint, extra fans, or nicer cables. The Portal build demonstrates how far roughly USD 120 (approx. RM585) in case, prints, and supplies can go when you leverage community designs instead of buying a premium themed chassis. Whatever your budget, always prototype airflow before final assembly: run the system open‑bench, monitor temperatures, then add panels gradually to spot hot spots or blocked vents. Check PSU clearance, cable routing, and front I/O reach before gluing any parts. For files, start on Printables and Thingiverse, where the retro ITX case and Aperture‑inspired parts are shared along with PDFs and photos. Malaysians can tweak STL files to fit local hardware, then re‑upload improved versions, contributing back to a global DIY PC case mod community that values creativity over hype.
