Why Build a Meshtastic LoRa Gateway?
A Meshtastic LoRa gateway acts as a mesh network bridge, linking long‑range LoRa nodes to the wider Internet. Meshtastic itself is an open‑source, decentralized communication platform that uses LoRa radios to pass messages and GPS coordinates from node to node, often via multiple hops. This hop‑by‑hop routing keeps communication alive even when two devices are not in direct radio range, making it ideal for areas with poor or no cellular and Wi‑Fi coverage. By adding gateway functionality to one or more nodes, you can forward selected messages or telemetry to online services using MQTT IoT connectivity. From there, dashboards, databases, or home automation systems can consume the data. A gateway can even link distant meshes via the Internet, extending coverage far beyond LoRa’s physical limits. The trade‑off is dependency on infrastructure, so many communities use gateways selectively to balance resilience and reach.
Meet the M5Stack C6L: A Compact LoRa–Wi‑Fi Platform
The M5Stack C6L Unit provides a compact, ready‑to‑use hardware foundation for a Meshtastic LoRa gateway. At its core is Espressif’s ESP32‑C6 with dual 32‑bit RISC‑V processors: a main 160 MHz core and a low‑power 20 MHz core, paired with 16 MB of flash. This SoC combines 2.4 GHz Wi‑Fi 6 and Bluetooth Low Energy with an onboard SX1262 LoRa transceiver operating in the 868–923 MHz band. The C6L also includes a 0.66‑inch monochrome OLED (64 × 48 pixels), a WS2812C RGB LED, a buzzer, and two buttons for user interaction and power/boot functions. A Grove‑compatible HY2.0 connector allows easy expansion with external sensors or peripherals, while LEGO‑style mounting holes simplify mechanical integration. Power and programming are handled via USB‑C, so you will need an external power source if you want unattended operation. These features make the M5Stack C6L build an excellent base for a compact, always‑on LoRa gateway.
Designing the Hardware: From Enclosure to Power

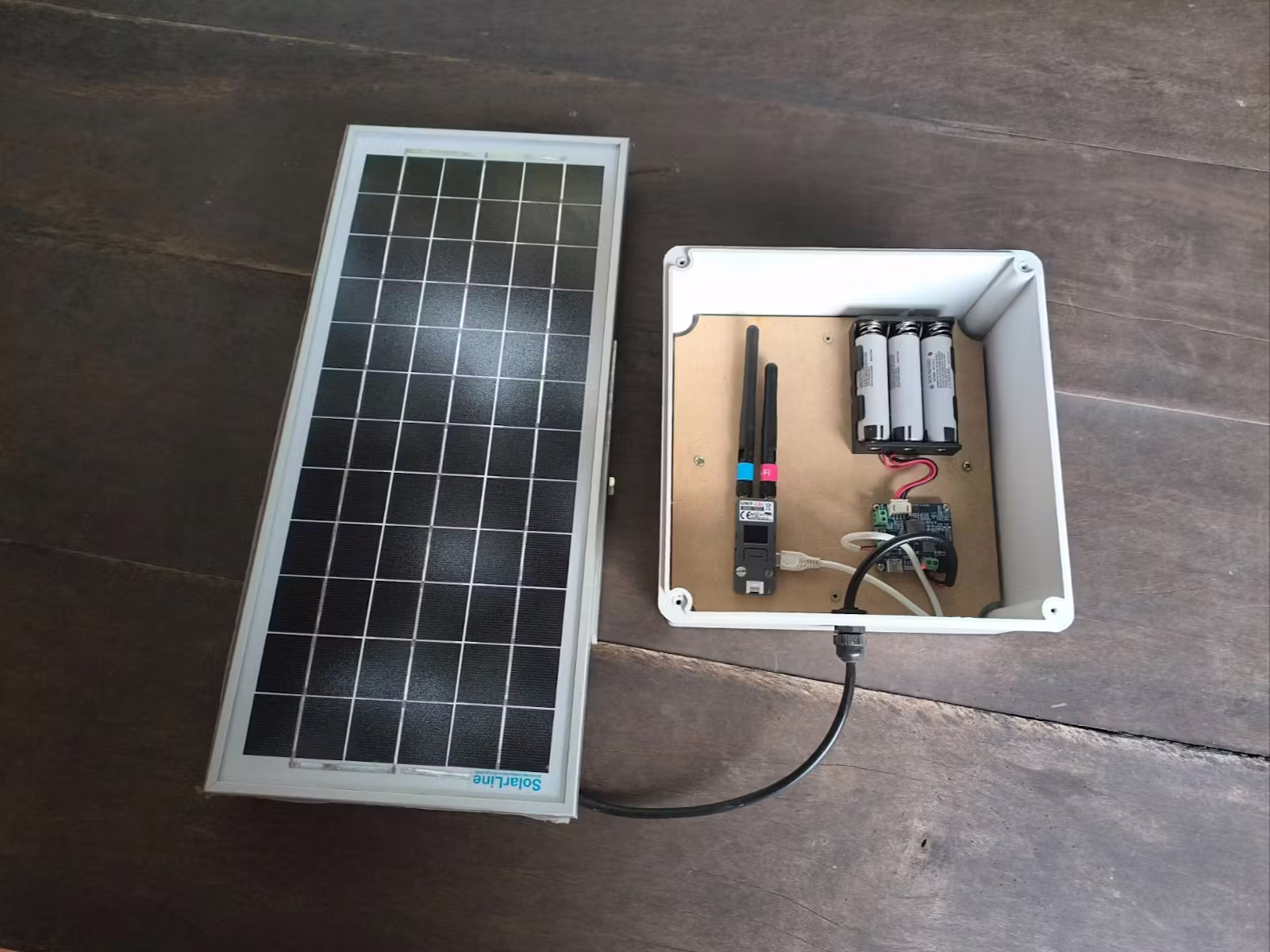

To turn the C6L into a robust Meshtastic LoRa gateway, start by planning a weather‑resistant enclosure and stable power. One practical approach is to place the electronics in an IP65‑rated plastic box around 20 × 20 cm, providing protection against rain and dust for outdoor installations. Inside, you can mount a laser‑cut base plate—such as a 3 mm MDF sheet cut to fit—to hold the C6L, power circuitry, and wiring. While MDF is easy to machine, be aware it can absorb moisture, so consider sealing it or substituting with a more weather‑proof material if you expect harsh conditions. For standalone operation, power the gateway with rechargeable 3.7 V 18650 batteries connected to suitable charging and regulation hardware, or opt for a different external supply if continuous USB power is available. With the enclosure, mounting, and power in place, you have a solid physical platform for your mesh network bridge.
Configuring Meshtastic on the C6L
Once your hardware is assembled, the next step is to configure Meshtastic so the C6L can join and serve your LoRa mesh. Flash the appropriate Meshtastic firmware build for the ESP32‑C6‑based C6L over USB‑C, then use the Meshtastic configuration tools or companion apps to set basic parameters such as region‑appropriate LoRa frequency band, channel settings, and device role. In a typical gateway setup, you will place the C6L in a fixed location with good antenna placement to maximize coverage. You can use the small OLED to show status information such as node name, channel, and connection state, while the RGB LED and buzzer can signal events like reboots, Wi‑Fi connection, or mesh traffic. Other nodes in the mesh—portable trackers, rooftop relays, or sensor nodes—will automatically route messages through the network, and the C6L gateway will be ready to bridge selected data to the Internet.
Bridging to MQTT and Beyond
To complete your Meshtastic LoRa gateway, connect the M5Stack C6L to a Wi‑Fi network and configure MQTT IoT connectivity. Within the Meshtastic settings, enable MQTT and point the device at your broker’s address, including any required authentication. The gateway can then publish telemetry—such as temperature, battery level, GPS coordinates, or arbitrary sensor readings—from nodes in the mesh to MQTT topics. From there, tools like Node‑RED can subscribe to these topics and feed dashboards, trigger alerts, or push data into databases and home automation platforms. You can also use MQTT to connect geographically distant meshes, relaying messages between them via the broker. This open‑source, protocol‑driven approach invites customization: you are free to adapt topics, payload formats, and processing flows, and to contribute improvements back to the Meshtastic and M5Stack communities as your gateway evolves.
