What an RP2040 Smartwatch Build Is and Why It Matters
An RP2040 smartwatch build is a DIY wearable microcontroller project where a Raspberry Pi RP2040-based board, a small display, a battery, and a custom enclosure are combined to create a fully programmable wristwatch with tailored features and behavior. Instead of depending on commercial smartwatches, you define what the watch does, which sensors it includes, and how the interface looks. The RP2040 is well suited to wearable projects because it offers low power consumption, reliable dual-core processing, and broad support for MicroPython, Arduino, and C/C++. A Raspberry Pi wearable like this can focus on essentials such as timekeeping, motion sensing, and on-device settings without internet, notifications, or companion apps. According to Waveshare’s board description used in the ChronoWatch X2040 project, the RP2040 round touch display is “ideal for DIY smartwatches, mini dashboards, and IoT devices.”
Choosing Hardware for Your Custom Smartwatch Project
The easiest starting point for a custom smartwatch project is a development board that already combines the RP2040, display, touch, and sensors. The ChronoWatch X2040 uses the Waveshare RP2040 Round 1.28‑inch Touch Display, which integrates a Raspberry Pi RP2040 chip, a 1.28‑inch round capacitive touchscreen with 240×240 resolution, and an onboard accelerometer and gyroscope. This kind of board simplifies wiring while keeping the design compact, perfect for a DIY wearable microcontroller build. Power comes from a 3.7 V lithium‑polymer cell; in the reference build, a 950 mAh battery fits neatly into the case and provides hours of backup time between charges. You also need a matching 1.25 2P battery connector, small M2 heat inserts and 4 mm screws for assembly, and an off‑the‑shelf watch strap. An Apple Watch strap, for example, gives a comfortable, adjustable fit and a modern look with no extra design work.
Designing and Printing the Raspberry Pi Wearable Case
A comfortable Raspberry Pi wearable depends on a well‑thought‑out enclosure. Following the ChronoWatch X2040 approach, design your case as three printed parts in a tool like Tinkercad: a middle body, a front frame, and a back cover. The middle section holds the RP2040 round module, battery cavity, and strap attachment points. The front frame locks over the display’s edge so the module stays in place and the watch gains a clean, finished front surface. The back cover closes the case with M2 screws that thread into heat inserts, giving strong fastening points that survive repeated opening for maintenance or battery replacement. Leave cutouts for the USB‑C port, side clearances for the strap, and a little extra space around wires. A slim profile and rounded edges improve comfort, while a flat underside helps the watch sit securely on the wrist all day.
Programming the RP2040 Smartwatch: From Timekeeping to Settings
Once the hardware is ready, the RP2040 smartwatch build comes to life through firmware. The Waveshare board supports MicroPython, Arduino IDE, and C/C++, so you can choose the environment that matches your skills. Intermediate makers often start with MicroPython for quick testing and then move to C/C++ for tighter control and efficiency. Begin with core watch functions: drawing a digital or analog watch face on the 240×240 round screen, reading the real‑time clock or time variables, and updating the display once per second. Next, map touch gestures or regions to actions like opening a settings menu. The ChronoWatch X2040 firmware includes options to change time and date, toggle 12‑ or 24‑hour format, adjust brightness, rotate the screen, start a stopwatch, and manage sleep timers for better battery life. Multiple watch faces can be stored and switched in software to match different moods or environments.
Assembly, Testing, and Expanding Your DIY Wearable Microcontroller

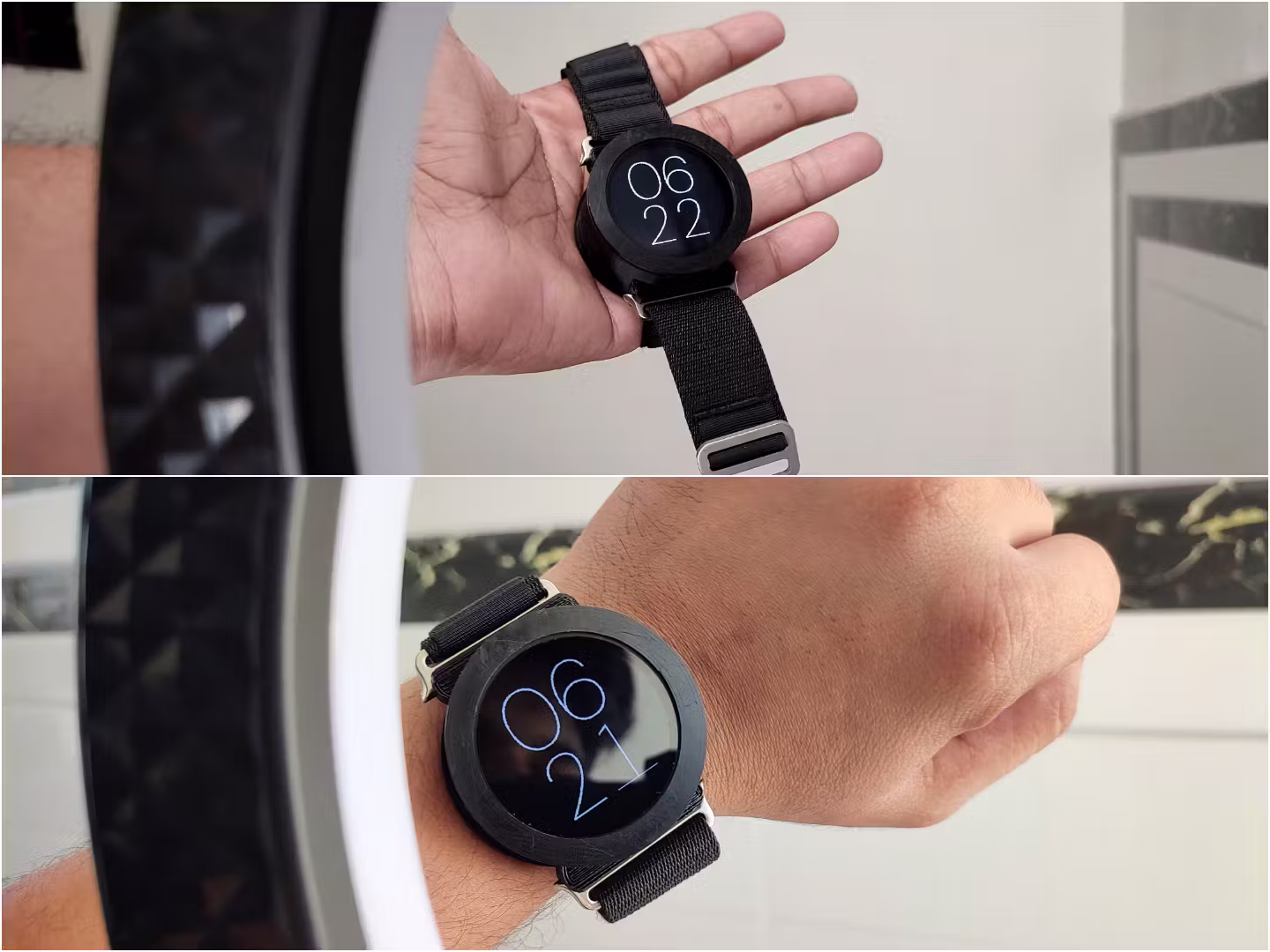

Final assembly starts by soldering the MX1.25 2P connector to your battery leads, insulating them with 1 mm heat‑shrink tube for safety and a neat finish. Plug the battery into the RP2040 round board’s matching connector, place board and cell into the middle case, and route wires so they are not pinched. Fit the front frame to secure the display, then close the rear cover with M2 screws into the heat inserts. Attach your strap, power on via USB‑C, and load your firmware. Test touch responsiveness, timekeeping, brightness control, and sleep behavior to confirm the watch behaves as expected. From here, you can expand features beyond commercial smartwatch offerings: experiment with motion‑based gestures using the accelerometer and gyroscope, add more watch faces, or refine low‑power modes. The full control you gain over hardware and code is the main reward of building your own RP2040 smartwatch.
