Compact 5K RAW Power Demands Smarter Rigging
The Sony FX5 is a compact cinema camera that combines a full-frame 16.6MP stacked sensor, 5K open gate capture, and internal 16‑bit X‑OCN RAW recording in a body the size of an FX3, which makes cage systems and cinema camera rigging essential to unlock its professional potential while preserving its portability. This is not just another small box camera; it is Sony’s attempt to move VENICE 2 and BURANO‑level workflows into a grab‑and‑go form factor. Put the FX5 next to an FX3 and you would struggle to tell them apart at a distance, yet the FX5 carries headline specs like 5K open gate, three base ISOs, and 4K up to 240fps. In practice, that means RAW‑grade latitude and high‑frame‑rate options are now available to operators who live on gimbals, car rigs, and tight documentary locations.

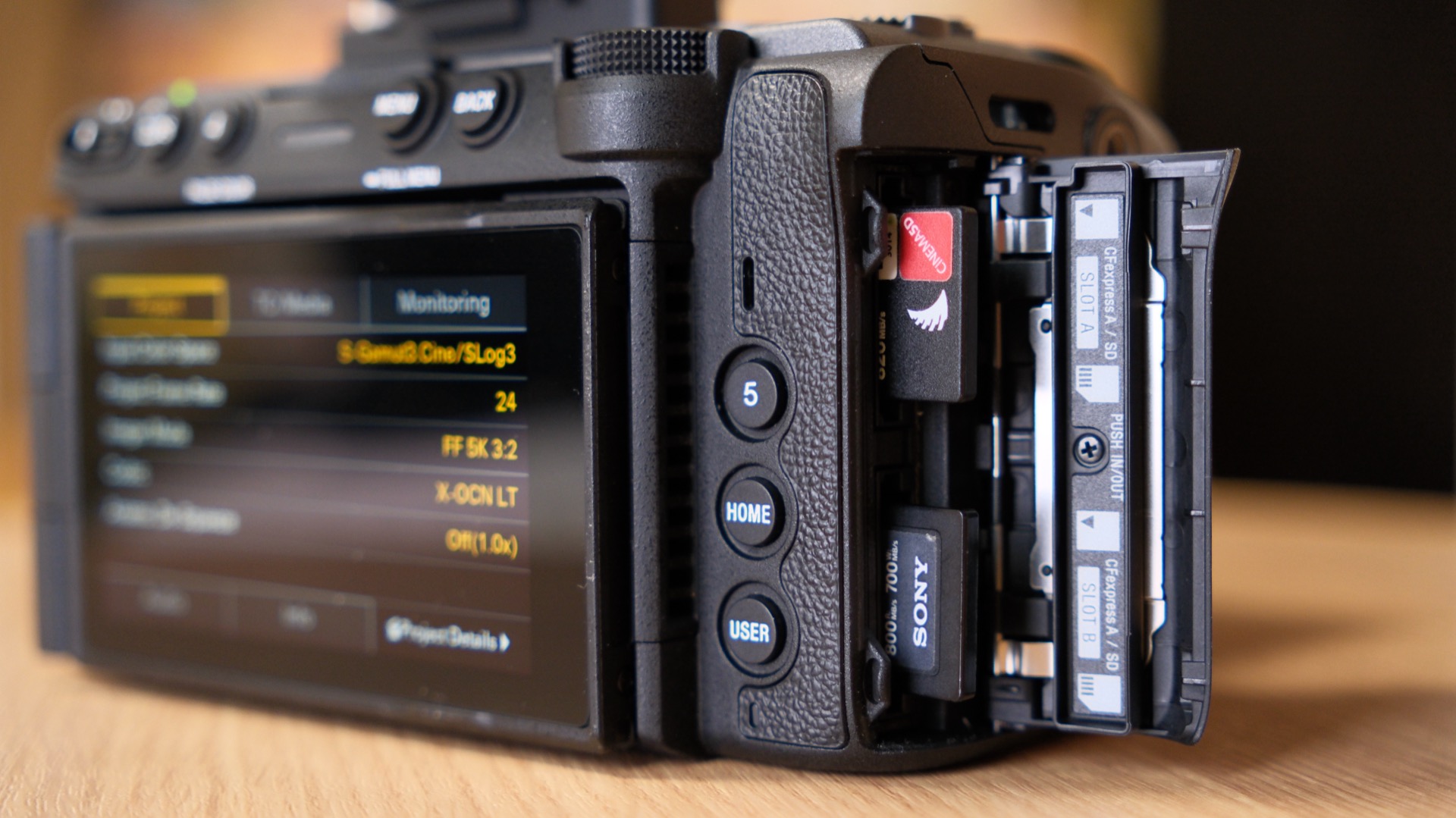

The most radical shift is internal X‑OCN RAW. Previously, 16‑bit X‑OCN belonged to larger cameras, and FX3 shooters needed external recorders and heavy rigs to get any RAW at all. The FX5 records X‑OCN internally to CFexpress Type A media, with bitrates that can drop below the intraframe codec of the FX3 depending on flavor. That single decision makes the camera far more location‑ready: fewer cables, less heat, and less weight. Yet it also raises a practical problem. Once you start hanging wireless video, follow‑focus motors, matte boxes, and batteries on a body this small, the line between compact and cluttered becomes thin. That is where thoughtful cage design ceases to be a mere accessory and becomes a workflow question.
Tilta’s Modular Sony FX5 Cage: Full or Half, Not Overbuilt
Tilta’s full Sony FX5 cage is a direct answer to the rigging dilemma: how do you turn a compact cinema camera into a production‑ready tool without smothering its strengths? The system is minimalist by design and can convert between a full cage and a half‑cage configuration, making it easier to balance between handheld comfort and accessory load. Structurally, it is built from three parts – a top plate, plus left and right L‑shaped plates – rather than a bulky exoskeleton. This approach matters. The FX5 already offers internal X‑OCN RAW, three base ISOs, and a stacked sensor, so the cage’s job is not to compensate for missing features but to give clean attachment points for cinema camera rigging: monitors, handles, wireless systems, and support rods.
The right plate is the foundation, fixed to the bottom by a 1/4"‑20 screw and secured to the side with another screw to prevent twisting. It houses a built‑in cold shoe, multiple 1/4"‑20 and 3/8"‑16 threads with locating points, and a removable HDMI clamp to protect the FX5’s fragile ports. The left plate clicks into the right and locks with a 1/4"‑20 screw while keeping the memory card slot clear and even adding a pinky rest ahead of the grip for comfort. On top, a standalone top plate doubles as a NATO rail, and an ARCA Swiss bottom plate caters to quick tripod changes. In other words, the Tilta camera cage acknowledges that the FX5 is a handheld‑capable compact cinema camera and refuses to turn it into a brick.
RAW Workflows Without the RAW Bulk

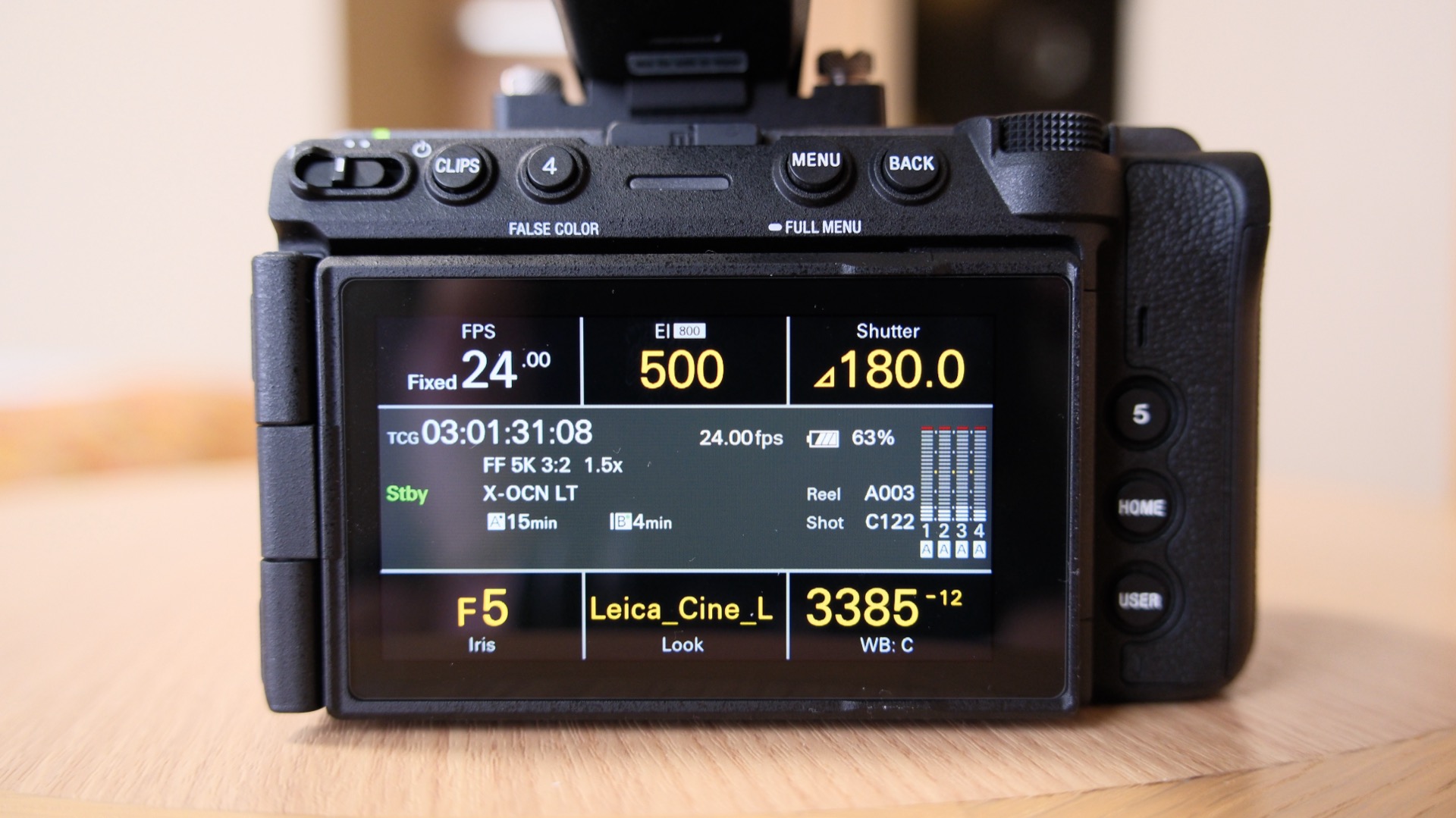

The real transformation is not in the metal but in the workflow it permits. The FX5’s 5K open gate modes and X‑OCN options push it into serious grading territory, with 16‑bit latitude that exceeds typical 10‑ or 12‑bit delivery formats. Sony even introduced two more compressed X‑OCN flavors, C1 and C2, with simulated bitrates around 289 Mbps and 232 Mbps respectively at 4K 24p – below the FX3’s XAVC S‑I intraframe codec at about 240 Mbps – while X‑OCN LT sits around 389 Mbps. According to the manufacturer, "16‑bit RAW at bitrates lower than the FX3’s intraframe compressed codec" could make internal RAW practical for independent freelancers and small production houses without massive storage infrastructure. That is a bold statement, but the numbers back it up.
Yet compact cinema cameras with advanced RAW capabilities demand equally compact rigging strategies. The temptation is to build them up like traditional cinema bodies, drowning their small‑form advantages under cages, rails, and V‑mounts. Tilta’s Sony FX5 cage stands as a counter‑argument: use what the camera already offers – internal RAW, stacked sensor, dual media slots – and rig only what you need. A half‑cage configuration with a NATO top handle and HDMI clamp might be enough for many location shoots; full cages and baseplates can stay in the kit for heavier builds. When the camera can deliver 5K RAW recording internally, the smartest cinema camera rigging is often the lightest.
Third‑Party Ecosystem: From Bare Body to Location Workhorse
The speed of accessory response around the FX5 underlines how central third‑party ecosystems have become to modern cinema cameras. Shortly after the FX5 was unveiled as a new full‑frame Cinema Line model positioned between FX3 and FX6, bringing VENICE 2 and BURANO features into a compact body, accessory makers started rolling out rigging options even before the camera shipped. Tilta, already known for affordable cages and rigging solutions, moved quickly with the FX5 cage and several kits: the cage alone, a base kit with extra handles, a Power Kit bundling a V‑mount plate, and a Pro Kit with a 15mm LW baseplate and more handles. The cage itself launched at USD 89.10 (approx. RM420) after a 10% discount, with an MSRP of USD 99.00 (approx. RM460).
For owner‑operators, this ecosystem matters more than spec sheets. A bare FX5 is a compact cinema camera with serious internal formats; a rigged FX5 is a location‑ready system that can live on gimbals one hour and shoulder rigs the next. The ARCA Swiss bottom plate and NATO top plate enable fast changes between tripods, sliders, and handheld setups. Mounting points accept follow‑focus motors and wireless transmitters without awkward adapters, while the HDMI clamp guards against the kind of mid‑take cable failure that ruins shoots. It is the combination of Sony’s imaging ambitions and Tilta’s practical rigging that turns the FX5 from a spec marvel into a dependable production workhorse.
Conclusion: Cage Design Is Now a Creative Decision
The FX5 proves that compact cinema cameras have outgrown the "B‑cam" label. With full‑frame 5K open gate, internal 16‑bit X‑OCN RAW, and stacked‑sensor performance in an FX3‑sized shell, it is ready to front serious narrative, doc, and commercial work. But those credentials only matter if the camera remains nimble, and that is where cages like Tilta’s modular system earn their keep. They allow filmmakers to scale up or down intelligently, treating rigging as an extension of the creative brief rather than a fixed template.
The key takeaway is simple: with the Sony FX5, less rigging can mean more freedom, not less capability. Because 5K RAW recording, multiple X‑OCN options, and high‑frame‑rate modes are already inside the body, the cage no longer needs to solve image quality – it needs to protect ports, provide ergonomic touchpoints, and keep the camera balanced on the tools you use. Thoughtful cage design, especially modular systems that switch between full and half‑cage setups, will decide whether this compact cinema camera remains agile in the field or disappears under its own accessories. Filmmakers who understand that will get the best out of the FX5.
