What Framework’s New OCuLink Dev Kit Actually Does
Framework has built its reputation on modular, upgradeable machines, and the new OCuLink Dev Kit for the Framework 16-inch laptop is a pure expression of that philosophy. The 16’s party trick is its large rear Expansion Bay, originally designed to host swappable graphics modules like the Radeon RX 7700S and GeForce RTX 5070. Now, instead of being limited to mobile GPUs, the OCuLink kit lets you attach a full desktop graphics card via an eight-lane PCIe connection routed through the bay. In other words, this is a DIY external GPU solution built straight into the laptop’s own ecosystem. Rather than buying a sealed Thunderbolt enclosure, you get a developer-focused set of boards and cables that expose a high-bandwidth OCuLink port. Enthusiasts can then pair the Framework 16 with a desktop-class GPU, effectively turning a slim notebook into a dockable workstation or gaming rig when it is parked on a desk.
OCuLink vs Thunderbolt: Why the Connector Matters for eGPUs
OCuLink is essentially PCIe over a compact cable, designed for direct, low-overhead connections. In the Framework 16’s dev kit, an eight-lane PCIe link through OCuLink delivers up to 128 Gbps of bidirectional throughput, which is close to what the laptop’s internal GPU slot would see. Because it is speaking PCIe natively, there is less protocol translation and overhead compared with Thunderbolt or USB4, which encapsulate PCIe traffic inside their own transport layers. For an external GPU, this matters in two ways: bandwidth and latency. Thunderbolt eGPU enclosures typically offer fewer usable PCIe lanes and add extra hops between the GPU and CPU. That can shave a noticeable chunk off frame rates, especially in bandwidth-heavy or CPU-sensitive games. An OCuLink eGPU setup should preserve more of the desktop card’s raw performance and feel closer to an internal slot, though the connection still runs outside the chassis instead of on the motherboard.
How a DIY OCuLink eGPU Setup Actually Comes Together

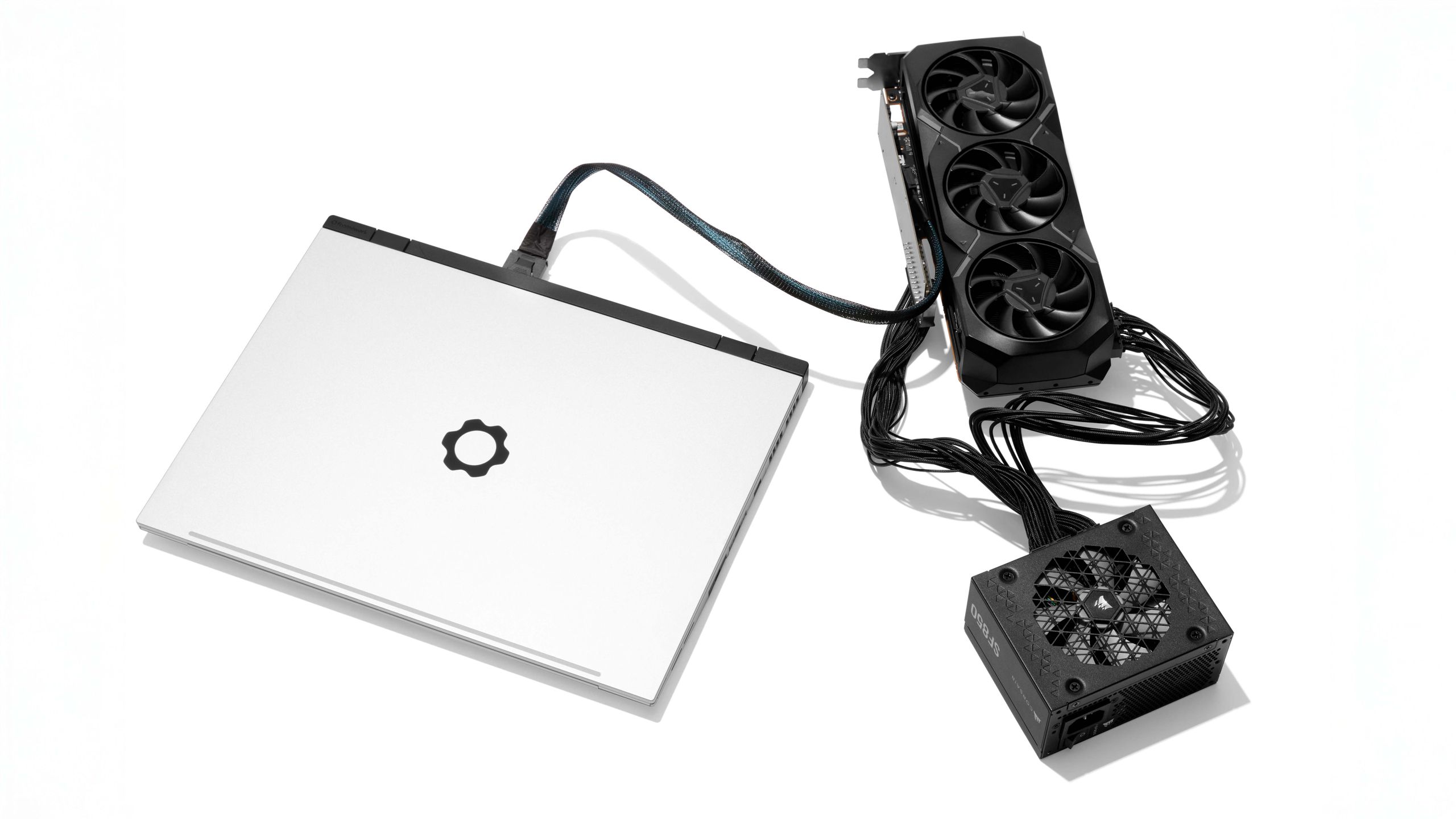

Framework’s OCuLink Dev Kit is split into multiple parts, with an OCuLink Adapter Board at the heart of the system that plugs into the Framework 16’s Expansion Bay. From there, an OCuLink cable connects out to a board or riser hosting your desktop GPU. You will also need a separate power supply capable of feeding the graphics card’s PCIe slot and any 6-, 8-, or 12-pin connectors it requires, since the laptop is not designed to power a full desktop GPU directly. Physically, you are dealing with a bare card rather than a neat, sealed enclosure. That means planning for safe mounting, airflow, and cable routing—think open test bench, small custom frame, or a repurposed case. You will also want to ensure the GPU’s cooler has enough space to breathe and that cables are strain-relieved so the OCuLink port on the laptop is not tugged or twisted during use.
Performance Expectations: How Close to Desktop Speed Can You Get?
Any external GPU setup has some performance overhead, but OCuLink’s generous PCIe bandwidth and low protocol overhead give it an edge. With an eight-lane PCIe link offering 128 Gbps of bidirectional throughput, an OCuLink eGPU will typically retain much more of a desktop card’s potential than a comparable Thunderbolt enclosure, especially when driving an external monitor directly from the GPU’s own outputs. You should still expect some loss versus plugging the same card into a full-size desktop board, particularly in games that are extremely sensitive to latency or rely heavily on rapid CPU–GPU communication. Internal laptop displays can also introduce additional routing overhead compared to using a monitor connected to the GPU. But for many workloads—modern games at high resolutions, 3D rendering, GPU-accelerated content creation—an OCuLink-based Framework laptop eGPU can feel surprisingly close to a compact desktop tower, while keeping the main system portable.
Who Should Build One—and When to Choose a Plug-and-Play Enclosure
An OCuLink eGPU setup is not aimed at casual users. It is ideal for tinkerers, small-form-factor fans, and anyone who wants a single portable Framework laptop that can dock into a powerful gaming or creator station at home. If you already own a desktop GPU or like the idea of swapping cards over time, the dev kit plays directly into Framework’s ethos of long-lived, upgradeable hardware. The flip side is complexity and responsibility. You are dealing with exposed electronics, a separate power supply, and a more experimental interface than mainstream Thunderbolt enclosures. That brings potential risks to components, as well as warranty questions if something goes wrong due to an unsupported configuration. If you prefer plug-and-play simplicity, a standard Thunderbolt eGPU box—or simply a traditional desktop PC—remains the safer route. The OCuLink path is for people who enjoy building, tweaking, and owning the whole stack, cables and all.
