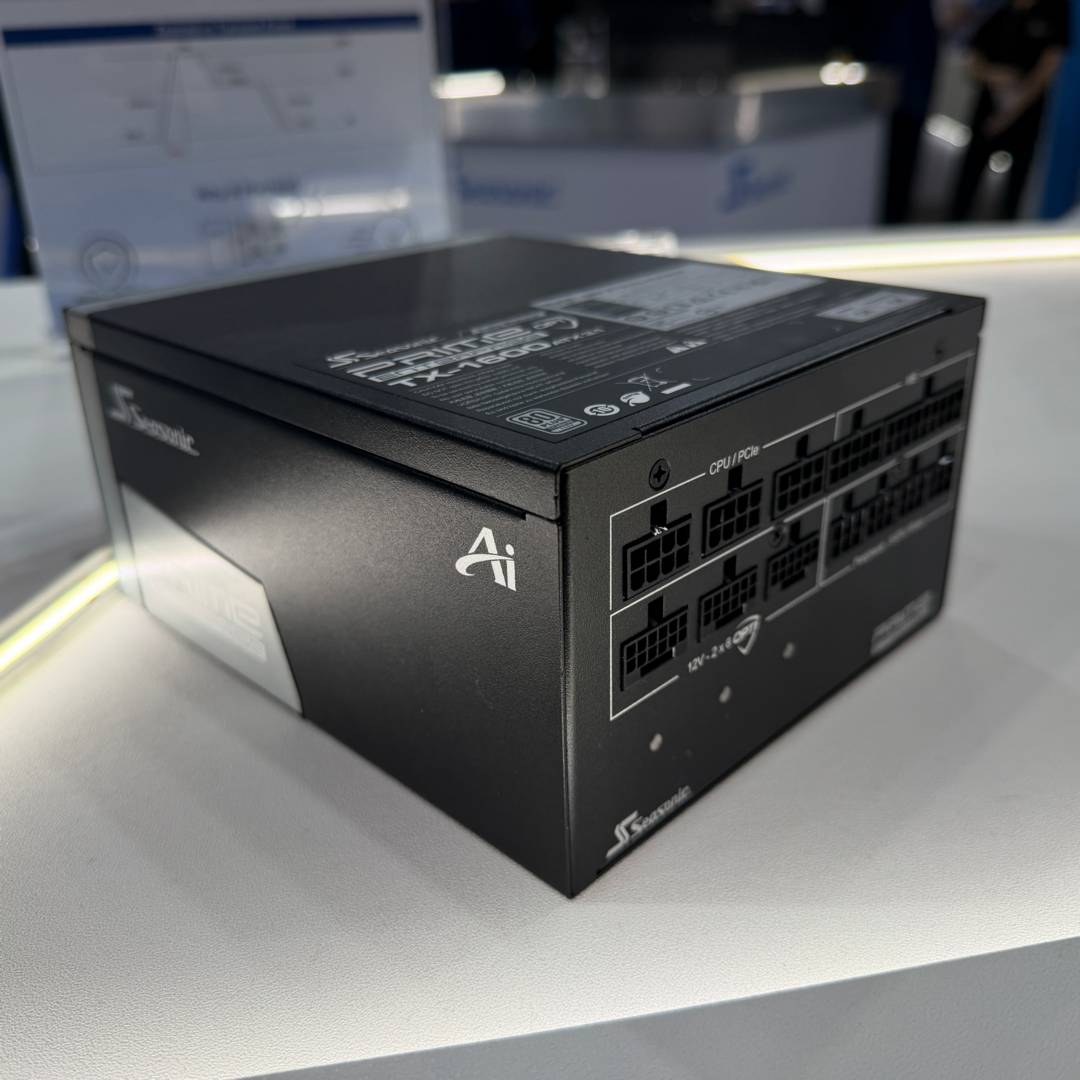

What SeaSonic’s Prime Enterprise PSUs Are and Why They Matter
SeaSonic’s Prime Enterprise power supplies are high-efficiency, high-capacity enterprise power supplies designed for multi‑GPU workstations, servers and data centers that need stable, monitored power delivery for mission‑critical workloads. Introduced at Computex as part of a wider data center PSU refresh, the new TX‑1300 and TX‑1600 models offer 1,300W and 1,600W of capacity, targeting dense AI and visualization systems where GPU power draw and uptime are central concerns. Both units support the ATX 3.1 and PCIe 5.1 standards, aligning them with the latest accelerator and graphics hardware. This positions Prime Enterprise as a forward‑looking platform rather than a stopgap upgrade. SeaSonic is pairing these units with new connector technology and monitoring features that go beyond traditional over‑current and over‑temperature cutoffs, aiming to reduce both power loss and connector‑level failures that can take entire nodes offline.
Titanium Efficiency and Tight Voltage Regulation for Data Centers
In the enterprise power supplies market, efficiency and voltage stability translate directly into lower operating costs and fewer support calls. SeaSonic positions the Prime Enterprise TX‑1300 and TX‑1600 at the top of the stack with both 80Plus Titanium efficiency and Cybenetics Titanium certifications, signaling minimal power waste across typical server load ranges. According to Club386, SeaSonic advertises “up to 94% efficiency at 50% load using 115Vac,” a figure that places these units among the most efficient data center PSU options available today. The inclusion of MTLR (Micro Tolerance Load Regulation) below 0.5% is equally important for sensitive compute nodes, as it keeps output voltages remarkably steady even when GPU or CPU load changes sharply. In practice, this helps maintain system stability during fast workload ramps, such as AI training bursts or storage rebuild events.
OptiGuard Protection: From Basic Safeguards to Connector-Level Insight
Prime Enterprise units extend protection beyond traditional OPP, OVP, UVP, SCP, OCP and OTP safeguards with OptiGuard, a smart monitoring protection system aimed squarely at high‑power GPUs. OptiGuard continuously measures current and temperature at the 12V‑2×6 GPU power connection, where heat and electrical stress tend to peak. This allows the PSU to detect abnormal loads, current imbalance across pins, or localized hot spots before they escalate into instability or melted connectors. When irregular behavior is detected, the system can display visible warnings, reduce power delivery dynamically, or cut power completely if conditions become critical. Monitoring data, including per‑pin current and temperature readings, is exposed through SeaSonic’s software for administrators who need fine‑grained visibility. For data center operators, this shifts power protection from a coarse on/off fail‑safe towards a predictive approach that can prevent downtime.
Silicon 12V-2×6 Cable Design Targets Heat and Handling
SeaSonic complements OptiGuard with an optional silicon‑tipped 12V‑2×6 cable that addresses a common weak point in modern GPU deployments: the connector itself. Instead of plastic tips, the cable uses silicon, which offers a higher melting point and better tolerance to sustained high temperatures. Club386 reports that the silicon‑tipped 12V‑2×6 cable can handle up to 12.5A per pin, compared with 9.2A for regular cables, and temperatures up to 105°C instead of 85°C. This headroom matters for dense multi‑GPU servers where cable bundling and restricted airflow can raise connector temperatures. The revised design also reduces the number of individually sleeved wires that need to be routed, while remaining flexible despite a larger diameter, limiting the mechanical force on GPU headers. Together, these changes aim to cut the risk of thermal deformation and intermittent contact under heavy load.
Strategic Role in SeaSonic’s Broader Data Center PSU Refresh
The Prime Enterprise TX‑1300 and TX‑1600 do more than extend SeaSonic’s wattage range; they signal a broader shift toward smarter, more efficient data center PSU design. With capacities up to 1,600W, the line targets growing enterprise server demands, especially in AI and GPU‑dense environments where a single node can draw well over a kilowatt. By combining 80Plus Titanium efficiency, Cybenetics Titanium certification, OptiGuard protection, and silicon‑based 12V‑2×6 cabling, SeaSonic is addressing both electrical and mechanical failure points that have troubled earlier high‑power GPU standards. The PSUs are slated for release in Q3 2026, with pricing yet to be announced. As part of SeaSonic’s wider Computex product refresh, Prime Enterprise positions the company as a contender for operators who want efficiency, granular monitoring, and future‑proof connectors in one platform, rather than piecing together upgrades from different vendors.
