What Google’s Open Fitbit Air Band Files Let You Do

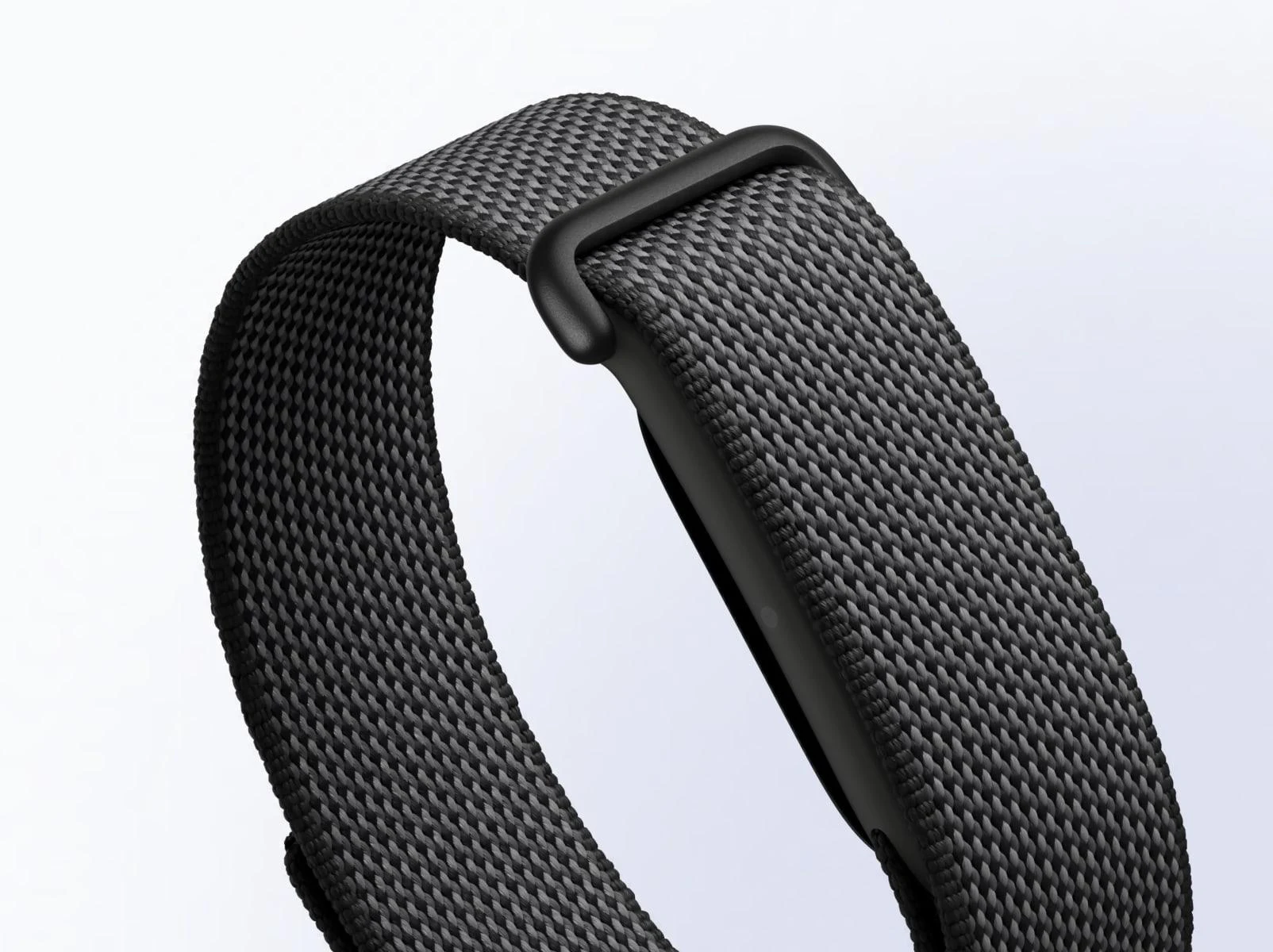

Google’s release of official 2D CAD drawings and hardware specifications for Fitbit Air bands is a public design kit that lets anyone 3D print Fitbit bands and build compatible accessories without licensing barriers, while still following strict rules for sensor performance and safe materials. The Fitbit Air is built around a tiny sensor “pebble” that snaps into a removable sleeve, and that sleeve is exactly what the new CAD design files describe in detail. According to Google’s community announcement, the hardware specifications and accessory guidelines are now available so “anyone from independent designers and artisan makers to custom accessory brands can build accessories for the Fitbit Air.” For hobbyists, this means Fitbit Air customization is no longer limited to buying official straps; you can design DIY fitness tracker bands that fit your wrist, your style, and your 3D printer.
Step 1: Download the Official CAD Design Files and Guidelines
Start your DIY fitness tracker band project by heading to Google’s Fitbit Air guidance page, linked from the Google Store and community forum posts. There, you can download the official 2D CAD drawings plus written design guidelines that explain how the pebble and sleeve fit together. These drawings include crucial dimensions, attachment tolerances, and force specifications for the snap-in retention system, which you will recreate as a 3D model. Android Authority notes that the files are not ready-to-print STL models, but they include enough measurements for a hobbyist to rebuild the geometry in CAD software. Think of the PDF as your master blueprint: it defines the exact pocket that holds the sensor, the clearance so sensors stay unobstructed, and the mating force needed for secure yet removable Fitbit Air bands.
Step 2: Rebuild the Band Sleeve in Your CAD Software
Open your preferred CAD tool—Fusion 360, FreeCAD, Onshape, or OpenSCAD—and start by tracing the sensor “pebble” outline based on the 2D CAD drawings. Recreate the inner cavity first, using Google’s mating dimensions and tolerance ranges so the tracker snaps in with the specified attach and detach force. Next, model the outer sleeve walls and any strap features, such as lugs or a continuous loop, around that cavity. Android Authority reports that an AI assistant could already generate parametric OpenSCAD code and a detailed measurement sheet from the PDF, which shows that the dimensions are complete enough for careful reconstruction. Focus on keeping the sensor window fully open under the device and maintain a flat, clean surface under the optical sensors so readings stay accurate. Once the functional geometry is locked, you can add curves and styling for comfort and looks.
Step 3: Design for Sensors, Skin Contact, and Comfort
Before you rush to print, refine your design around the two rules Google emphasizes: the pebble’s sensors must remain unobstructed, and they must keep consistent pressure against your skin. The guidelines describe contact pressure expectations and warn that poor contact can weaken heart rate or blood oxygen readings. Shape the underside of the sleeve so it hugs the wrist without sharp corners, and taper edges to reduce pressure hot spots. Google’s documents also stress material choices: choose skin-friendly plastics, fibers, or textiles and avoid options that trap sweat or cause irritation. Because the sleeve holder must be flexible enough to pop the sensor in and out yet strong enough to hold it during workouts, consider adding a slightly thinner “flex zone” around the opening. Test-fit a prototype pebble cavity in low-cost filament before committing to a full multi-piece band.
Step 4: 3D Print, Test, and Explore Creative Fitbit Air Customization
With your CAD model ready, export an STL and prepare it in your slicer. Print in a flexible or semi-flexible material that balances comfort with durability, then test how easily the Fitbit Air pebble snaps in and out. Google advises that the sleeve holder should let users “easily pop the sensor in and out” while staying secure during exercise, so adjust wall thickness, clearances, or print orientation if the fit feels too tight or loose. Once the functional fit is dialed in, explore more expressive designs: colorful lattices, engraved patterns, or hybrid bands that combine a 3D-printed core with woven or leather straps. Digital Trends notes that this open ecosystem could inspire everything from minimalist workout straps to niche accessories that larger brands would never produce, making Fitbit Air customization far more accessible to makers.
