What Intel Nova Lake Is and When It Arrives
Intel Nova Lake is a next-generation desktop CPU family branded as Core Ultra 400, featuring up to 52 cores, a new LGA 1954 socket, and platform updates aimed at high-end consumer and entry workstation builds. According to reporting from Computex, Intel is now targeting an announcement at CES 2027, with retail availability following shortly after for initial models. Early desktop chips will ship with up to 28 cores on a single compute tile, while the flagship 52-core processor variants, using dual compute tiles, are expected roughly two to three months later, close to Computex 2027. These CPUs use new Coyote Cove performance cores and Arctic Wolf efficiency cores, built on TSMC process technology rather than Intel’s own nodes. With up to 52 cores and 52 threads, Nova Lake-S aims to bridge the gap between mainstream desktop platforms and traditional high-end desktop systems.
LGA 1954 Socket and Dual-Lever ILM: Cooling and Longevity
The LGA 1954 socket is central to Intel Nova Lake’s platform shift. It introduces a dual-lever 2L-ILM (Integrated Loading Mechanism) that applies mounting pressure more evenly across the CPU, addressing the “bendgate” concerns seen on recent Intel generations. This dual-lever design is intended to keep the integrated heat spreader flatter, improving cooler contact and lowering CPU temperatures, especially important as power levels climb on high-core-count SKUs. Some reports suggest the 2L-ILM mechanism may be optional on certain LGA 1954 motherboards, depending on thermal needs. Intel plans for LGA 1954 to support multiple generations, including Nova Lake, Razor Lake, and Hammer Lake, a major change from the company’s usual two-architecture socket lifecycle. That move puts LGA 1954 in more direct competition with long-lived consumer sockets, promising better upgrade paths for PC builders planning several cycles ahead.
Up to 52 Cores, No Hyperthreading and Big Cache Options
On the performance side, Intel Nova Lake-S marks a major core-count jump, scaling up to 52 cores and 52 threads, thanks to a hybrid layout of up to 16 P-cores, 32 E-cores, and 4 LP-E cores. Hyperthreading (SMT) is dropped on these desktop parts, with Intel instead pushing higher core density, large cache pools, and high power limits to drive multi-core workloads. Internal documents point to combined L2+L3 cache reaching 160–320 MB, plus an additional 144–288 MB of bLLC cache on top-end models. Power budgets are aggressive: “The PL1 is set to 175W, 40% higher than the existing chips, and the PL2 is around 300–400W,” with dual-tile parts able to spike near 700W in short bursts. These 52-core designs are positioned as multi-core powerhouses for content creation and entry-level workstation tasks on desktop-class boards.
Q970 Workstation Chipset: DDR5 128GB Support and PCIe 5.0

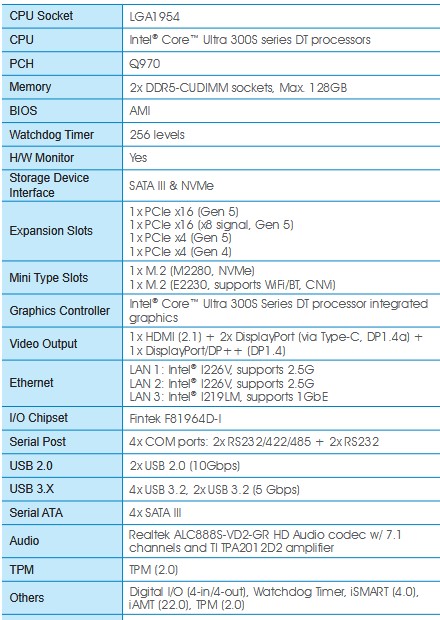

The Q970 chipset gives a first concrete look at LGA 1954 motherboards tuned for professional use. A leaked spec sheet shows support for Intel Core Ultra desktop processors in the LGA 1954 socket, paired with two DDR5-CUDIMM slots that provide DDR5 128GB support in total. Storage connectivity combines SATA and NVMe, including two M.2 slots, one wired specifically for storage, underlining Q970’s role as an entry-level workstation platform rather than a flagship enthusiast board. For expansion, the design lists multiple PCIe Gen 5.0 x16 and PCIe 5.0/4.0 x4 slots, plus up to three Ethernet ports with speeds up to 2.5 GbE for business environments. Q970 also integrates Intel vPro features, but omits memory and CPU overclocking, reserving tuning options for consumer-focused chipsets while giving workstation buyers stability, manageability, and next-gen I/O on the new LGA 1954 socket.
Z990/Z970 Consumer Boards and What Builders Should Plan For
For enthusiast and gaming builds, Intel Nova Lake will sit on Z990 and Z970 motherboards, already teased around Computex. These consumer chipsets are expected to expose the platform’s PCIe 5.0 lanes, DDR5 CUDIMM support at up to 8000 MT/s in favored memory configurations, and new overclocking tools. Intel has reportedly shown partners a “Multi-Core OC” feature that lets users tune each core individually on unlocked, higher-core-count models, aligning well with the heterogeneous Nova Lake core layout. Hyperthreading’s removal means buyers looking at 52-core processor options will focus on raw core count rather than thread doubling, a shift that favors workloads that scale across many physical cores. With LGA 1954 planned to support multiple CPU generations, PC builders weighing an upgrade can treat early Z990 or Z970 platforms as a long-term base for future Nova Lake, Razor Lake, and Hammer Lake CPUs.
