Why Next-Gen GPUs Need Radical Cooling and Power Designs
RTX 5090 cooling, power delivery, and connector safety describe the intertwined engineering challenges of removing extreme heat, feeding massive current, and preventing cable failures in next‑generation GPUs so they can run reliably at full performance without shortening component lifespan. As power budgets climb, traditional heatsinks, plastic fans, and basic 12V-2×6 connectors reach their limits, creating real bottlenecks for both speed and durability. Instead of only boosting clock speeds, manufacturers like MSI and PNY are rebuilding the cooling stack and power path around diamond thermal materials, safer connectors, and AIO liquid cooling GPU options. Together, these hardware and firmware changes focus on moving more heat off the die, distributing power more evenly, and catching faults before they damage the card. The result is a more holistic response to the power and heat crisis looming over the next wave of high-end graphics cards.
MSI’s Diamond Thermal Stack and Metal Fans for RTX 5090 Cooling

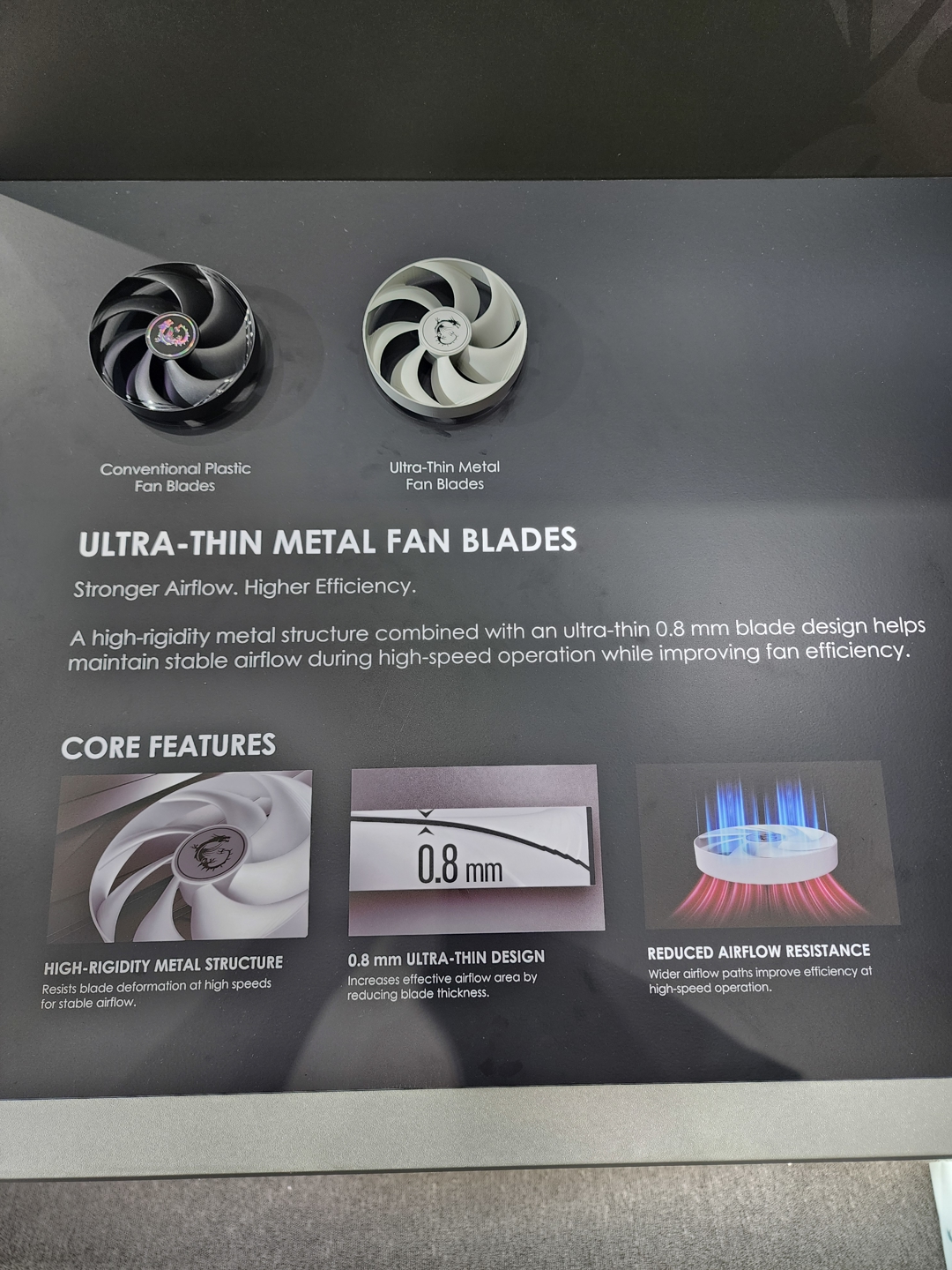

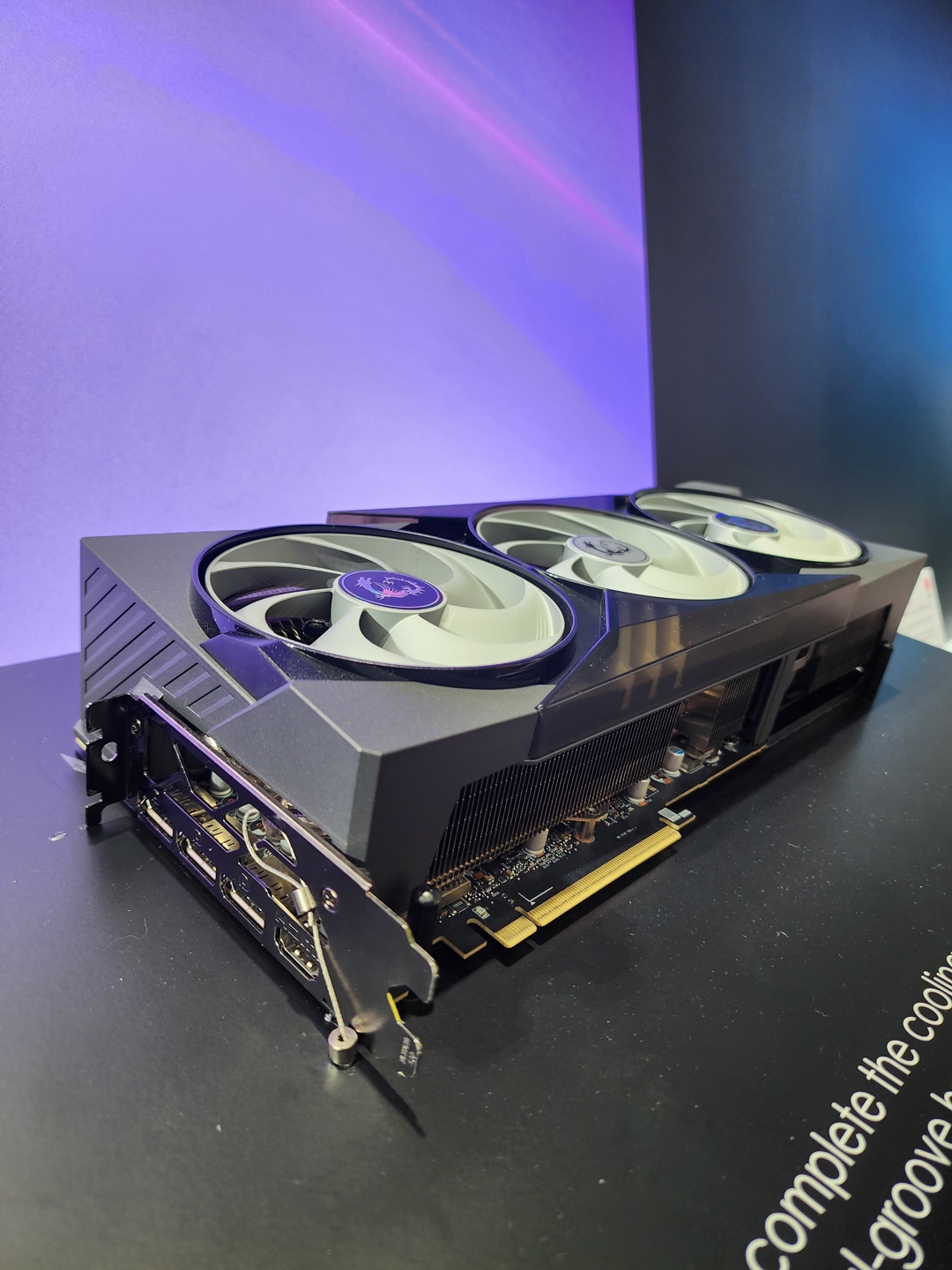

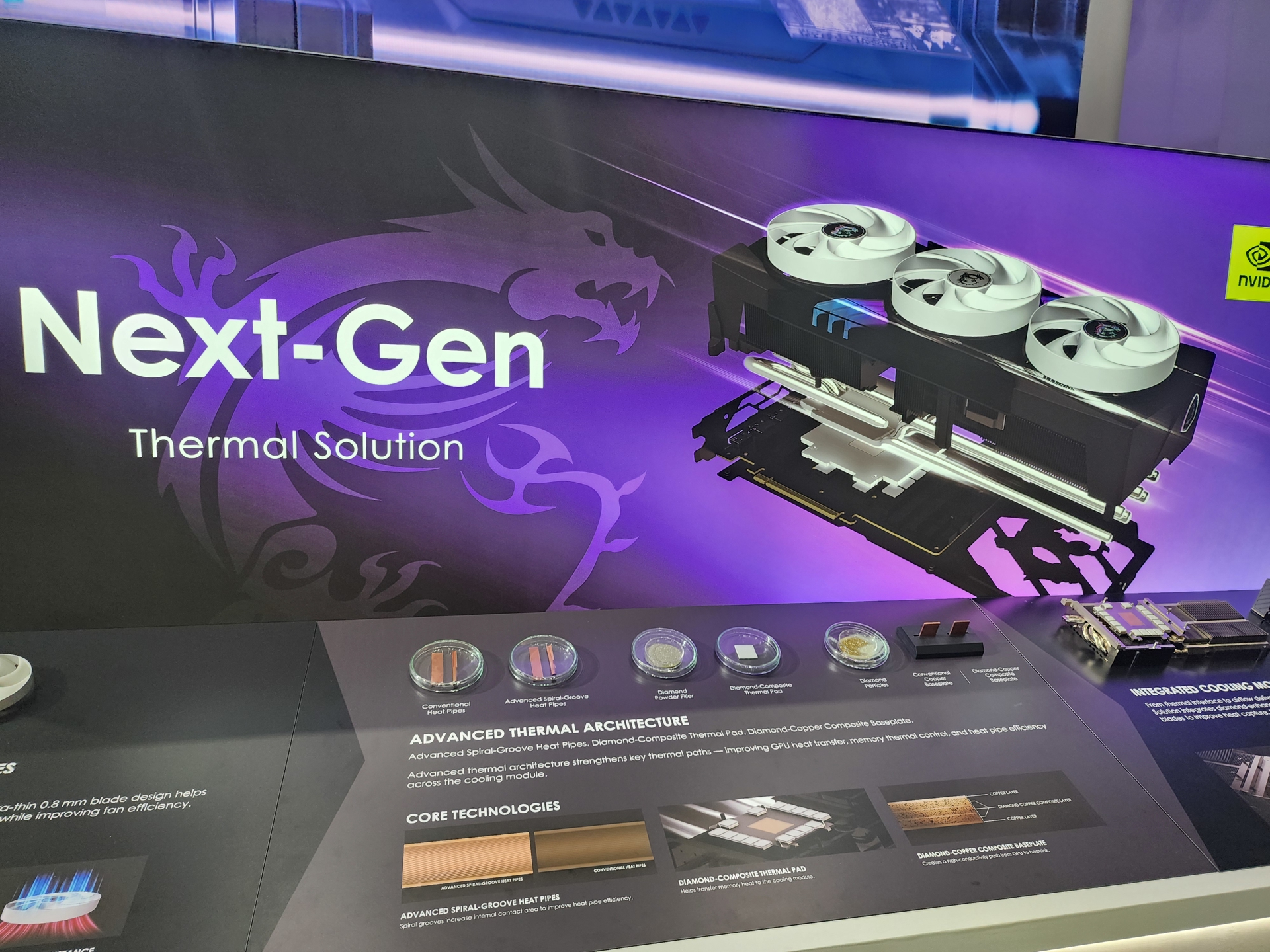

MSI is preparing a new thermal module for future RTX GPUs that combines ultra-thin metal fans, revised heat pipes, and diamond thermal materials. Its 7-blade all-metal fan uses a 0.8 mm blade design and a high-rigidity structure to cut airflow resistance and prevent deformation at high speeds, which helps maintain stable airflow under heavy loads. Spiral-groove heat pipes increase contact area compared to conventional designs, while a diamond-composite thermal pad is dedicated to memory cooling. At the heart of the heatsink, a Diamond-Copper composite baseplate sandwiches a diamond-copper layer between copper slabs to create a higher-conductivity path from GPU die to fins, addressing one of the key RTX 5090 cooling choke points. MSI has shown this integrated module on a next-gen Gaming Trio layout and an RTX 5090 SUPRIM prototype, signaling that diamond thermal materials are moving from lab experiments into real PCB designs.

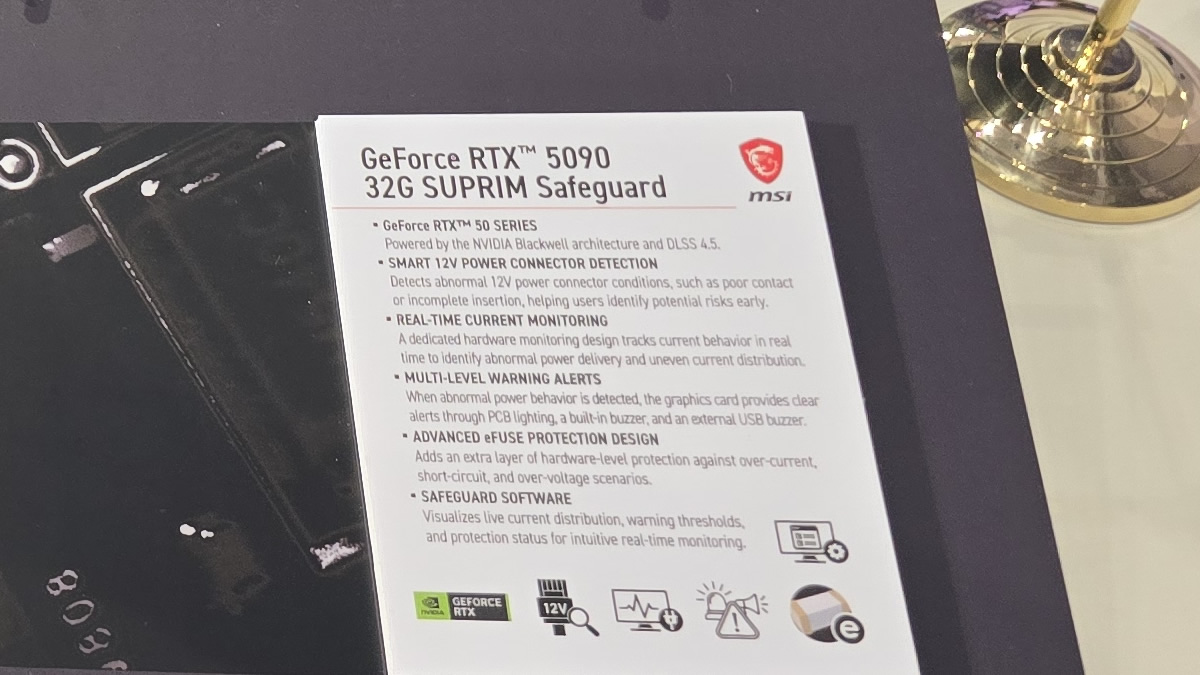

Safer 12V-2×6 Power: MSI Safeguard and Resettable eFuses
MSI is also attacking GPU power delivery at the connector level with a GPU-integrated Safeguard system designed around the 12V-2×6 interface. The RTX 5090 SUPRIM Safeguard adds current monitoring hardware that tracks each power pin and uses server-grade eFUSE components to block electrical damage. These resettable fuses react in about 200 ns and can be reused thanks to an internal gate-based reset mechanism, avoiding one-time fuse failures. When the card detects abnormal conditions, MSI’s Intelligent Power Safeguard triggers a red LED, a system notification, and a built-in buzzer, and can even link to an external buzzer for clearer alerts inside a case. After 120 seconds of sustained imbalance, the GPU automatically locks its power limit to 70% to reduce connector stress. This approach directly targets 12V-2×6 connector safety by combining hardware limits with clear user-facing warnings and software control.
PNY and LYNK+: Modular AIO Liquid Cooling for High-Power GPUs
While MSI doubles down on advanced air and hybrid designs, PNY is taking RTX 5090 cooling into modular AIO territory with the LYNK+ interconnect system. The card shown at Computex pairs a PNY GPU with a factory pre-filled LYNK+ AIO liquid cooling GPU solution that uses drip-free quick-connect fittings and interchangeable radiators. According to LYNK+, their modular liquid cooling can deliver up to 25°C lower GPU temperatures than traditional air cooling and around 50% lower acoustic noise during demanding workloads, while being “optimized for high-power graphics cards, including NVIDIA GeForce RTX 5090-class thermal loads.” Integrated digital signaling coordinates fan and pump speeds, and low-diffusion tubing plus a leak-resistant layout aim to extend service life. With 2-slot and 3-slot compatible cooler modules and an expandable ecosystem that can include CPU blocks, LYNK+ turns high-end GPUs into more flexible, upgradeable liquid-cooled systems without the complexity of custom loops.
Do These Innovations Solve the RTX 5090 Heat and Power Crisis?
Taken together, these designs attack the core bottlenecks that limit RTX 5090 performance and longevity. MSI’s diamond thermal materials and ultra-thin metal fans increase heat transfer headroom on air, while the Diamond-Copper baseplate and spiral-groove heat pipes move heat away from the die more efficiently. On the electrical side, Safeguard monitoring, safe 12V-2×6 connector handling, and reusable eFuses build a safety net around high-current operation instead of relying on users to spot loose cables. PNY’s LYNK+ modular AIO cooling then adds an alternative path for enthusiasts who want lower temperatures and noise without assembling a full custom loop. None of these changes eliminate the reality that next-gen GPUs push power limits, but they make RTX 5090 cooling and GPU power delivery more controllable, measurable, and upgradeable. That combination is what will keep future flagships running near their potential instead of throttling under heat and connector issues.
