Why DIY Leather Tool Sheaths Are Worth Your Time
DIY leather tool sheaths are custom-fitted protective covers made from vegetable‑tanned leather that surround the cutting edges of hand planes, chisels and other edge tools so they stay sharp, rust‑free and safe during storage and transport, using a simple layered construction and basic riveting and gluing techniques that any woodworker can learn.
If you’ve ever tossed a chisel into a drawer and later found its edge dinged—or your finger nicked—you already know why chisel edge protection matters. Sharp tools are fragile; a bump against another tool or the side of a toolbox can undo your careful honing in seconds. On top of that, vintage tools you’ve restored deserve better than bare‑metal storage; protecting them is part of preserving your work on them. Leather tool sheaths give you tailored protection and feel good in the hand, and tool protection DIY projects are surprisingly approachable. You do not need a leather shop—only a few basic tools and some offcuts of the right leather to build elegant, durable guards that fit your tools and your workflow.
Gathering the Right Materials (and Avoiding the Hidden Rust Trap)
Before you start cutting, spend a moment on materials. The wrong leather can quietly ruin your edge, no matter how nice the sheath looks. Most garment and fashion leathers are chrome‑tanned with mineral salts and acidic compounds; when those fibers touch carbon‑steel chisels or gouges, they react with the metal, accelerating oxidation and etching rust right into a freshly honed edge. That’s the nightmare you’re trying to prevent, so sourcing is not a minor detail.
Use firm vegetable‑tanned leather, often sold as veg‑tan or tooling leather. It’s acid‑free, non‑corrosive, holds its shape and is safe for long‑term contact with fine steel. Scrap bags of veg‑tan are a budget‑friendly way to get enough material for many guards, and repurposed thick belts can work if they are vegetable‑tanned. Alongside the leather, you’ll want an inexpensive copper rivet set with rivets, washers, a hole punch and a setting tool; a good adhesive such as contact cement, PVA wood glue, epoxy or rubberized CA; plus a sharp utility knife, 60‑grit sandpaper, a small ball‑peen hammer and flush‑cut nippers. With that kit, you’re set for most leather edge guards you’ll ever need.
- Vegetable‑tanned leather scraps or a firm belt
- Copper rivet set with punches and setting tool
- Contact cement, PVA, epoxy or rubberized CA glue
- Utility knife, 60‑grit sandpaper, ball‑peen hammer, flush cutters
Step‑By‑Step: Building a Welted Leather Edge Scabbard
The most reliable pattern for leather tool sheaths is a welted scabbard: a three‑layer sandwich that creates a dedicated cavity for the blade and keeps the edge from cutting into your hardware. Think of it as a snug leather pocket shaped around your tool, with copper rivets marching along the outside. The key is building that pocket to match the actual thickness and width of the blade, especially if you’re protecting heavy slicks or deep carving gouges.
- Measure the total width of your chisel or gouge blade, then add 1‑1/4" (5/8" on each side) to get the sheath width.
- Cut two rectangular outer panels to that width, long enough to cover the edge and extend comfortably up the blade.

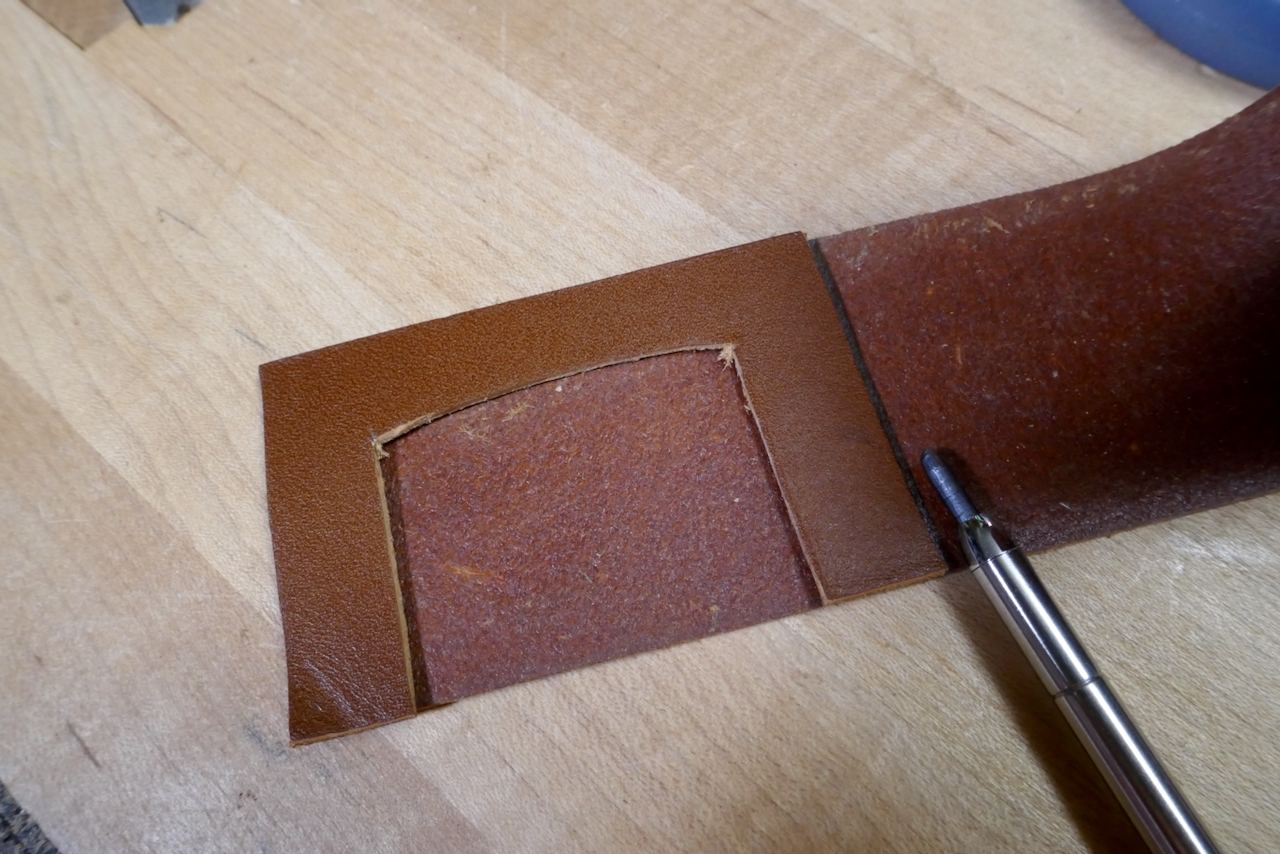

- Cut a third piece to the same size for the welt; place the tool centered on it, trace a U‑shaped outline of the blade and cut out the interior with a utility knife.
- For thick tools like timber‑framing slicks or high‑sweep gouges, stack two or three matching U‑shaped welts so the middle layer matches the tool’s height; this prevents the sheath from binding.
- Orient the rough flesh sides of the outer panels inward toward the welt, then scuff only the smooth grain sides along the U‑shaped glue tracks with 60‑grit to improve adhesion.

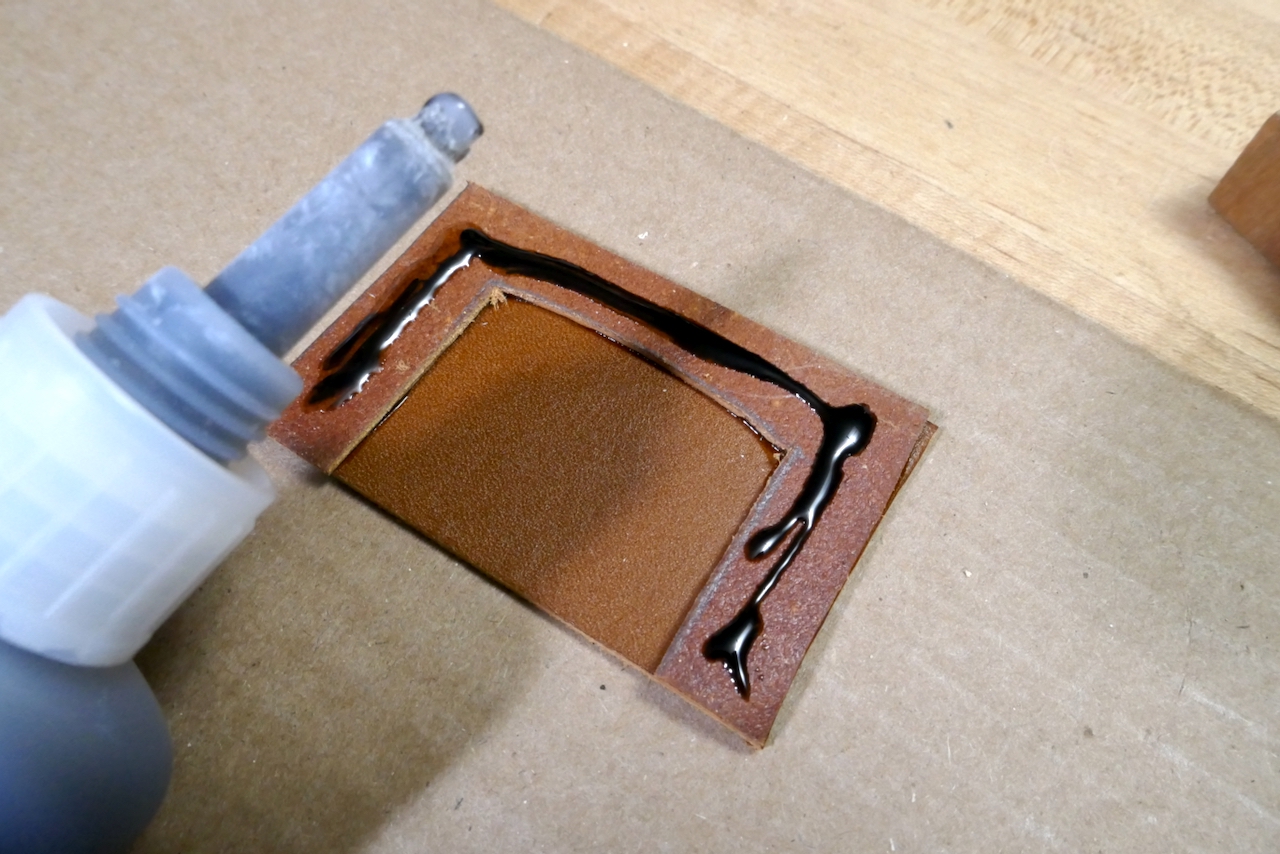

- Apply glue along the U‑shaped tracks of the welt, lay it onto the bottom panel, align edges, place the top panel and clamp around the perimeter until the assembly cures.
- Once the glued sandwich is solid, punch holes along the U‑shaped path, set copper rivets with their washers and dome the posts using the rivet tool and ball‑peen hammer.
Two common mistakes here are using chrome‑tanned leather, which will corrode your edges, and under‑building the welt for thick tools, which makes insertion feel tight and can deform the sheath over time. Take your measurements seriously, and resist the urge to over‑scuff the interior pocket; you want that surface smooth so the blade slides in without grabbing. When you’re done, you’ll have what many woodworkers describe as an elegant, durable and beautiful edge scabbard that protects both the tool and your rivets.
Fine‑Tuning, Storage Habits and When DIY Beats Store‑Bought
Once your sheath is riveted and cured into a solid unit, test‑fit the tool. You should feel a snug slide with no scraping on the cutting edge. If it feels loose, you can slightly dampen veg‑tan leather and burnish the mouth to tighten the fit; if it feels tight around a thick tool, you may need to rebuild with an extra welt layer. It’s worth dialing in, because this is the piece you’ll use every day when you put tools away or load a travel kit.

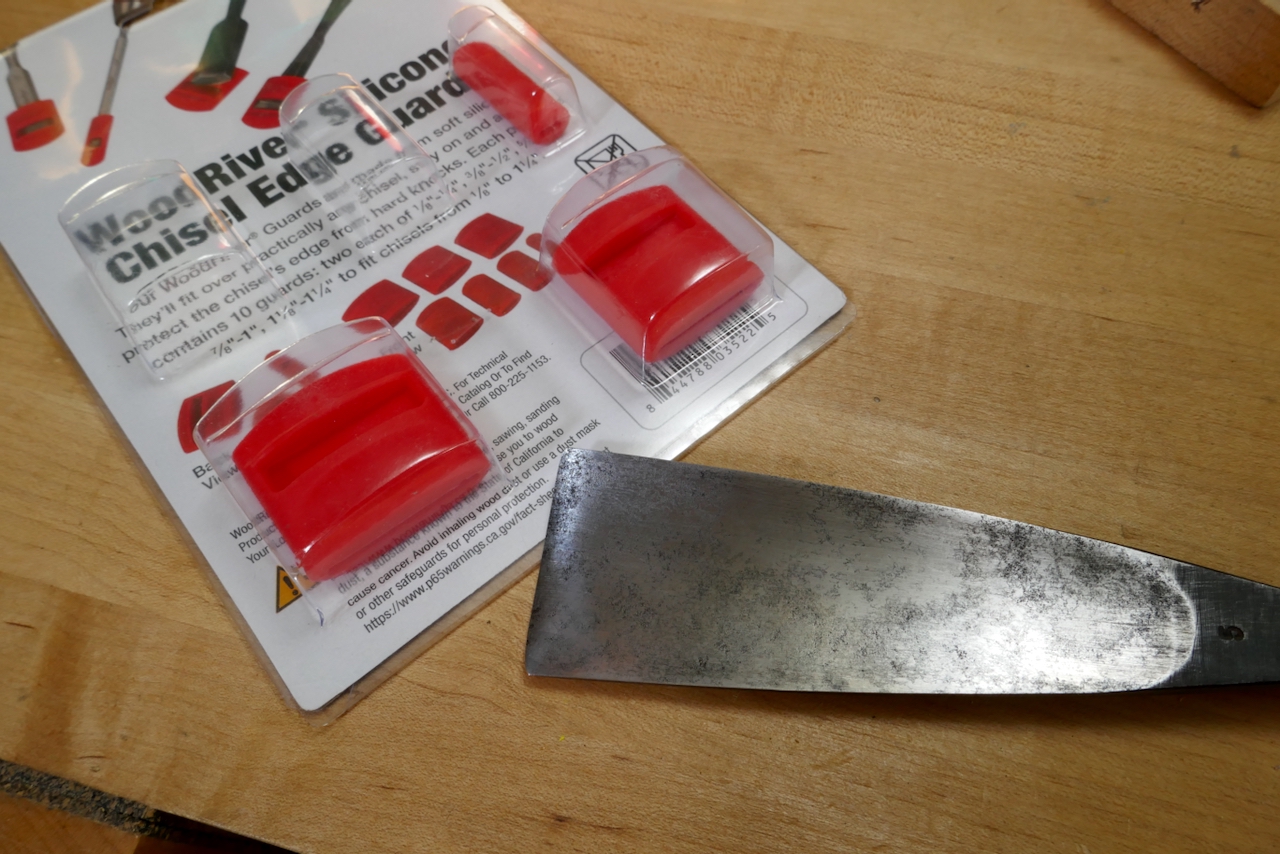

Commercial plastic or rubber caps work for standard sizes, but they struggle with wide framing chisels, deep gouges and other odd profiles. In those cases, making your own custom protective cover is the most reliable path. A single scrap bag of vegetable‑tanned leather can give you material for dozens of guards, making tool protection DIY a cost‑effective alternative to buying dedicated cases or systems. The real payoff is in habit: whenever a tool leaves the bench, it goes into its leather guard. Over time, that routine keeps your edges keen and your hands out of harm’s way, whether you’re working in the shop, restoring flea‑market finds, or packing tools for a class.
Takeaway: A Small Project with Long‑Term Payoff
Making your own leather tool sheaths is one of those small shop projects that keeps paying you back. With a few scraps of vegetable‑tanned leather, a modest rivet kit and some glue, you can build tailored chisel edge protection that suits your exact tools and the way you store them. The main things to watch are leather choice—avoid chrome‑tanned materials—and welt thickness for bulkier tools so you don’t fight the fit. Once you’ve made one guard, the rest come quickly, and before long your drawer of bare steel turns into a neatly guarded roll of sharp, safe edges. That’s good for your tools, your fingers and the satisfaction of knowing you built the solution yourself.
