Why AV-over-IP Is Now the Default for Professional AV Infrastructure
AV-over-IP has become the standard foundation for professional AV infrastructure because it turns video, audio and control into IP traffic that can ride on standard switches, cabling and network distribution. Instead of being locked into the fixed inputs and outputs of a hardware matrix, integrators can scale by simply adding more encoders, decoders and switch ports. Large switching environments, mixed-use spaces and multi-room projects benefit from flexible routing, where any source can reach any display without rewiring. At the same time, AV-over-IP is not automatically the right answer for every job. Small, static systems may be served perfectly well by a traditional HDMI matrix or simple extension. The key is to treat AV-over-IP as one tool in a broader AV transport selection toolkit, aligning its powerful flexibility with applications that genuinely need room to grow and reconfigure over time.
From Matrix to AV-over-IP: When the Application Demands a Networked Approach
Choosing between a traditional matrix and an AV-over-IP encoder-based architecture starts with understanding use cases, not products. If the system is a fixed, one-source-to-a-few-displays installation with little chance of expansion, a simple matrix or splitter may be easier to deploy and support. However, as switching requirements approach or exceed roughly 8×8, or when you anticipate future rooms, more sources or cross-room routing, network-based distribution becomes compelling. AV-over-IP shines in environments where any input may need to go to any output, or where additional services such as USB, KVM, return audio or independent audio and video routing are required. These capabilities are often native to AV-over-IP platforms, reducing the need for extra hardware. By mapping current and future routing needs early, integrators can avoid boxing clients into systems that are difficult or expensive to expand later.
Selecting AV-over-IP Encoders: Matching Feature Sets to Real Needs

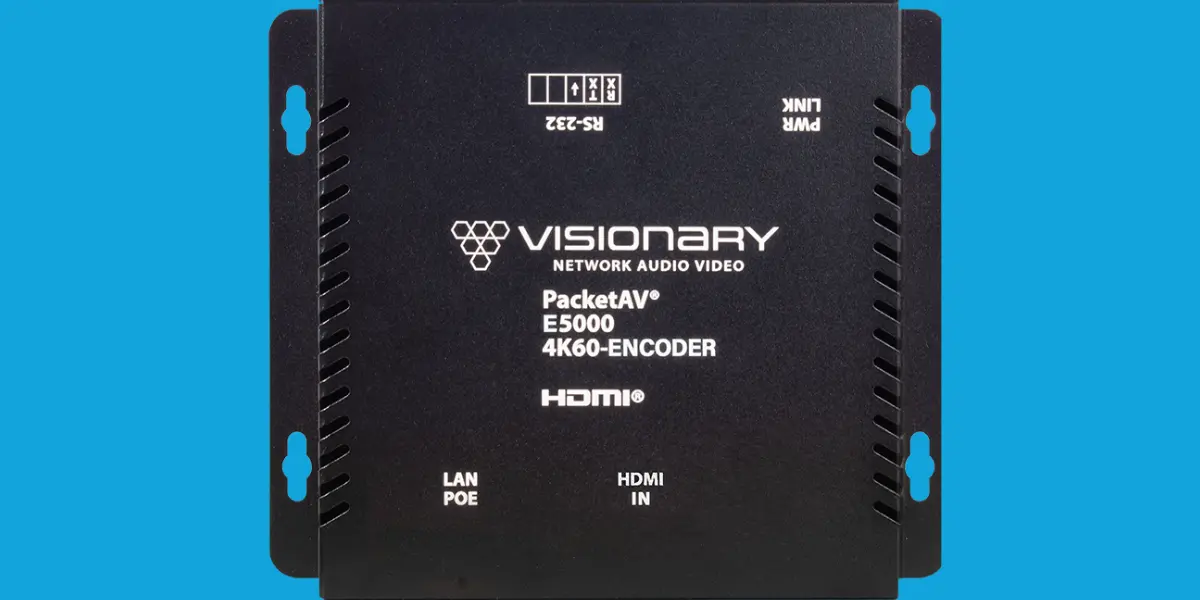

Once you commit to AV-over-IP, encoder choice becomes critical to both performance and cost-effectiveness. Compact AV-over-IP encoder models such as Visionary’s E5000 are designed for projects that need dependable, cinema-quality, ultra-low latency 4K UHD transport without the overhead of advanced, rarely used features. A simplified I/O configuration—single HDMI input, PoE Ethernet and RS-232 control—supports streamlined installations in education, corporate, government, hospitality, digital signage and large-venue environments. For many scalable deployments, this is the sweet spot: essential connectivity, consistent performance and easier standardization across a large node count. More feature-rich encoders with expanded I/O, audio breakouts or additional control interfaces remain valuable for specialist endpoints, but they should be specified intentionally. By aligning encoder capabilities with clear application requirements, integrators can balance flexibility, budget and long-term maintainability within a unified AV-over-IP ecosystem.
Architecting the Network: Physical Transport, Distance and Infrastructure
AV-over-IP transport selection is inseparable from network architecture and cabling decisions. Distance, bandwidth and the existing professional AV infrastructure all influence the right physical transport. Short, straightforward runs may accommodate passive HDMI in a traditional design, while longer or higher-resolution paths call for active HDMI, category cable or fiber. For network distribution of AV-over-IP, Cat6 or Cat6A is typically recommended, with shielding considered for electrically noisy environments and properly grounded when used. Fiber can be introduced when runs are very long, when electrical isolation is needed or when the design spans multiple buildings; multimode is often sufficient for AV, while single-mode may be chosen for maximum reach and long-term value. The crucial mindset shift is that cabling type is not dictated simply by “matrix versus AV-over-IP,” but by a careful evaluation of distance, performance requirements and the realities of the site’s infrastructure.
Designing for Reliability, Scalability and Long-Term Maintenance
The real payoff of thoughtful AV transport selection is a system that remains reliable, scalable and supportable over its lifecycle. Every link in the chain—encoders, decoders, switches, extenders and cables—must support the required video formats, HDR, audio capabilities and control protocols end to end. AV-over-IP architectures make it easier to expand and reconfigure, but they also introduce IT considerations such as switch configuration, multicast management and QoS. Choosing encoders like the E5000 that offer essential features without unnecessary complexity can simplify standardization, troubleshooting and stocking of spares. Documented designs, consistent device families and clear separation of AV and data VLANs further improve long-term maintenance. By starting with realistic present-day needs, anticipating growth and validating that the chosen transport and network design fully support all required features, AV professionals can deliver AV-over-IP systems that stay robust and adaptable for years.
