The New Priority: Smart, Safe Power Delivery
Power supply intelligence refers to new PSU features such as GPU cable monitoring, smart power limiting, and modular dock designs that actively improve power delivery safety, ease of access, and cable management in high-wattage enthusiast systems. For years, builders treated the power supply as a boring metal box, but that attitude is colliding with the reality of high-power GPUs and fragile new connectors. When a graphics card costs as much as the rest of the system, power delivery is no longer background noise; it is the risk surface everyone should care about. The latest PSU ideas from major vendors show a clear shift: instead of assuming cables are fine and connectors are properly seated, the PSU is starting to watch, think, and physically re-route itself to keep that assumption from turning into a burnt plug.
T-Guard: GPU Cable Monitoring as a Safety Net
GIGABYTE’s new GAMING Series brings something builders have been waiting for: an active guardrail against connector failures in the form of T-Guard GPU cable monitoring. This system constantly tracks the temperature of the 12V-2×6 GPU power connector via built-in sensors instead of waiting for a melt to reveal a bad connection. If it detects abnormal heat from a loose plug or heavy load, it alerts the system and starts protecting hardware by limiting power to the GPU rather than killing the whole PC at once. That design choice matters. The rest of the machine keeps running, so users can save work and, when supported by integrated graphics, keep a display output for troubleshooting instead of facing a dead screen. Combined with real-time monitoring and automatic power limiting, T-Guard effectively adds three layers of power supply safety around the most failure-prone part of enthusiast power delivery.

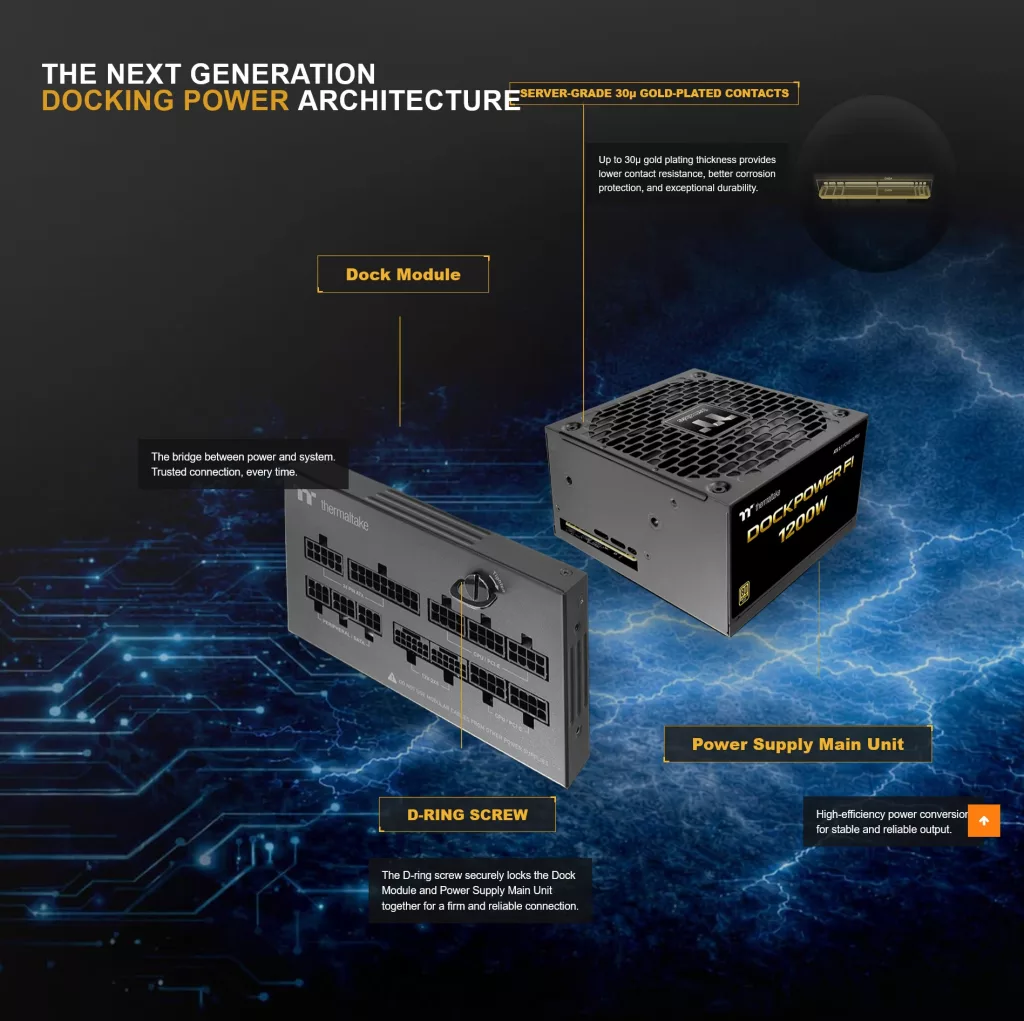

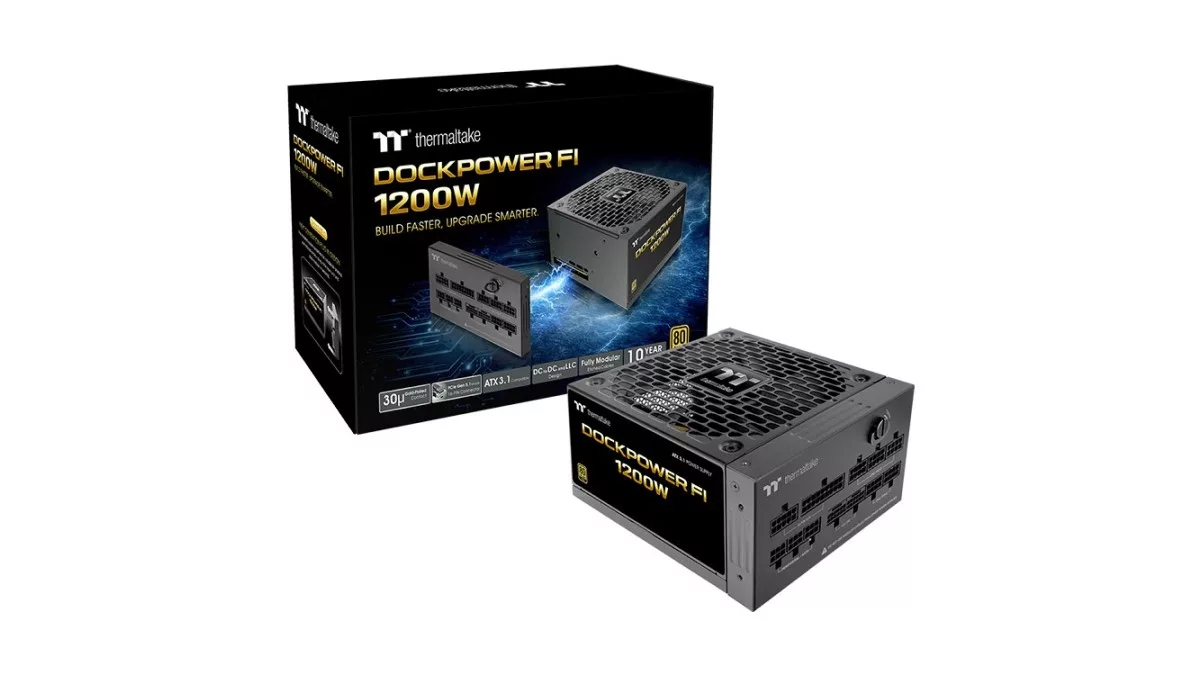

Dockpower: Modular PSU Design That Moves the Ports to You
While T-Guard focuses on preventing electrical disaster, Thermaltake’s Dockpower FL series attacks a different pain point: the physical nightmare of reaching PSU ports in cramped cases. Dockpower units introduce a removable dock module, letting users pull the power interface out to a more accessible spot, connect cables, then reattach it to the PSU inside the case. That is modular PSU design applied to the PSU’s own faceplate, not just its cables. The line spans 750W, 850W, 1000W, and a 1200W flagship model, all 80 Plus Gold, with the first three supporting ATX 3.1 and a single PCIe 12+4 connector, while the 1200W adds ATX 5.1 and two PCIe 12+4 connectors for higher-end enthusiast power delivery. To keep this detachable interface secure and reliable, the dock relies on a server-grade 30μ gold-plated connector and a D-Ring screw to lock it back in place.
Why These PSU Features Matter More Than Another RGB Strip
Both T-Guard and Dockpower tackle the same underlying problem from different directions: high-wattage components have outgrown the old “install and forget” view of PSUs. Connector issues and melting 12V-2×6 plugs have made clear that power delivery is now a frontline reliability concern, not an edge case. Thermaltake addresses the physical side, moving ports where human hands can reach them and locking that flexibility down with server-grade hardware. GIGABYTE tackles the electrical side, putting sensors and logic between an overheating cable and a dead GPU. Together they sketch a near-future norm where a high-end PSU is expected to manage cable access, watch connector temperatures, and gracefully limit damage when something goes wrong. In other words, the smarter your PSU, the less you have to trust your luck.
The Next Enthusiast Upgrade: Intelligence Over Cosmetics
The lesson for enthusiasts is clear: power supply safety and usability features deserve the same attention as wattage and efficiency badges. According to one report, the new GAMING Series units are fully compliant with ATX 3.1 and PCIe 5.1, come in 750W, 850W, and 1000W capacities, and stay below 20 dB(A) under typical loads. Likewise, Dockpower offers up to 1200W of ATX 5.1-ready output with two PCIe 12+4 connectors in its top model. Those numbers say these are not niche curiosities; they are credible enthusiast power supplies that happen to build in smarter protection and cleaner cabling. As GPUs and standards continue to push power higher, builders who ignore features like GPU cable monitoring and modular dock designs are accepting unnecessary risk. The smart move is to treat PSU intelligence as the next must-have spec, not an optional extra.
