From Childhood Fantasy to Wearable Game Boy Color

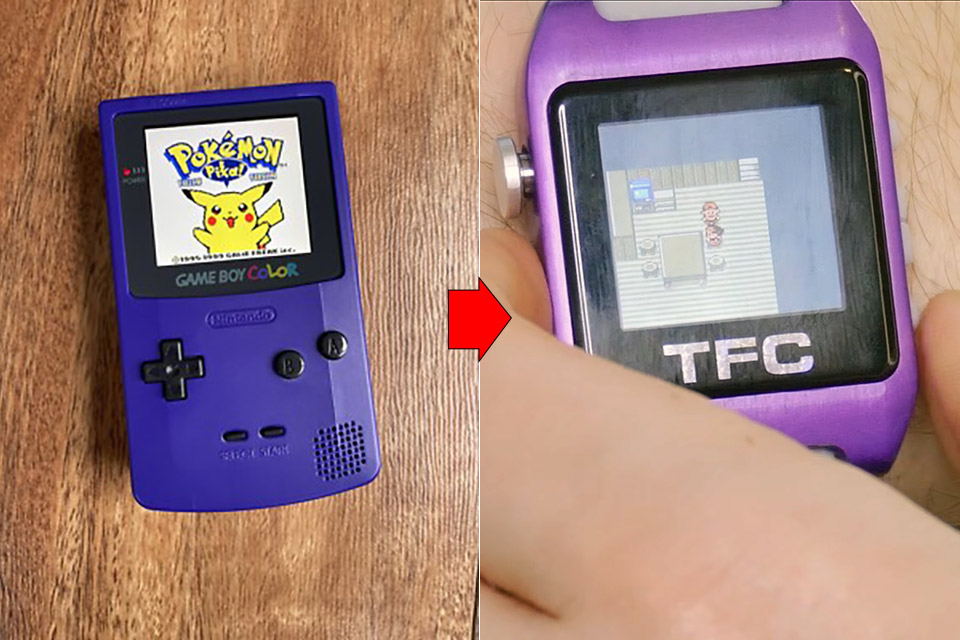

For many kids who grew up in the late 1990s, the idea of a Game Boy Color watch was pure science fiction. For hardware modder Chris Hackman, known online as LeggoMyFroggo, that childhood fantasy has become a real, working device: the Time Frog Color. Rather than emulating Nintendo’s classic handheld, this Game Boy Color watch is built around the original Sharp system‑on‑chip with its Z80 CPU core, so it runs the same code and games as the original hardware. The result is a wearable game console that feels authentically retro but looks like a chunky modern smartwatch. Hackman previously rebuilt the Game Boy Color as a handheld project called FrogBoy, and the Time Frog Color is a more radical evolution of that work. It shrinks the full console into a 38 mm‑wide, 15 mm‑thick watch body that you can literally strap to your wrist and play.
How the Time Frog Color Packs a Console Into a Watch

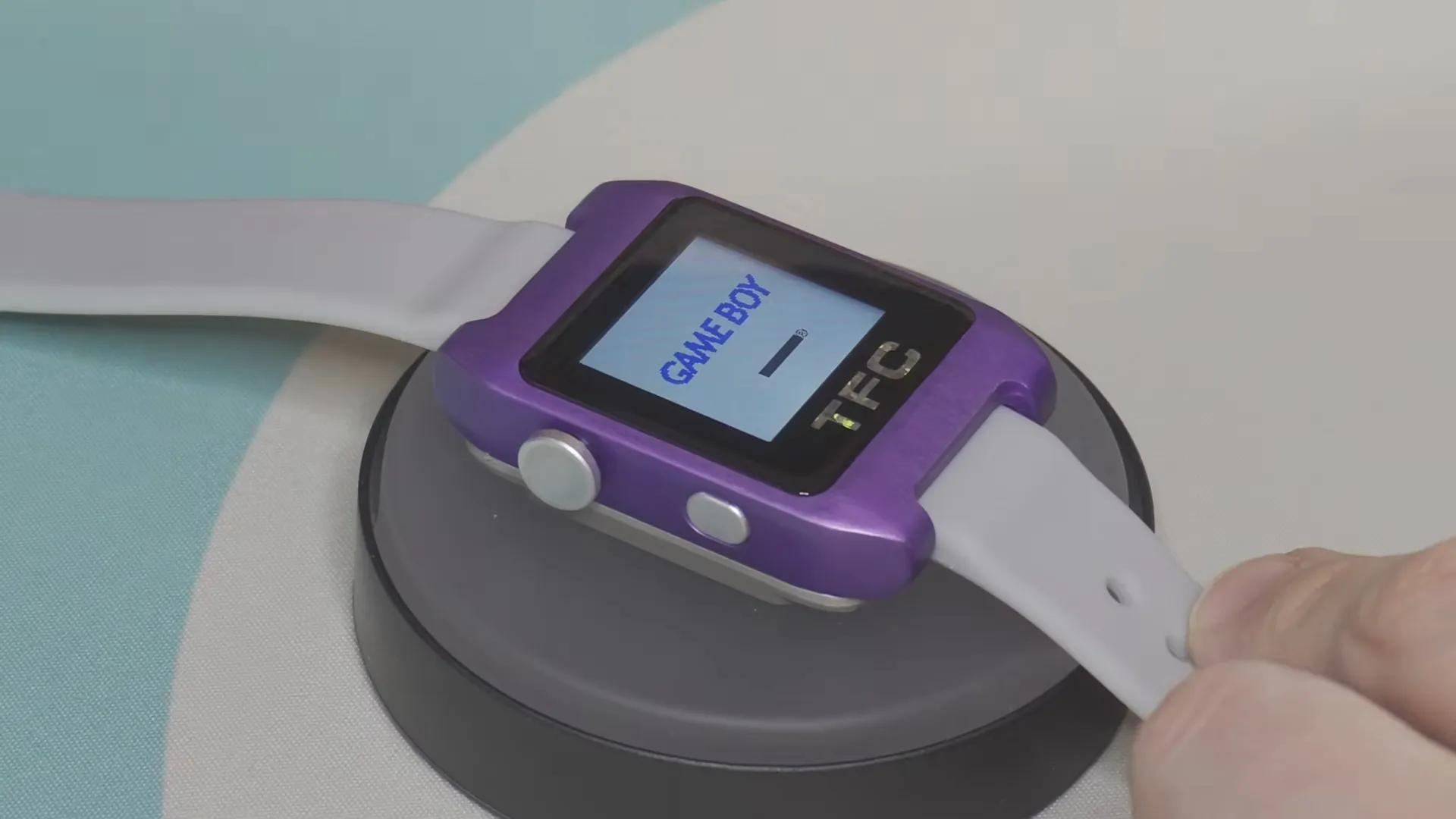

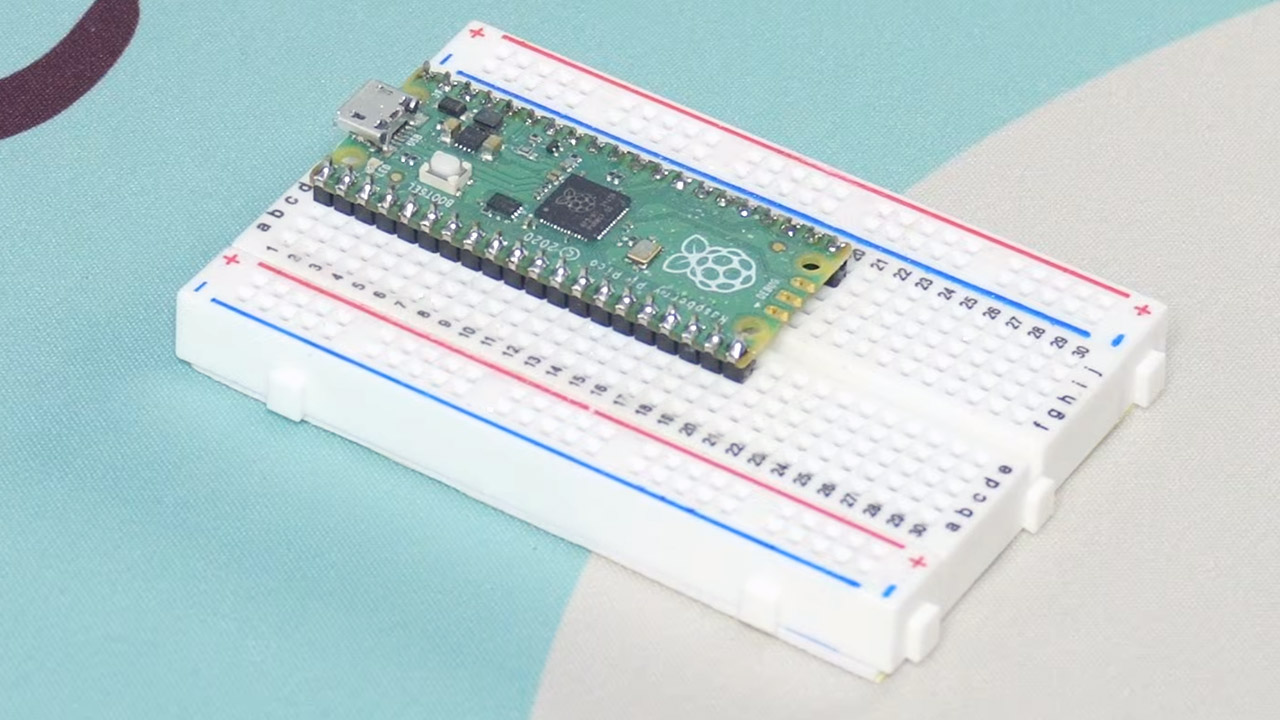

Under the purple anodized metal shell, the Time Frog Color is a clever mash‑up of vintage silicon and modern maker tech. The original Game Boy Color CPU outputs parallel RGB video signals that do not match today’s watch‑sized LCDs, so Hackman added an RP2040 microcontroller as a real‑time translator. Using its programmable I/O pins, the RP2040 reshapes the classic video output into a signal the compact display understands, acting as what he jokingly calls a “poor man’s FPGA”. Controls are shifted to the sides: four face buttons line one edge, while a tiny D‑pad sits on the opposite side, each with tactile switches under 3D‑printed or machined caps for a satisfying click. The watch case is machined from 6061 and 7075 aluminum and anodized in a deep, Nintendo‑style purple, giving the device a premium, console‑inspired look that matches its nostalgic internals.
Cartridge Slots, Strap Batteries and Everyday Usability

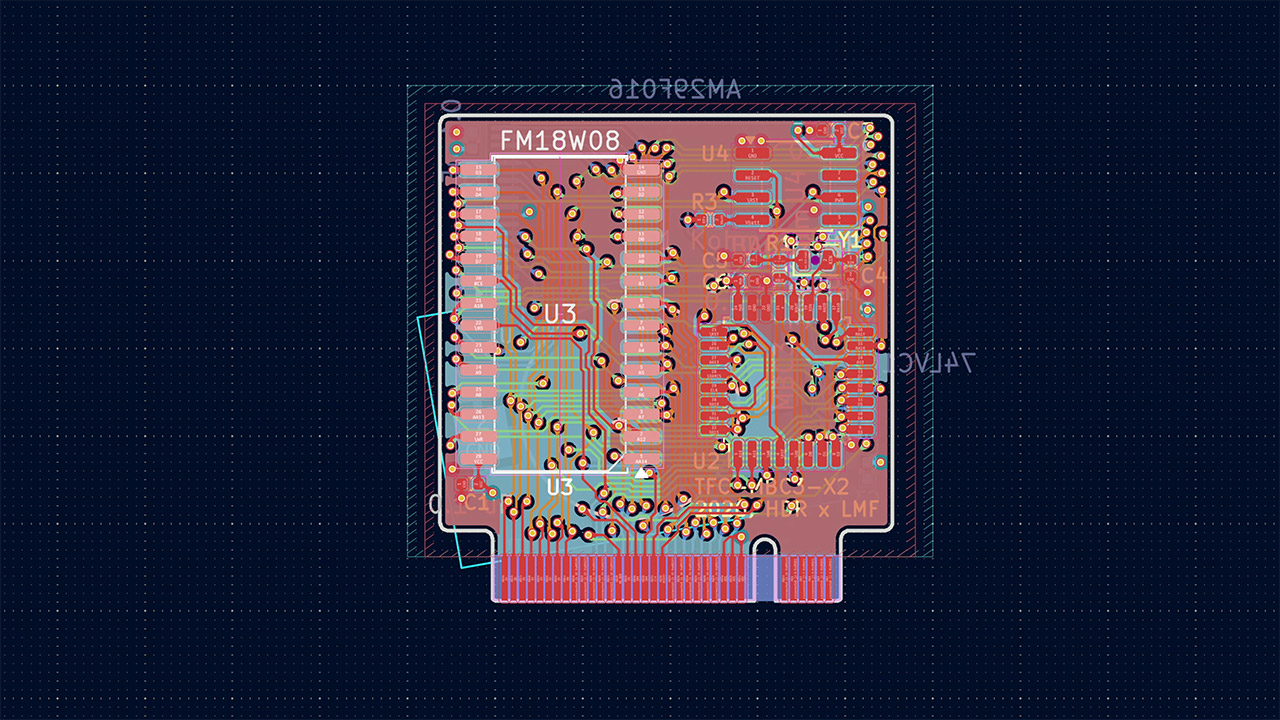

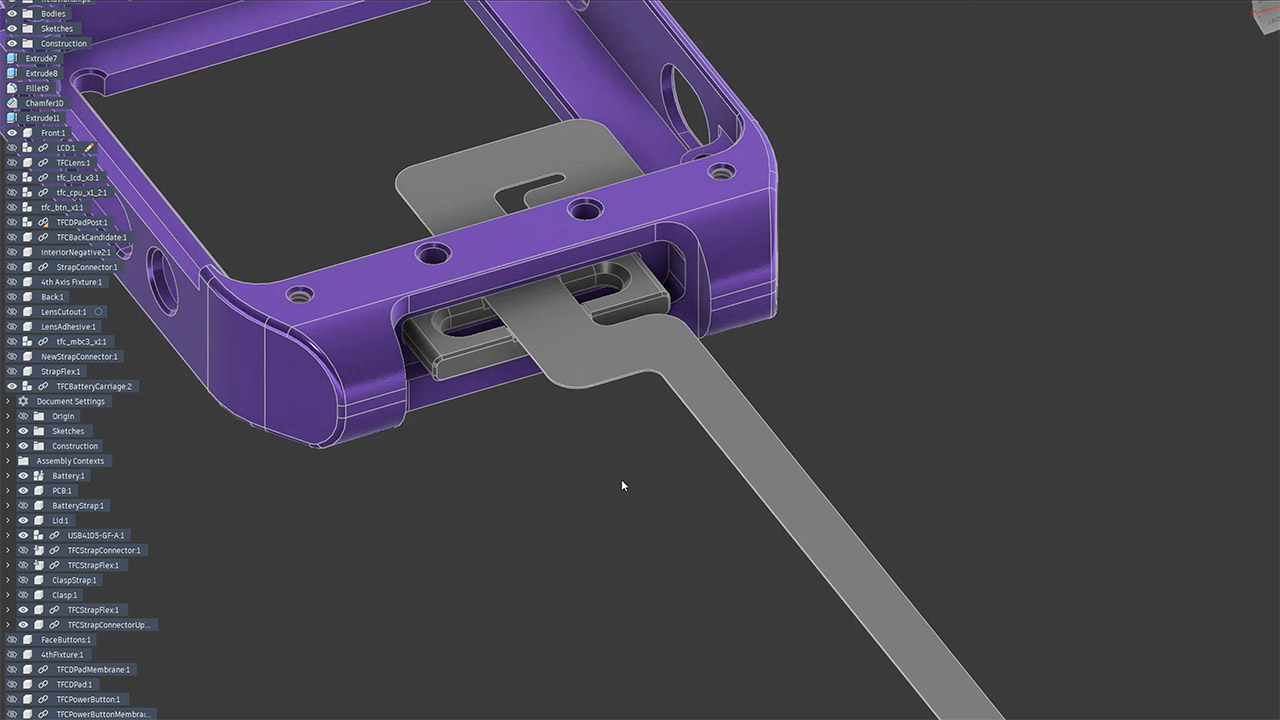

Staying faithful to the original Game Boy experience, the Time Frog Color still uses cartridges instead of loading ROMs over USB. Standard Game Boy carts are far too big for a watch, so Hackman designed custom PCB “mini‑carts” that plug into an internal M.2 connector, each flashed with a single game. This purist approach helps preserve the retro ritual of swapping cartridges but adds thickness and complexity. With the case already packed, there was no room left for a battery, so power is relocated into the silicone watch strap. A flexible PCB with embedded cells runs through the band and connects back to the body, with USB‑C charging on the side. The power circuitry must juggle voltages from 1.1 V to 5 V, and the old hardware draws more power than modern wearables. There is even a trade‑off: no built‑in speaker and notably shorter battery life than a typical smartwatch.
Novelty vs Practical Retro Handheld: Who Is It For?

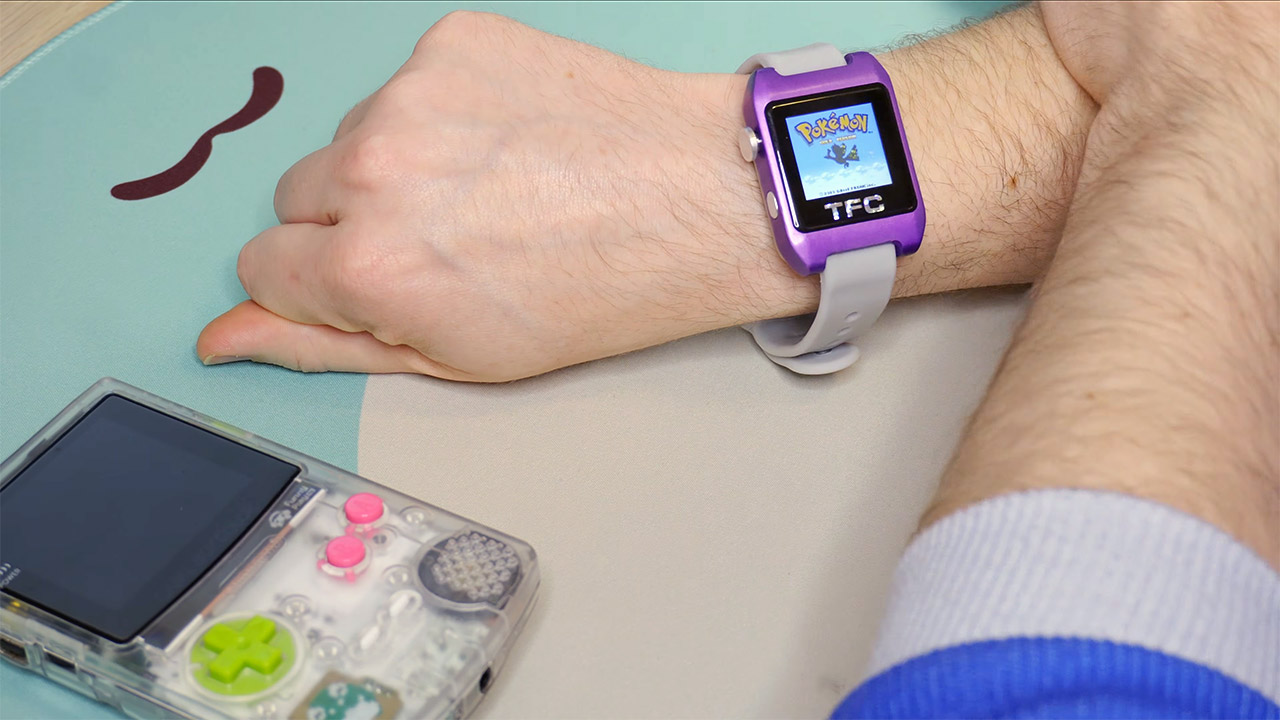

As a retro handheld mod, the Time Frog Color walks a fine line between practical device and conversation‑starting showpiece. At 15 mm thick, it is significantly chunkier than most smartwatches, and the side‑mounted D‑pad plus face buttons demand an unusual grip when playing. Long sessions of Pokémon or classic platformers will not be as comfortable as on a full‑size handheld, and the lack of audio reduces immersion. Battery life, constrained by the strap‑embedded cells and power‑hungry vintage silicon, also makes it less suitable as an all‑day wearable game console. Yet the authenticity of running original Game Boy Color hardware, the playful cartridge system and the radical form factor give it huge appeal as a collector’s item and a proof‑of‑concept wearable game console. It is best seen as a functional tech art piece that can genuinely play games, rather than a daily driver for mobile gaming.
What It Means for DIY Retro Gaming Fans in Malaysia
For Malaysian retro gaming enthusiasts, the Time Frog Color highlights how far DIY retro gaming has pushed the boundaries of form factor. Wearable game consoles and micro‑consoles built from original or cloned hardware are moving beyond simple emulation handhelds into highly customised, 3D‑printed and CNC‑machined projects. Importing a niche mod like this could involve shipping costs, customs, and uncertainty, so the bigger opportunity is inspiration: Hackman plans to publish Time Frog Color designs under his LeggoMyFroggo handle on GitHub, opening the door for local makers to adapt or remix the concept. Malaysian FPGA hobbyists, PCB designers and 3D‑printing communities could experiment with their own Game Boy Color watch, or apply the same ideas—strap batteries, flex PCBs, RP2040 video bridges—to other classic systems. As DIY retro gaming grows, projects like this give the community a bold, tangible example of what is possible when nostalgia meets serious hardware skill.
