What Wax 3D Printing Is and Why Flashforge Matters Now
Wax 3D printing is an additive manufacturing process that creates detailed, burn‑out friendly wax patterns for casting, allowing jewelers, dental labs, and engineers to keep traditional investment and precision casting workflows while gaining digital design flexibility and repeatability. Flashforge’s move into this space with a dedicated wax 3D printer marks a turning point for a market that lost its pioneer when Solidscape’s systems were discontinued in 2024. Solidscape’s material jetting process showed that direct wax patterns could drop into existing casting lines with no process change, a benefit many shops still want. In recent years, castable resins on low‑cost vat polymerization machines have grown fast, but they do not fully replace wax for ash‑free burnout and surface quality. Flashforge’s entry answers a clear demand: a purpose‑built wax 3D printer for professional jewelry 3D printing and small precision casting operations.
From Solidscape’s Pioneering Role to a Sudden Gap in the Market
For decades, Solidscape set the benchmark in wax 3D printing, first as an independent innovator and later under Stratasys before being sold to Prodways and eventually shuttered in 2024. Its wax jetting systems became embedded in jewelry and precision casting workflows because they delivered patterns that fit existing lost‑wax casting lines without changing furnaces, investment materials, or burnout recipes. At the same time, the wider jewelry 3D printing segment exploded with options: low‑cost vat polymerization units starting around USD 180 (approx. RM828), mid‑range SLA and DLP systems, and high‑end material jetting platforms up to USD 300,000 (approx. RM1,380,000). When Solidscape disappeared, jewelers who depended on wax patterns had to pivot toward castable resins or improvised wax filaments, often trading off surface finish or burnout behavior. That disruption created an opening for a new dedicated wax 3D printer to step in.

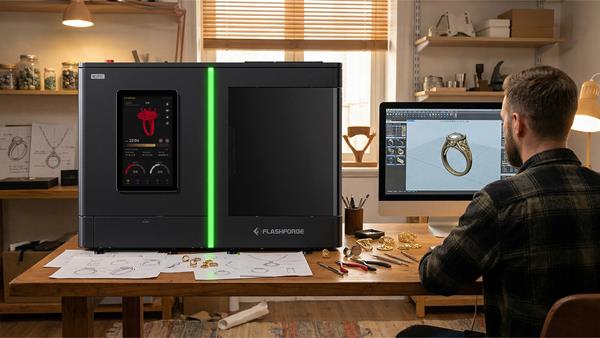

Inside the Flashforge WJ51C: Purpose-Built for Jewelry and Casting

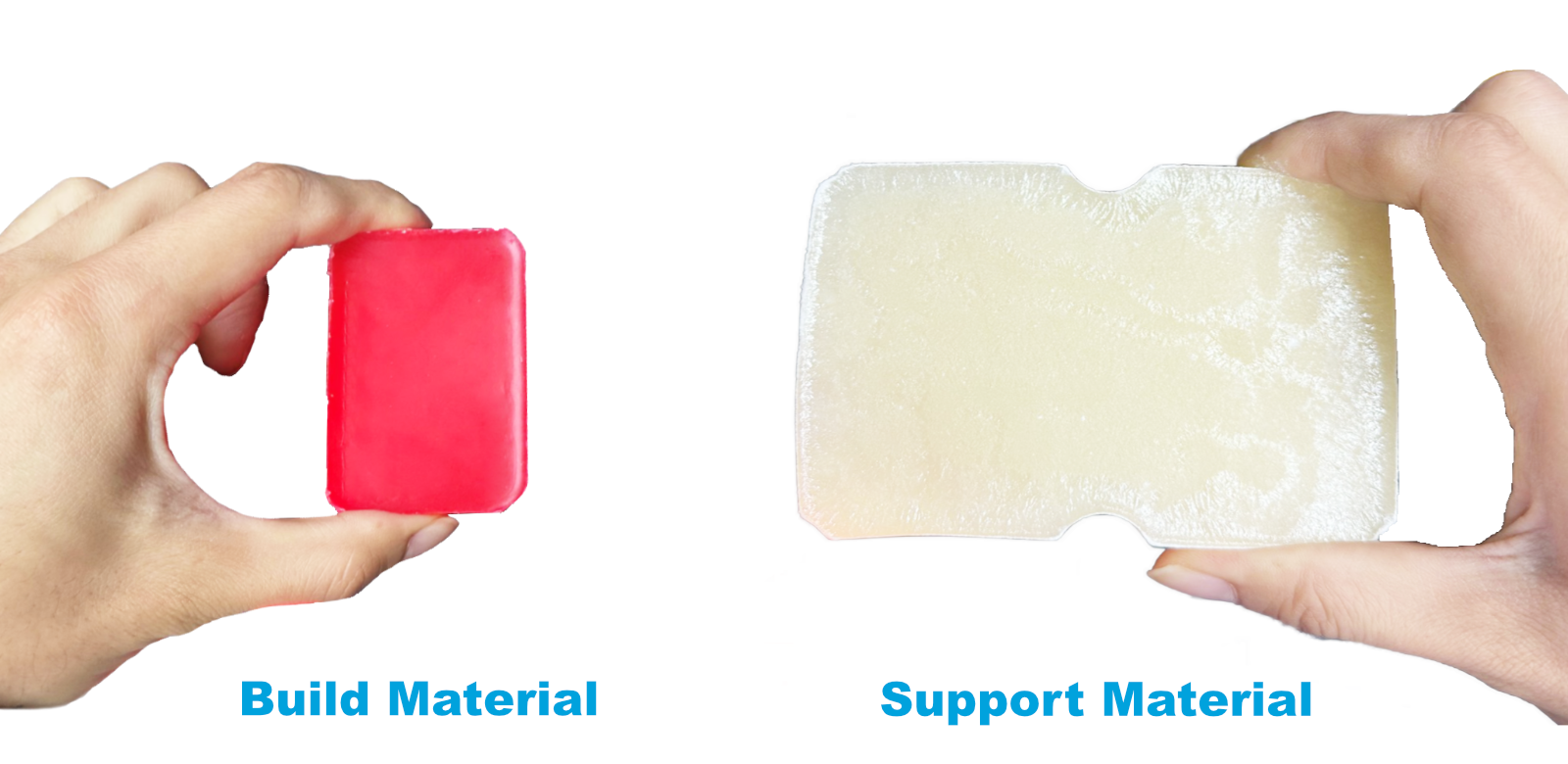

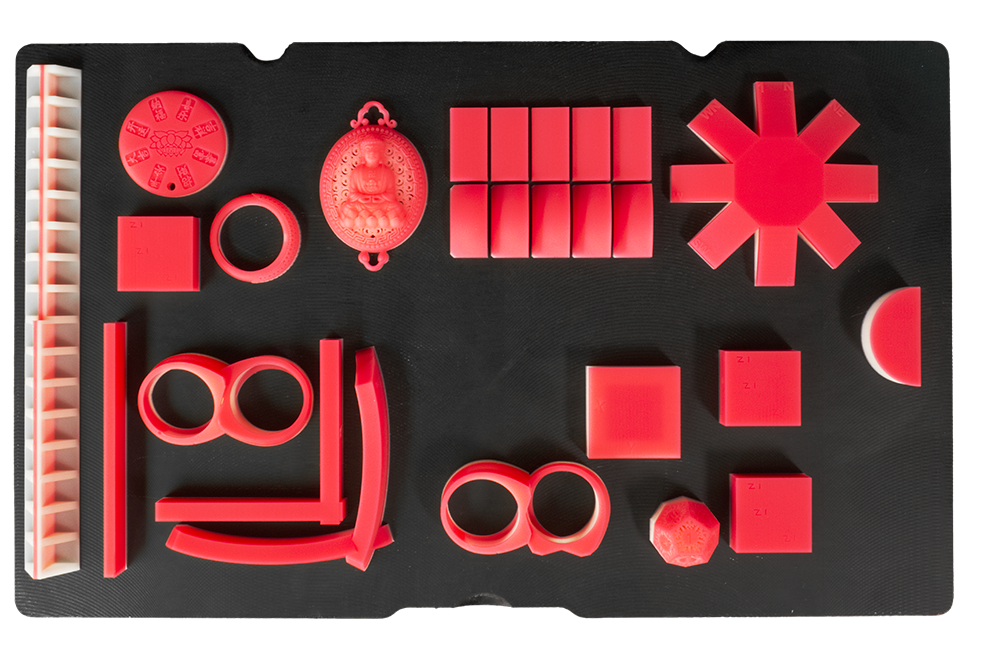

Flashforge’s WJ51C is a material jetting wax 3D printer designed for continuous operation in professional environments. The machine measures 865 × 510 × 654 mm with a 235 × 138 × 100 mm build volume, and its print head delivers 2900 × 2900 × 1700 DPI through 2080 jets, enabling fine details and thin layers down to 15 microns. The company reports dimensional accuracy of ±0.04 mm and stresses that the resulting parts are very smooth, an advantage for jewelry firms that want to reduce manual polishing time. According to 3DPrint.com, “the wax costs around 46 cents per gram, while the support costs 18 cents per gram.” Flashforge uses proprietary wax and soluble wax support supplied in blocks, a format that favors smaller print runs over large heated tanks. The 115 kg system also includes build‑chamber camera monitoring to keep production under control.
Competing Technologies and the Case for Staying with Wax
The new Flashforge wax 3D printer enters a crowded field where filament printing, vat polymerization, and material jetting all contend for the same jewelry 3D printing and precision casting budgets. Today, users can burn out regular polymers, wax filaments, or dedicated castable resins on entry‑level DLP and SLA machines, through mid‑range industrial systems, and via specialist platforms such as Axtra3D. Yet wax keeps key advantages: ash‑free burnout, predictable casting behavior, and surfaces that need less finishing. Flashforge says the WJ51C is built for continuous operation and can consume up to 4 kg of wax per month, positioning it for busy custom jewelry shops and small metal‑part producers. Where low‑cost resin printers offer a cheaper start but higher labor and material complexity, a focused wax solution appeals to businesses that depend on repeatable, clean castings rather than occasional prototypes.
New Business Models for Jewelry and Precision Casting Workflows
Flashforge’s entrance into wax 3D printing arrives as jewelry and casting businesses search for new value in personalized products and experiences. With gold prices expected to stay high and traditional occasions under pressure, shops must work harder to differentiate. A dedicated Flashforge wax system allows them to treat jewelry 3D printing as an in‑store service: rapid custom ring trials, one‑off commemorative pieces, or group design sessions for couples and friends. Because lost wax casting remains a cost‑effective method for strong, durable parts, similar workflows translate to small mechanical components and industrial prototypes as well. While some individual designers may still favor lower‑priced resin setups, higher‑volume studios and multi‑designer shops can treat the WJ51C as a production tool. In that sense, Flashforge is not only filling the gap left by Solidscape’s exit but helping define the next generation of digital‑to‑cast workflows.
