1. Resizable BAR: The Silent GPU Bottleneck Hiding in Your Firmware
Firmware and driver-level GPU performance tuning refers to optimizing low‑level BIOS, UEFI, operating system, and graphics driver settings so your CPU, GPU, and VRAM communicate efficiently enough that the graphics card can reach its intended performance without any hardware upgrades, simply by removing configuration bottlenecks and enabling features that are often disabled or misconfigured by default.
If you care about Resizable BAR GPU performance, you should treat this feature as mandatory, not optional. Resizable BAR (or Smart Access Memory) changes how the CPU accesses VRAM, removing the old 256MB-at-a-time limit and letting the CPU see the GPU’s full memory address space at once. It does not increase raw shader power, but it stops your fancy card from idling while the CPU drip-feeds data, which means higher average FPS, better 1% lows, and fewer stutters in modern games.
The problem: on an alarming number of otherwise high‑end systems, ReBAR is still disabled in UEFI years after launch. That is free performance left on the table, with some games showing around a 10% uplift in average FPS when it is finally enabled. Resizable BAR is not a tweak for enthusiasts; it is baseline configuration on new hardware.
Enabling it is a GPU BIOS tweak in the broad sense: you must boot into UEFI (legacy BIOS cannot expose ReBAR), switch the relevant option on, and in some cases update GPU firmware before your driver control panel will confirm that the feature is active. Some older graphics cards require a firmware update to join the party at all. It is tedious firmware housekeeping, but it is also the cleanest example of “free FPS” you are likely to get in 2026.
2. Windows Game Mode: Frame Consistency, Not Magic FPS
Game Mode has become a scapegoat for every frame hitch and a superstition for every silky session. In reality, its impact depends heavily on whether you are CPU‑bound, GPU‑bound, or buried under background tasks. Game Mode does not touch your hardware limits; it reprioritizes game threads and stops background processes from hogging CPU time during play.
On a GPU‑bound title like a modern shooter with DLSS Quality enabled, average FPS barely shifted when Game Mode was toggled on or off because the GPU was already flat‑out with no headroom for the scheduler to exploit. That is the point: if your graphics card is the bottleneck, no OS scheduling trick is going to unlock extra frames.
Where Game Mode becomes a quality‑of‑life GPU driver settings optimization is in CPU‑limited or mixed loads. In Counter‑Strike 2, average FPS hardly moved, but 1% lows improved by around 9%, directly translating into fewer jarring dips during bursts of action. In a racing title with chat and Edge open, turning Game Mode on lifted the 1% low from 48.2 to 71.5 FPS, which is the difference between smooth and annoying performance.
The takeaway: Game Mode will not shower you with extra frames, but it can protect you from the worst moments. Treat it as a latency and consistency tool, not a benchmark booster, and test it in your own mix of games rather than following blanket advice.
3. Frame Generation Setup: Future-Proofing with AMD MFG and Driver Overrides
Frame generation and upscaling are only as good as their driver setup, and AMD’s latest moves prove that the biggest gains ahead will be configured, not purchased. Recent Radeon drivers now hide Multi-Frame Generation (MFG 8x) options and several FSR overrides that can be surfaced through third‑party tools tied into the driver stack.
Currently, AMD offers standard frame generation where one extra frame is generated per natively rendered frame. The new internal options go far beyond that: exposed settings include “FSR Multi Frame Generation Ratio (Up To 8x)” and an explicit “FSR Multi Frame Generation Override” toggle. According to a third‑party analysis of these drivers, AMD is already testing ratios up to MFG 8x, surpassing NVIDIA’s documented 6x mode and hinting at seven generated frames for every native one.
This kind of tuning could offer a big boost in FPS and smoother motion, but only if frame pacing and latency are handled well. AMD’s driver suite already carries toggles for Anti‑Lag and frame‑generation through its own fluid‑motion tech. As these hidden MFG ratios graduate into public features, your frame generation setup—what ratios you select, what overrides you enable, and how you balance upscaling against native resolution—will matter as much as the raw silicon.
The lesson for today is simple: stop treating FSR and similar tech as one‑click filters. Make time to learn the driver panels that control frame generation and upscaling technologies like DLSS and FSR, because that is where the multipliers will appear first, long before your next GPU upgrade.
4. GPU–CPU Mismatches: When Firmware, Not Hardware, Is the Villain

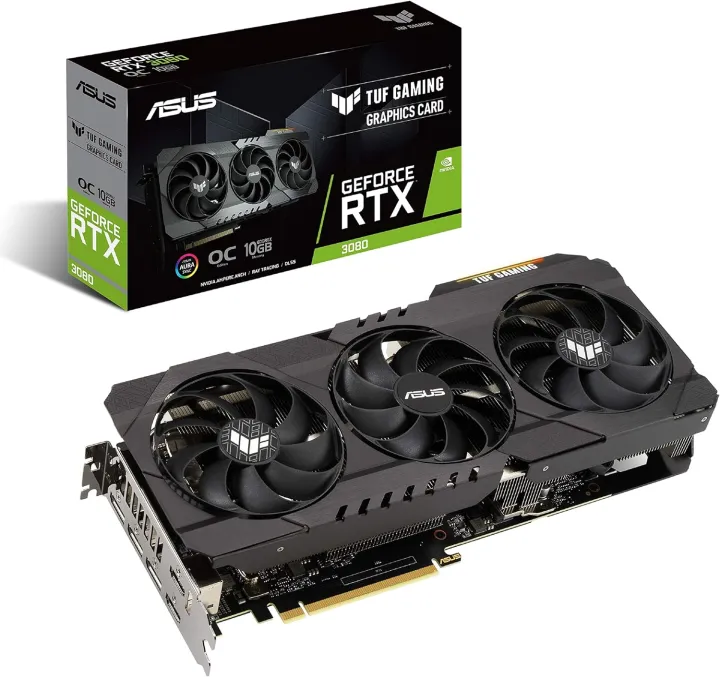

Many players blame a “weak GPU” when their frame times look bad, but driver and firmware landmines are often the real reason their expensive hardware behaves like an entry‑level card. One telling story: a user ran an RTX 3080 for a long time on a system accidentally locked into legacy BIOS because the SSD had been cloned from an older build using MBR partitioning.
That mistake mattered. Legacy BIOS meant no UEFI, which meant no Resizable BAR, which in turn left the GPU starved behind the old 256MB VRAM windowing scheme. When the SSD was finally converted from MBR to GPT, the motherboard firmware updated to UEFI, and settings like Resizable BAR and 4G decoding were switched on, the GPU could at last operate as intended.
This is the kind of issue people misread as a GPU–CPU pairing mismatch. They see low performance and conclude the graphics card is holding back a modern processor, or vice versa, when in fact an outdated boot mode or untouched UEFI menu is throttling the link between them. Worse, because the performance loss is often in the single‑digit to low‑double‑digit percentage range, it feels “normal” until you compare side‑by‑side.
Before you decide your GPU is too weak for your CPU, audit the basics: confirm you boot with UEFI, scan for required firmware updates, and make sure the options that feed data to your GPU at full speed are switched on. Pairing problems are often configuration problems in disguise.
5. Upscaling, Drivers, and the New Definition of a “Tuned” GPU

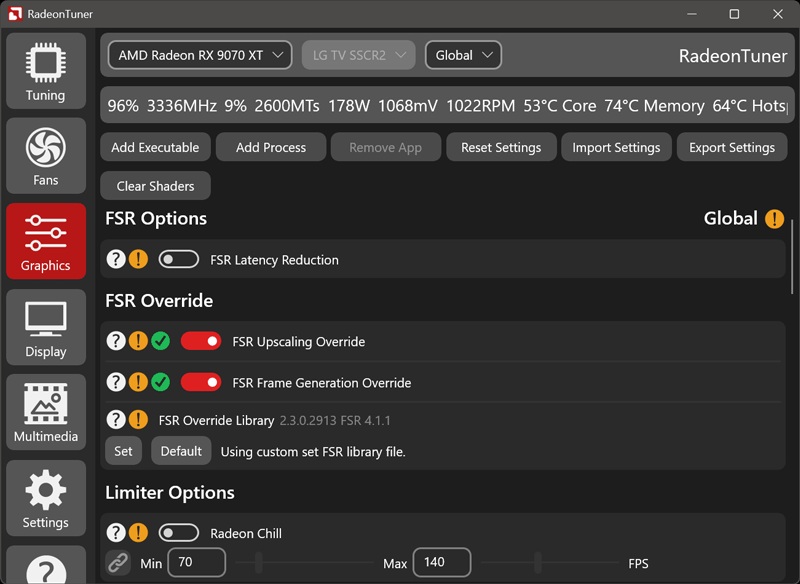

The era of “install driver, forget it” is over. Today’s GPU driver settings optimization is about curating a stack of upscaling, frame generation, and latency tools across vendors, and your control panel choices can determine whether marquee features help or hurt. In AMD’s ecosystem, a third‑party configuration utility has already exposed granular FSR controls, including overrides for Multi Frame Generation, Ray Regeneration denoiser behavior, and Neural Radiance Caching.
Those overrides sit alongside more familiar toggles for Anti‑Lag and Radeon Upscaling/Frame‑Gen through Fluid Motion Frames. They illustrate a trend that applies across both AMD and NVIDIA: the hardware may support advanced tricks, but they do nothing until you configure them properly. Even where upcoming MFG modes are not yet active on all GPUs, the architecture around “select a desired frame generation ratio for optimal performance and visual quality” is clearly in place.
Frame generation setup and upscaling configuration are now as critical as your graphics preset. Technologies like DLSS and FSR are not binary on/off wins; they are tools you must align with the rest of your system. If you ignore your driver’s graphics tabs, you are choosing to run tomorrow’s GPUs with yesterday’s habits.
The conclusion across all five settings is blunt: free GPU performance is rare, but misconfigured performance is common. Before budgeting for a new card, open your firmware and drivers. Turn on Resizable BAR, decide whether Game Mode helps your particular workload, watch the evolution of AMD’s MFG 8x and similar tech, and clean up any lurking BIOS relics. The fastest upgrade you can buy right now is 30 minutes in your settings menus.
