What the 12V-2×6 connector crisis is and why it matters
The 12V-2×6 connector crisis refers to overheating and melting incidents caused by high-current graphics cards drawing power through poorly seated or imbalanced next‑generation 12V-2×6/12VHPWR connectors, which can lead to cable failure, damaged GPUs, and sudden system shutdowns in high-end gaming and creator PCs. As GPU power consumption climbs, users have seen that even small seating errors or uneven loads across pins can cause dangerous hot spots, turning a single cable into a weak link. This has pushed GPU power protection and 12V-2×6 connector safety to the top of the agenda for both graphics card and PSU makers. Instead of relying only on careful installation, brands are adding hardware sensing, firmware logic, and user alerts to provide power connector failure prevention before damage occurs, rather than after a costly burn-out.
MSI’s RTX 5090 SUPRIM Safeguard: Protection built into the GPU
MSI’s RTX 5090 SUPRIM Safeguard is one of the first graphics cards to integrate GPU power protection directly on the board. It uses server‑grade eFUSE components and per‑pin voltage and current monitoring to watch every 12V-2×6 power line. When abnormal power conditions appear, MSI’s Intelligent Power Safeguard responds in stages: a red LED lights up, a system notification appears, and an internal buzzer sounds to warn the user. An optional external buzzer can be added for louder alerts outside the case. If the fault persists for 120 seconds, a protection lock cuts the card’s power limit to 70%, easing strain on the connector and reducing heat. MSI notes that this behaviour mirrors its Safeguard and Safeguard+ PSUs, giving users a consistent 12V-2×6 connector safety experience whether protection starts at the GPU or the power supply.
Cooler Master’s GPU Shield technology inside MWE Gold V4 PSUs
Cooler Master’s answer to power connector failure prevention is GPU Shield technology, debuting in its MWE Gold V4 power supplies. GPU Shield uses per‑pin current sensing on the 12V-2×6 cable, watching in real time for any pin that exceeds 9A of load. According to Cooler Master, “If a pin is detected drawing more than 9A of current, the PSU will reduce its power delivery to prevent cable melting/failure.” During this throttled state, a red indicator light near the modular outputs turns on, and users will often notice reduced GPU performance as a practical warning sign. If the imbalance continues for more than three minutes, the PSU powers down the system outright. This gives users a clear signal to reseat or replace their 12V-2×6 cable, combining GPU power protection with an enforced cooldown period that helps avoid repeat faults.

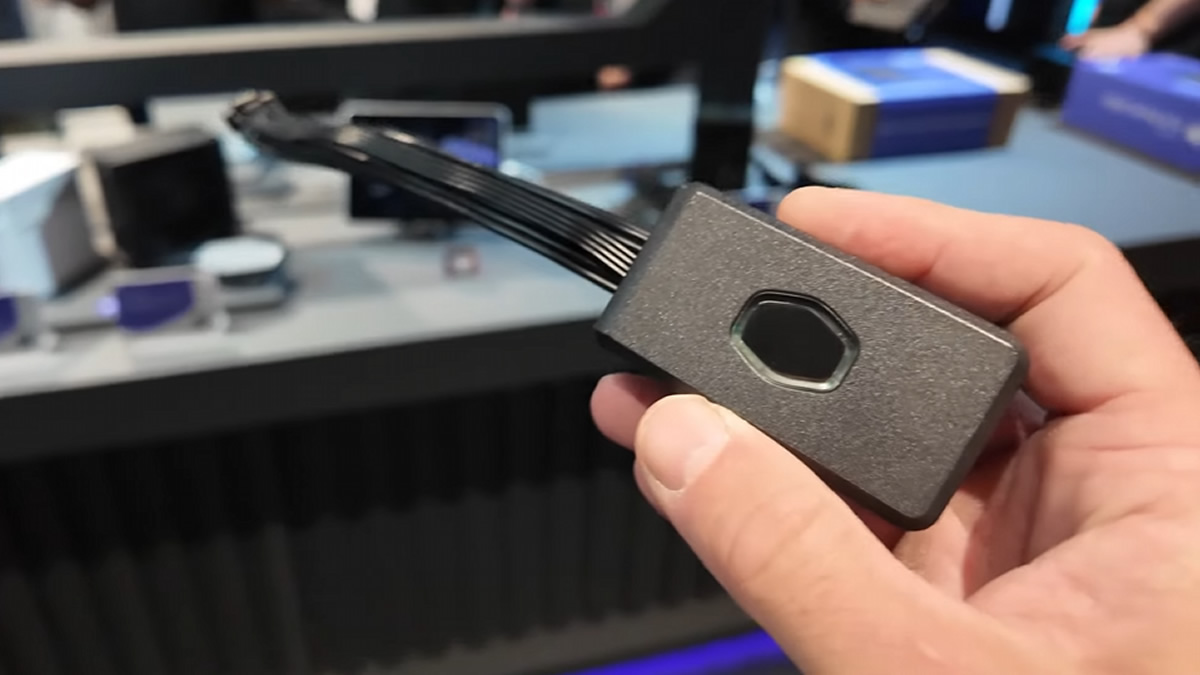

GPU Shield as a standalone add-on for existing systems
Not every system owner wants to replace a working PSU, so Cooler Master also offers GPU Shield as a standalone in‑line add‑on for any 12V-2×6/12VHPWR power supply. This device sits between the PSU and GPU, watching for current imbalances that could lead to connector overheating or melting. When it detects unsafe conditions, a built‑in buzzer sounds to prompt users to shut down and check their cabling. One version adds RGB lighting alongside the buzzer, while another keeps things simpler without lighting. The main benefit is that it adds 12V-2×6 connector safety to existing hardware without a full PSU swap, bringing GPU power protection to older builds that still run high‑power graphics cards. The compact form factor does reduce cable slack, so careful placement inside the case is important to keep routing tidy and avoid stress on the connector.
How these safeguards work together and what users should do
Taken together, MSI’s Safeguard and Cooler Master’s GPU Shield technology show a clear trend: GPU power protection is moving from passive cabling to active monitoring with clear user alerts. On the GPU side, per‑pin sensing and eFUSE logic allow RTX 5090 SUPRIM Safeguard to light LEDs, trigger buzzers, and clamp power to 70% when it spots abnormal current. On the PSU side, MWE Gold V4 with GPU Shield tracks each 12V-2×6 pin, reduces power when a line exceeds 9A, then shuts the system down if issues persist for three minutes. The standalone GPU Shield add‑on extends similar protection to any compatible PSU. For users, the playbook is simple: take every alert seriously, power down, reseat or replace the cable, and avoid running the system at full load until the fault is cleared, ensuring long‑term 12V-2×6 connector safety.
