What LHDC v5 and high‑resolution audio mean on Android 17
LHDC v5 on Android 17 is a low‑latency, high‑resolution Bluetooth audio codec that can stream up to 96kHz audio with an adaptive bit rate, giving compatible Pixel phones noticeably cleaner, more detailed wireless sound than older codecs in music, games, and video. High‑resolution audio Android playback typically means handling higher sampling rates and more data per second, so your tracks retain finer detail, more space around instruments, and smoother treble at the expense of higher bandwidth. According to Android Authority, Android 17 “added support for LHDC v5,” bringing 96kHz high‑resolution audio to Pixel hardware for the first time. If you own wireless earbuds or headphones from brands like OnePlus or Nothing, there is a good chance they already support the LHDC v5 audio codec, so your existing gear may be ready to benefit immediately.
Check your Pixel and headphones for LHDC v5 support
Before changing Pixel phone audio settings, confirm that both your phone and headphones can use the LHDC v5 audio codec. Your Pixel must be running the stable Android 17 release; install the latest system update under Settings > System > System update if needed. Next, pair Bluetooth earbuds or headphones that advertise LHDC or Hi‑Res Audio support. GSM Arena notes that a lot of Bluetooth headphones already support LHDC v5, including older models like the Nothing Ear (2) and newer pairs such as the OnePlus Buds 4. Open the companion app for your earbuds, if available, and look for a Hi‑Res or LHDC toggle that may need to be turned on. Finally, connect the earbuds to your Pixel and start playing music, so the Bluetooth link is active before you open any developer options.
Enable Developer Options to reveal LHDC v5 on your Pixel
Because LHDC v5 is hidden in advanced settings, you must first turn on Developer Options on your Pixel. Open Settings, scroll to About phone, then scroll down and tap Build number several times until you see a notification that developer mode is enabled. According to GSM Arena, doing this adds a new Developer Settings entry to your system menu. Go back to Settings > System and you should now see Developer options. Tap it and scroll down to the Bluetooth section; these controls are only meaningful when a supported pair of earbuds or headphones is connected. If your audio device is not connected, many Bluetooth options will appear greyed out, including Bluetooth Audio Codec, so connect your earbuds and start playback before continuing.
Select LHDC v5 in Bluetooth audio codec settings

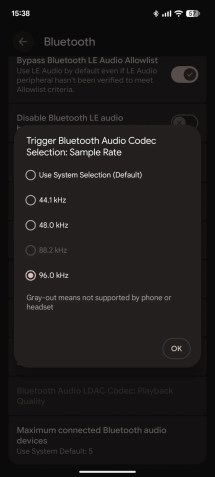

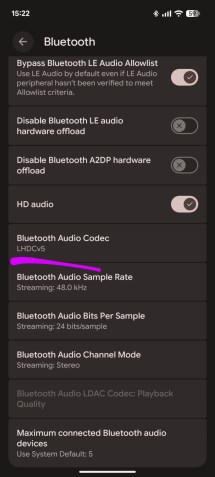

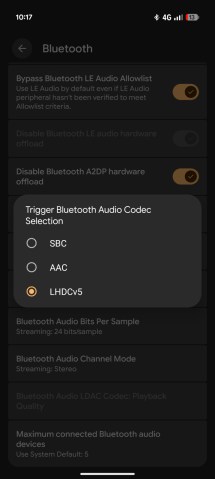

With Developer Options active and your LHDC‑capable headphones connected, you can enable 96kHz audio support. Go to Settings > System > Developer options > Bluetooth and tap Bluetooth Audio Codec. On Android 17, Pixel phones now show LHDC v5 in the codec list when a compatible device is linked. If it is not already selected, choose LHDC v5 manually; this tells your phone to prefer that codec whenever possible. Droid‑Life explains that “this menu is only accessible when you have a supported pair of Bluetooth earbuds connected or it will be greyed out,” so if you do not see LHDC v5, recheck your headphones and connection. Once selected, the phone will negotiate a low‑latency connection, with LHDC v5 enabling latency around 80ms and an adaptive bit rate between 128kbps and 900kbps.
Who will notice the difference with 96kHz high‑resolution audio?
After enabling LHDC v5, you will gain the most from high‑resolution audio Android support if you listen to high‑quality sources and use capable headphones. Use music services that offer lossless or high‑resolution streams, and enable their highest‑quality setting in the app. You may notice clearer stereo imaging, more texture in vocals and acoustic instruments, and less harshness at higher volumes, especially with detailed earbuds. Gamers and video watchers can benefit from lower latency, which helps keep sound effects more in sync with on‑screen action. That said, not everyone will hear a dramatic change; casual listeners on noisy commutes or with basic earbuds may notice only subtle improvements. Wired audiophile setups can still offer better consistency, but LHDC v5 gives Pixel users a clear step up in wireless listening quality.
