Verdict: Two Mini Boxes That Can Replace a Tower (For the Right User)
AceMagic’s K1 and W1 mini PCs are compact entertainment computers designed to replace bulky desktop towers in living rooms and hobby setups, combining laptop-class Ryzen processors, integrated Radeon graphics, and generous connectivity to drive gaming, streaming, and specialized workloads like virtual pinball across multiple displays while staying small enough to mount behind a TV or under a cabinet. From a practical standpoint, both machines deliver more than enough desktop-class power for an all-in-one living room PC build or a pinball cabinet upgrade, but they are not for everyone. If you want a plug-and-play console or you rely on niche operating systems, the friction around software and naming quirks might annoy you. For enthusiasts who are tired of walled ecosystems and sprawling hardware, though, these AceMagic boxes feel like the right kind of overkill.
| Spec | AceMagic K1 (7530U) | AceMagic W1 |
|---|---|---|
| CPU | AMD Ryzen 5 7530U, 6 cores / 12 threads, up to 4.3 GHz | AMD Ryzen 7 8745HS, 8 cores / 16 threads, 4.9 GHz boost |
| GPU | AMD Radeon Graphics, Vega 7 architecture | AMD Radeon 780M, RDNA3, 12 cores at 2600MHz |
| RAM | 16GB LPDDR4 at 3733 MT/s (soldered) | 16GB DDR5 5600MHz, 2 SO-DIMM slots, up to 96GB |
| Storage | 512GB M.2 2280 SATA SSD, expandable | 1TB M.2 2280 NVMe PCIe 4.0, dual NVMe slots up to 4TB (no SATA) |
| Video Outputs | HDMI 2.0 + DP 1.4b + USB‑C 3.2 Gen2 (triple 4K@60Hz) | HDMI 2.0 4K@60Hz, DP 2.0 8K@60Hz, USB4 Type‑C 8K@60Hz, up to 7680×4320@60Hz |
| Wireless | Wi‑Fi 6 / 6E, Bluetooth 5.2 | Wi‑Fi 6 802.11ax, Bluetooth 5.2 |
| Dimensions & Weight | 128.2 × 128.2 × 41 mm, 392 g | Mini PC footprint small enough to mount under or inside a pinball cabinet |
AceMagic K1: Steam-Machine-Light for Living Room Entertainment

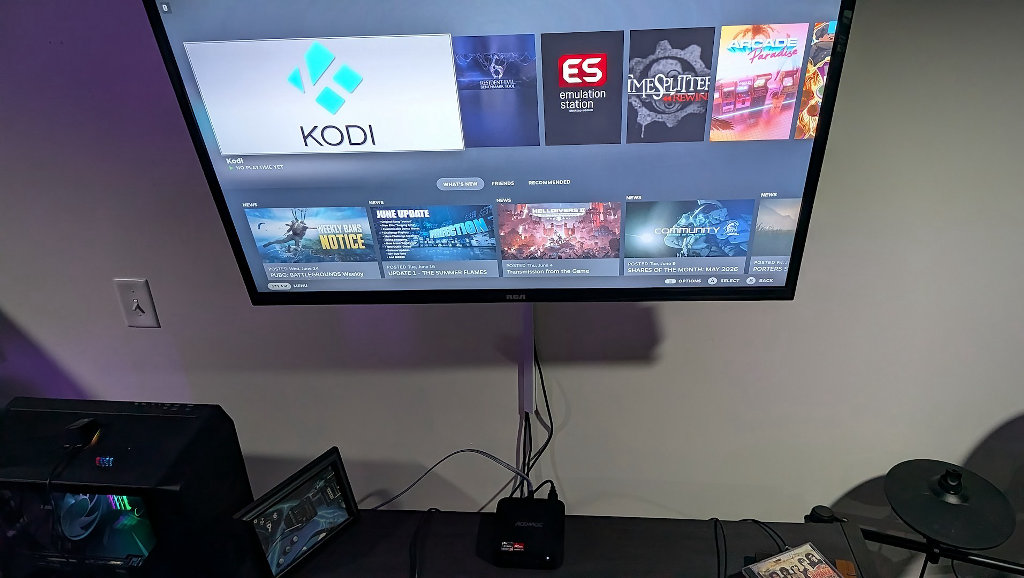

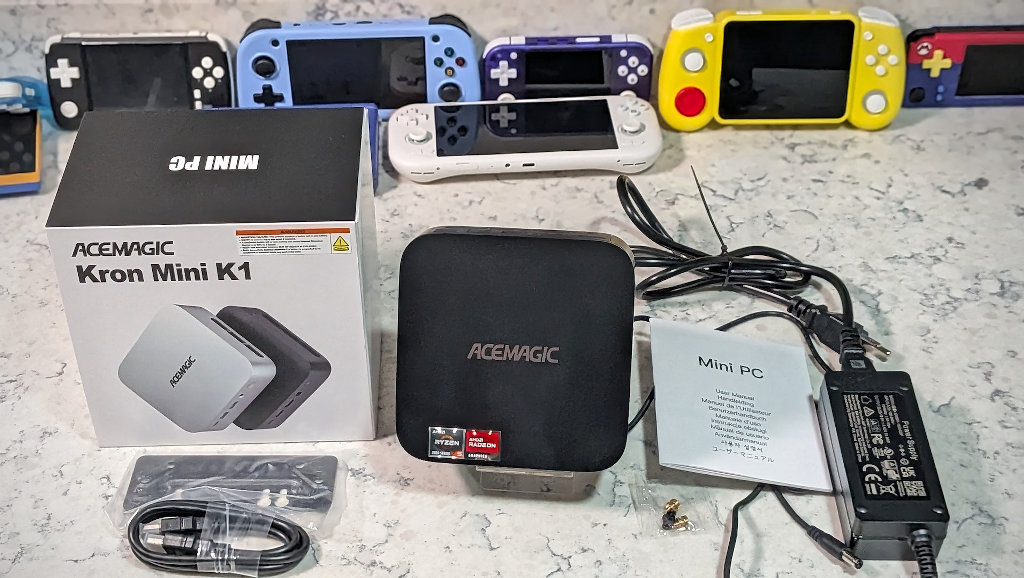

The AceMagic K1 7530U is built around a Zen 3 AMD Ryzen 5 7530U with six cores and twelve threads, clocking up to 4.3 GHz, paired with Vega 7 integrated graphics and 16GB of dual-channel LPDDR4 tuned to 3733 MT/s. It arrives with a 512GB M.2 SATA SSD and can push triple 4K displays at 60Hz over HDMI 2.0, DisplayPort 1.4b, and USB‑C 3.2 Gen2, backed by Wi‑Fi 6/6E and Bluetooth 5.2 in a 392 g shell measuring 128.2 × 128.2 × 41 mm. In real-world use as a compact entertainment PC, that hardware is enough to run a full living room PC build: the reviewer used it for containerized services like ZimaOS dockers and a RomM server, then reimagined it as a "Steam Machine-light" box that could sit under the TV and drive games, movies, TV, music, and web browsing without relying on consoles or closed ecosystems.
Performance lines up with those ambitions. According to the review, "I’ve tried streaming 4K video files over my network and playing them locally, and the AceMagic K1 chews on them with equal ease," which is the kind of quotable confidence you rarely see for low-power mini PCs. The K1 also "truly shines when running as a Kodi media box," suggesting that once an OS like Nobara is in place, the experience is smooth enough for family use. The trade-offs are mostly on the software side: attempts to use Bazzite, an immutable Linux distribution aimed at SteamOS-like living room experiences, resulted in hangs and lock-ups on this hardware. Naming is another annoyance: AceMagic uses "K1 Mini" for distinct configurations, including the earlier R2544 model, which risks confusing buyers trying to match use cases to specific specs.
AceMagic W1: From Full Desktop Rig to Compact Virtual Pinball Brain
If the K1 is an all-purpose living room PC, the W1 is the specialist, aimed at workloads that would traditionally demand a discrete GPU and a mid-tower case. It runs an AMD Ryzen 7 8745HS with eight cores and sixteen threads and a 4.9 GHz boost clock, alongside a Radeon 780M iGPU with 12 cores at 2600MHz, fed by 16GB of DDR5-5600 and a 1TB PCIe 4.0 NVMe SSD. Two M.2 2280 NVMe slots (no SATA support) mean up to 4TB of fast solid-state storage. Connectivity is expansive: a 2.5Gbps Ethernet port, six Type‑A USB ports (two USB 3.2 Gen2, four Gen1), USB4 Type‑C, HDMI 2.0, DP 2.0, and display output up to 7680×4320 @ 60Hz. This is overkill for streaming, but ideal for driving three displays in a virtual pinball cab: playfield, backglass, and scoreboard, each needing smooth physics and high-detail reflections on a fast-moving silver ball.

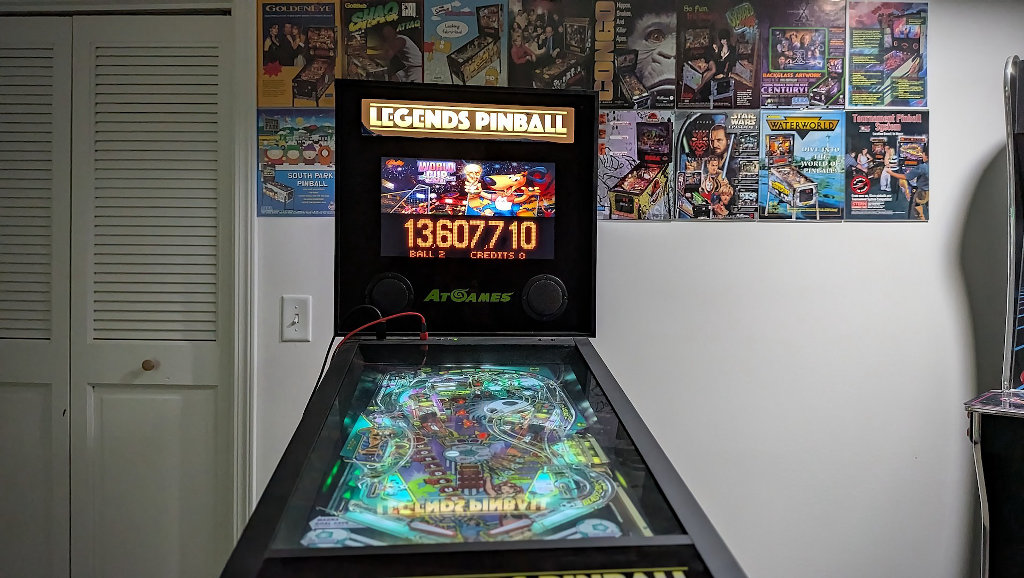

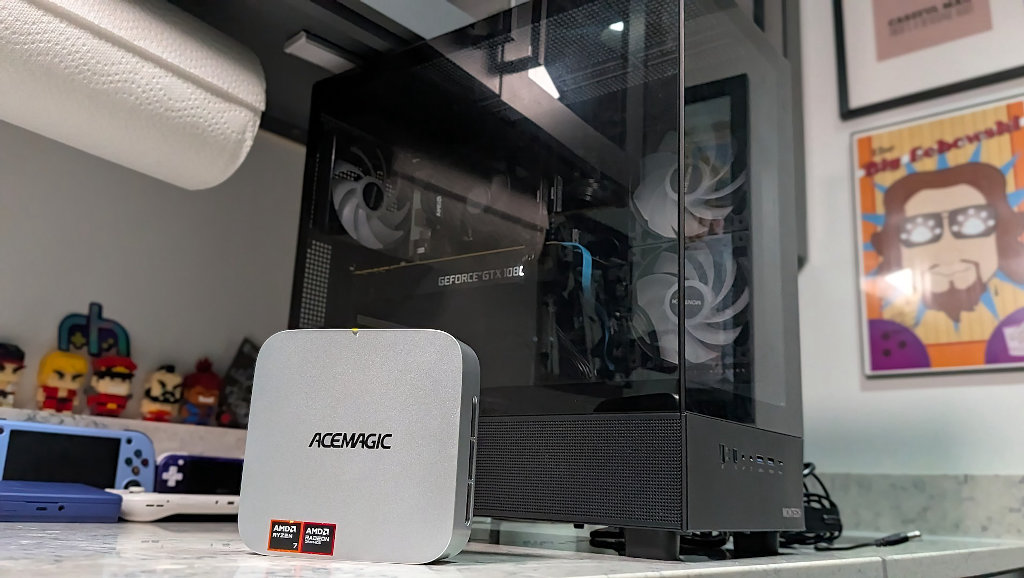

Before the W1, the reviewer relied on a mid-tower desktop with a GeForce GTX 1080 under an AtGames Legends Pinball HD machine to handle that load. Swapping in the W1 changed the setup: "Removing the tower and replacing it with the W1 cleans things up considerably," with the mini PC small enough to mount underneath or even inside the cabinet. The W1’s Radeon 780M delivers what the project needs: "The W1’s integrated graphics via the Radeon 780M create a perfect performance level for my needs with this project," offering complex lighting and reflections on classic 90s DMD tables without the thermal and power demands of a 600W desktop GPU. The main headache in the pinball build is not the PC but the existing hardware, especially a temperamental backglass panel controlled by a VIBS board that has long-standing signal handshake issues.
Build Experience, Noise, and Real Trade-Offs

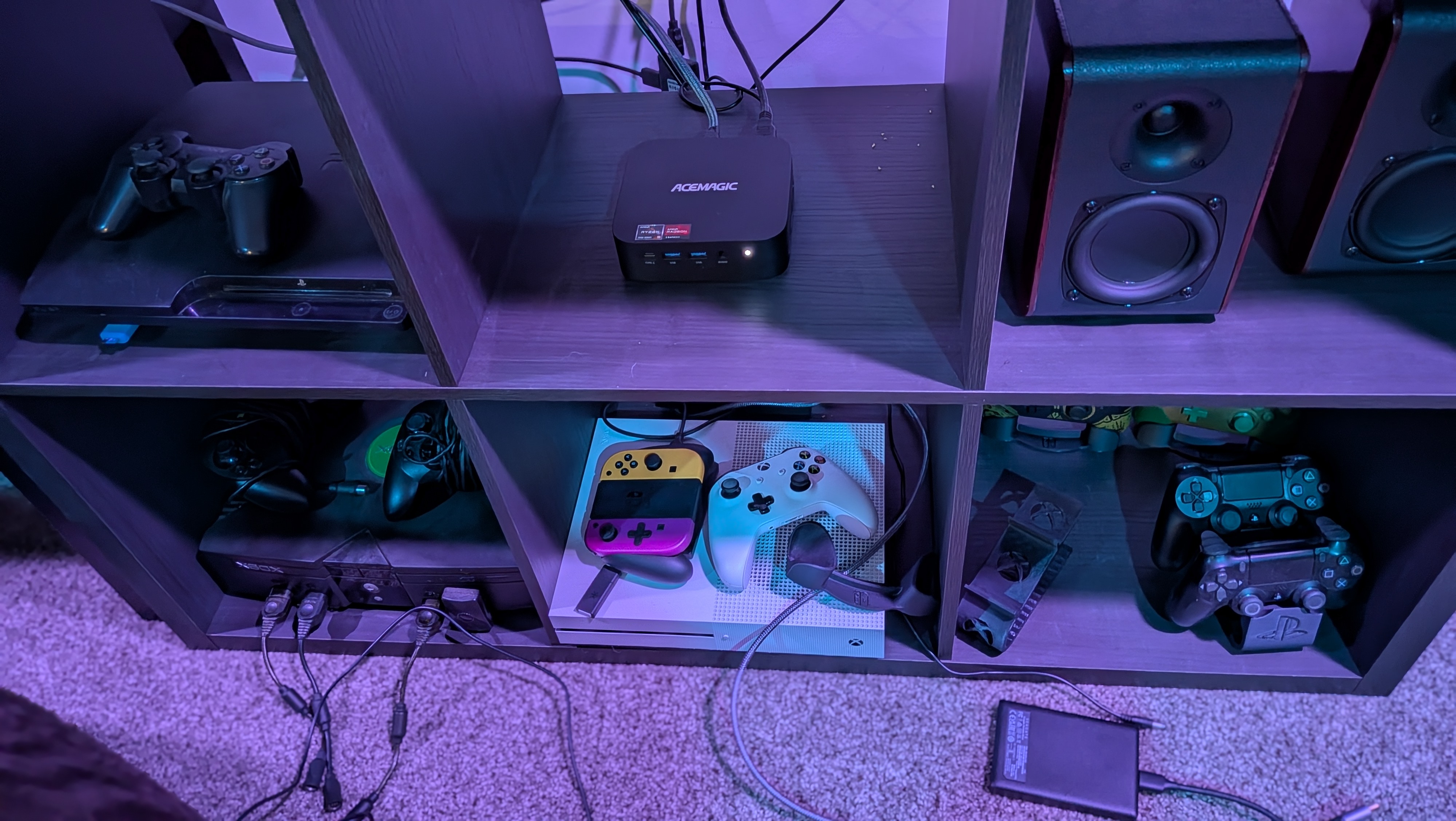

Both AceMagic machines are aimed at people who want flexible, PC-style control over their entertainment rather than the walled ecosystems of modern streaming boxes and consoles. As compact living room PCs, they remove the visual and spatial burden of a dedicated tower while still offering desktop-class processing power; the W1 especially shows how a mini PC can stand in for a full-size GeForce GTX 1080 rig in a demanding, three-display pinball setup. From the living room perspective, the K1’s small footprint and multi-output design make it easy to drop behind a TV and wire into existing consoles and receivers. From the pinball side, the W1’s mountable form factor is critical, transforming an unruly stack of hardware into a contained system under or inside the cabinet.
Pros
- K1 delivers strong 4K local and network video playback and excels as a Kodi-based media box in a living room PC build.
- W1 replaces a mid-tower GTX 1080 rig in a virtual pinball cabinet while keeping complex lighting and reflections running smoothly.
- Both units offer generous display connectivity, including the K1’s triple 4K@60Hz outputs and the W1’s 8K-capable HDMI, DP, and USB4 ports.
Cons
- Immutable Linux distributions like Bazzite can hang or lock up on the K1’s 7530U hardware, limiting out-of-the-box SteamOS-style builds.
- AceMagic reuses the K1 name across different configurations (such as the R2544 and 7530U versions), which may confuse buyers.
- Existing cabinet hardware like the VIBS-controlled backglass in the Legends Pinball can be temperamental and complicate W1-based builds.
Buy if / Skip if
- Buy the AceMagic K1 or W1 if you want a compact entertainment PC that can drive multiple 4K or even 8K displays without a full-size tower.
- Skip the AceMagic K1 or W1 if you prefer closed, console-like ecosystems and do not want to manage operating systems or Docker-style services yourself.
- Buy the AceMagic K1 if your priority is a silent mini desktop-style living room PC build focused on Kodi, 4K video playback, and general media.
- Skip the AceMagic K1 if you need guaranteed compatibility with immutable Linux distributions such as Bazzite for a SteamOS-like setup.
- Buy the AceMagic W1 if you are replacing a bulky gaming tower in a virtual pinball cabinet and need Radeon 780M-level integrated graphics with rich reflections and multi-display output.
- Skip the AceMagic W1 if your existing pinball or multi-display hardware is already temperamental, since issues like VIBS board signal handshakes can overshadow the benefits of the new mini PC.
