From Vat Polymerization to FGF: A Strategic Pivot
Peopoly, previously best known for its vat polymerization systems and the belt-less Magneto X, is now making a deliberate move into pellet-based printing with the Giga 800. Rather than focusing solely on resin technologies, the company is embracing Fused Granular Fabrication (FGF), a subset of material extrusion that feeds polymer pellets directly into a screw extruder. This shift aligns Peopoly with an emerging trend in industrial 3D printing: using low-cost pellets instead of more expensive filament to drive down part costs, especially for large components. The Giga 800’s introduction signals a broader strategy to serve users who have outgrown desktop resin or filament printers but cannot justify traditional six-figure FGF systems. By leveraging its experience in motion control and open-source firmware, Peopoly aims to bridge the gap between lab-scale experimentation and robust, factory-floor production using an accessible, large-format 3D printer platform.
A Large-Format 3D Printer Designed for Massive Builds
At the core of the Giga 800 is an 800 x 800 x 800 mm build volume, positioning it firmly in the large-format 3D printer category. This cubic meter-class space allows manufacturers to consolidate multi-part assemblies—previously spread across several builds—into single jobs, often short enough to run overnight. The system’s FGF architecture uses a screw extruder with dual heating zones, capable of processing up to 3 kg of polymer per hour, directly from industrial pellets loaded into a hopper. Peopoly pairs this extrusion setup with a heated bed and a well-insulated chamber to support a broad range of thermoplastics, including ABS, ASA, reinforced nylons and flexible TPUs. For applications like composite molds, automotive fixtures or large architectural models, this combination of build size and throughput helps smaller manufacturers approach the productivity of much more expensive industrial 3D printing systems without the same capital barrier.
Pellet-Based Printing and the Cost Equation for Manufacturers
Pellet-based printing fundamentally reshapes the economics of industrial 3D printing for mid-market users. By feeding raw pellets rather than filament, the Giga 800 taps into materials that are typically a fraction of filament prices—Peopoly notes potential reductions of up to 90 percent compared with standard FDM materials. This is especially impactful when printing volume-filling parts, where material cost dominates the bill of materials. In many cases, the Giga 800 can replace multi-part designs and their assembly steps with a single, monolithic print, trimming labor and tooling costs. The machine targets a price point of USD 15,000 (approx. RM69,000), significantly lower than conventional large-format FGF systems that often reach six figures, yet still realistic for small factories, print farms and engineering teams. For organizations that need large parts but cannot justify injection molding tooling or high-end industrial printers, this FGF 3D printer offers a new middle ground in affordable manufacturing technology.
Industrial Motion Control and Surface Quality at Scale
The Giga 800’s hardware is engineered to deliver reliability over long, large-format print jobs. Instead of stepper motors, Peopoly employs a closed-loop servo CoreXY motion system riding on linear rails and ball screws. Continuous positional feedback helps prevent layer shifts and maintains dimensional accuracy during extended runs, a common challenge when moving heavy gantries over wide spans. Pellet extrusion traditionally struggles with oozing and stringing, leading to rough surfaces. To mitigate this, Peopoly combines mechanical retraction with Klipper firmware’s Pressure Advance feature, working to synchronize extrusion with motion and reduce artifacts. The printer supports a wide nozzle range—from fine 0.4 mm tips to high-flow 5 mm options—allowing users to balance surface detail against print speed. Collectively, these features aim to turn the Giga 800 into a dependable workhorse for industrial 3D printing, delivering both high throughput and acceptable finish quality on large components.
Secure, Air-Gapped Operation and On-Demand Large-Part Production

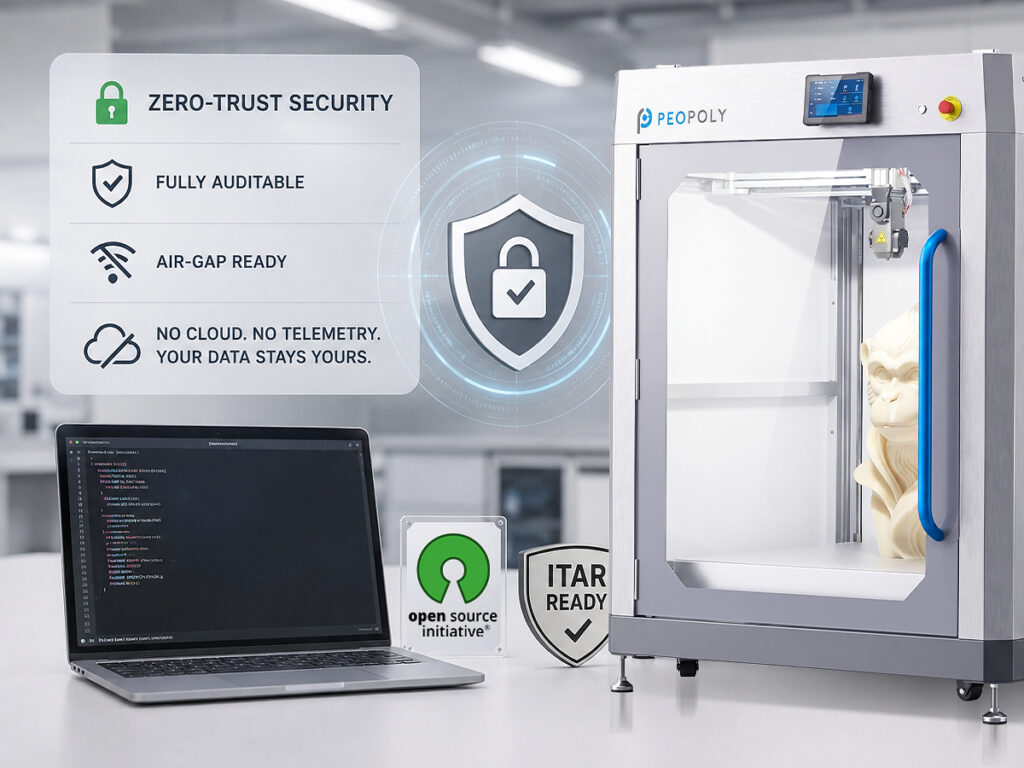

Beyond hardware, the Giga 800 addresses workflow and security requirements common in sensitive industries. It runs on open-source Klipper firmware and is expressly designed for air-gapped operation, meaning it can be used without any network connection. This helps organizations in sectors such as defense, aerospace or research keep design and production data strictly on-site, while still leveraging a modern, customizable control stack. For manufacturers, the ability to print large components on demand opens alternatives to traditional injection molding, especially when volumes do not justify tooling costs or when designs change frequently. Large jigs, fixtures, housing components and outdoor signage elements can be produced as needed, reducing inventory and lead times. By combining affordable manufacturing technology, pellet-based printing, secure operation and a truly industrial build volume, Peopoly’s Giga 800 attempts to democratize large-format 3D printing and bring industrial-scale capacity into reach for smaller production facilities.
