From Monolithic Boxes to Modular Amplifier Systems
Modular amplifier systems are audio components designed as smaller, specialized building blocks that can be mixed, matched, and upgraded over time, allowing listeners and integrators to create scalable, room-specific home audio solutions instead of relying on a single, fixed all‑in‑one device. This shift is changing how enthusiasts think about amplifiers, preamps, and streamers. Instead of buying one large chassis that does everything for every room, brands are encouraging users to assemble chains of compact elements: power amps, streaming amplifiers, and preamplifiers that slot into existing setups. The goal is home audio flexibility—systems that can grow from a basic stereo rig into multi-zone or theater installations without throwing away earlier purchases. NAD Electronics, Emotiva, and Grimm Audio are now aligned around this approach, each with a different take that points to the same conclusion: the future of amplification is modular, component-based, and tailored.
NAD’s Modular Series: Streaming Amplifiers for Zoned Living
NAD’s CI Modular Series pushes modular amplifier systems into everyday installations by shrinking full-featured components into compact, stackable units. The PA4-60 4-channel power amplifier anchors the line, while the SA2-120 BluOS streaming amplifier and S2 music streamer add flexible source and zone control. Each new model offers two BluOS zones capable of high-resolution stereo playback, so a single chassis can feed separate rooms or sub-systems. SA2-120 can run as a single-zone streaming amplifier at 120 watts per channel, or be split into two zones at 60 watts per channel, giving integrators fine control over power and coverage. With a 1/3U width x 1U height footprint, these components fit neatly into racks or tight cabinets. Because they share the BluOS ecosystem, installers gain one interface for multi-room management, making upgrades or reconfiguration as simple as adding another module instead of replacing an entire amplifier.

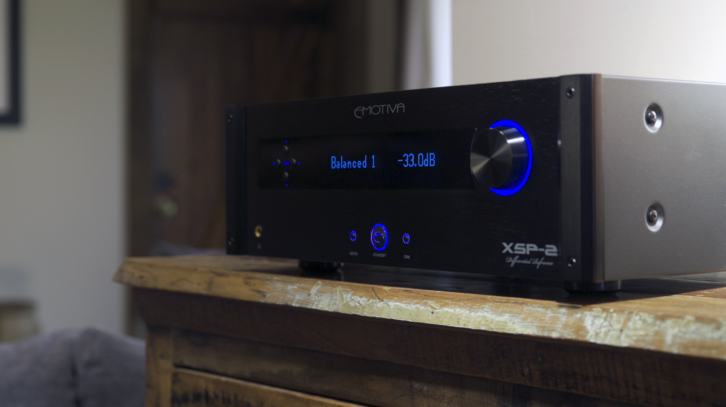

Emotiva XSP-2: A Flexible Preamplifier as System Hub
Emotiva’s XSP-2 Differential Reference stereo preamplifier shows how modular thinking is moving up the chain, turning the preamp into a routing and expansion hub. The XSP-2, an evolution of the XSP-1, is a fully differential, fully balanced analog control center with bass management for 2.1 and 2.2 systems, including selectable high-pass and low-pass filters at 40, 60, 80, or 100 Hz and options for stereo or summed mono sub outputs. An onboard MM/MC phono stage and dedicated headphone output make it friendly to both turntables and personal listening. Home Theater Bypass and an external processor loop help it slot into mixed music-and-movie setups. According to Emotiva, the XSP-2 improves on the original by adding two rear expansion slots and a fully balanced ESS-based DAC module with HDMI-ARC, USB, coaxial, and optical inputs, while special shielding keeps the digital stage away from the analog signal path.
Grimm PA1: Compact Class A/B Monoblock Power in a Small Shell
Grimm Audio’s PA1 shows how a compact monoblock amplifier can deliver serious power without turning into a hulking box. Rated at 150 watts into 8 ohms and 200 watts into 4 ohms, the PA1 is a solid-state Class A/B amplifier built to drive a single loudspeaker from a dense 9.8 x 9.8 x 9.4 inch chassis that weighs 33 pounds. Grimm uses a wide-bandwidth architecture aimed at reducing phase modulation, thermal distortion, and residual crossover distortion, backed by an Amplimo toroidal transformer and a 90,000 µF current buffer. Inside, 96 power transistors are mounted on an aluminum printed circuit board, which helps keep thermal conditions stable under load, especially during heavy bass demands. Grimm describes the PA1 as combining some tonal traits often linked with tube amplifiers with the control and stability of solid-state, focusing on transparency and musical naturalness in a compact Class A/B amplifier rather than a feature-packed integrated design.
Why Modular and Compact Designs Signal a New Phase
Taken together, NAD’s zoned streaming amplifiers, Emotiva’s expandable preamp, and Grimm’s compact Class A/B monoblock amplifier highlight a shared trend: home audio flexibility is now a design priority, not an afterthought. Modular architectures lower the risk of buyer lock-in by allowing incremental upgrades and room-specific layouts. A household might start with an NAD SA2-120 feeding two rooms, add an S2 music streamer for another floor, and later introduce an Emotiva XSP-2 to manage a dedicated 2.2 listening area. High-power yet compact blocks like Grimm’s PA1 can then be assigned to the most demanding speakers without reshaping the entire rack. This piecemeal approach favors long-term, scalable systems. As these three brands move in the same direction from different angles, they reinforce the idea that the next generation of home audio will be built from specialized, modular pieces instead of monolithic, one-size-fits-all boxes.
