What Cartridge–Preamp Matching Means for Your Vinyl Front-End
Phono preamp cartridge matching is the process of pairing a moving-magnet (MM) or moving-coil (MC) cartridge with a compatible phono stage so that gain, loading, and mechanical behavior work together to deliver the best possible vinyl sound quality, noise performance, and frequency response. In a vinyl front-end setup, the cartridge’s output level and electrical characteristics meet a phono preamp’s gain, input impedance, and capacitance settings. When these factors are aligned, music emerges with strong dynamics, low noise, and accurate tone. When they are mismatched, hum, hiss, thin bass, or rolled-off treble can creep in. Modern designs like Clearaudio’s N2 MM cartridge and AVID’s Pulsus II and Pellar II phono stages show how careful engineering and flexible settings help listeners get more from both MM vs MC cartridge types without overspending on the rest of the system.
Clearaudio N2: Featherlight MM Cartridge as an Affordable Upgrade

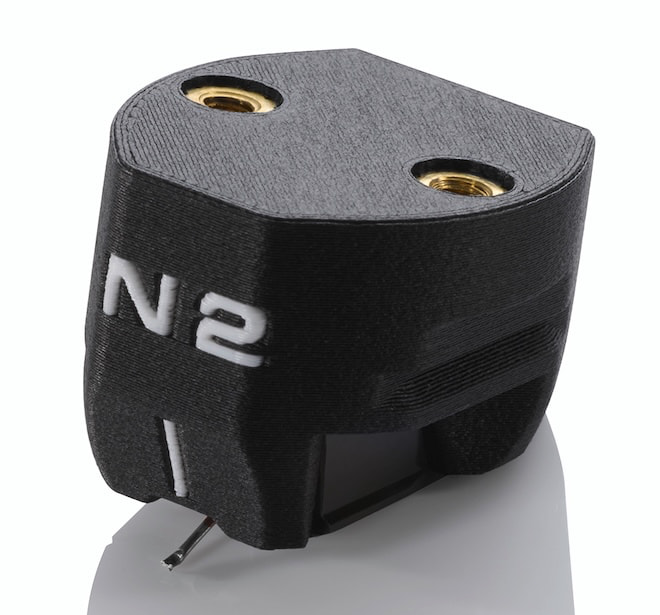

Clearaudio’s N2 MM cartridge targets vinyl fans who want an affordable but meaningful upgrade path. Priced at USD 290 (approx. RM1,340), it drops straight into the heart of the mid-market, going up against familiar names from Audio-Technica, Grado, Ortofon, and Sumiko. The N2 weighs 8.5g and uses a new PETG-CF carbon fiber–reinforced body made with 3D printing, replacing the heavier aluminum housing of the N1. That lighter mass broadens tonearm compatibility while the stiffer shell aims to control resonance and send less unwanted vibration into the generator. Because the N2 shares the proven motor assembly from the N1, the design focuses on giving that engine a quieter mechanical platform. For budget-conscious listeners, the cartridge shows how paying attention to weight, resonance control, and MM-friendly preamp loading can yield clearer sound without moving into high-priced MC territory.
AVID Pulsus II and Pellar II: Flexible Low-Noise Phono Preamps

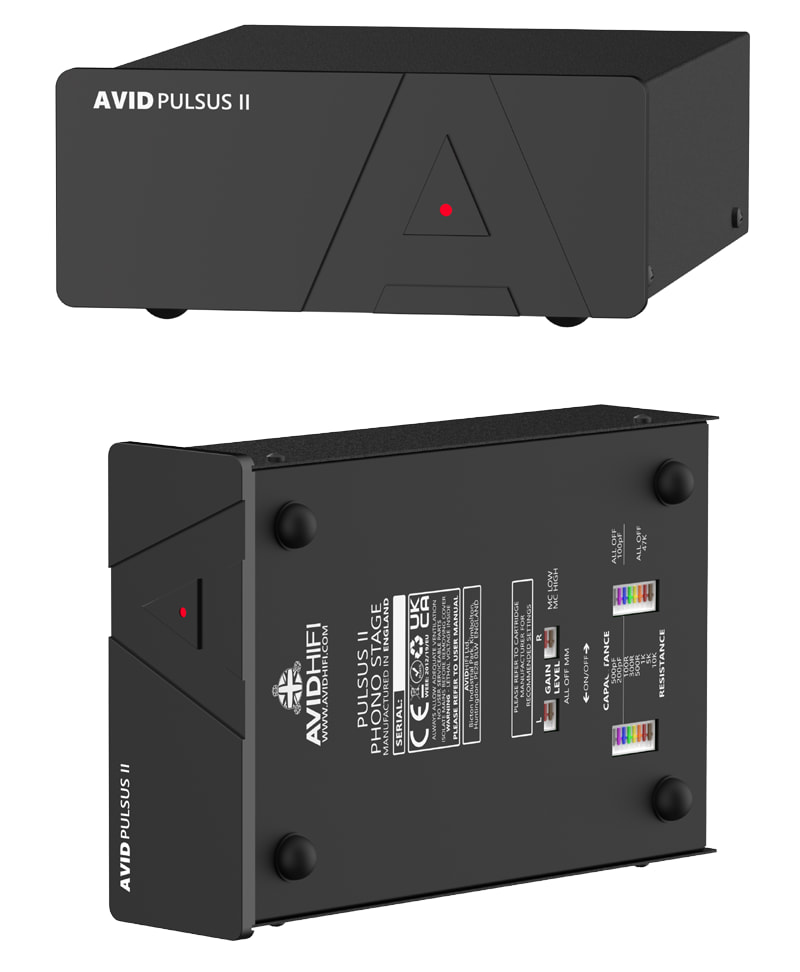

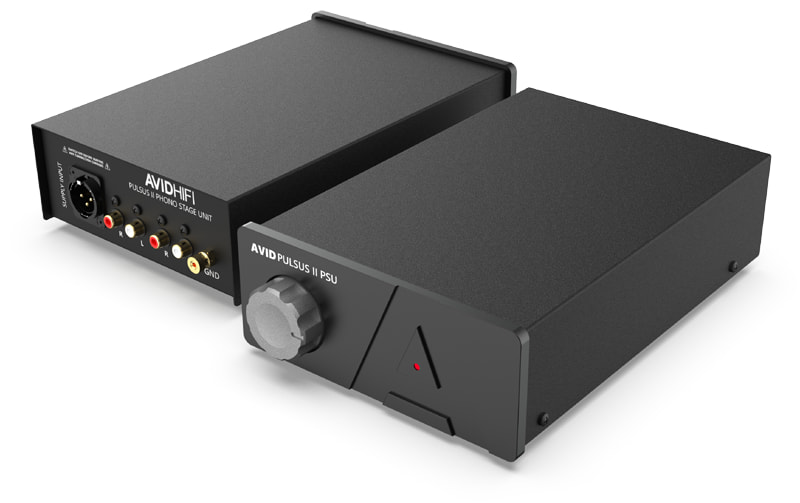

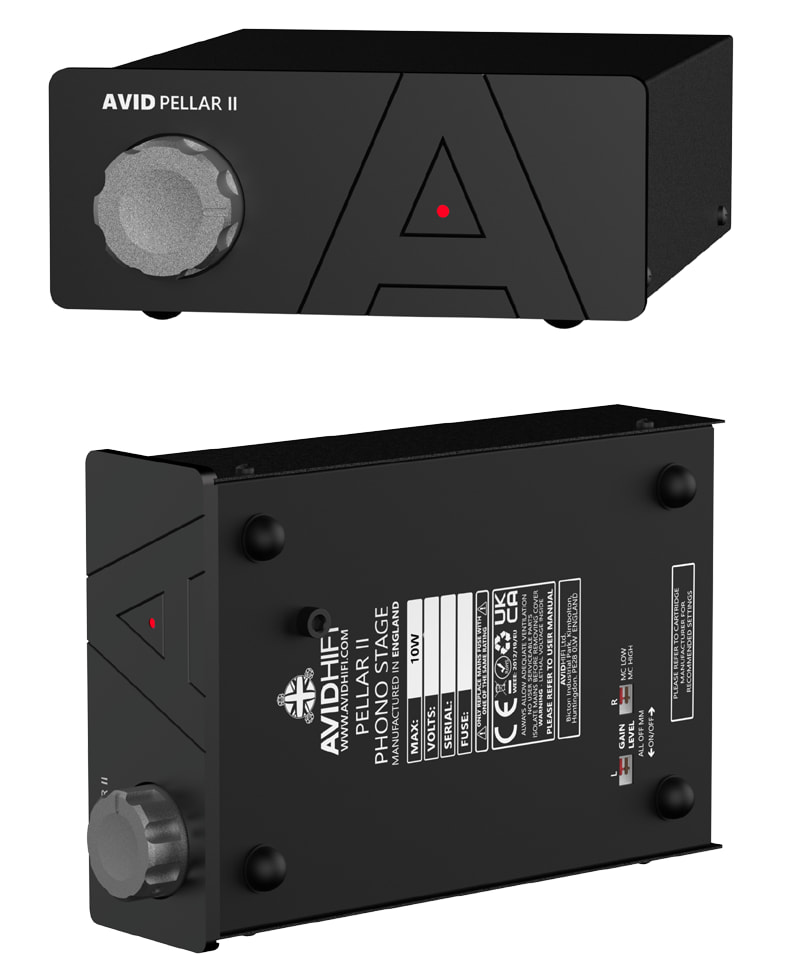

AVID’s Pulsus II and Pellar II phono stages give listeners flexible MM and MC support with a focus on low noise and refined analog sound. Both models retain the musical character of their long-running predecessors while adding more careful component selection and noise-reduction strategies. AVID specifies noise performance of better than -81dB for MM and better than -67dB for MC, alongside distortion below 0.001% and RIAA equalization accuracy of 5Hz–70kHz ±0.5dB. The Pulsus II uses a dual-mono layout with a separate power supply and DIP-switch-adjustable loading from 100Ω to 47kΩ and 100pF to 500pF, making it a low noise phono preamp that can be dialed in for many cartridges. The Pellar II offers a single-box design with low-noise op-amps, preset 47kΩ loading for MM, and adjustable resistance for MC via custom plugs or rear-panel options, balancing simplicity with fine-tuning.
MM vs MC Cartridge Matching: Gain, Loading, and Noise Floors
Matching MM vs MC cartridge types to the right phono stage settings is central to controlling signal-to-noise ratio and frequency response. MM cartridges like the Clearaudio N2 have higher output, so they need less gain and typically expect 47kΩ input impedance plus defined capacitance. MC designs output much smaller signals and rely on higher gain and carefully chosen resistance loading. With flexible stages such as AVID’s Pulsus II and Pellar II, listeners can tailor resistance and capacitance to the cartridge’s recommendations, reducing hiss and hum and keeping tonal balance intact. According to AVID HiFi, the Pulsus II and Pellar II maintain RIAA accuracy from 5Hz to 70kHz within ±0.5dB, which helps preserve detail and extension when loading is set correctly. Getting gain and loading right means the cartridge’s tiny signal is amplified cleanly, preserving dynamic range instead of raising the noise floor.
Budget-Friendly Strategies for Building a High-Quality Vinyl Front-End
As vinyl front-end setup options expand, buyers can reach high sound quality by understanding a few fundamentals instead of chasing price tags. Start by choosing a cartridge whose weight and compliance suit your tonearm; the Clearaudio N2’s 8.5g featherlight body is a good example of a design that works with a wide range of arms. Next, pick a phono stage with enough gain and loading flexibility for both MM and MC, such as AVID’s Pulsus II or the more attainable Pellar II. Use MM-specific 47kΩ inputs and appropriate capacitance for cartridges like the N2, and reserve high-gain, low-resistance MC settings for future upgrades. Finally, listen for noise: a quiet background and stable imaging indicate that gain, loading, and mechanical setup are working together, turning careful cartridge–preamp pairing into the core of a satisfying, long-term vinyl system.
