What Bonded 900-Layer NAND Really Means
Samsung’s bonded dual-stack NAND architecture is a layered NAND technology in which two roughly 450-layer NAND flash stacks are permanently joined into a single chip, pushing total NAND flash layers past 900 and toward 1000 in order to pack dramatically more bits into the same physical footprint and support far higher SSD capacities over the next decade. That core idea is less about headline speeds and more about undoing the physical limits that have started to box storage makers in. At the VLSI Symposium 2026, Samsung detailed how it is working towards 1000-layer NAND using new materials and bonding techniques. The company presents a multi-layer solution that houses two 450-layer cells connected using Cell-Multi Bonding (CMB), a clear signal that stacking is now a first-class design strategy rather than a niche experiment. In a market where SSD prices are chaotic and capacity advances feel incremental, that shift matters far more than another 1,000MB/s of sequential read speed.
Inside Samsung’s Storage Roadmap: From 400 Layers to 1000

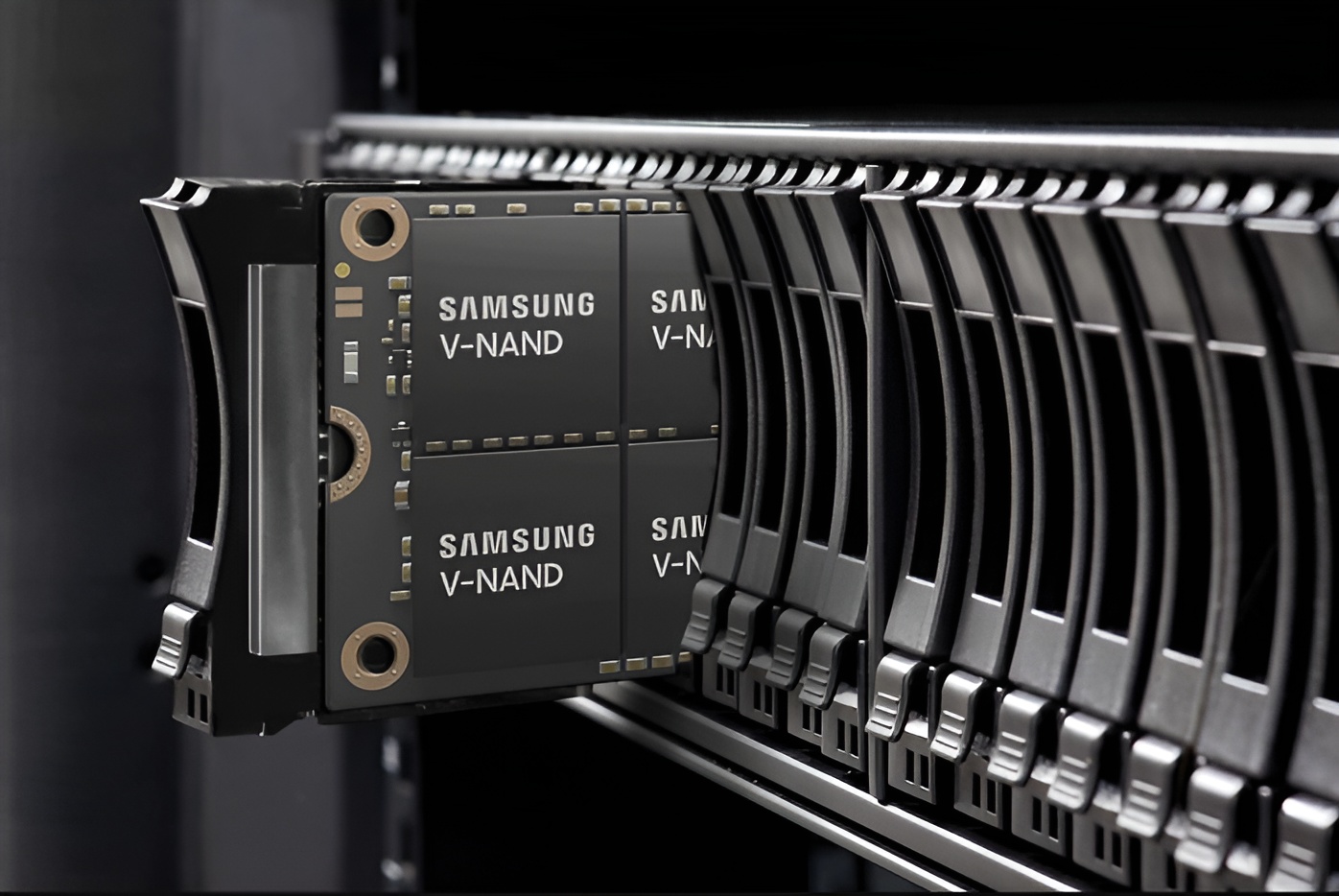

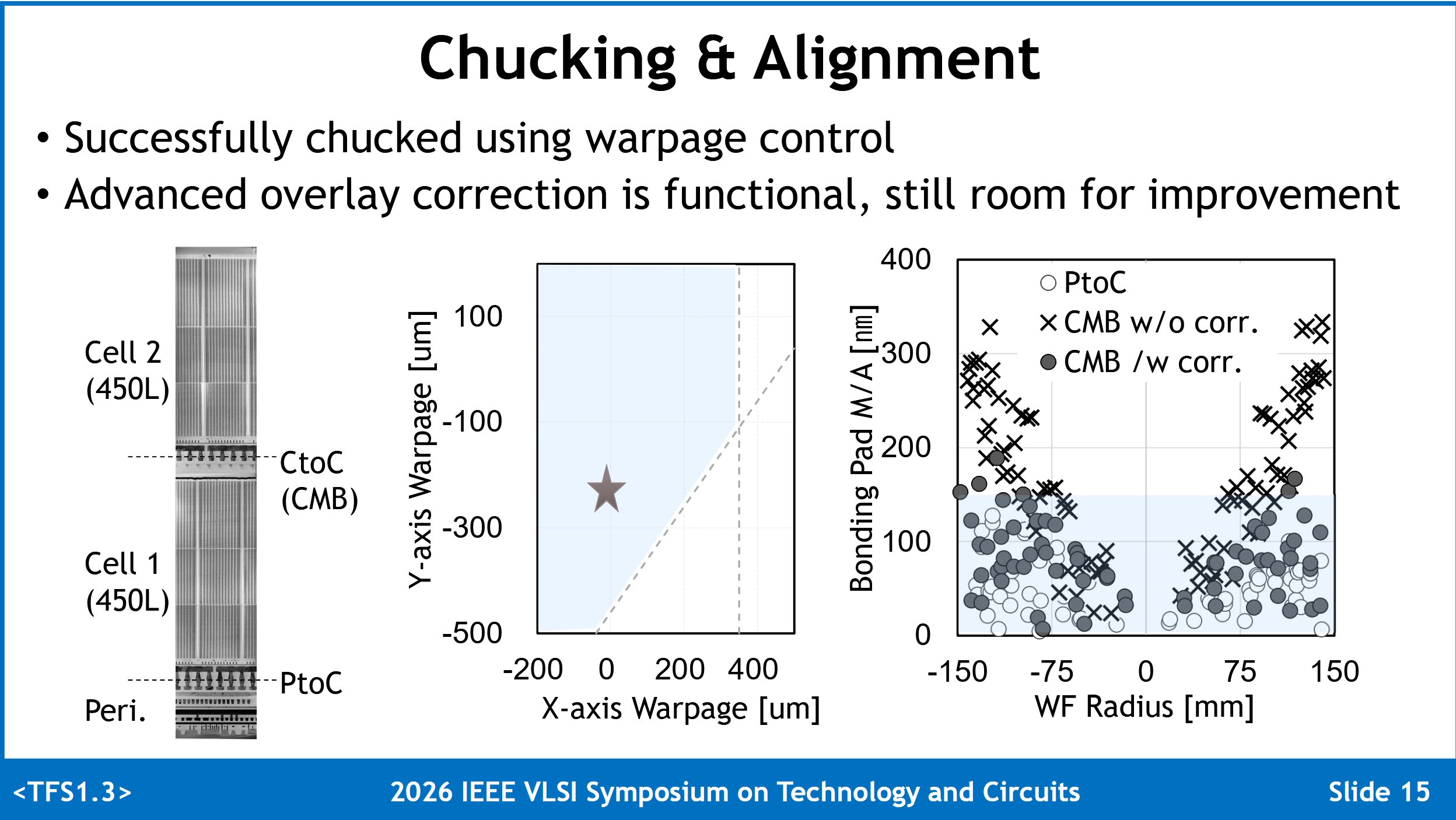

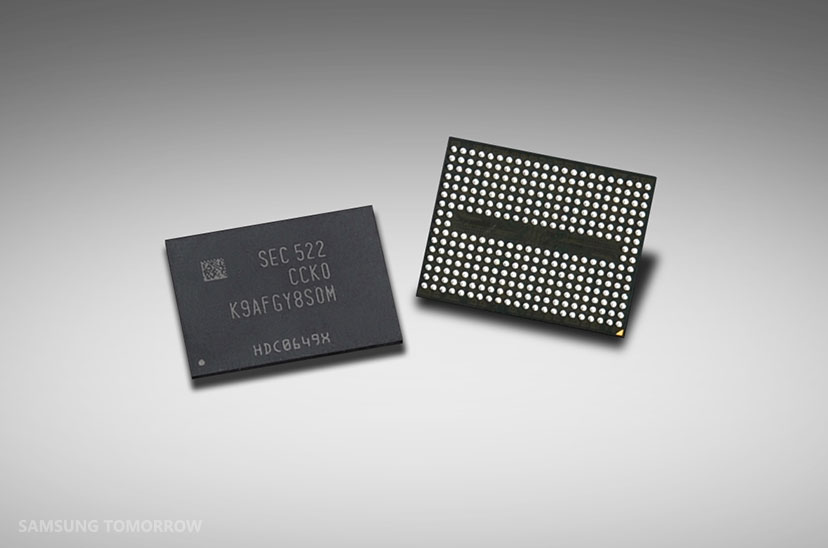

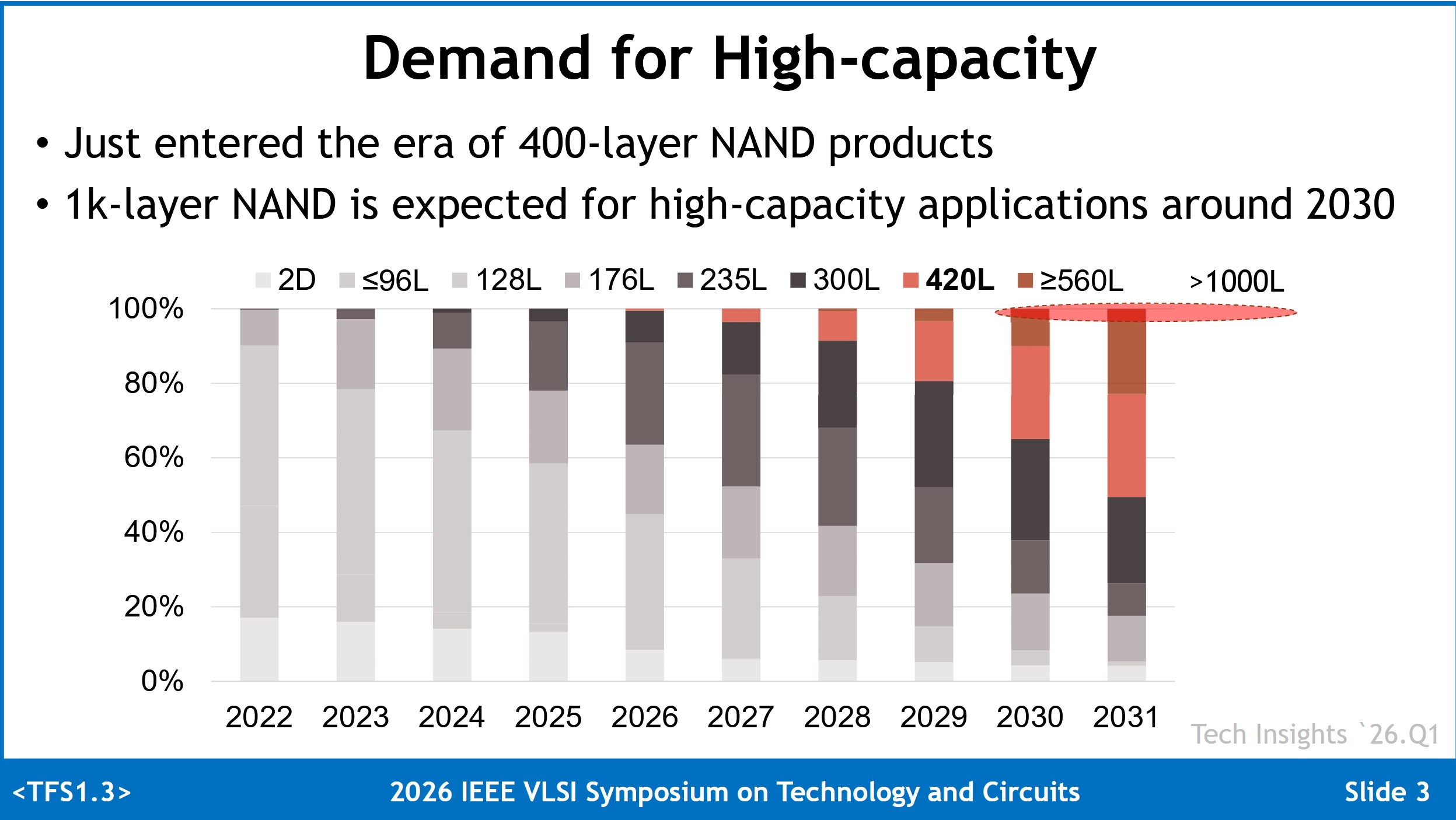

NAND makers have entered what Samsung calls the 400-layer era, with an industry-wide target of around 1000 layers for high-capacity applications by 2030. Samsung’s roadmap is aggressive: the firm aims for 420-layer NAND solutions by 2029 and more than 560 layers by 2030, then plans to double that again to break the 1000-layer barrier at the start of the next decade. This is a deliberate response to “big demand for high-capacity SSDs” and an accelerated roadmap that focuses on stacking more NAND flash layers into each chip. Bonded stacking is the controversial part. Doubling layers in one package creates warpage and cost challenges, yet Samsung says it has already modeled its future design with warpage control and advanced overlay correction. To achieve a 900-layer V‑NAND prototype, it introduced an Upper Chuck Design to counter wafer warping and used overlay correction technologies to fix misalignment errors. Technically, this is a bold bet that manufacturing headaches can be solved faster than capacity demand cools.
Why Space, Not Speed, Will Define SSDs Through 2030
Today’s consumer SSD conversation is obsessed with PCIe 5.0 speeds, yet the lived experience tells a different story. In tests of a PCIe Gen 5.0 drive reading at 10,420MB/s, buyers are told it is “plenty fast enough for most people’s needs,” but the lack of a heatsink and pricing pressure clearly temper enthusiasm. The fastest drive benchmarked, with sequential reads up to 14,957MB/s, is described as “extremely expensive,” and reviewers concede you’d struggle to feel the difference versus cheaper NVMe models in game load times and general desktop use. Against that backdrop, Samsung’s storage roadmap feels refreshingly practical. Higher NAND flash layers are about raising bit density rather than chasing numbers that few users can perceive. Bonded dual-stack NAND attacks physical space limits head-on, letting SSD makers fit more dies and more capacity into familiar M.2 sticks instead of reshaping the PC. For ordinary users, that matters more than shaving another fraction of a second off a loading screen.
Consumer Impact: From Chaotic Prices to Terabyte Normality
Right now the SSD market is defined by what one review calls “chaos” in RAM and storage prices, with drives doubling in price from one week to the next and buyers needing detailed guidance to find any kind of value. High-capacity, high-speed PCIe 5.0 models can cost £396 / $440 (approx. RM2,024) for 2TB, a level that makes sense only for niche users who chase peak sequential speeds. In everyday use, that performance premium barely shows up. Layered NAND technology is the quiet counterforce to this mess. As bit density rises, it becomes easier for manufacturers to ship 4TB and 8TB drives as mainstream options instead of luxury items. Dr. Ian Cutress notes that with Samsung’s bonded stack, an 8TB QLC SSD design could offer up to 32TB capacities, a striking illustration of what stacked NAND can do within familiar form factors. The stacked NAND approach for 900+ layers is still in prototype, but it clearly “paves the path ahead for future storage expansion.”
What Comes Next for Layered NAND Technology
The stacked NAND approach that enables 900+ layers is still in the prototype stage, yet it already defines the next five years of SSD capacity planning. 1000-layer V‑NAND is currently aiming for a 2030 release, with 400+ layer products rolling out in the intervening years. Samsung’s roadmap sits inside a wider rush: other makers are already pushing 300+ and 400-layer designs, and new fabs are being built to double wafer output just as the AI-driven demand spike hits. In practice, this means consumer drives will evolve less by becoming faster and more by becoming normal at capacities that once sounded absurd. Expect a gradual shift where 2TB becomes entry-level for performance systems and double‑digit terabyte SSDs stop looking exotic. Bonded dual-stack NAND won’t fix price volatility on its own, but it does change the physics of storage. The industry finally has a clear path to more capacity without needing more space—and that is the real milestone on Samsung’s storage roadmap.
