From Stereo to Full-Sphere: Why Ambisonics Needs Better Microphones
Conventional stereo microphones are designed to capture a left and right image, which works well for music and basic dialogue but quickly hits its limits for immersive experiences. Ambisonics microphones go further by sampling the entire soundfield around a point in space, enabling true 360 degree recording and sophisticated soundfield analysis. Instead of two capsules, high-order ambisonics arrays use dozens of precisely matched microphones mounted on a rigid sphere. This geometry allows engineers to reconstruct the direction, distance, and movement of sound sources, far beyond what stereo or simple surround setups can deliver. For acoustic researchers, it means accurate measurement of complex environments. For content creators, it unlocks lifelike spatial audio capture for VR, games, and installations. But to fully realize this potential, every microphone in the array must deliver high dynamic range, low noise, and consistent performance—demands that stretch traditional sensor technologies.
Why Optical MEMS Microphones Are a Breakthrough for Spatial Audio Capture

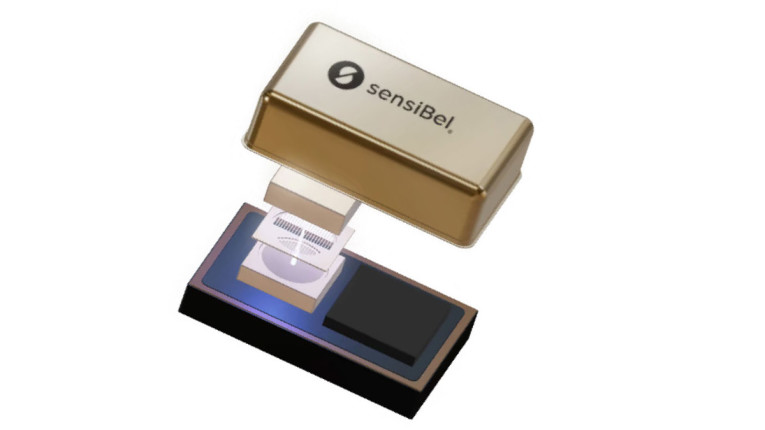

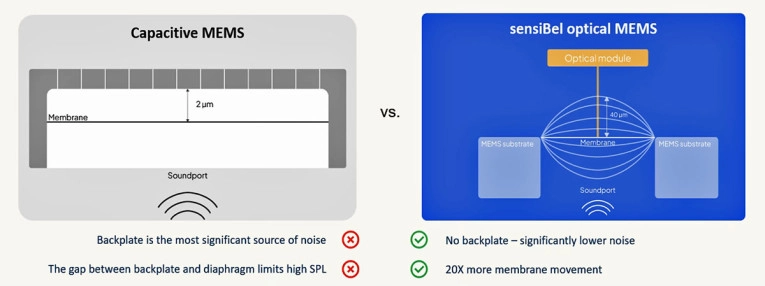

Most consumer devices rely on capacitive MEMS microphones, which use a diaphragm and a perforated backplate spaced only a few micrometers apart. This architecture is compact and scalable, but it inherently limits diaphragm movement, noise performance, and dynamic range. Optical MEMS microphone designs remove the backplate entirely and measure diaphragm motion using light. sensiBel’s SBM100B integrates a tiny vertical-cavity surface-emitting laser, diffractive optical element, and photodetector inside the package, turning minute diaphragm displacements into a clean digital signal. Without a backplate, the membrane can move up to 20 times more, drastically improving linearity and reducing distortion. The SBM100B achieves an 80 dB signal-to-noise ratio, 146 dB SPL acoustic overload point, and 132 dB dynamic range—numbers comparable to handheld studio condenser microphones that are many times larger. This combination of studio-quality performance and MEMS-scale integration makes optical MEMS ideal for dense ambisonics microphone arrays used in advanced spatial audio capture.

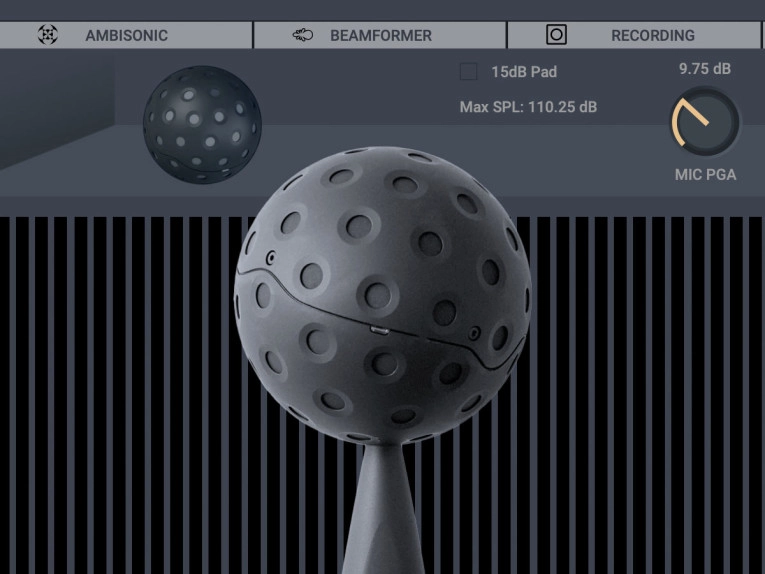

Meet the em64d Eigenmike: A Sixth-Order Ambisonics Microphone Reinvented

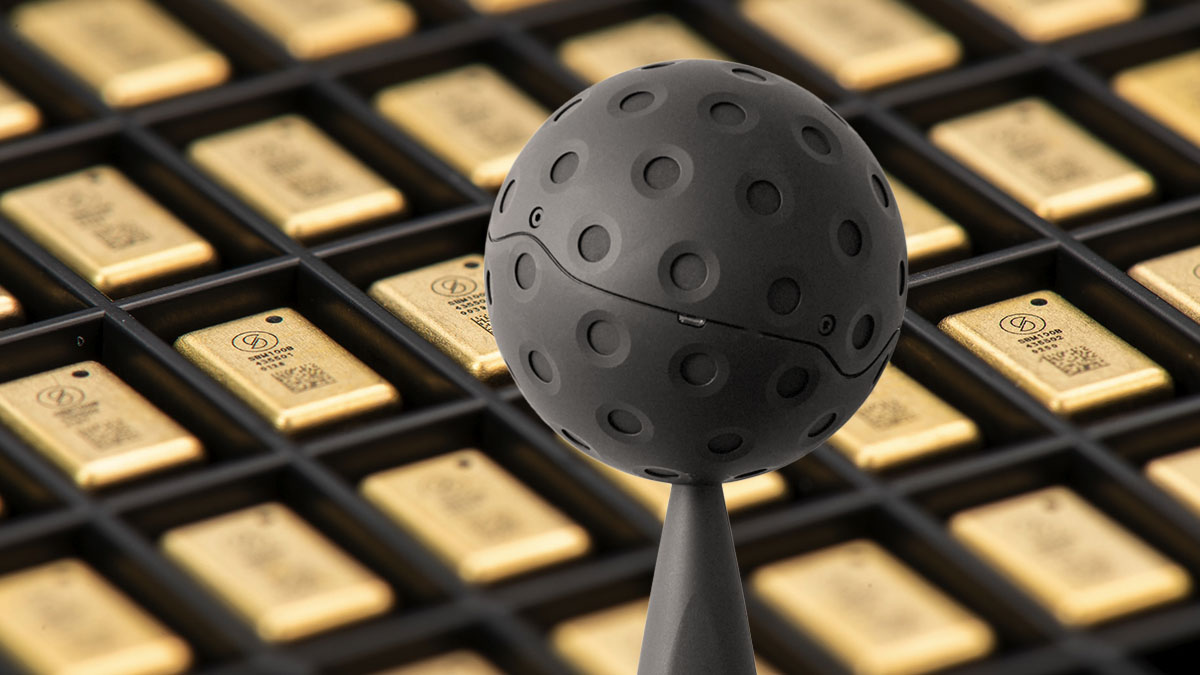

mh acoustics has long been a reference name in higher-order ambisonics microphone design, and its latest em64d Eigenmike marks a major technological shift. Externally, the em64d maintains the familiar 84 mm spherical baffle and sixth-order ambisonics capability that made earlier Eigenmike systems popular for full three-dimensional soundfield capture. Inside, however, all 64 capsules are now sensiBel SBM100B optical MEMS microphones instead of electret condenser elements. The array operates from 20 Hz to 20 kHz with a 48 kHz sampling rate and a spatial aliasing cutoff above 12 kHz, supporting detailed 360 degree recording for demanding applications. As a complete solution, the em64d includes advanced beamforming, multi-track recording, and the eigenStudio software environment with EigenUnit VST plugins for post-processing. For engineers and creators, this makes the em64d an integrated ambisonics microphone platform that is both more powerful and easier to deploy in real-world spatial audio workflows.
Cleaner, Louder, More Consistent: What Optical MEMS Brings to Ambisonics Arrays

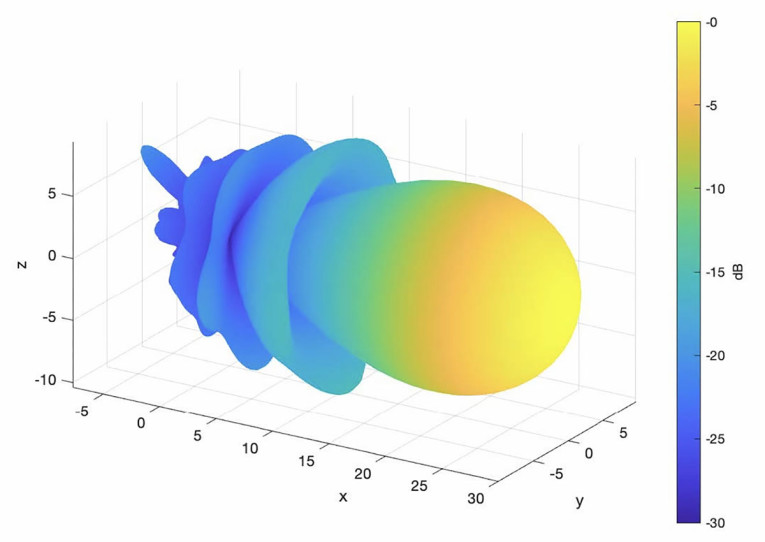

Higher-order ambisonics microphones are extremely sensitive to variations between capsules. Small mismatches in magnitude or phase response can degrade beamforming, localization, and overall soundfield accuracy. The em64d’s shift to the SBM100B optical MEMS microphone addresses this at both the acoustic and manufacturing levels. Acoustically, the SBM100B delivers 8 dB higher SNR and 16 dB higher acoustic overload point than the previous electret-based solution used in earlier Eigenmikes, allowing the array to capture very quiet ambiences and extremely loud events without compromise. Manufacturing-wise, MEMS technology enables surface-mount assembly, reflow compatibility, tight element matching, and long-term stability. That means more consistent arrays, faster production, and shorter lead times. For users, the result is an ambisonics microphone that offers lower noise, lower distortion, and more reliable performance from session to session—critical for precise 360 degree recording and repeatable soundfield analysis in both research and production.
What This Means for Professionals and Enthusiasts Working in Spatial Audio

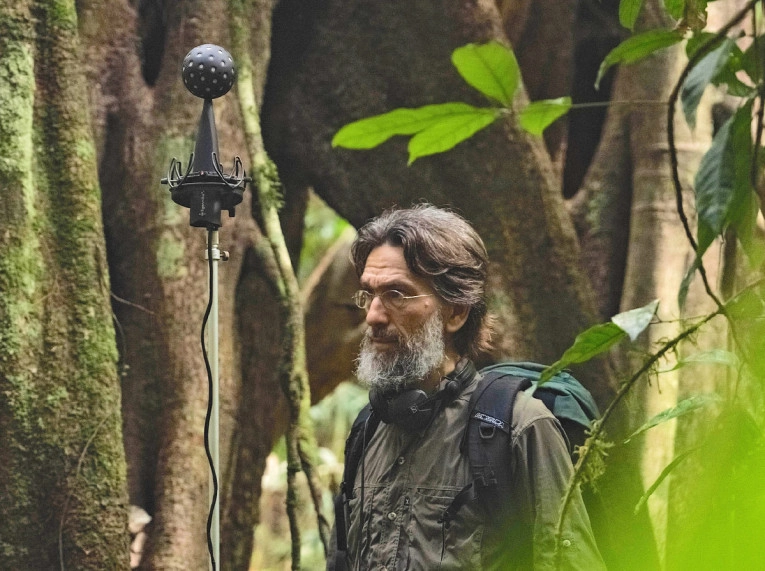

The combination of high-performance optical MEMS microphones and refined ambisonics microphone design pushes spatial audio capture closer to the ideal of transparent, point-like listening. For film, game, and XR sound designers, arrays like the em64d make it possible to record natural environments that translate directly into immersive formats without heavy synthetic processing. Researchers gain a more accurate tool for measuring room acoustics, urban soundscapes, and complex natural habitats, while enthusiasts exploring ambisonics workflows benefit from studio-grade fidelity in a compact hardware setup. Because the microphones themselves are digital-output MEMS devices, they also fit neatly into modern multichannel recording and processing pipelines, simplifying integration with DAWs and 3D audio engines. As optical MEMS technology matures and scales, expect more ambisonics microphone products—and even smaller, application-specific arrays—bringing precise 360 degree recording and advanced soundfield analysis within reach of a wider community of creators.
