CPU Cooler Buying Guide: Air vs AIO Performance Compared

Start Here: Why a Premium Air Cooler Wins for Most PCs

A CPU cooler is the component that draws heat away from your processor, using metal fins, heatpipes, fans, and sometimes liquid-filled tubing, to keep temperatures low enough for stable performance and long hardware lifespan in everyday gaming, content creation, and workstation use. For most builders, the best CPU coolers balance thermal management, noise, compatibility, and ease of installation without demanding complex maintenance. In the air cooler vs AIO debate, a high-end air cooler is the right answer for most people. The Noctua NH-D15 G2 is the top pick because it delivers excellent cooling performance, quiet operation, and long-term reliability in a simple dual-tower design that works in the majority of gaming and productivity systems.

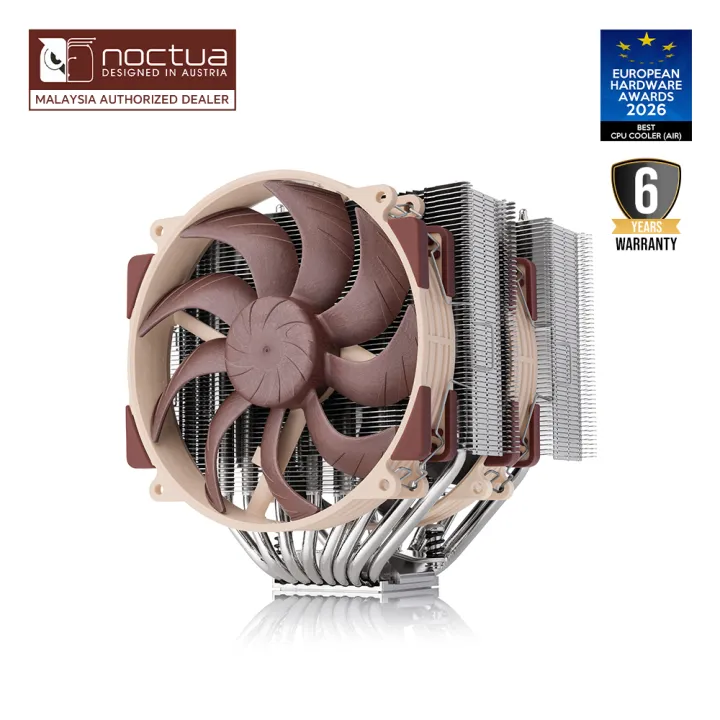

The NH-D15 G2 is a dual-tower air cooler with two 140mm fans, standing 168mm tall and supporting both Intel and AMD sockets, backed by a six‑year warranty. This large heatsink and its updated eight heatpipes give it enough thermal capacity to handle demanding gaming processors and high-end workstation CPUs without the complexity of pumps or tubing. It also runs quietly under typical loads and includes low-noise adapters for builders who want lower acoustics over maximum fan speed. You avoid the additional failure points of an AIO while still getting top‑tier thermal management for your PC. Unless you are pushing a high-end chip to its limits with all-core workloads, start with this cooler before considering liquid options.

Air Cooler vs AIO: Who Each Type Is Really For

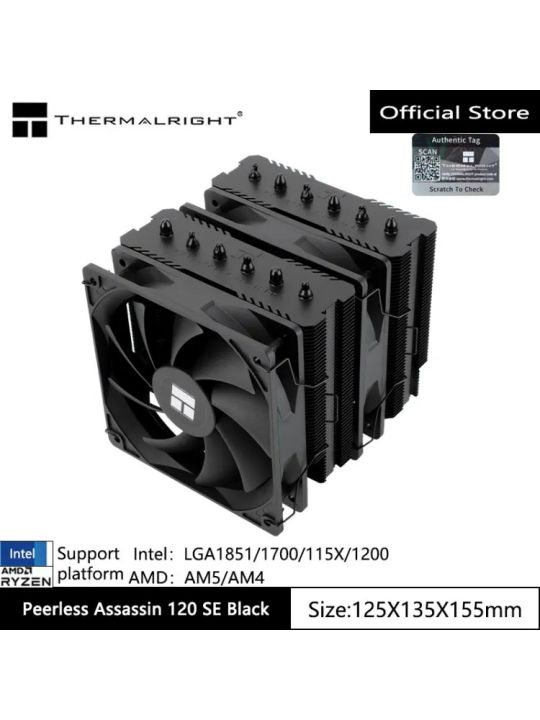

Choosing between an air cooler vs AIO is mostly about how hard you plan to push your CPU and how much you care about appearance and case layout. For most gaming PCs, an affordable dual‑tower air cooler will provide more than enough cooling, making air the default choice. The Thermalright Peerless Assassin 120 SE is a standout here: a dual‑tower air cooler with two 120mm PWM fans, a 155mm height, and six heatpipes, designed for Intel and AMD sockets. It offers outstanding performance for its price, stays shorter than many premium dual‑tower designs, and is available in multiple colors and RGB variants. That makes it ideal for mid‑range gaming builds and value‑focused workstations that need solid thermal management without premium cost.

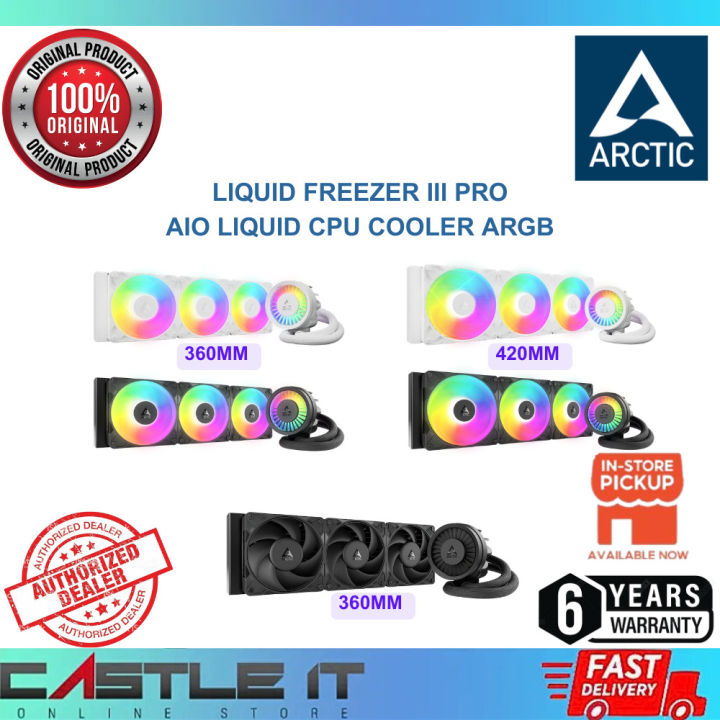

AIO liquid coolers come into their own for high‑end CPUs and heavy multithreaded workloads. The ARCTIC Liquid Freezer III Pro 360 is a 360mm AIO with three 120mm fans and a 398 x 120 x 38mm radiator that supports AM4, AM5, LGA1700, and LGA1851, with a six‑year warranty. It combines top‑tier cooling performance with an excellent price‑to‑performance ratio and includes a small VRM cooling fan in the pump housing, helping cool components around the CPU socket. This cooler is overkill for many gaming PCs, but it is a great option for a Ryzen 9, Core Ultra 9, heavily tuned processor, or a workstation that regularly runs demanding all‑core workloads. If your case can clear its thicker radiator, this is the AIO to pick when you need maximum thermal capacity.

Real-World Performance, Noise, and Airflow Optimisation

On raw thermal performance, the ARCTIC Liquid Freezer III Pro 360 has more headroom than even the best air coolers, making it well suited to high‑end chips and sustained heavy workloads. It uses a thick 38mm radiator and high‑speed 120mm fans that can reach up to 3,000 RPM, providing extra cooling capacity when you need it. However, this thick radiator requires approximately 63mm of clearance where it is mounted, and installation is more involved on Intel systems, thanks to the replacement contact frame. The NH-D15 G2 and Peerless Assassin 120 SE, by contrast, install more like a traditional air cooler and avoid pumps, tubing, and extra failure points. For most gaming builds, there is little reason to spend significantly more unless you want lower noise, more thermal headroom, or the cleaner appearance of an AIO.

CPU temperature optimisation is not just about the cooler itself; airflow configuration in your case can significantly change temperatures at no extra cost. In most mid‑tower cases, cool air should flow from the front towards the CPU cooler, but if the front top fan is set as exhaust, it can pull this fresh air out before it reaches the heatsink, short‑circuiting airflow and causing higher CPU temperatures. A simple fix is to rotate the front‑top fan to act as an intake while keeping the rear‑top fan as exhaust, promoting more even airflow around the processor. You can confirm the benefit by measuring temperatures before and after the change: let the system idle briefly, note the CPU temperature, then run a longer gaming or demanding application test and watch the average CPU temperature over several minutes.

Buy if / Skip if

• Buy the Noctua NH-D15 G2 if you want premium air cooling, low noise levels, and long-term reliability without dealing with pumps or liquid tubing.
• Skip the Noctua NH-D15 G2 if your case has limited CPU cooler height or tall RAM that will conflict with its large dual-tower design.
• Buy the Thermalright Peerless Assassin 120 SE if you are building a mid-range gaming PC and want outstanding performance for its price with minimal maintenance.
• Skip the Thermalright Peerless Assassin 120 SE if you use very tall memory modules and cannot tolerate potential RAM clearance issues underneath its front fan.
• Buy the ARCTIC Liquid Freezer III Pro 360 if you run a Ryzen 9, Core Ultra 9, or heavily tuned workstation CPU that needs top-tier AIO thermal capacity.
• Skip the ARCTIC Liquid Freezer III Pro 360 if your case cannot accommodate its thicker 360mm radiator or you prefer simpler installation over maximum cooling.
