Redefining What a 3D Printer Frame Can Be
A homemade 3D printer is a custom-built machine assembled from off‑the‑shelf components and self‑made parts, often including a DIY 3D printer build where the frame, motion system, and electronics are selected, fabricated, and tuned by the maker rather than bought as a complete commercial product. For years, standard wisdom said that accurate printers demanded aluminum or steel frames. Now hobbyists are challenging that assumption with unconventional 3D printer frame materials like solid wood and fully printed shells. These projects show that with careful design and tuning, a CoreXY printer design or cartesian layout can run reliably without an all‑metal chassis. The key is understanding stiffness, alignment, and vibration, then compensating with bracing, smart geometry, and better motion components. Instead of starting with an expensive frame kit, makers are treating the structure as another design variable—one that can be customized, experimented with, and even printed on the very machines they are trying to replace.
The Six-Month Wooden 3D Printer That Runs Quiet and True
YouTuber Mitsu Makes spent six months building a DIY 3D printer build around a frame made primarily of wood, cut from thick solid stock on a CNC machine and finished by seven hours of hand sanding for tight, flex‑free joints. Glued and clamped instead of screwed during curing, the large frame was kept square for days to prevent warping before stain and steel backer plates went on. Thin areas near the linear rails, down to about 3 mm, are reinforced with laser‑cut steel plates, turning a potential weak point into a stiff interface. Motion comes from a cross‑gantry with two stepper motors for X and Y and a third for Z, driving 150 mm lead screws and enabling 110 mm of vertical travel with automatic bed tramming. With Klipper on a BigTreeTech Manta M8P board, a Dragon UHF hotend, Sherpa Mini extruder, and Beacon RevH probe, the wooden machine delivers smooth motion and, thanks to the wood’s damping, runs noticeably quieter than many metal‑framed printers.

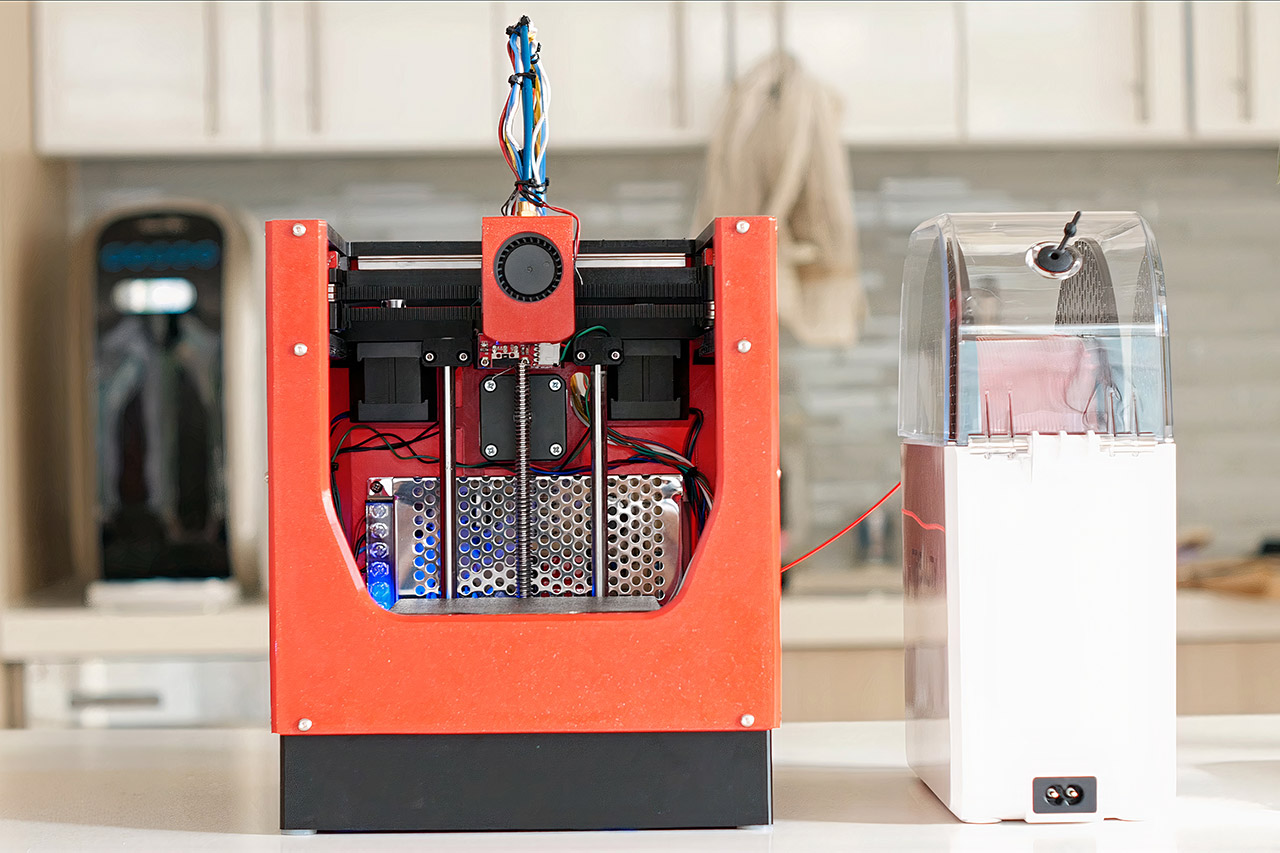

Encore: A Fully Printed CoreXY Printer Built From Its Own Kind
Alex Yu’s Encore project takes the idea of a homemade 3D printer in a different direction: a compact CoreXY printer design with an almost entirely printed structure. The outer shell is made from 1.5 mm thick printed panels that, once welded together, form a surprisingly stiff box. The horizontal axes mount straight to these side panels, removing the need for an internal aluminum frame and keeping parts counts low. According to Techeblog, "the finished machine measures roughly 219 by 221 by 262 millimeters" with a 120 mm cube build volume, small enough to match a standard filament box yet large enough for functional parts. Every printed piece fits on a typical 225 mm build plate, so anyone with a common desktop printer can create the parts. Inside, MGN9C linear rails and a CoreXY belt layout move a lightweight gantry, while an 8 mm leadscrew and linear rods drive the bed, supported by a compact controller and power supply hidden in the base.
Iterating Hardware: Fixing Cooling, Vibration, and Tolerances
Both projects show how accessible 3D printing makes hardware iteration. Encore’s first tests exposed familiar small‑printer problems: hotend cooling fell short at speed, leaving PLA prints messy. Yu responded by upgrading the blower, redesigning the shroud to pull air from more angles, and adding two more blowers to the build area, which stabilized high‑speed performance. Bed vibration at speed was tamed by upgrading from 6 mm to 8 mm Z rods so layer lines stacked evenly again. On the wooden printer, careful sanding, test fits, and steel reinforcement plates helped keep tolerances tight despite wood’s tendency to move with humidity and load. Advanced firmware features like bed mesh probing, Z tilt adjustment, and automatic homing then refine print quality further. For makers, every adjustment becomes a lesson in stiffness, thermal behavior, and motion dynamics—insight that is hard to gain when a commercial frame hides many of the design trade‑offs.
What Makers Are Learning From Building Printers From Scratch
Building a DIY 3D printer build from the ground up turns the machine into a teaching tool. Choosing unconventional 3D printer frame materials—whether laminated wood or 1.5 mm printed panels—forces builders to understand loads, tolerances, and how motion systems respond to flex. Iterating on cooling, bed support, and gantry weight shows where print artifacts come from and how changes in hardware translate into surface finish and dimensional accuracy. Because CoreXY printer design is compact and efficient, it is becoming a favorite layout for these experiments, especially when a new printer can be bootstrapped from parts printed on an older machine. This feedback loop—printing parts for the next printer—captures the spirit of the maker movement. As open project files, CAD, and documentation spread through platforms like GitHub and model repositories, more hobbyists can explore homemade 3D printer ideas, prove that performance does not belong only to metal kits, and contribute their own improvements back to the community.
