Holographic 3D Radar Steps Up the Pace of Sky Monitoring

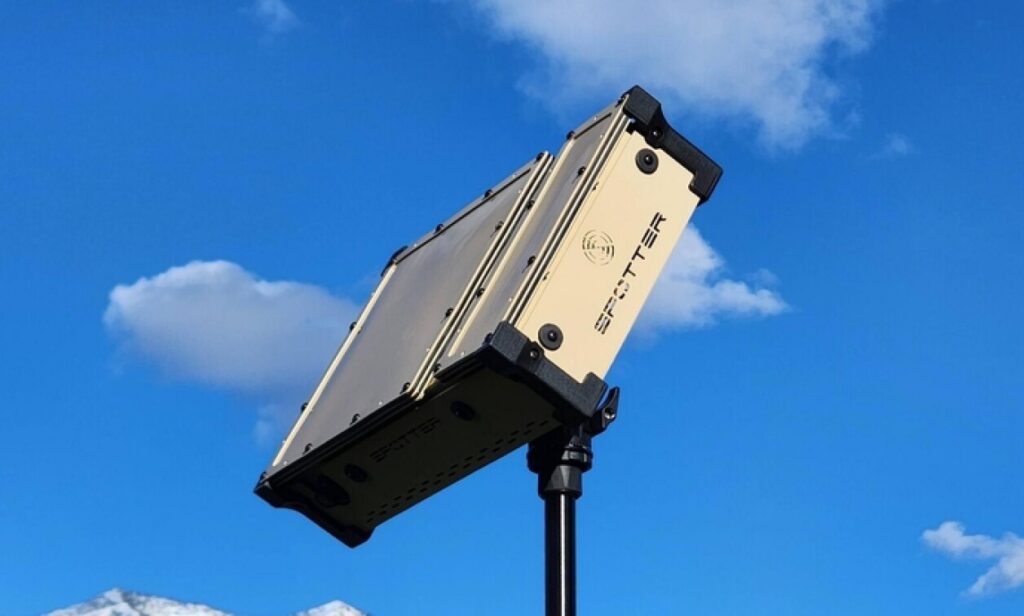

A new holographic 3D radar, the GAX500-3D from Spotter Global, is pushing aerial surveillance sensors well beyond the performance of traditional electronically scanned array (ESA) systems. Engineered to scan the entire sky up to 32 times faster than conventional radar, it is built around a compact, ultra-low size, weight, power, and cost architecture. Instead of relying on a slow, sweeping beam, the system delivers near-instantaneous situational awareness across the monitored airspace, enabling operators to react to drones and other aerial threats in real time. By combining rapid tracking with a web-based interface that allows deployment in under 10 minutes, the radar aims to bridge the gap between legacy ground radars and agile drone-mounted or mobile surveillance platforms. The result is a sensor concept tailored for environments where threats can appear and maneuver in seconds.
Technical Profile: Frequency, Range, and Power for Drone Integration

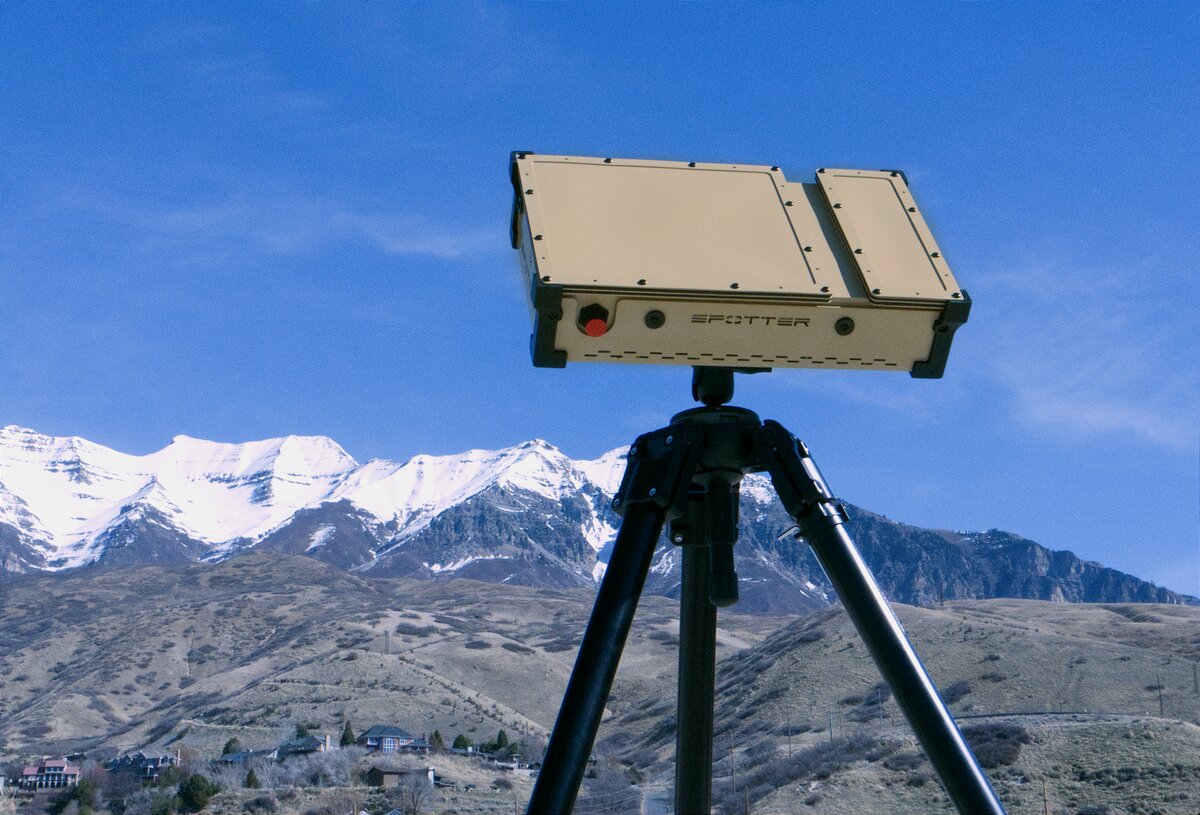

At the core of the GAX500-3D is a radar operating in the 10.0 to 10.5 gigahertz band, a sweet spot for high-resolution detection of small aerial targets. The system offers a drone detection range of up to 500 meters, extending to 1,000 meters for a human target, giving security teams critical early warning at low altitudes. Equally important for drone integration, the radar weighs less than 4 kilograms and is roughly the size of a small briefcase, making it viable for larger unmanned platforms or compact manned vehicles. Power consumption stays below 35 watts at 48 volts direct current, supporting continuous operation without overtaxing onboard batteries or vehicle power systems. These specifications position the GAX500-3D as a flexible node in a layered surveillance network that might also include thermal imaging drones, cameras, and acoustic sensors.
From Flashlight to Floodlight: Rethinking Aerial Surveillance Sensors
Traditional ESA radars behave like a flashlight in a dark forest, focusing energy into a narrow beam that must be mechanically or electronically steered across the sky. This approach can leave gaps in coverage, especially when many small drones are maneuvering at once. The GAX500-3D instead takes a “floodlight” approach, continuously illuminating and monitoring the whole volume of space within its field of view. According to Spotter Global, this enables tracking of up to 50 targets in just 56 milliseconds, a capability well suited to complex drone swarm scenarios. For operators already deploying thermal imaging drones and optical cameras, the holographic 3D radar adds a persistent, all-weather detection layer that does not depend on daylight or clear visibility. Together, these systems create a more resilient, multi-sensor perimeter around critical assets and mobile units.
Bridging Ground Radars and Drone-Mounted Surveillance
Beyond fixed installations, the GAX500-3D is designed to slot into a broad ecosystem of mobile platforms. It can be integrated onto infantry squad vehicles, Joint Light Tactical Vehicles, medium tactical trucks, and heavy mobility trucks, extending situational awareness out from the convoy. Its low weight and compact design also point toward future airframe integration, where larger drones could carry the radar as part of a multi-sensor payload. In that role, the holographic 3D radar would complement onboard cameras and thermal imaging systems, pushing the effective drone detection range outward while maintaining rapid refresh rates. By shrinking radar hardware and power demands, Spotter Global is narrowing the technological gap between traditional fixed radar installations and agile, drone-borne aerial surveillance sensors that can be rapidly repositioned and re-tasked on demand.
