What DIY E‑Waste Computer Builds Are (And Why Bother)
A DIY e‑waste computer build is the process of turning discarded laptops or retail display hardware into a functional salvaged hardware mini PC or gaming machine from old hardware, using still‑healthy components instead of buying new ones or sending them to landfills. If you like tinkering, hate waste, and want more performance than a bargain mini PC offers, this path is worth a look. The core idea is simple: a repurposed laptop motherboard with a strong CPU, dedicated graphics, and memory can become the heart of a compact workstation or gaming box. Retail media players that once powered digital menu boards can be revived as small PCs for light gaming or emulation, thanks to familiar parts like Intel Core processors, HDMI, and USB ports. The caveat: you need patience and a comfort level with handling bare electronics; this is more hands‑on workshop than quick online checkout.
Step‑By‑Step: Turning Laptop Scrap Into a Mini Workstation
Think of this part as building your own all‑in‑one salvaged hardware mini PC, the way one maker turned smashed laptops and a broken desktop into a quiet, capable 4K machine. The end result there “cost about a third of what it would have cost to buy all of the comparable new parts,” and still kept up with video editing and AI upscaling tasks. The big win is performance per dollar and the satisfaction of saving gear from the dump. The real gotcha is that laptop boards were never meant to live outside their original shells, so powering them on and keeping them cool takes a bit of detective work.
- Find a high‑end laptop motherboard from damaged machines with intact CPUs, GPUs, and soldered memory, focusing on boards whose cases or keyboards are broken but whose internals are still sound.
- Confirm the board can power up by tracing signals on the keyboard connector with a multimeter until you locate the standby voltage line, around 3.3 volts, then briefly bridge that line to ground while a heatsink and fan are attached to avoid thermal damage.
- Identify a working display panel from discarded all‑in‑one desktops whose outer glass is shattered but whose LCD is unbroken, then carefully separate the bonded glass layers with heat and a fine wire before cleaning the panel surface.
- Design a simple case or frame, such as a wooden edge around the panel with an aluminum rear plate and internal braces that leave a gap for airflow and cable routing, then mount the repurposed laptop motherboard to the metal using standard PCB standoffs.
- Integrate existing components on the board—storage, extra memory if available, USB hub, card reader, and Wi‑Fi card—keeping antennas unobstructed, and fabricate a basic power‑on control using a ribbon‑like cable and a small tactile button to short the appropriate pins.
- Add a stable stand and speakers from other discarded hardware, such as tripod legs made from old floorboards and a 3D‑printed speaker enclosure driven by the display’s built‑in stereo amplifier and a separate mono amp for a subwoofer.
- Close off the back with metal, tape any gaps that would cause warm air to recirculate instead of venting, and then test the system at load—4K output, editing, or AI upscaling—to confirm reliability and temperature before calling the build finished.
Follow that sequence and you end up with something far from a pile of scrap: a framed‑picture‑style machine on a wooden tripod, cables hid from view, clear 4K output, and sound focused toward the front. The main risk along the way is impatience—rushing through glass separation or powering the board without cooling can kill parts you cannot easily replace from e‑waste. Take your time and treat each salvaged piece like it’s the last of its kind.
Reusing Retail Menu Boards as Budget Gaming Machines

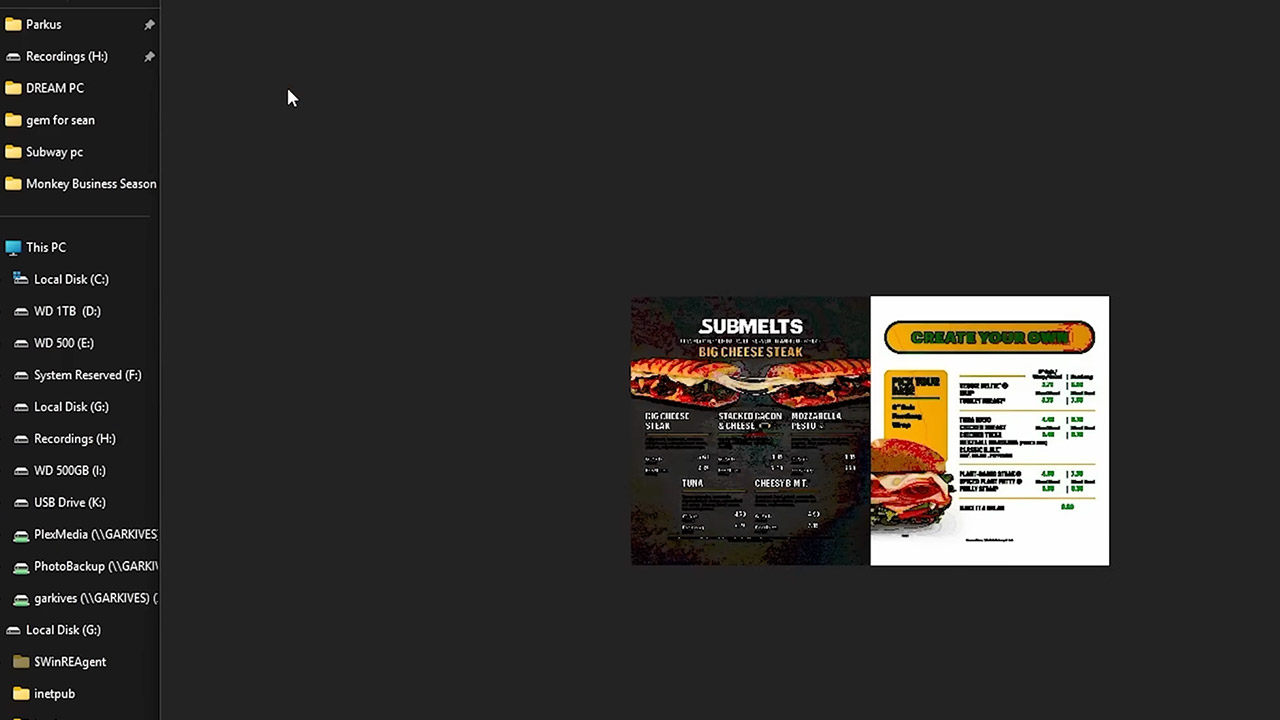

On the other side of DIY e‑waste computer build projects, some makers start not with laptops but with the quiet metal boxes that ran digital menu boards in shops for years. Staff swapping old displays for new ones often toss their media players straight toward the trash, even though inside they hide perfectly usable mini PCs with Intel CPUs, DDR4 RAM, SSD storage, and HDMI and USB ports. That combination is ideal if your goal is a gaming machine from old hardware for lighter titles or console emulation rather than cutting‑edge AAA games. The gotcha here is expectations: these fanless units were built for scrolling sandwich prices, not high‑frame‑rate action.

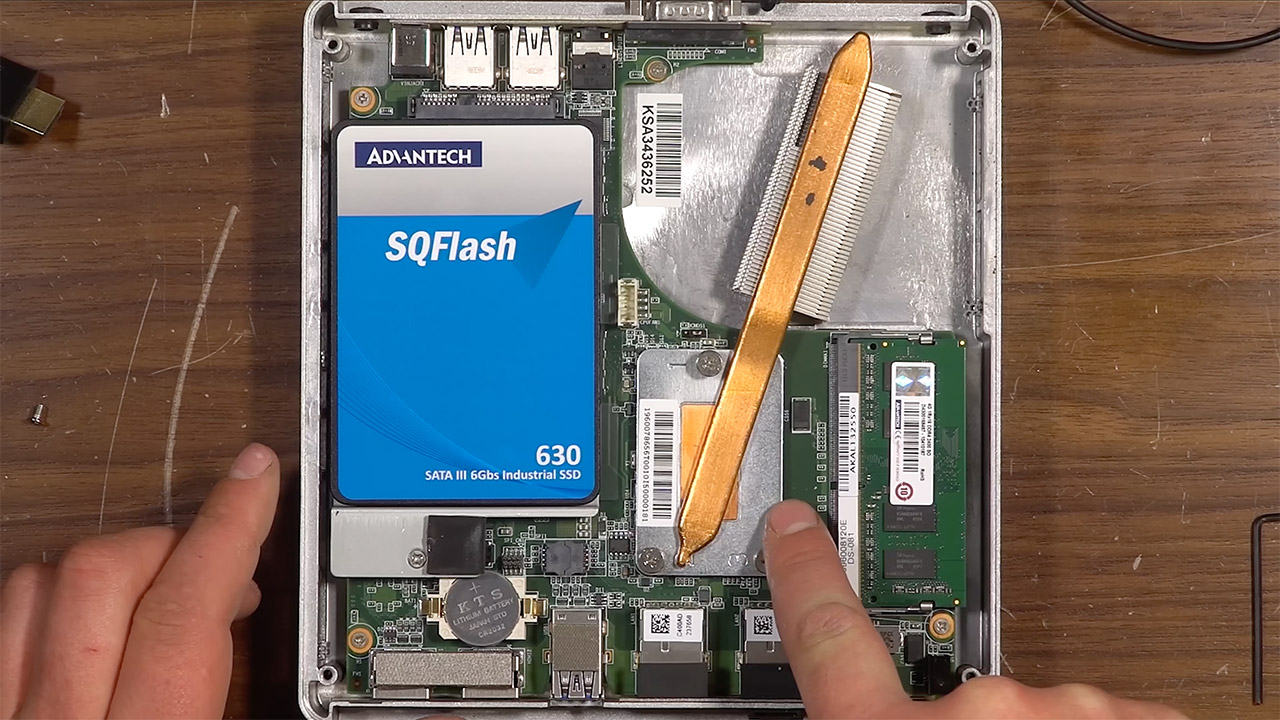

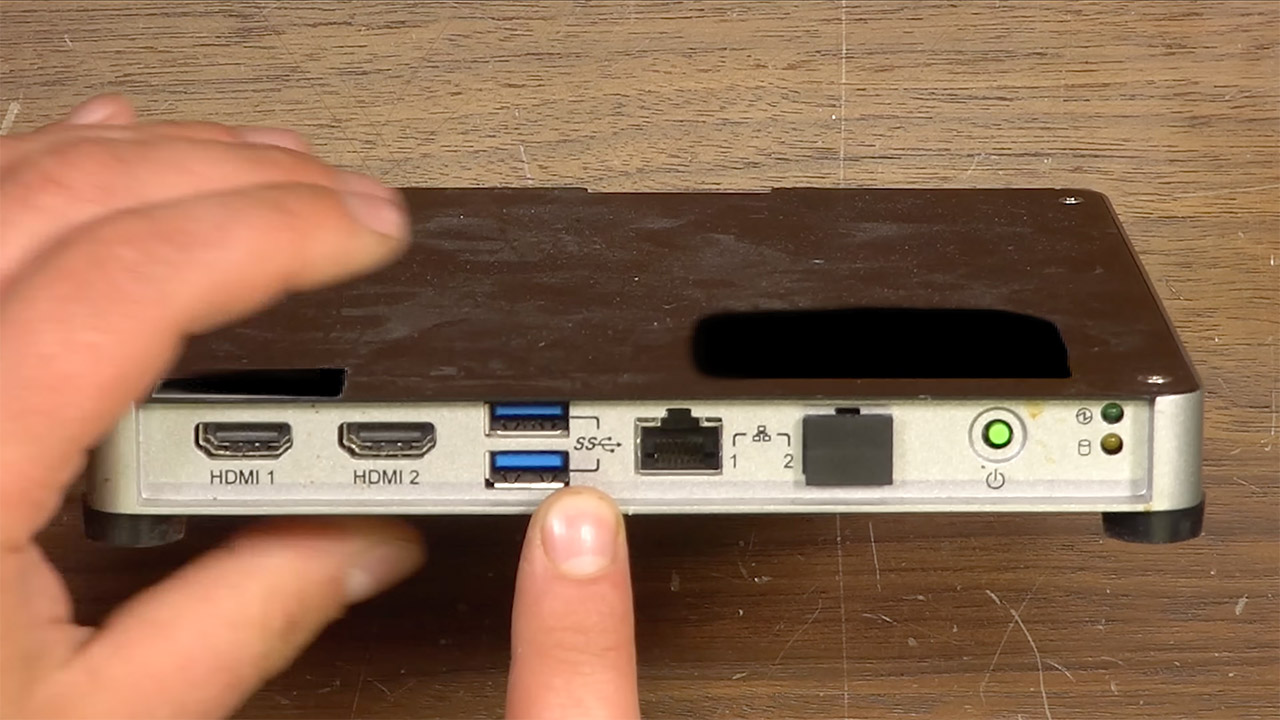

One builder rescued three slim, fanless media players and several commercial displays from a sandwich shop’s discard pile and experimented with turning them into different kinds of salvaged hardware mini PC. With a sixth‑generation Intel Core i3‑6100U, upgradable up to 8 GB of DDR4 RAM, a 64 GB SSD, and Intel HD Graphics 520 plus HDMI, USB 3.0, Ethernet and micro PCIe, they boot general operating systems without fuss. After upgrading memory, he installed Windows 10 on one, macOS on another (even spoofing it as a 2016 laptop), and Bazzite Linux on the third to focus on older games. Peggle ran perfectly under Bazzite, Minecraft held up even during heavy TNT use, while Grand Theft Auto V proved too demanding for the fanless, power‑limited hardware. The sweet spot turned out to be older console‑scale titles like PS2 and original Xbox games, where low power draw and compact size shine.
Why Repurposed Motherboards Beat Many New Mini PCs
When you step back, the appeal of a repurposed laptop motherboard or revived media player is obvious: you get more computing muscle for less money and keep electronics out of landfills at the same time. High‑end laptop boards pulled from machines with cracked shells still carry powerful processors, dedicated graphics, and significant memory, yet they tend to sell far below equivalent desktop parts because repair shops and typical buyers overlook them. That pricing opens the door to builds where the mainboard, complete with modern GPU and DDR5 memory already soldered in place, can cost less than a desktop RAM kit, while still delivering clean 4K output and handling video editing and AI upscaling load easily. Likewise, media players retired from menu duty “aren’t particularly high‑end, but they still have some life in them,” making them cost‑effective options for emulation boxes and casual PC gaming PCs.
The trade‑offs are clear: you give up warranties and plug‑and‑play simplicity in exchange for value and environmental benefit. Builds based on salvaged hardware mini PC parts need more troubleshooting, care with power delivery, and thought about cooling, especially when you push GPUs or run fanless systems at their limits. But if you enjoy the process and accept that you’re working with components near the end of their commercial lives, the reward is a custom machine with a story—born from smashed laptops and retired menu boards instead of another fresh box shipped in foam.
Takeaway: When Turning E‑Waste Into PCs Is Worth It
If you’re the kind of person who likes to build, tinker, and learn by poking at hardware, turning e‑waste into a mini PC or gaming machine from old hardware is worth the effort. You can end up with clean all‑in‑one desktops, compact workstations, and capable emulation rigs that look intentional rather than like random scraps bolted together. In return for that, you trade time, patience, and a bit of detective work around power circuits and cooling layouts. The main thing to watch for is pushing salvaged parts beyond what they were designed for: running high‑end games on fanless media boxes or powering up laptop boards without proper thermal protection is how promising projects die early. Treat the hardware gently, set realistic expectations, and e‑waste can become one of the most satisfying paths to a custom PC.
