Meet LilL3x, the DIY Desktop Robot Companion
LilL3x is a DIY desktop robot companion that gives artificial intelligence a physical face and voice instead of a browser tab. Created by maker Kimberley Gray, the LilL3x project turns a Raspberry Pi into a small, animated character that sits on your desk and chats with you like a natural voice assistant. Housed in a 3D-printed shell with a tiny OLED display, it looks and behaves less like a smart speaker and more like a tiny robot with personality. A microphone array and built‑in speaker allow hands‑free conversations from across the room, while an optional camera lets the robot notice when you’re nearby and proactively check in. Instead of being locked into a single ecosystem, LilL3x is designed as an open, flexible playground for Raspberry Pi AI experiments, letting you choose the language model, voice, and behavior that best match how you want to work, relax, or tinker at your desk.
How a Raspberry Pi Turns LLMs into a Talking Robot
At the heart of LilL3x is a Raspberry Pi 4 Model B running Linux, paired with a Seeed Studio ReSpeaker 2‑Mics Pi HAT for far‑field voice capture. That HAT combines a small speaker and dual microphones into a compact form factor, so the whole LLM powered robot remains neat on your desk. When you say its wake word, detected using engines such as PicoVoice Porcupine or Vosk, LilL3x records your audio and pushes it through speech‑to‑text. The resulting transcript is sent to your chosen large language model backend: cloud services like ChatGPT, Claude, or Gemini, or a local Ollama instance if you prefer to keep things on‑device. The response comes back as text, which is converted into speech using synthesis engines such as ElevenLabs or Amazon Polly. Simultaneously, the OLED face animates expressions, turning raw text responses into something that feels conversational and alive.
Building the Hardware: From Bare Board to Expressive Face

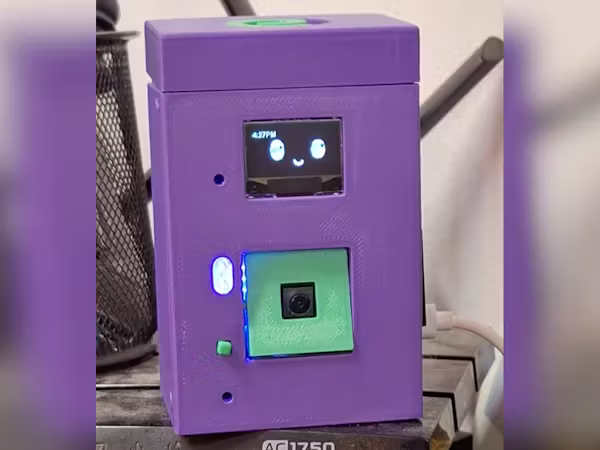

The basic LilL3x project is an approachable introduction to Raspberry Pi AI hardware. You start with a Raspberry Pi 4 Model B, then add the ReSpeaker 2‑Mics Pi HAT for microphones and audio output. A small OLED or similar display becomes the robot’s face, rendering eyes and expressions that react as the AI speaks. A 3D‑printed enclosure holds everything together, giving the DIY voice assistant a distinctive desktop footprint. A Pi Camera Module can be integrated to let LilL3x detect nearby motion or capture images for context, helping it feel more like a presence than a passive gadget. Inside, a Linux stack coordinates the wake‑word engine, speech‑to‑text, LLM client, and text‑to‑speech service. Installation scripts and a web‑based configuration interface streamline setup, so you can manage API keys, choose language models and voices, and tweak behavior without manually editing complex configuration files.
What a Desktop Robot Companion Can Actually Do
Once running, LilL3x behaves like an always‑available coworker on your desk. You can ask it to capture reminders, maintain to‑do lists, or summarize your notes before a meeting. Because it is powered by large language models, it can also help you debug code, generate snippets, or explain unfamiliar commands in plain language. For lighter moments, it handles small talk, tells stories, or offers quick explanations while you read or watch something. With some extra scripting, the robot can become a hub for smart home control, relaying voice commands to compatible lights, plugs, or sensors. The camera lets it notice when you return to your desk and offer to catch you up on missed notifications. Compared with a silent chat window, the combination of speech, animations, and presence makes everyday interactions feel more human, even when you are just asking for a weather update or a quick definition.
Why Physical AI Feels Different—and How to Customize It Safely
Giving AI a body, even a tiny one, changes how you relate to it. A voice emerging from a device with animated eyes feels friendlier and more engaging than disembodied text. This emotional connection, plus the visual charm of a small robot on your desk, is a big part of the appeal versus generic smart speakers or chat apps. LilL3x is also highly customizable: you can swap between language models, choose different text‑to‑speech voices, and redesign the OLED face or 3D‑printed shell to match your workspace aesthetics. Advanced builders can add cameras, extra sensors, or even robotic arms. At the same time, a desktop robot companion is typically always listening for a wake word and may use cloud APIs, so privacy matters. You can mitigate risk by using local models via Ollama when possible, muting microphones with a hardware switch, and carefully managing which services receive your audio and text.
