What a DIY Wireless Viewfinder Does for Your Ricoh GR
A DIY wireless viewfinder for the Ricoh GR is a pocket-sized, Wi‑Fi-connected monitor that displays real-time live view from the camera on a tiny screen, allowing waist-level and remote composition without adding bulk, while keeping the setup discreet for street photography and geometric urban framing.
If you love the Ricoh GR’s stealthy, compact design but hate guessing your framing from low angles, this mod is aimed at you. The camera’s lack of an articulating flip screen makes geometric urban compositions from pavement level or awkward corners a bit of a lottery. A small wireless remote monitor solves that gap while keeping the camera’s minimalist look intact. The RicohViewfinder is an open-source, pocket-sized wireless monitor powered by an M5Stack StickS3 (ESP32-S3) that connects to the camera via Wi‑Fi and shows smooth, real-time live view on its built-in screen. It fits in a pocket, mounts on the hot shoe, and is meant as a street photography hack rather than a commercial accessory.
Think of it as turning your Ricoh into a tiny medium format-style camera: you compose from the hip, stay inconspicuous in busy streets, and line up those strong lines and shapes that were hard to judge on the fixed rear screen. The catch is that this is a DIY camera viewfinder, so you’ll need to be comfortable with basic electronics and following a GitHub guide.
What You Need: Parts, Skills, and Expectations
Before you start soldering or flashing anything, it helps to be realistic about what this wireless viewfinder is and is not. It is a hobbyist project built around a specific microcontroller and open-source firmware, and while the real-time live view works smoothly, there are still minor bugs that can lock up your camera in rare cases.
- Ricoh GR series camera (such as GR III) with Wi‑Fi enabled.

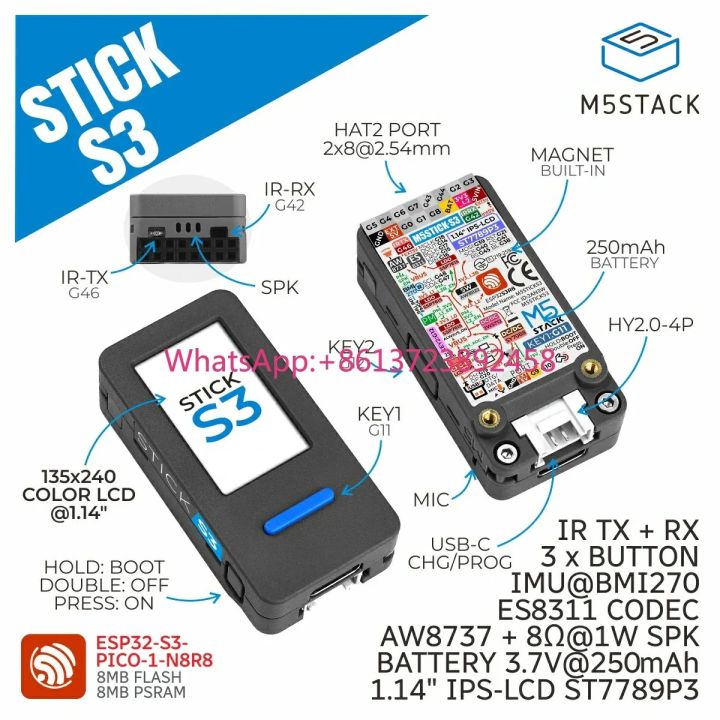

- M5Stack StickS3 development board, which is an ESP32-S3-based device.
- ESP32-S3-PICO-1-N8R8 microcontroller on the StickS3, providing a dual-core Xtensa LX7 at 240 MHz with 8 MB QSPI flash and 8 MB OPI PSRAM in qio_opi mode.
- A computer with PlatformIO IDE, or access to M5Burner once firmware binaries are available.
- Basic electronics skills and confidence following a GitHub-style build guide.
According to one detailed project description, the RicohViewfinder is an open-source, pocket-sized wireless monitor powered by the M5Stack StickS3 (ESP32-S3) that connects to the Ricoh camera via Wi‑Fi. The M5Stack StickS3 is widely available online for around USD 20–30 (approx. RM90–RM140), making this one of the most affordable camera accessories in this category. The firmware uses libraries such as M5Unified and M5PM1 to handle the StickS3’s screen and power, JPEGDEC as an ultra-lightweight JPEG decoder that streams directly into PSRAM to keep live view smooth, ArduinoJson for parsing camera data, and NimBLE-Arduino as a BLE stack for future remote shutter control.
You should also know the biggest current gotcha: if the camera is turned off while the monitor is active, the monitor can sometimes force-wake the camera and freeze it, which may require pulling the battery to reboot. This is not a polished commercial product; it is a tinkerer’s street photography hack that trades a bit of risk for creative flexibility.
Step-by-Step: Building and Flashing Your DIY Camera Viewfinder
Now to the part you care about: how this becomes a working wireless remote monitor. The flow is straightforward—get the right hardware, flash the firmware, then pair the monitor and camera over Wi‑Fi. Along the way, the main thing to watch is connection behavior so you do not trigger the known freeze bug when the camera powers down.
- Prepare your M5Stack StickS3 and tools by unboxing the StickS3, confirming it is the ESP32-S3-based board, and installing PlatformIO IDE or M5Burner on your computer so you can flash firmware.
- Download the RicohViewfinder firmware and libraries by cloning or downloading the open-source project from its GitHub once released, ensuring dependencies such as M5Unified, M5PM1, JPEGDEC, ArduinoJson, and NimBLE-Arduino are included in your PlatformIO environment.
- Build and flash the firmware to the StickS3 using PlatformIO or M5Burner, compiling the project so the ESP32-S3-PICO-1-N8R8 MCU with 8 MB flash and 8 MB PSRAM runs the viewfinder code, then burning the binary onto the device.
- Mount or position the StickS3 on your Ricoh GR—such as on the hot shoe or directly above the camera—so it is easy to glance down at the screen for waist-level framing while keeping the setup compact and pocketable.

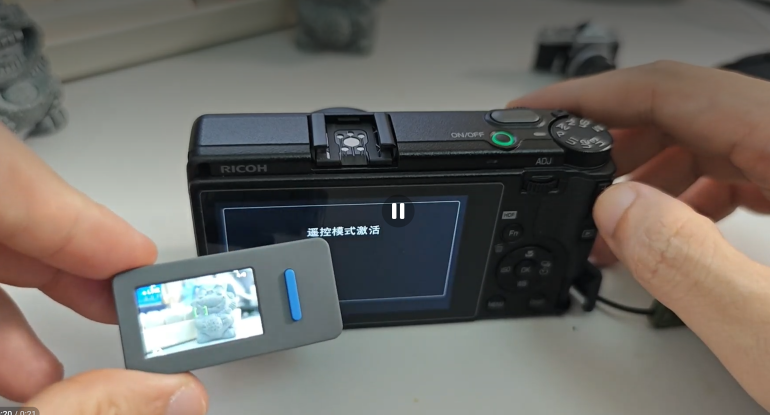

- Power on the camera and StickS3 so they auto-pair over Wi‑Fi, allowing the RicohViewfinder to connect, request live view, and display a smooth JPEG-decoded feed on its built-in screen for waist-level or remote shooting.
- Test waist-level and remote scenarios by holding the camera at hip level while looking down at the StickS3 for geometric compositions, or placing the camera in tight spots or on a tripod and monitoring live view from a short distance.
The beauty of this workflow is that once powered on, the monitor automatically searches for and pairs with the camera, and it can reconnect when the camera wakes from sleep. The pitfall is power state: turning the camera fully off while the monitor runs can force-wake and freeze it, so treat full power-off as a time to shut down the StickS3 too. If you hit a freeze, pull the battery, reboot, and adjust your habits so you rely more on sleep mode than hard power-offs during sessions.
How to Use It for Street Photography Hacks

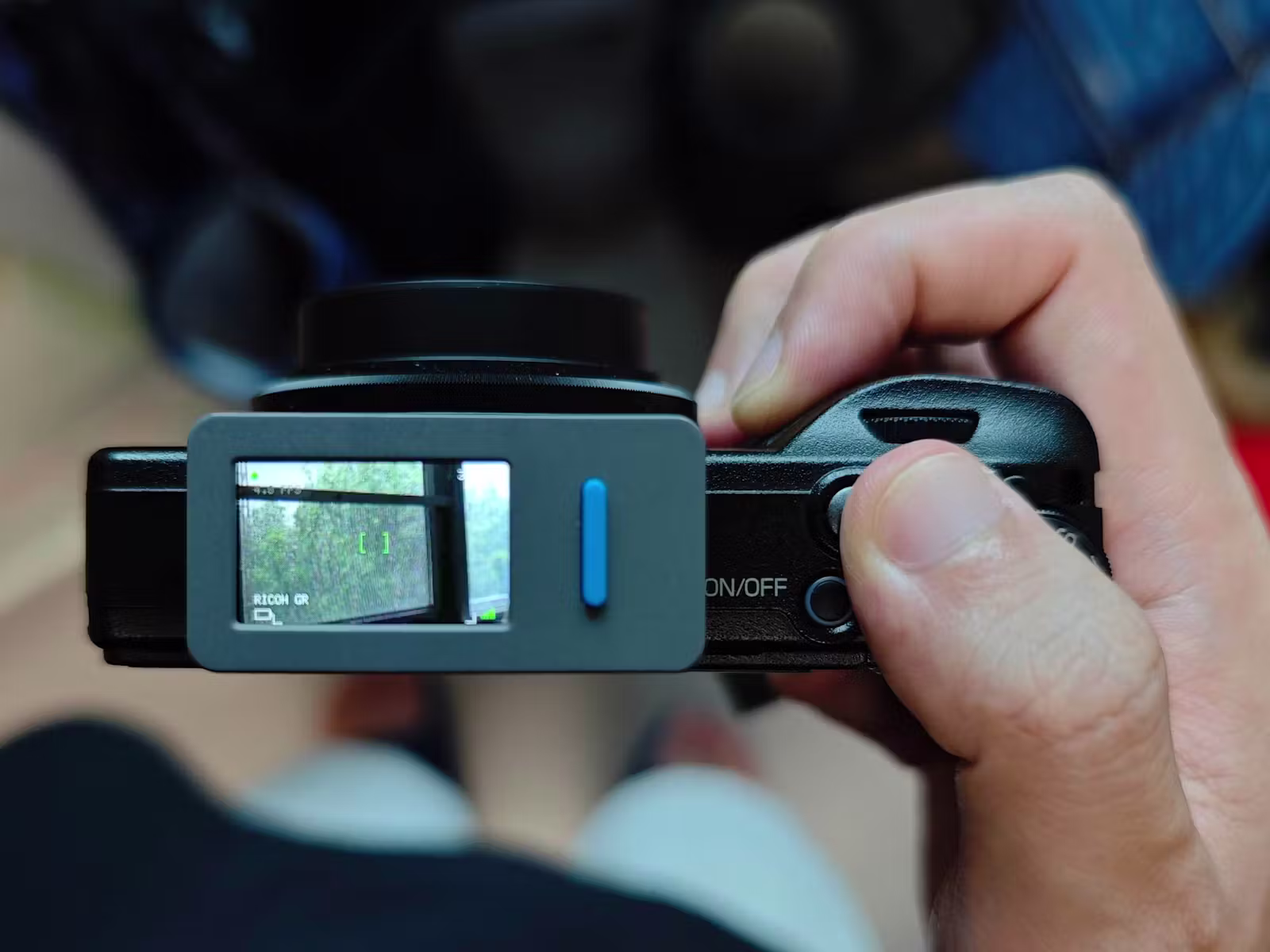

Once your DIY camera viewfinder is working, it unlocks two shooting styles that transform how you use the Ricoh GR in the street. First is waist-level framing: mount the module on the hot shoe or hold it just above the camera so you can shoot from the hip, as you would with a classic medium format camera. Second is handheld remote monitoring: place the camera in a tight space or on a tripod, then hold the StickS3 away from the camera to compose in real time and trigger the shot.
These are not gimmicks. For geometric urban framing, being able to see live view from extremely low or unusual angles makes a huge difference. You can line up edges, repeating patterns, and leading lines instead of guessing what the fixed rear screen would have shown. At the same time, hip-level shooting keeps you inconspicuous: you appear to be glancing at a small device rather than clearly pointing a camera at someone, which many street photographers value for candid work.
According to one project overview, the RicohViewfinder greatly improves the convenience of low-angle shots and adds stealth to street photography by turning the StickS3 into a real-time, pocketable wireless monitor. Compared to optical viewfinders that cost far more and only work when you bring the camera to your eye, this mod keeps the rig minimal and focused on modern framing techniques.
Is This Mod Worth It?
This project is for photographers who are happy to tinker a bit in exchange for better framing options. The open-source design means that once the firmware is refined, the complete source code will be published on GitHub and a compiled version uploaded to M5Burner so users can flash it with a single click. For anyone comfortable with basic electronics and a willingness to follow a GitHub guide, building this viewfinder is presented as an accessible weekend project.
The expected result when everything is set up is a smooth real-time live view on the StickS3’s built-in screen, with automatic pairing and reconnection to your Ricoh GR over Wi‑Fi. In return, you gain street photography hacks like waist-level shooting, discreet hip shots, and more reliable geometric urban framing from awkward angles—capabilities that fixed-screen compact cameras struggle to provide without external monitor support.
You do have to live with a few quirks, especially the freeze issue when the camera is turned fully off while the monitor is on, which can require removing the battery to recover. If you can accept that and treat this as a living, community-built Ricoh GR modification rather than a finished product, the payoff is a portable, minimalist setup that lets you compose the shots you used to miss.
