Faster, Smarter Verification: Why CAM and Inspection Are Evolving Now
Manufacturers are under pressure to shorten lead times without sacrificing quality or machine uptime. That is pushing CAM and inspection software vendors to rethink how simulation and quality-control workflows are built. Across the latest releases, three themes stand out: GPU-accelerated simulation, NC-code simulation tightly linked to real machine behavior, and inspection software that speaks both ISO and ASME GD&T standards. Hexagon’s NCSIMUL, Open Mind’s Hypermill 2026, and SHINING 3D’s Inspect 2026 all respond to these needs in different ways, but with a common aim: get reliable insight into machining and dimensional quality earlier, and with less manual effort. For production engineers, these CAM software updates and inspection software 2026 releases signal a shift from monolithic, linear processes to more modular, feedback-driven workflows that can adapt quickly as parts, tooling, and production volumes change.
Hexagon NCSIMUL: GPU-Accelerated Rest Stock Previews for Long-Cycle Jobs
Hexagon’s latest NCSIMUL release focuses on accelerating verification for long, complex NC programs. Its new Selective Simulation capability uses GPU-accelerated Rest Stock Previews to generate intermediate stock states during NC decoding, giving programmers early visibility into part progression. In a mold application with a 47-hour machine cycle, a target operation that previously required 48 minutes of sequential simulation could be inspected after less than two minutes of preview generation, highlighting the impact of GPU-accelerated simulation on programming turnaround. These previews help users inspect the part at key stages, identify visible issues sooner, and jump directly to operations that warrant deeper review. Full NC code simulation, with collision detection and material removal analysis, remains the final signoff step, but the selective approach broadens NCSIMUL’s role in preproduction workflow review and supports faster iteration on high-value machining jobs.
Hypermill 2026: Angle Head Integration and NC-Code Simulation for Reliable Machining

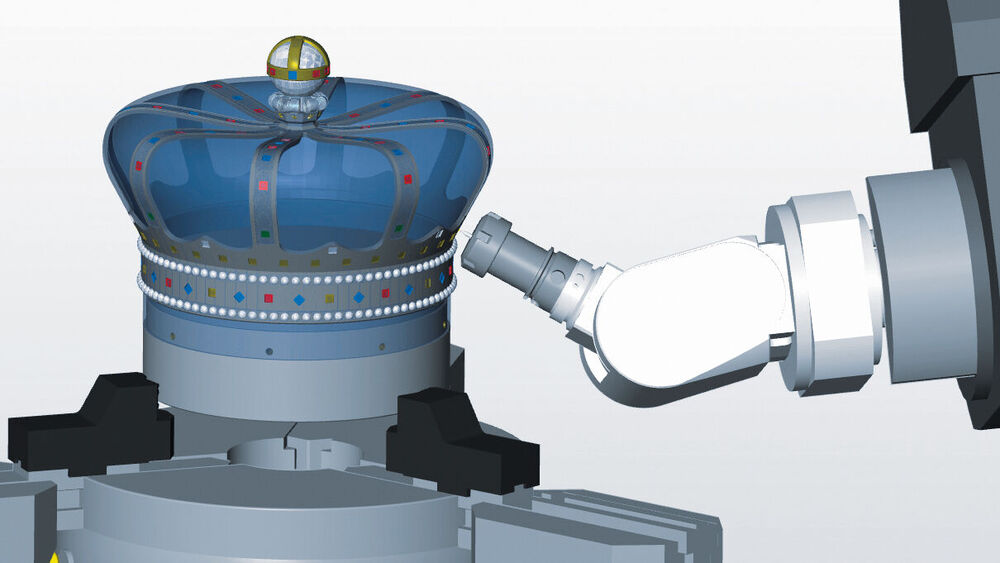

Open Mind’s Hypermill 2026 release advances CAM with tighter integration between programming and NC-code simulation. For the first time, Hypermill Virtual Machining supports additional tool types and angle heads, which can now be defined directly as part of the NC tool and configured via the Hypermill tool builder. The virtual machine considers angle heads throughout NC-code-based simulation, toolpath optimization, and collision checking, including critical approach and retraction phases. This improves process reliability, particularly for hard-to-reach areas, where approaching along a curve enhances safety and access. The release also refines rest material machining for both 3D and 5-axis strategies, with redesigned algorithms that detect rest areas more precisely and produce more uniform, efficient toolpaths. New options such as minimum clearance angle help ensure controlled tool-part spacing, while CAM plan turning and expanded turret configurations streamline turning workflows and collision checking for turned and mill-turned parts.
Inspect 2026: Modular GD&T-Driven Inspection Across ISO and ASME Standards
SHINING 3D’s Inspect 2026 targets dimensional inspection and quality control with a modular workflow architecture built around GD&T standards. The PTB-certified software guides users from feature creation and alignment through GD&T evaluation, full-field deviation analysis, and report generation. Importantly, it supports both ISO and ASME GD&T standards, enabling consistent tolerance verification and dimensional validation across diverse customer requirements. Full-field comparison between scan data and CAD models is handled via 3D color maps and 2D cross-sectional tools, giving inspectors a clear view of deviations. Dedicated modules for sheet metal inspection and dent inspection aim to reduce setup time by bringing task-relevant functions to the foreground. Flexible deployment options—desktop workstations, on-device inspection via the FreeScan Omni handheld scanner, or integration in automated inspection systems—allow manufacturers to embed standardized inspection protocols wherever they are needed, from lab-based metrology to high-volume production lines.
Toward Integrated, Standardized, and Modular Digital Workflows
Taken together, these CAM and inspection software 2026 releases highlight where digital manufacturing workflows are heading. On the CAM side, GPU-accelerated simulation and NC-code simulation are reducing verification bottlenecks and aligning virtual models more closely with real machine behavior. Hypermill’s optimized angle head support and automated rest machining exemplify how smarter toolpaths can boost both speed and process reliability. In inspection, Inspect 2026’s modular architecture and native support for ISO and ASME GD&T standards show how quality software is becoming more adaptable and standardized at the same time. Hexagon’s Rest Stock Previews further bridge programming and verification, enabling earlier feedback without sacrificing rigorous final checks. For manufacturers, the implication is clear: investing in tools that combine acceleration, standardized GD&T workflows, and modular deployment will be central to achieving faster, more predictable, and scalable production in increasingly demanding markets.
