Pairing High‑Performance Graphics Cards With Compact PCs

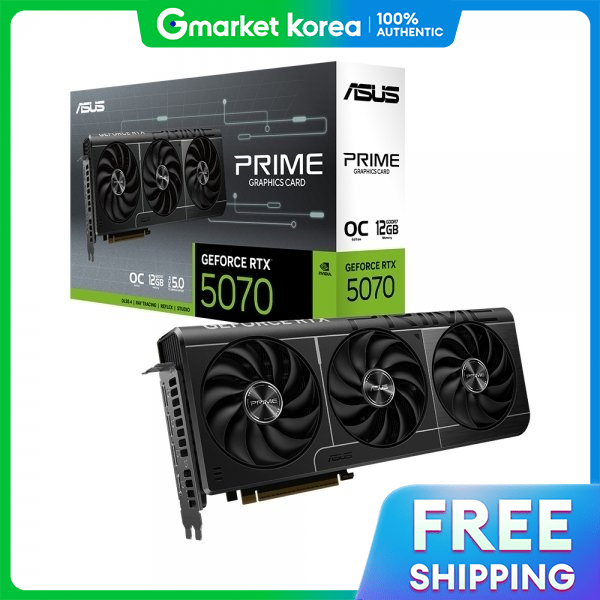

Top pick: ASUS Prime RTX 5070 OC — the sweet spot SFF GPU

A small form factor GPU is a discrete graphics card that keeps length, height, and slot width compact so it can fit mini PC and Mini‑ITX cases without sacrificing modern gaming or creator performance. For most compact PC builders, the ASUS Prime RTX 5070 OC is the best starting point because it balances size, power demand, and performance better than bulkier high‑end cards. This compact PC graphics card uses a 2.5‑slot, SFF‑ready design that is “more suitable for compact enthusiast builds than many oversized graphics cards”. It carries 12GB of GDDR7 memory, PCIe 5.0 connectivity, HDMI/DP 2.1 outputs, Axial‑tech triple fans, dual BIOS, and a three‑year warranty. That mix makes it ideal for 1440p or 1600p gaming, esports, and creative workloads that benefit from NVIDIA acceleration in tight cases where space and airflow are limited.

Who is this card for? It is “for gamers and PC builders who want a compact-friendly NVIDIA graphics card for 1440p gaming, DLSS 4 support, and modern display connectivity”. As a compact SFF graphics card, it fits Mini‑ITX and other small cases that accept full‑height, short‑to‑mid‑length GPUs, without forcing you into a full‑size tower. The main compromise is memory capacity: 12GB GDDR7 is strong for 1440p, but less roomy than 16GB options if you run heavy 4K textures. In practice, that trade‑off is worth it for most small builds because the reduced thickness and efficient Axial‑tech cooling make cable routing and airflow much easier than with oversized 3‑slot or 3.5‑slot flagships in a cramped chassis.

How to check mini PC GPU compatibility before you buy

Before you choose any compact PC graphics card, you need to confirm that your mini PC case and power supply can support it. Form factor is the first filter: Mini‑ITX cases are common for compact desktops and have the most difficulty fitting large GPUs, while most ATX and MicroATX cases handle almost any card size. Many newer Mini‑ITX cases are “extended” and can even hold powerful cards like RTX 4080‑class models, but others only accept half‑height or very short cards. Ultimately, you must know “the internal distance between the front and back of the case, the total number of add‑on slots, and the maximum supported card height” for your system, then match those numbers to the GPU’s length, slot width, and height to avoid clearance surprises when you try to install your small form factor GPU.

Next, verify your power supply. Look up its rated wattage and compare it to the GPU maker’s recommended minimum PSU wattage; AMD, Intel, and Nvidia all publish these numbers for their cards. If the recommendation exceeds what your PSU can supply, stick to the guidelines unless you have advanced experience, because compact PC power budgets leave less headroom. Then check power connectors: most discrete cards above the very low end need 6‑pin or 8‑pin PCIe power leads, and some Nvidia models use a unique connector. If your PSU does not have the right plugs, that is a strong sign it is not designed to feed that GPU reliably. For ultra‑small NUC‑style PCs that rely on integrated graphics and have no expansion slot, discrete SFF graphics cards are not an option at all.

Thermals, cable routing, and efficiency in tight SFF builds

Once you know a card fits physically, thermal management and cable routing decide whether your compact build will run cool and quiet or hot and noisy. In tightly packed Mini‑ITX cases, a hot‑running GPU can be a problem if the chassis lacks ventilation. That is why, with a compact PC, you may want to choose more energy‑efficient cards instead of chasing the very top performance tier, accepting that “you might end up trading off some performance in exchange for better efficiency”. SFF graphics cards such as the ASUS Prime RTX 5070 OC help here, combining a 2.5‑slot cooler and Axial‑tech fans to maintain stable temperatures in less space. Careful cable routing matters as much as fan design: avoid blocking the GPU’s intake and exhaust paths with PCIe power cables, and keep front‑to‑back airflow as clear as the case allows.

Think through your airflow plan before final assembly. Many compact builders run a bottom‑to‑top or front‑to‑back airflow pattern, depending on where the GPU sits in relation to case vents. Shorter, SFF‑ready cards leave more breathing room between the card and side panels, helping fans pull in fresh air instead of recirculating warm case air. Mini PC GPU compatibility is not only about slot count and length; it is about how the card interacts with the entire thermal layout of the system. When in doubt, favor a small form factor GPU with efficient cooling and lower power draw over a bulkier flagship whose heat output could overwhelm a small chassis even if it technically fits. That trade keeps performance consistent instead of throttling under sustained gaming or rendering loads.

Alternative SFF GPU paths: Nvidia, AMD, and Intel options

While the ASUS Prime RTX 5070 OC is our top pick, compact builders have strong SFF graphics cards available from all three major GPU vendors. Nvidia GeForce cards include multiple SFF‑ready designs beyond the 5070, including higher‑end Blackwell‑based options and slimmer dual‑fan models that still target 4K or VR gaming in tight spaces. AMD Radeon and Intel Arc lines also cover compact SKUs, and all three vendors specify recommended PSU wattages so you can match them to your mini PC’s power supply. According to one source, “AMD, Intel, and Nvidia all place a recommended minimum PSU wattage on their graphics cards,” which is essential guidance when you plan a small system with limited thermal and power headroom. For 4K and VR workloads, focus on SFF‑oriented mid‑to‑high‑tier models that balance performance with efficiency and manageable heat output.

If you are building around a very small Mini‑ITX or compact OEM chassis that only accepts half‑height or short cards, look for low‑profile or ITX‑length designs in each vendor’s range. These may target lower wattage and slightly reduced performance, but they preserve mini PC GPU compatibility where full‑length boards cannot fit. For roomier Mini‑ITX cases or small towers, SFF‑ready 2‑slot or 2.5‑slot cards provide near‑desktop performance without the clearance issues of oversized triple‑slot designs. Whichever path you choose—GeForce, Radeon, or Arc—apply the same process: check case dimensions, PSU wattage and connectors, and airflow, then pick the most efficient SFF card that meets your resolution and frame‑rate goals. That method delivers a compact PC that feels as responsive as a large tower, without the noise and heat spikes that plague poorly planned builds.

Buy if / Skip if

• Buy the ASUS Prime RTX 5070 OC if you want a small form factor GPU with strong 1440p performance, DLSS support, and an SFF-ready 2.5-slot design that fits most compact and mid-sized cases.
• Skip the ASUS Prime RTX 5070 OC if your case only supports half-height or ultra-short cards, as some Mini-ITX and prebuilt compact PCs impose strict length and height limits.
• Buy the ASUS Prime RTX 5070 OC if your mini PC has a PSU that meets Nvidia’s recommended wattage, includes the required PCIe power connectors, and you prefer efficient thermals over chasing absolute flagship performance.
• Skip the ASUS Prime RTX 5070 OC if you need 16GB or more VRAM for heavy 4K textures or large professional datasets and are willing to use a larger case to accommodate a bigger card.
• Buy the ASUS Prime RTX 5070 OC if you care about build quality extras like Axial-tech fans, dual BIOS profiles, and a three-year warranty anchoring a compact gaming or creator rig for the long term.
• Skip the ASUS Prime RTX 5070 OC if your current system is a NUC-style mini PC with no PCIe slot, where discrete SFF graphics cards cannot be installed at all.
