What Hardwiring Your Headphone Amp to Ethernet Really Does
Hardwiring a headphone amp to Ethernet means connecting the amplifier directly to your router or network switch with a cable so it can receive digital audio streams over a stable, high‑bandwidth wired network instead of relying on WiFi or Bluetooth, reducing dropouts, latency, and jitter while improving streaming audio quality and reliability in a desktop audio setup.
If you have ever wondered why lossless streaming sounds flat or glitchy, the culprit is often the wireless link, not the files. Streaming high‑resolution lossless music over WiFi or cellular quickly runs into bandwidth and stability limits, especially in busy homes with many devices. Bluetooth adds another ceiling by capping audio at the bitrate of its codec, so high‑quality tracks are squeezed down before they ever hit your headphones. A headphone amp Ethernet connection bypasses these bottlenecks, giving your DAC a clean feed. The trade‑off is that you need to run cable and treat your amp a bit like a tiny, screenless computer on your network. If you are willing to do that, the payoff can be a level of clarity you will not get from wireless alone.
Why Ethernet Beats WiFi and Bluetooth for Desktop Audio
The biggest reason to hardwire is consistency. Wireless protocols are convenient, but they are noisy neighbors. WiFi shares spectrum with every laptop, TV, and smart gadget in your home, so streaming high‑resolution lossless music can be taxing whenever the network is busy. Dropouts, buffering, and increased jitter show up as smeared transients, hazy imaging, or that sense that lossless tracks do not sound much better than standard ones. Bluetooth adds lossy compression on top, limiting you to the bitrate of its codec regardless of how clean your local files or streaming service might be.
Gigabit Ethernet on a headphone amp changes that. By hooking up your amplifier to Ethernet, every output connected to it becomes capable of stable lossless playback at true CD‑quality, without fighting WiFi congestion. This wired path reduces timing errors and packet loss, which in turn lowers perceived jitter. When the network side is rock‑solid, high‑resolution files can show more low‑level detail, tighter bass, and better separation. As one clear benchmark, AirPlay 1 can deliver 16‑bit/44.1kHz streams in the 720–1000Kbps range when the network is stable, and a wired amp lets that quality reach your ears intact.
How the FiiO K15 Shows the Power of a Wired Headphone Amp
The FiiO K15 is a good real‑world example of a headphone amp Ethernet setup that transforms streaming audio quality. It is a powerful desktop DAC and amplifier with dual AK4497SVQ DACs, a small touchscreen, Bluetooth 5.1, dual‑band WiFi, and hardwired Gigabit Ethernet support for streaming. In practical terms, it behaves less like a dumb USB DAC and more like a small networked player that can stream from nearby devices and home media servers through its built‑in UI.
Once you plug the K15 into Ethernet, it can handle AirPlay 1, Roon, and other lossless streaming methods without depending on your computer’s USB output or a noisy WiFi link. According to one review, “By hooking up your amplifier to Ethernet, every audio output connected to it immediately becomes capable of stable lossless music playback.” That means your desktop audio setup can receive true CD‑quality streams while avoiding wireless constraints. If your headphones and library are already at a high level, the K15’s wired networking and streaming features make it an attractive path for relying less on WiFi and more on a dependable, low‑jitter connection.
There is a cost caveat: the FiiO K15 retails around USD 550–600 (approx. RM2,530–RM2,760), putting it well above entry‑level amps. That only makes sense if the rest of your system is strong enough to reveal the difference. But as a proof of concept, it shows what happens when a headphone amp becomes a full network audio endpoint instead of a passive box.
Step‑by‑Step: Building a Hardwired Network Streaming Amp with Raspberry Pi

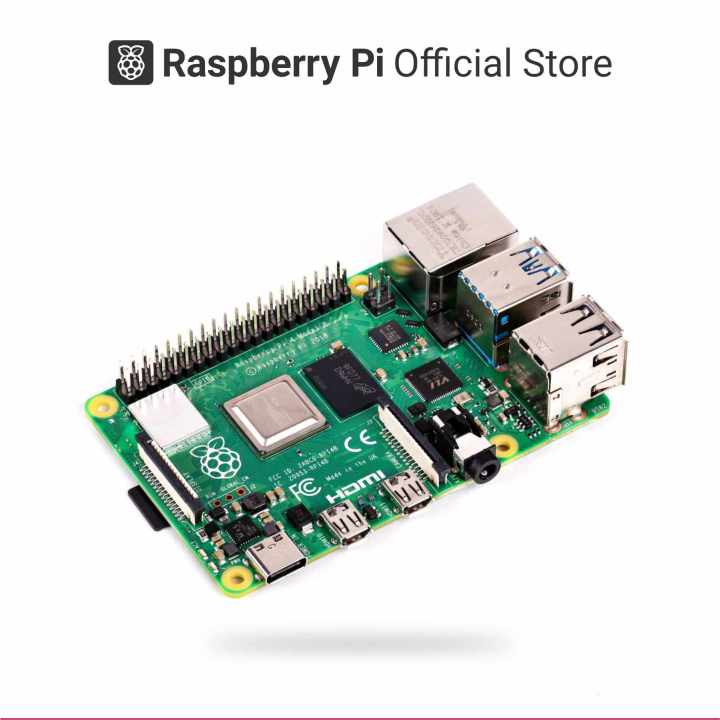

If the FiiO K15 is out of reach, you can get similar Ethernet‑fed streaming behavior by turning a Raspberry Pi and a SquarePi HAT into a networked amp. This route trades money for a bit of DIY time, but the result is a flexible streamer that plugs straight into your wired network and speakers. The big prerequisite: use Raspberry Pi OS Lite (Bookworm or Trixie), not the Desktop image, because the Desktop build installs PulseAudio, which conflicts with the ALSA stack this project depends on. Skipping this detail is one of the most common mistakes.
- Assemble your hardware: solder the SquarePi HAT components or use a pre‑assembled board, then mount the HAT onto the Raspberry Pi’s 40‑pin header, connect Ethernet, and power it with 12–24V DC through the barrel jack (which also powers the Pi).
- Flash Raspberry Pi OS Lite (Bookworm or Trixie) to an SD card, insert it into the Pi, and boot the system.
- SSH into the Pi from another device on your network and download the SquarePi software repository if needed.
- Run the installer with sudo bash install.sh and pass the features you want, for example sudo bash install.sh -- --with-dlna --with-airplay to enable DLNA/UPnP and AirPlay.
- Reboot the Pi; once it restarts, it becomes reachable at squarepi.local on your network, with the audio services ready to use.
When the install is successful, three key pieces appear without extra setup: a myMPD‑based control UI at squarepi.local for playback and browsing; a DSP control panel at squarepi.local:8081 with a draggable EQ curve and 13 presets; and Bluetooth pairing that is always discoverable and shows now‑playing metadata when available. Since everything feeds through the same pipeline—resampling, mixing, and hardware EQ—your Ethernet link becomes the backbone for every Bluetooth, DLNA, Spotify Connect, and AirPlay stream you throw at it. The main gotcha is using the wrong OS image or breaking ALSA with PulseAudio, which will quietly sabotage your efforts even though the Pi appears to boot fine.
What to Expect When You Optimize Your Network for Audio
Once your headphone amp Ethernet path is in place—whether with a FiiO K15 or a DIY Pi amp—the character of streaming changes. Lossless audio stops feeling like a marketing term and starts sounding like an upgrade, because you are no longer pushing high‑resolution files through lossy WiFi or Bluetooth paths where much of their advantage is thrown away. Use the K15 with Roon over Gigabit Ethernet and you can even stream higher‑quality audio than through AirPlay alone, revealing more subtle detail and space in your recordings.
On the DIY side, the SquarePi pipeline shows how careful network and clock choices can unlock hidden clarity: everything is resampled to 48kHz/24‑bit, where the Pi’s audio clock is about ten times more accurate than at 44.1kHz, reducing timing error from roughly 1.8ppm to about 0.16ppm. Combined with hardware EQ inside the amplifier chip and a clean Ethernet feed, that accuracy helps preserve transients and stereo imaging. The main thing to watch for is overcomplicating your chain: keep the path short—streaming source to wired amp to headphones—and avoid layering unnecessary wireless hops. When you treat your network as seriously as your DAC or headphones, streaming finally sounds like the high‑resolution source it claims to be.
