What 4-Rank CUDIMM Memory Is and Why It Matters
4-rank CUDIMM memory is a new type of DDR5 desktop module that combines four ranks of DRAM with an integrated clock driver to deliver high-density, high-speed capacity in fewer motherboard slots, allowing 256GB DDR5 capacity in a two-slot DDR5 setup while preserving signal quality and performance that would typically drop when all four slots are populated with traditional modules. Historically, reaching 256GB on mainstream desktops meant using four dual-rank UDIMMs, which increased electrical load, hurt signal integrity, and often forced memory frequencies to fall well below the advertised XMP or EXPO ratings. 4-rank CUDIMM (Clocked Unbuffered DIMM) modules change this pattern by actively shaping the clock signal on the module, so platforms can keep high data rates and tight timings even when each stick holds 128GB of DRAM, opening the door to high-density memory modules without moving to workstation-class platforms.
Breaking the Old Four-Slot Rule for 256GB DDR5
On typical DDR5 desktops, 64GB per slot with dual-rank UDIMMs has been the practical ceiling, so a 256GB build meant using four slots and accepting lower memory speeds. Origin Code, working with GIGABYTE, has shown that you can now hit 256GB with only two DIMMs by moving to 4-rank CUDIMM memory, each module carrying 128GB. The trick is the integrated Clock Driver (CKD), which compensates for the heavier electrical load of four ranks, so the memory controller does not need to step down frequency for stability. This avoids the common trade-off where filling every slot drags a kit rated for high MHz down to something far more conservative. Instead of choosing between capacity and speed, power users can have both in a compact two-slot DDR5 setup that leaves the remaining slots free or unused on many boards.
DDR5-8000 CL42 on 256GB: Origin Code and GIGABYTE’s Demo

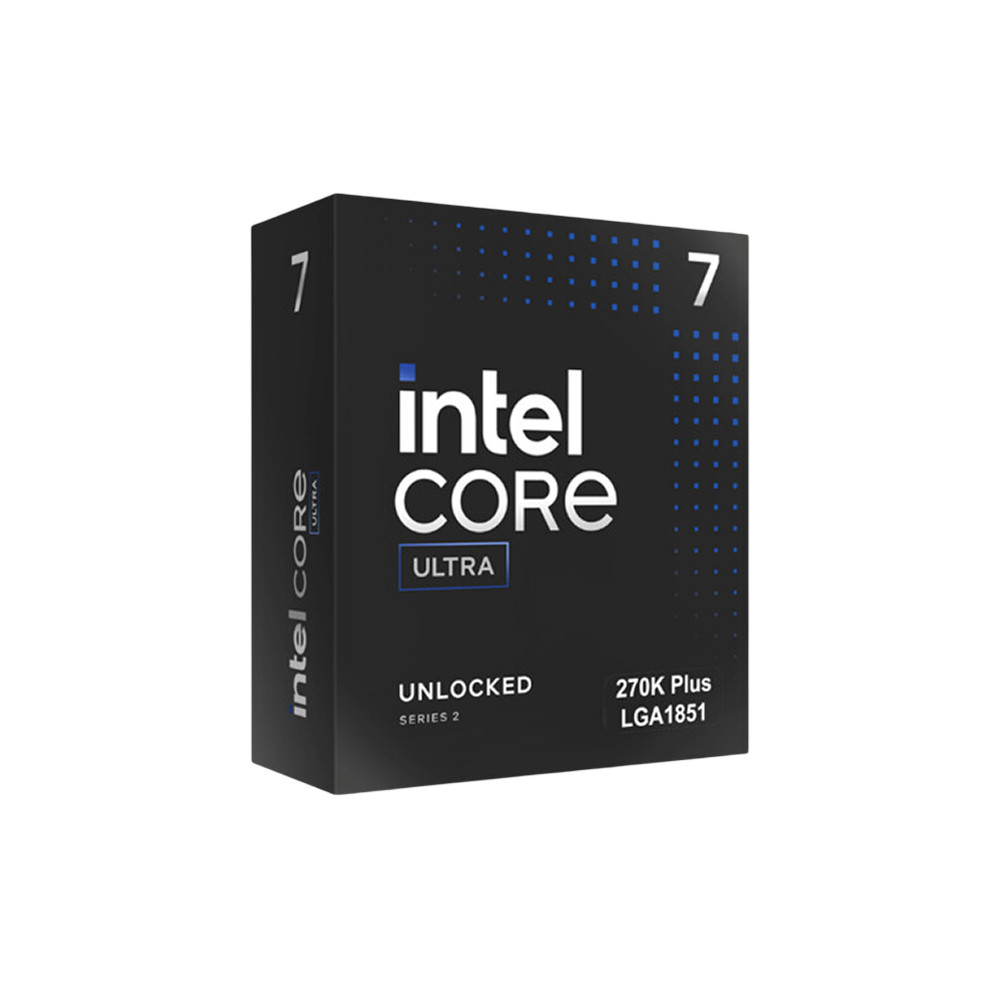

Origin Code’s 4-rank CUDIMM kits, demonstrated with GIGABYTE, underline that this is not only a capacity play but a performance one. The company presented two 128GB CUDIMMs running as a 256GB kit validated on an Intel Core Ultra 7 270K Plus and a GIGABYTE Z890 AORUS ELITE DUO X motherboard. The standard configuration targets DDR5-8000 MT/s at CL64 and 1.1V, matching JEDEC’s normal voltage for DDR5. More striking is the flagship profile: DDR5-8000 at CL42 with 1.4V, cutting 22 cycles off CAS latency at the same transfer rate on a quad-rank module. According to The FPS Review, “Closing a gap that large on a quad-rank module at DDR5-8000 is not table stakes,” highlighting the tuning and firmware work behind these high-density memory modules, rather than a simple bump in DRAM count per stick.
From Content Creation to AI: Who Benefits from 256GB in Two Slots?
For content creators, data scientists, and AI enthusiasts, DDR5 256GB capacity in a two-slot DDR5 setup removes a long-standing platform headache. High-resolution video timelines, massive photo catalogs, local AI models, and large in-memory datasets all reward higher capacity while still depending on strong memory bandwidth and low latency. With 4-rank CUDIMM memory, these workloads can run on mainstream desktop platforms instead of stepping up to more complex HEDT or multi-socket systems. G.Skill has also demonstrated 256GB 4-rank CUDIMM kits running at DDR5-8000 on the Z890 AORUS Elite DUO X, confirming that this approach is not limited to a single vendor. In parallel, G.Skill’s EXPO ULL demo showed up to 32% better token generation performance in LocalScore.ai versus standard kits, underscoring how memory speed and latency directly affect modern AI and inference workloads.
What 4-Rank CUDIMMs Mean for the Future of DDR5 Builds
4-rank CUDIMM modules point toward a future where high-density memory is normal in compact, clean builds. Instead of filling every DIMM slot, builders can reserve two slots for 256GB DDR5 capacity and keep the board layout simpler for airflow and cable routing. Motherboard vendors are already responding, as seen in multiple Z890-based demos with passive cooling on 128GB CUDIMMs and active-cooled concepts like G.Skill’s MasterDIMM AC series, which is designed for next-generation DDR5 platforms and high clocks. While public pricing and broad retail availability are still unknown, workstation users and AI tinkerers now have a clear path to single-socket systems with serious memory headroom. The shift from dual-rank UDIMMs to 4-rank CUDIMM memory is less about a new label and more about a new design baseline for flexible, high-capacity DDR5 systems.
