From Performance Islands to Unified Enterprise Flash Storage
Enterprise flash storage is entering a new phase where raw performance and extreme capacity are converging in a single platform. Traditional storage strategies separated high-IOPS tiers for mission-critical databases from capacity tiers used for backups, analytics, or archives. That division is becoming less necessary as next-generation high-density NVMe arrays deliver both unprecedented IOPS and multi-petabyte scale. Vendors are pushing the limits of flash storage performance, delivering latency figures that rival in-memory systems while sustaining massive parallel workloads. At the same time, density-focused designs are packing entire data lakes into just a few rack units. This combination is enabling all-flash data centers to consolidate previously fragmented infrastructure, reduce complexity, and better align storage with AI, analytics, and cloud-native application demands. The result is a new architectural baseline where flash is not a premium niche, but the default foundation for large-scale enterprise data.
High-End NVMe Arrays Reach 2 Billion IOPS with Ultra-Low Latency
At the performance end of the spectrum, new flagship enterprise arrays are crossing the 2 billion IOPS threshold while holding latency below 0.1 milliseconds. One recently launched high-end all-flash system delivers up to 200 million IOPS with 0.09ms latency per controller cluster, using a fully self-developed architecture that includes a “super tunnel” data path and a NexusMatrix all-to-all interconnect fabric. These custom fabrics and controller designs are engineered for extreme parallelism and deterministic latency, even under peak load or failure scenarios. Beyond raw speed, the platform emphasizes end-to-end reliability and data protection, incorporating full-stack, in-house software and hardware designs. Broad compatibility with mainstream operating systems, databases, and cloud-native frameworks such as Kubernetes makes such arrays suitable as a central performance tier. Together, these advances show how custom silicon, specialized fabrics, and tightly integrated software stacks are unlocking new levels of flash storage performance.
9.8 PB in 2U: High-Density NVMe Servers Redefine Scale

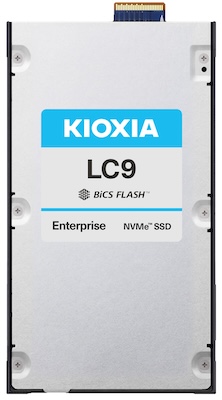

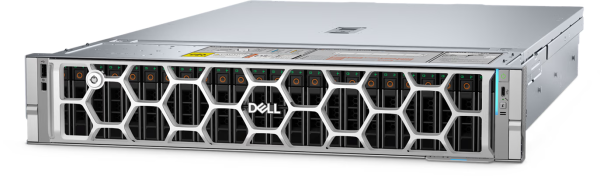

On the capacity front, Kioxia and Dell Technologies have introduced a high-density server configuration that packs up to 9.8 PB of flash storage into a 2U form factor. The design combines a Dell PowerEdge R7725xd server powered by AMD EPYC processors with forty Kioxia LC9 Series E3.L NVMe SSDs, each offering 245.76 TB. This creates a storage-optimized platform tailored for AI pipelines, large-scale data lakes, and data-intensive enterprise workloads. The server supports up to five 400Gbps network interface cards, enabling high-throughput data ingestion and movement across distributed AI and analytics environments. Kioxia notes that achieving a comparable 9.8 PB capacity with more common 30.72 TB SSDs would require eight times the power, additional servers, and far more rack space. By condensing capacity and bandwidth in a single chassis, this design delivers both density and efficiency, helping organizations scale without expanding their physical footprint.
Custom Silicon and Fabrics Drive Breakthrough Flash Storage Performance
These new platforms highlight a deeper trend: performance scaling now depends as much on interconnect fabrics and controller logic as on the flash media itself. In high-end arrays, fully connected matrix fabrics and proprietary data tunnels reduce hop counts and bottlenecks, keeping latency predictable even during heavy transactional bursts. In high-density servers, PCIe 5.0-based NVMe SSDs and multi-hundred-gigabit NICs ensure that internal throughput and external networking can match the capacity on offer. By coordinating compute, storage, and networking in a tightly integrated architecture, vendors are able to sustain massive parallel I/O without overwhelming CPUs or saturating backplanes. This holistic approach is particularly relevant for AI workloads, where data pipelines must continuously feed GPUs while handling rapid checkpointing, logging, and feature store updates. The result is flash storage performance that scales linearly with capacity, instead of collapsing under its own weight.
Toward All-Flash Data Centers and Tierless Architectures
As performance and density converge, enterprises can rethink their storage tiering strategies. Arrays capable of hundreds of millions of IOPS with sub-0.1ms latency can serve as primary storage for critical databases, virtualized workloads, and latency-sensitive services. At the same time, 9.8 PB-class high-density NVMe servers offer enough capacity to house entire analytics environments, large data lakes, and AI training datasets without resorting to slower media. This convergence enables more unified, all-flash architectures where tiering becomes logical rather than physical, managed through policies instead of separate hardware silos. Organizations can consolidate multiple legacy arrays, reduce power and cooling overheads, and streamline operations around a smaller set of highly capable platforms. As AI and cloud-native applications proliferate, these next-generation all-flash data centers provide the low-latency, high-throughput foundation required to keep data pipelines flowing and digital initiatives responsive at scale.
