Why This 3D Voxel Mod Is the Best Way to Revisit Gen 1
The Pokémon Red Blue 3D mod is a fan-made voxel overhaul that turns the original Game Boy Pokémon Red, Blue, and Yellow ROMs into a modern-looking 3D experience while preserving their core mechanics and feel, using a recompilation engine rather than traditional emulation to rebuild game data from your own legally acquired ROM files. This matters because it respects both nostalgia and authenticity: combat, progression, and map layouts stay faithful, yet the world gains depth, cinematic battles, and fresh camera angles. Instead of chasing yet another Pokémon ROM hacks collection, this voxel mod install finally gives Gen 1 the facelift it deserves without turning it into a different game. If you still know Viridian Forest by heart, this is the most exciting way to walk those routes again.
What You Need Before Installing the Voxel Mod
Before you dive into the voxel world, you need to understand one thing: this project does not include a ROM or emulate the Game Boy; it imports data from "a canonical US Poke Red or Blue ROM" and then discards the ROM after building its own cache. In other words, you must supply your own legally acquired ROM for Red, Blue, or Yellow, and that ROM remains your responsibility. The backbone of the Pokémon Red Blue 3D mod is the Pokémon Gen 1 Recomp Project, a custom engine that rebuilds the game using data pulled from your ROM instead of mimicking the original hardware. DramaticShapeVoxelMod sits on top of that engine to add voxel graphics and modern camera tricks. If you are expecting ordinary Game Boy emulator mods, you are in the wrong place; this is smarter and cleaner than basic emulation.
Step 1: Install Gen 1 Recomp and Import Your ROM

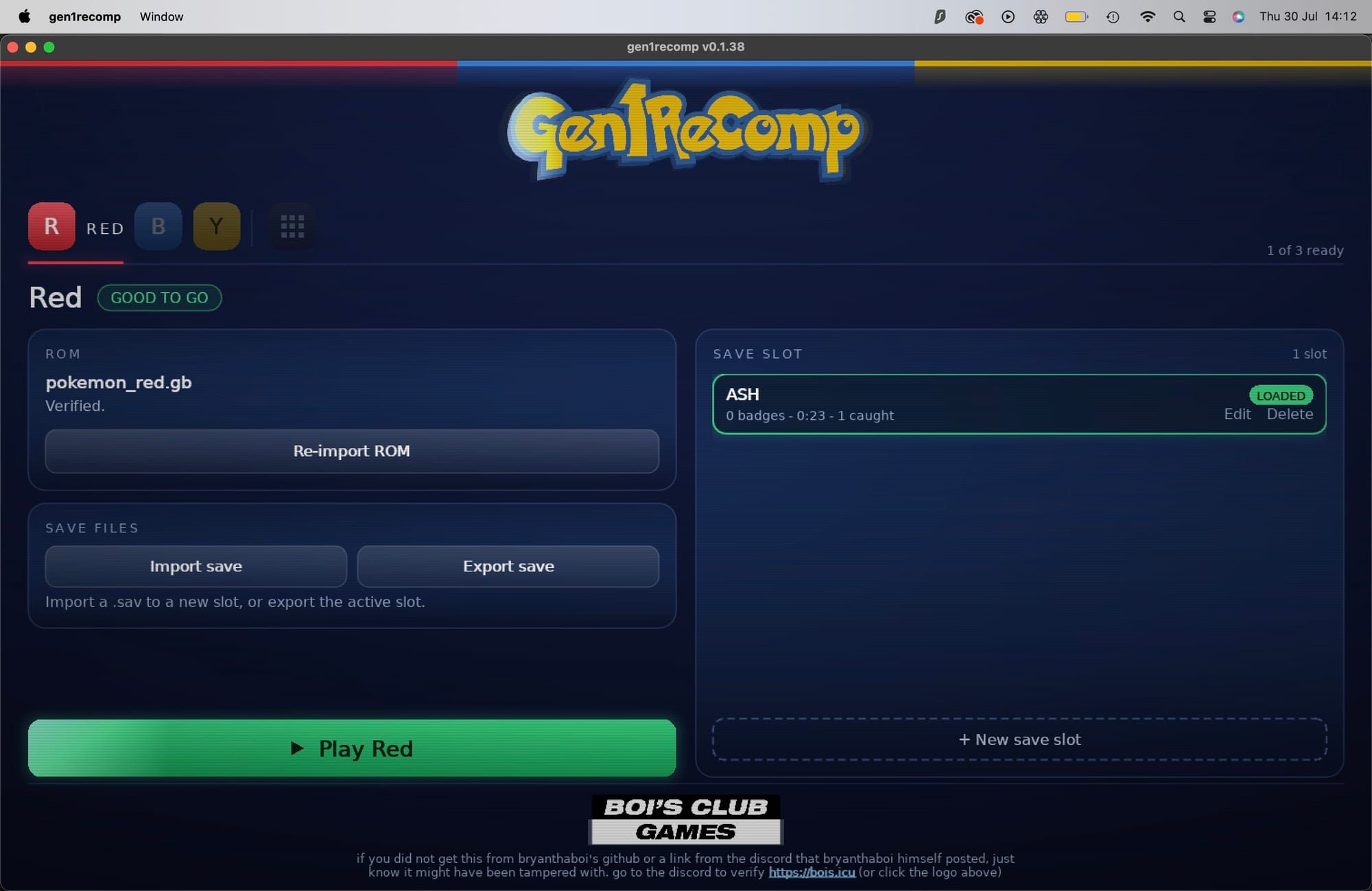

The first real step is installing the Gen 1 Recomp engine, and this is where a lot of people underestimate how polished the project already is. You download the Pokémon Gen 1 Recomp Project from the downloads section of BryanTheBoi’s GitHub releases page, which offers builds for Android, Windows, Linux, macOS, and even the Anbernic RG34XXSP handheld. Once you launch Gen 1 Recomp, you are greeted with a clean selection screen. You choose Red, Blue, or Yellow, then import the matching legally acquired ROM file for that game. After the import finishes, the interface confirms that you can “Play Red” or “Play Blue” in a green bar at the bottom. At this stage the game will run in 2D, but it is already powered by the recompilation engine that avoids emulation and can optionally fix infamous Gen 1 bugs such as the 1/256 miss chance and the broken Focus Energy crit modifier.
Step 2: Add DramaticShapeVoxelMod and Switch to 3D

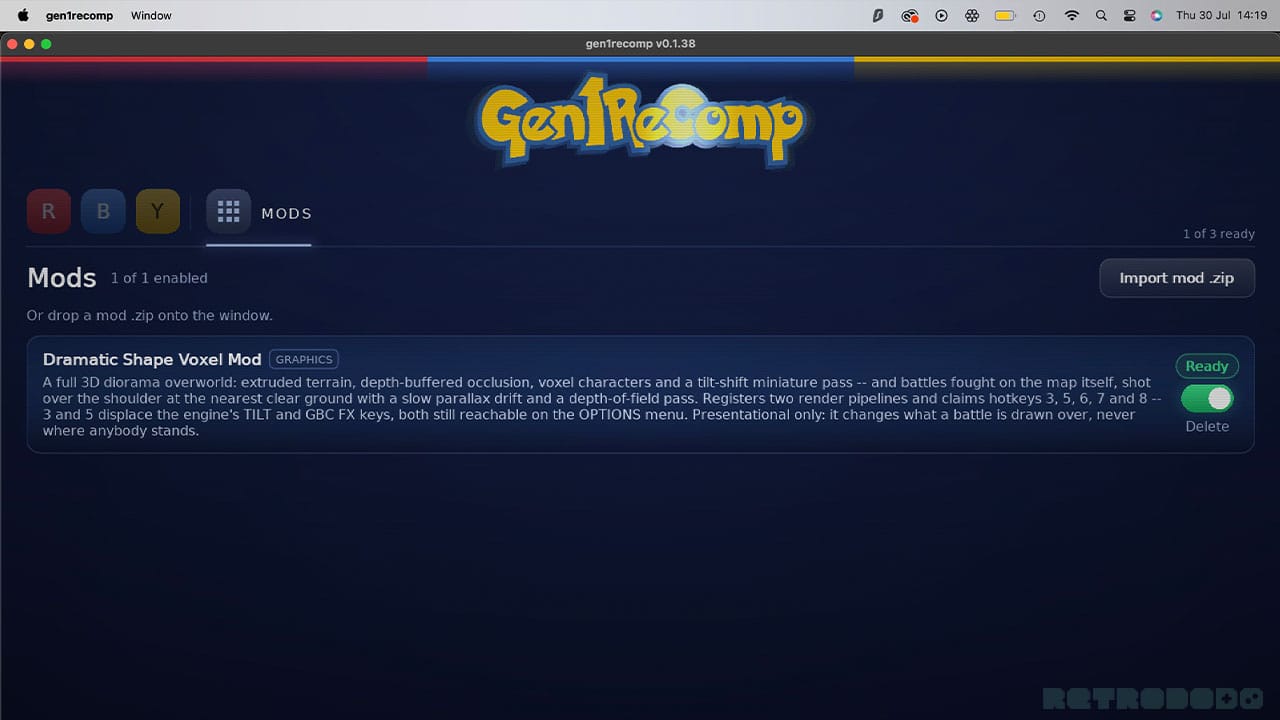

Now comes the fun part: the voxel mod install that turns this project from a neat recompilation into a head-turning 3D remake. You go to Dramatic Shape’s GitHub, open the Releases page, and download the latest version of the Voxel Mod (currently listed as 1.2.1). The mod arrives as an unzipped folder, but Gen 1 Recomp expects a zip file, so you compress the downloaded folder yourself. After that, reopen Gen 1 Recomp and click the grid of nine squares next to “Y” in the top menu, which is the mods screen. There you select “Import mod.zip”, point it at your compressed Dramatic Shape download, and the tool marks “Dramatic Shape Voxel Mod” as ready. Return to your chosen game—Red, Blue, or Yellow—and start playing; this is where your Pokémon Red Blue 3D mod experience begins to shine.
Step 3: Tweak Angles, Colors, and Enjoy the New Perspective

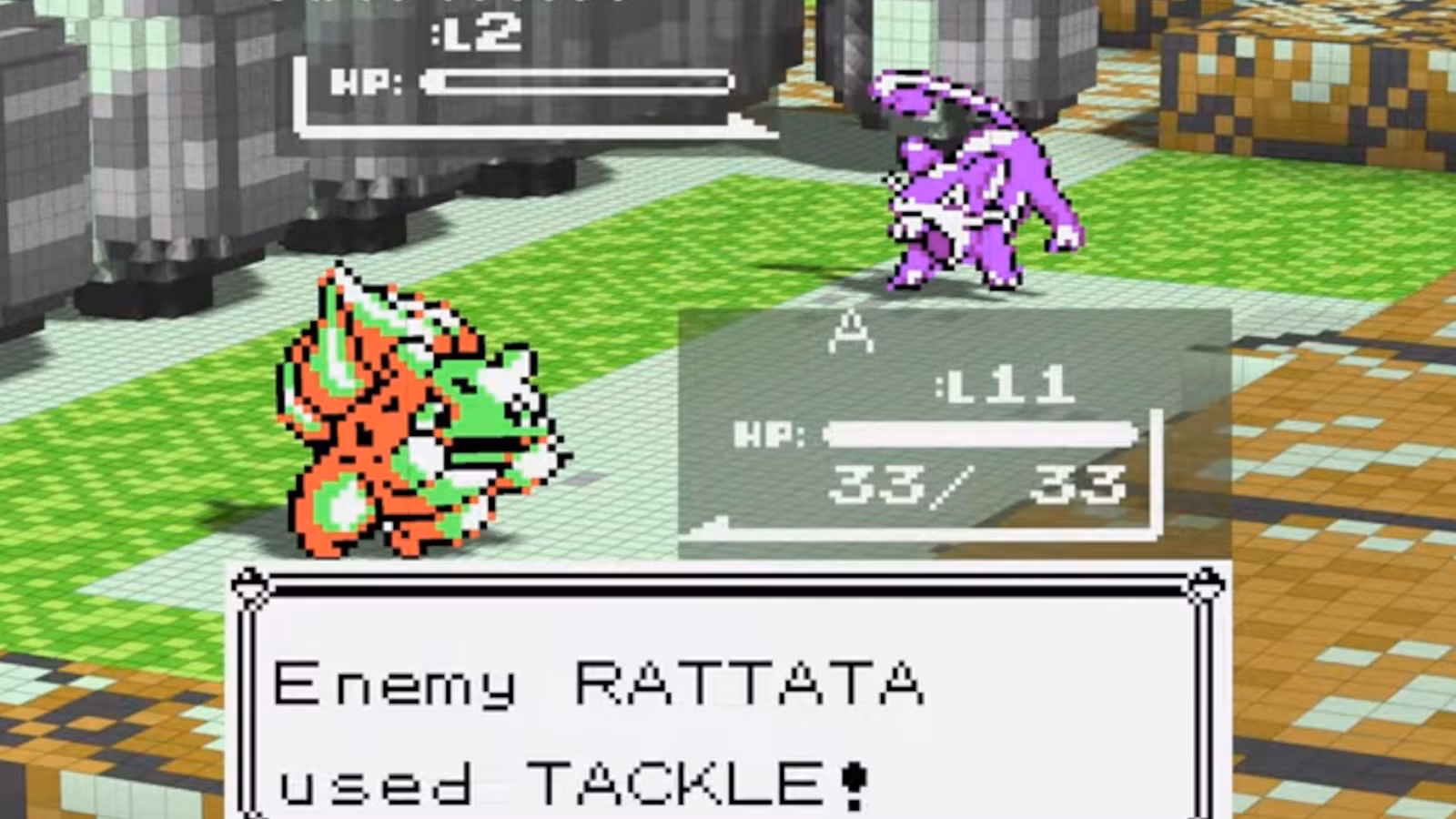

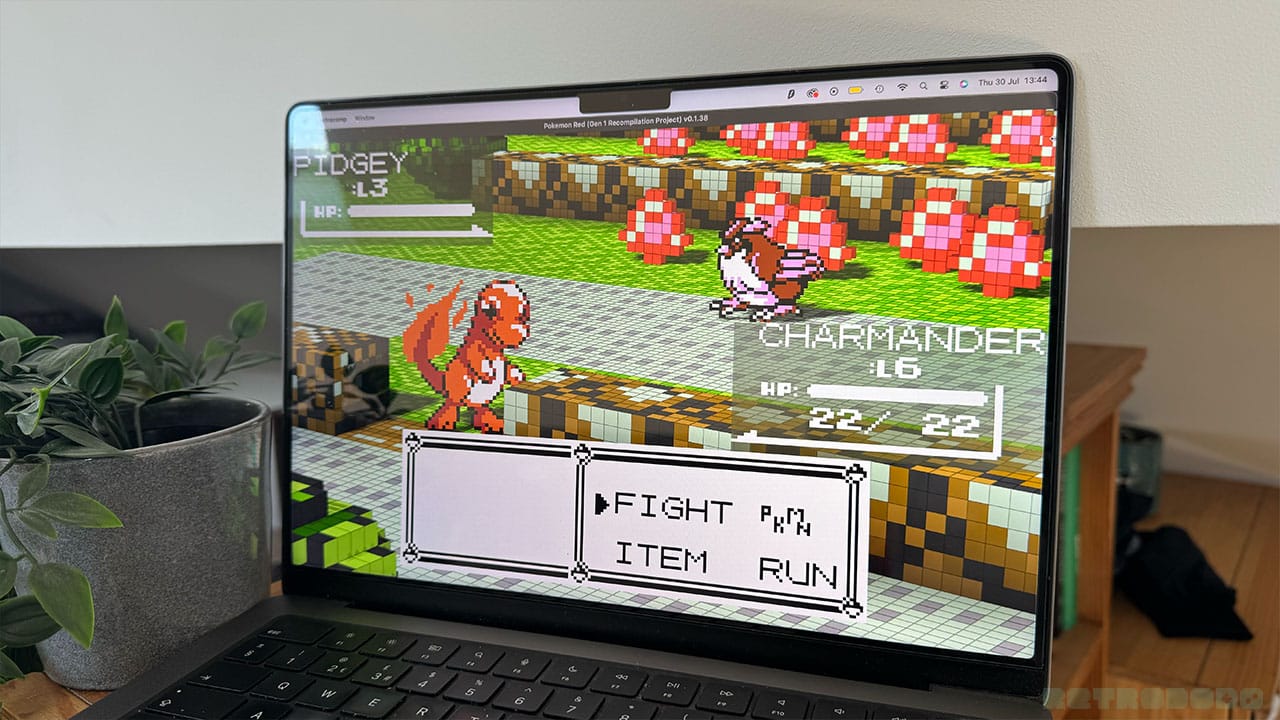

With the mod active, the game world is rebuilt as voxels, turning towns, routes, and interiors into a 3D landscape while battles gain much more cinematic framing than “two sprites duelling on a blank background.” DramaticShapeVoxelMod transforms Gen 1 into a fully 3D version of Pokémon Red and Blue that keeps the nostalgic feel but adds a modern layer of depth. Crucially, the mod gives you control over how bold that transformation feels: pressing “3” in-game cycles through different 3D angles, “7” bends the world over the horizon, “5” overlays a wireframe on every voxel for a Minecraft-style look, “6” adds a blur vignette, and “2” changes the color scheme. At that point it is hard to argue that classic games should stay frozen; with this Pokémon Red Blue 3D mod, Gen 1 proves it can evolve without losing its original soul.
