Overview: A True Three-Way Point Source in a Single Frame

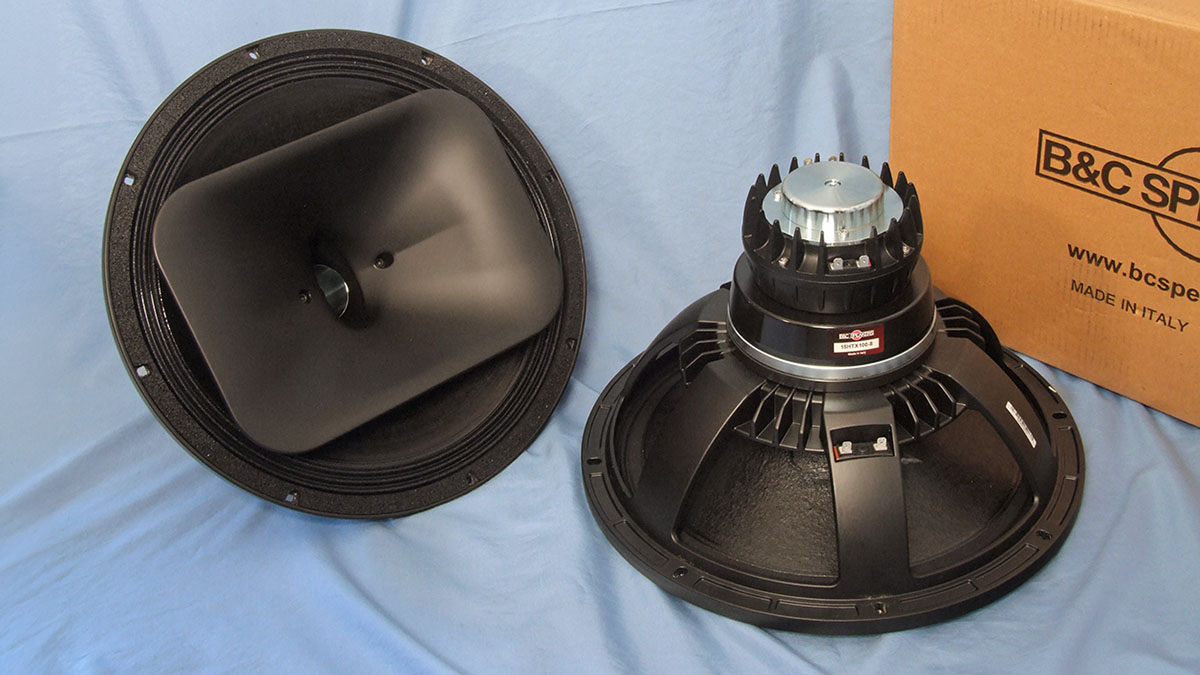

The B&C Speakers 15HTX100 is a 15-inch triaxial speaker driver that targets demanding professional audio applications where space, weight, and output all matter. Unlike conventional coaxial designs that combine only a woofer and a high-frequency driver, this professional audio transducer integrates a full three-way system: a 15-inch low-frequency section, a dedicated 3-inch midrange compression driver, and a 2-inch high-frequency compression driver. All three elements share a single, compact architecture, delivering a coherent point-source radiation pattern ideally suited to stage monitors, compact mains, and high-SPL installation systems. With a sensitivity of 99 dB for the woofer and 108.5 dB for the mid and high sections, the 15HTX100 is clearly engineered for serious output. For system designers and loudspeaker manufacturers, it offers a powerful way to achieve three-way loudspeaker performance without the complexity of multi-box or multi-horn assemblies.
Triaxial Architecture and Patented Mid/High Integration

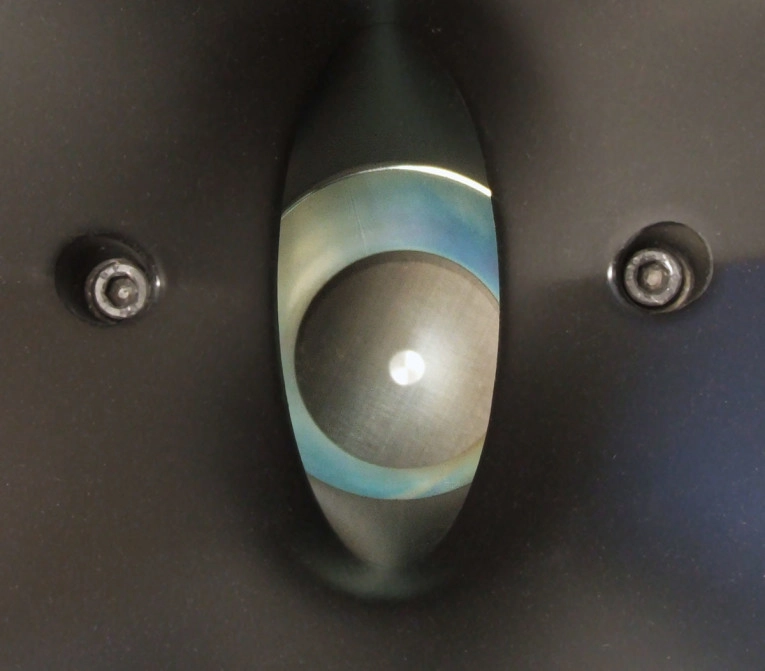

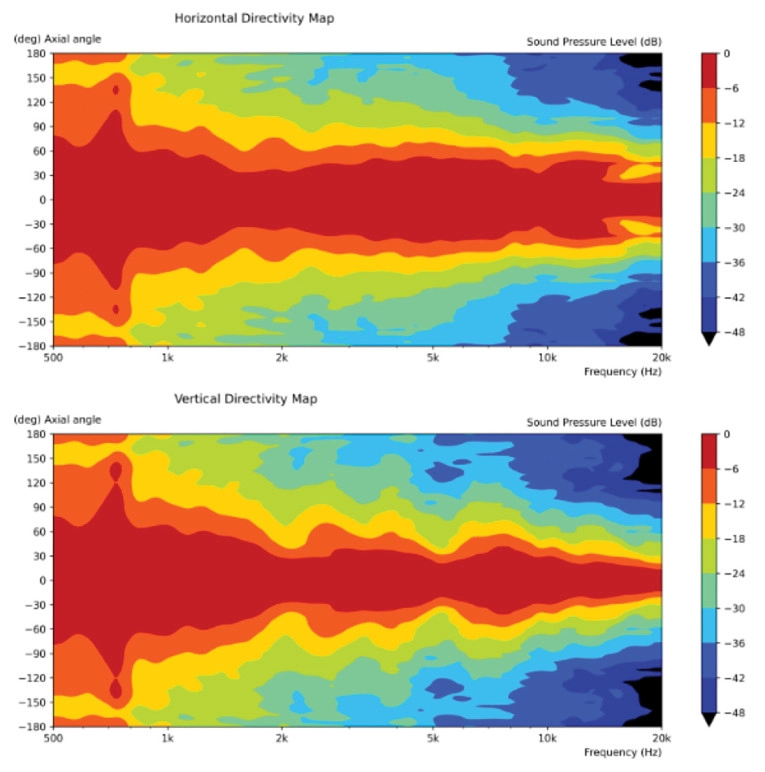

At the heart of the 15HTX100 is a sophisticated triaxial topology built around B&C’s DCX354-8 coaxial compression driver. This device combines a 3-inch midrange diaphragm and a 2-inch high-frequency PEEK diaphragm into a common 1.4-inch throat. B&C employs a patented midrange integrator that allows both diaphragms to operate through the same horn with minimal magnitude and phase irregularities, creating a genuinely unified mid/high section. The horn itself is FEA-designed and offers a nominal 60° × 40° coverage pattern, with directivity maps confirming controlled dispersion in both planes. For designers, this means a consistent coverage footprint from the midband through the top end, simplifying array aiming and improving intelligibility. In practice, the integration of mid and high through a shared waveguide reduces lobing and timing issues that often plague multi-horn three-way loudspeaker systems, while keeping the acoustic center tightly clustered.
Waterproof TWP Cone and Touring-Grade Suspension System

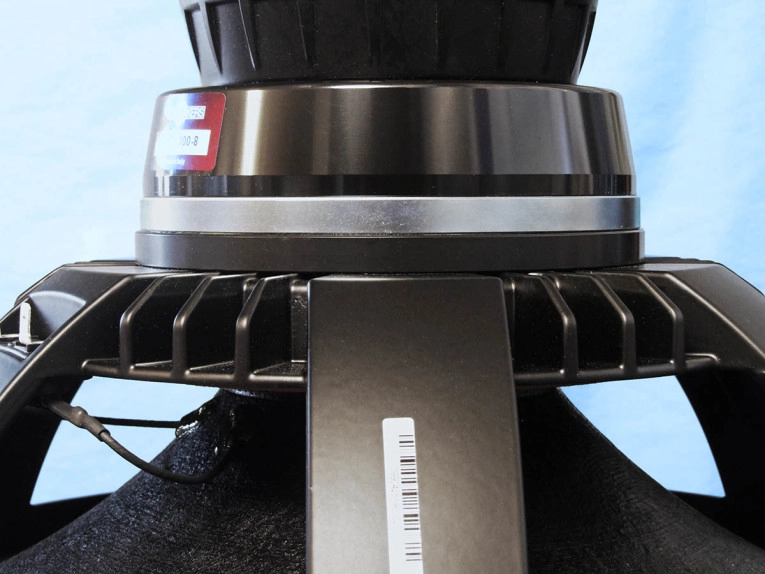

The 15-inch low-frequency section is built on a six-spoke cast-aluminum frame and uses a stiff, curvilinear paper cone treated with TWP waterproof coating on both front and rear surfaces. This waterproof speaker cone treatment allows the driver to withstand moisture, humidity, and outdoor exposure far better than untreated paper, making it particularly attractive for touring rigs and permanent outdoor installations. The cone is suspended by a three-roll coated pleated surround and a 6.5-inch double silicone spider, an arrangement that balances mechanical control with excursion capability. The 4-inch glass fiber voice coil, wound with aluminum wire, is driven by a 6-inch neodymium ring magnet motor featuring a T-pole structure and an aluminum demodulation ring. Together, this suspension and motor system is engineered to maintain consistent performance over time, resist power compression, and extend driver life under continuous high-SPL operation.
Acoustic Performance and Power Handling for Real-World Rigs
From a measurement standpoint, the 15HTX100 shows behavior aligned with its intended role as a high-output, full-range professional audio transducer. The woofer achieves 99 dB sensitivity (2.83 V/1 m) with a continuous power handling of 1600 W, while the midrange compression driver handles 180 W and the high-frequency section 100 W, both with 108.5 dB sensitivity. Recommended crossover points are 700 Hz between woofer and mid, and 4.5 kHz between mid and high, enabling a clean three-way loudspeaker design with minimal overlap issues. LEAP-based Thiele-Small and impedance measurements closely track factory specifications, underscoring consistent production. Although sealed alignments are not recommended, the driver is well suited to a variety of vented box tunings for front-of-house, monitor, or installation roles. The combination of high sensitivity, controlled directivity, and robust power handling translates directly into strong headroom in real-world reinforcement scenarios.
Applications: Touring, Installation, and Outdoor Sound Reinforcement
Practically, the 15HTX100’s design speaks to sound engineers who need compact systems that still deliver full-range authority. Its triaxial layout simplifies cabinet design, reducing the need for multiple cutouts, waveguides, and complex horn alignments, while still delivering true three-way performance. For touring sound, the combination of high SPL capability, controlled 60° × 40° dispersion, and rugged waterproof cone construction makes it suitable for wedges, sidefills, and compact mains that must survive frequent load-ins and outdoor festivals. In fixed installations, such as houses of worship, clubs, and multipurpose venues, the point-source nature and consistent directivity improve speech clarity and musical imaging while easing system tuning. Outdoor sound reinforcement also benefits from the TWP-coated cone and robust motor cooling via multiple frame vents, ensuring reliable performance even in challenging climate conditions where conventional drivers might suffer premature degradation.
