RTX 5090 Power Consumption: From Edge Case to Design Baseline

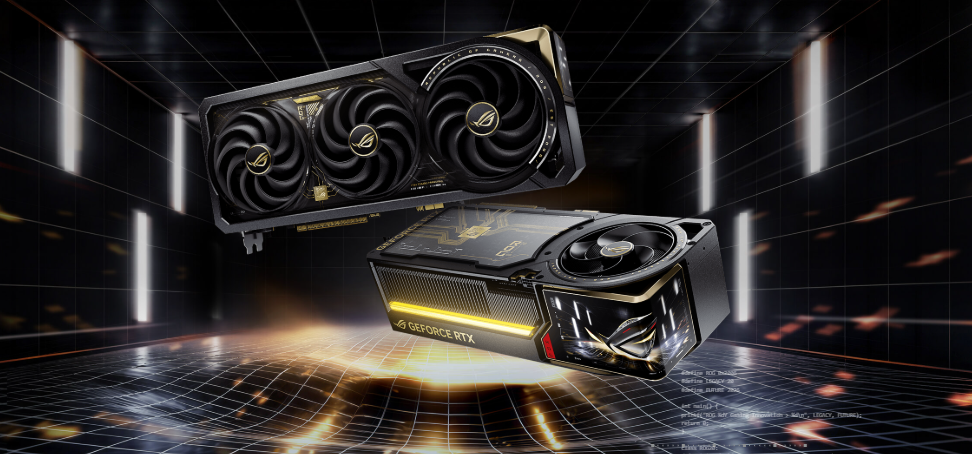

RTX 5090 power consumption refers to the exceptional electrical power demand of NVIDIA’s flagship-class GPU generation, which is now high enough that power supplies, cases, connectors, and even motherboard slots must be redesigned to safely deliver and monitor several hundred watts per card. ASUS’ ROG GeForce RTX 5090 Edition 20 makes this new reality explicit with an 800-watt power limit, combining a 16-pin 12V 2x6 connector with a BTF motherboard slot for dual input power. That ceiling exists to sustain boosted clock speeds up to 2760 MHz, and it brings a matching rise in heat output, managed here by a vapor chamber, copper heatpipes, and four fans. The card’s sheer size – 36.1 cm long and occupying 4.7 expansion slots – underlines how next‑gen GPU power draw is now a primary constraint for both system layout and power delivery planning.
A 3000W Power Supply Built for Four RTX 5090 GPUs

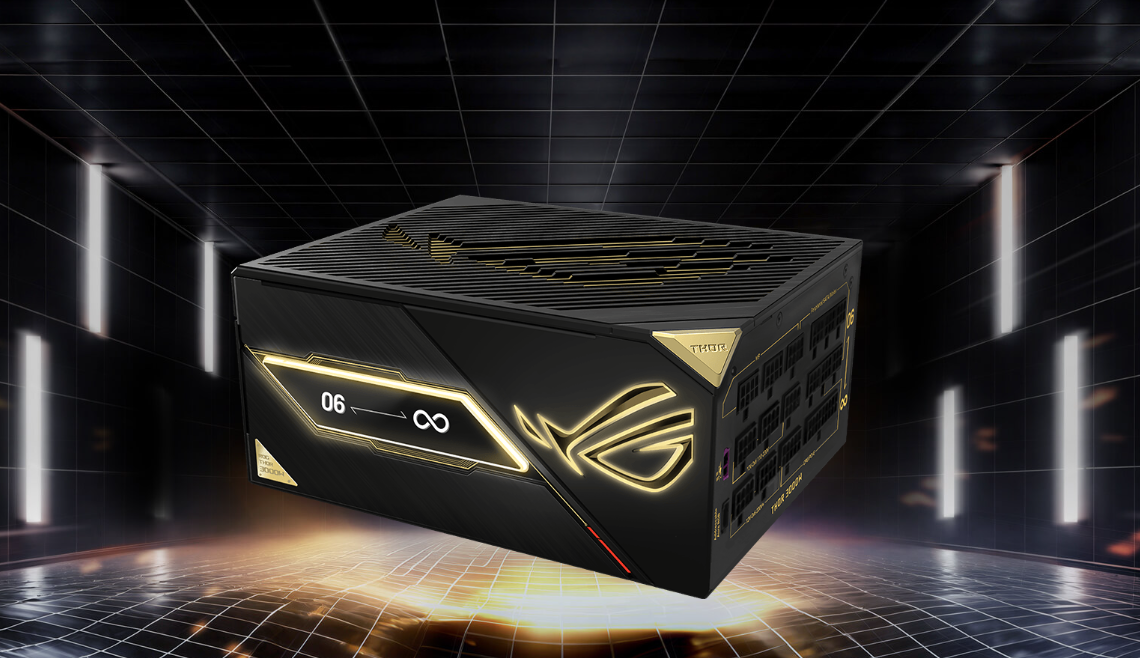

ASUS’ ROG Thor 3000W Titanium III Edition 20 is a 3000W power supply aimed directly at extreme RTX 5090 builds and multi‑GPU systems. ASUS says the unit is “capable of operating up to 4 GeForce RTX 5090 graphics cards,” turning what used to be an overclocking fantasy into a realistic workstation or GPU compute platform. To handle that load, the Titanium efficiency PSU uses server‑grade gallium nitride transistors to cut thermal losses and improve electrical efficiency, paired with an ROG Equalizer 12V 2x6 cable designed to lower connector temperatures under heavy draw. A detachable OLED display shows real‑time power usage, helping builders watch aggregate GPU power draw as it spikes under gaming or AI workloads. With full protection against short circuit, over‑current, and over‑voltage, this 3000W power supply signals that multi‑kilowatt PSUs are becoming standard kit for the top of the consumer GPU stack.
Seasonic’s 5200W Ruby PSU and the Enterprise Edge of GPU Power
On the enterprise side, Seasonic’s new 5200-watt power supply pushes high-wattage PSU requirements far beyond even four‑GPU gaming towers. According to Seasonic, the 5200W unit achieves 96.5% efficiency under load and carries an 80 Plus Ruby certification, the highest efficiency class currently available for industrial power distribution units. It is designed to keep systems running “even with multiple graphics accelerators operating at the same time,” targeting AI and deep learning clusters where GPUs sit near maximum power draw for extended periods. Seasonic is pairing this with Prime Enterprise models like the TX 1600, PX 3200, and PX 1200, each tuned for tight voltage regulation under fluctuating loads. At the consumer level, refreshed Vertex and Focus lines now include dual native 12V 2x6 connectors, and a 1300W Focus SGX brings high output to small-form-factor builds that still need to feed power-hungry next‑gen GPUs.
PSU Market Spreads from 750W to 3200W for Next‑Gen GPUs

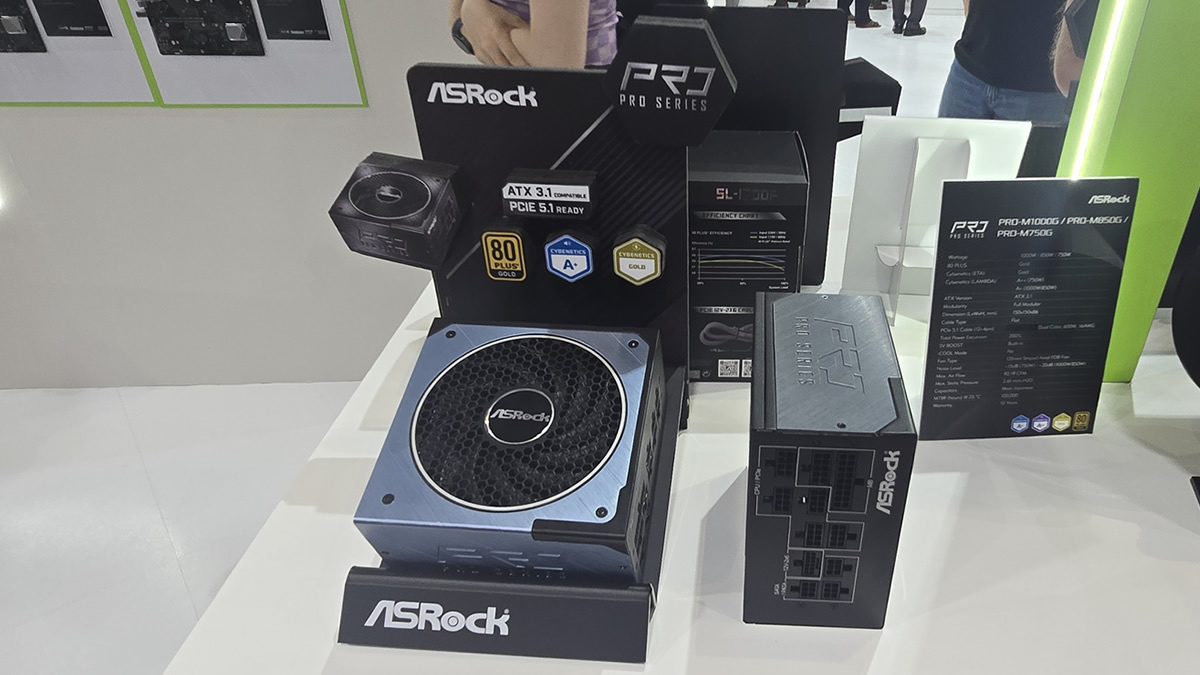

Computex has made it clear that PSU vendors now see RTX 5090-class GPU power draw as normal for high-end builds. ASRock is entering the high-wattage PSU space with Taichi WS units at 2600W, 3000W, and 3200W, each equipped with Cable Over-Temperature protection that can shut down a system when the GPU’s 12V 2x6 connector overheats. This adds a safety layer for builders worried about heavy, sustained RTX 5090 power consumption or imbalanced connector loads. Below that, ASRock’s portfolio spans 750W to 1200W across Pro, Steel Legend, and Phantom Gaming lines, most rated 80 Plus and Cybenetics Platinum for efficiency and noise control. Those wattages align with single‑GPU gaming and creator systems that still need headroom for transient spikes. Together with Seasonic’s refreshed consumer range, these launches show a PSU market stratified from mainstream 750W units all the way to 3200W monsters for AI and multi‑GPU rigs.
Premium Features: From GaN Components to On‑Device Power Telemetry
As power limits climb, high-end PSUs are adding premium features to keep systems efficient, safe, and easier to tune. ASUS’ ROG Thor 3000W Titanium III couples Titanium efficiency with server-grade GaN components to shrink losses and heat, while its detachable OLED panel brings power telemetry into view without needing extra software. Seasonic’s Enterprise range keeps voltage deviation under 0.5% and adds EMI shielding, important for densely packed GPU and accelerator configurations. ASRock spreads Cable Over-Temperature protection across most of its new lineup, guarding the 12V 2x6 path that feeds modern GPUs. Even aesthetics and ergonomics adapt: ASUS syncs ARGB lighting with Aura Sync ecosystems, and ASRock ships white cable kits with L-shaped 12V 2x6 ends for cleaner builds. Together, these moves show that supporting extreme GPU power draw is no longer only about raw wattage, but about smart monitoring, efficiency, and safe cabling in the kilowatt era.
