The Real Threat: A Hidden Sensor and a 30°C Lie
The RTX 50 hotspot temperature problem is the gap between NVIDIA’s hidden hotspot sensor and the lower “average” GPU temperature shown to users, which can mask severe thermal throttling and degraded performance in RTX 50 graphics cards. Starting with the RTX 50 Blackwell generation, NVIDIA removed hotspot measurements from consumer monitoring tools, leaving owners with only an average GPU temperature and memory temperature to watch. The sensor was not removed from the silicon itself; it was locked away behind internal software and drivers. That design choice is the core risk: when the hottest part of the die silently hits its 107°C limit, the GPU pulls back power and clocks even while on‑screen temperatures appear safe.
How the NVIDIA Hotspot Sensor Unlock Exposed the Problem

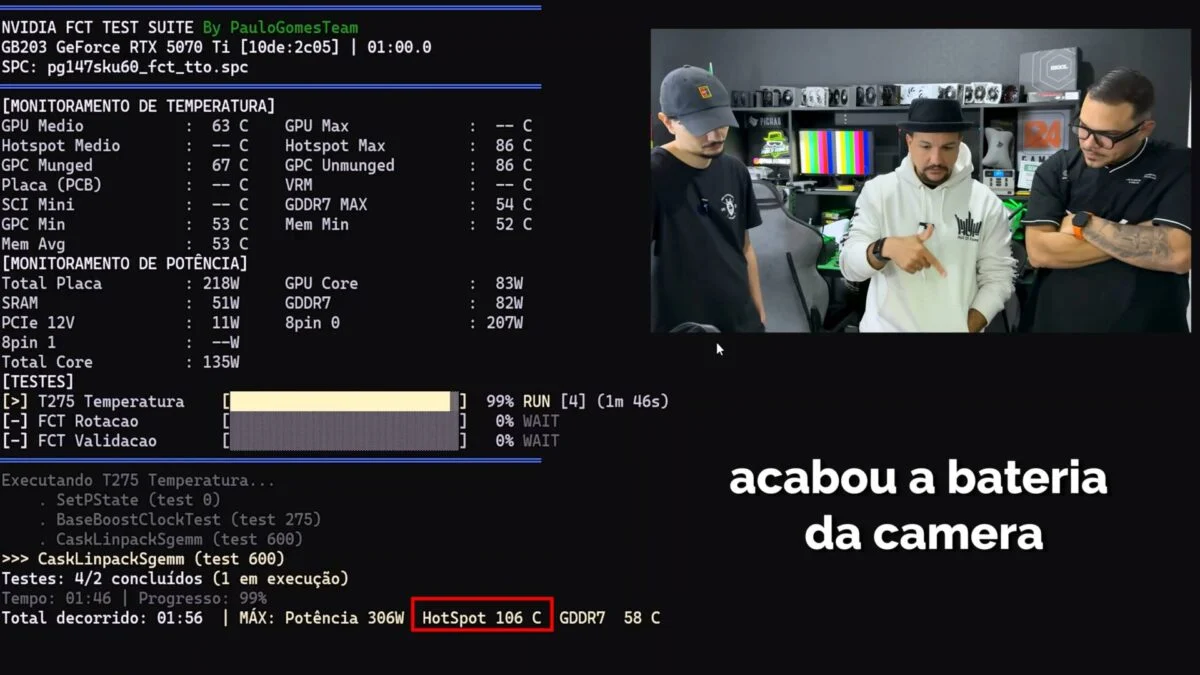

The turning point came when repair specialist Paulo Gomes used internal NVIDIA tools and mods to unlock the hotspot sensor on RTX 50 boards, confirming it was still present and functional. Mods re‑enable GPU hotspot monitoring through an internal tool called MODS, bypassing the driver‑level blackout and exposing the true peak temperature of the GPU die. On a problematic RTX 5070 Ti, MODS showed a 107°C hotspot while the standard GPU reading sat at only 68°C—a staggering 39°C difference that points directly to faulty thermal paste and poor cooler contact. This is not an edge case: his repair lab has received various RTX 50 graphics cards with abnormal gaming performance and racing fans despite average temperatures staying below throttle limits, and in multiple cases the hotspot data traced the issue back to misapplied thermal interface material or cooler contact defects.
Why 100–107°C Hotspots Mean Your RTX 50 Is Quietly Throttling
The unpleasant truth is that RTX 50 hotspot temperatures often sit far above what the visible sensor suggests, and that gap has real performance costs. In one documented case, average GPU temperature hovered between 70–80°C while the hotspot repeatedly hit 107°C, right at NVIDIA’s thermal protection limit, forcing the card to throttle power and frequency to stay alive. Because fan curves follow the lower average value, the cooler never “sees” the thermal emergency and fails to respond. That is why high‑end RTX 50 cards, including high‑TDP models such as the RTX 5080 Super, can lose gaming performance even when monitoring tools say everything is fine. According to one technical analysis, “if the difference between this figure and the hotspot is large, the cooler may not react to a thermally throttling chip, causing performance degradation, and possibly damaging your chip”.
Thermal Paste Replacement: The Practical GPU Thermal Throttling Fix

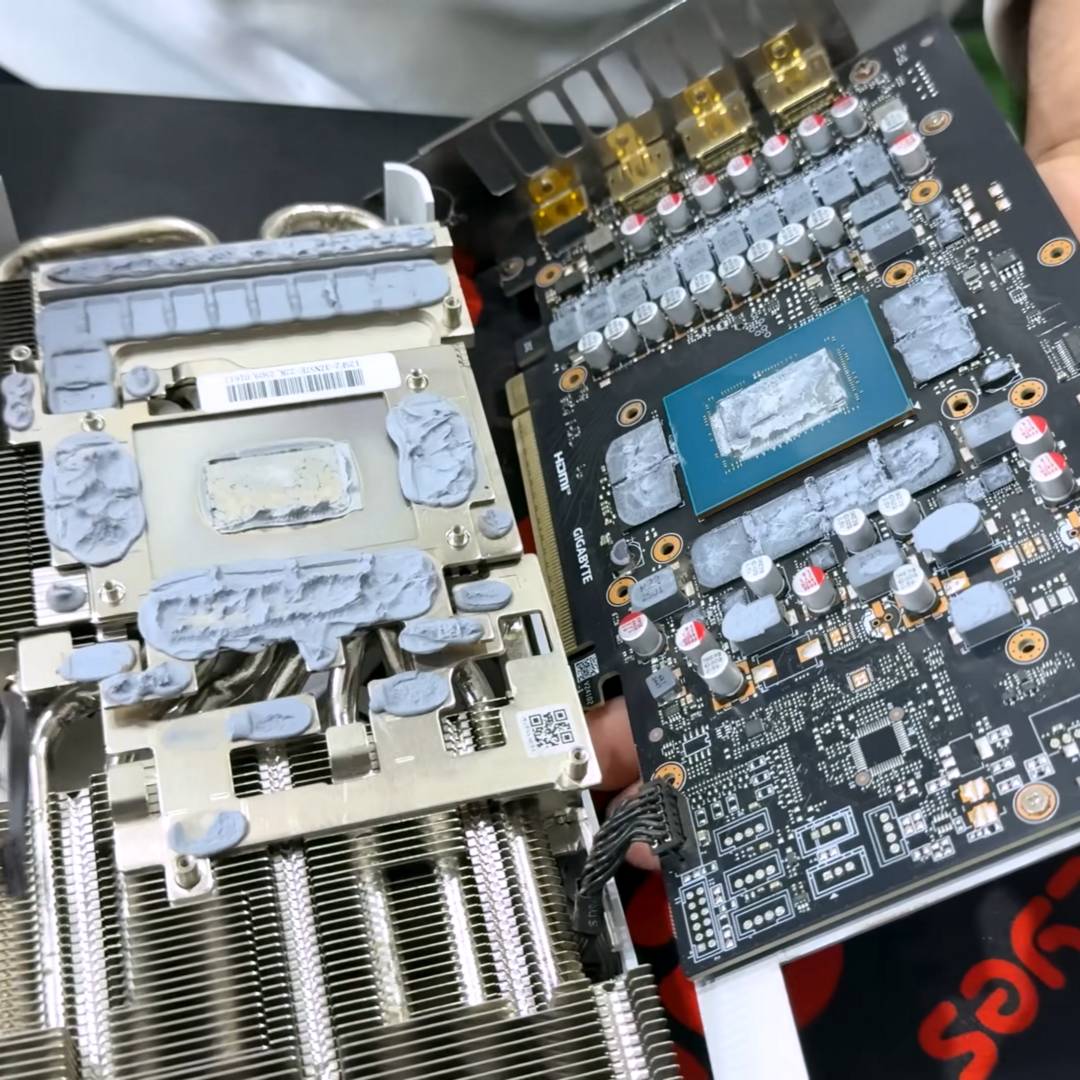

Once the hotspot sensor was visible again, the GPU thermal throttling fix turned out to be surprisingly straightforward in many cases: repair technicians opened the cards and found tell‑tale signs of poor thermal paste coverage and cooler contact. On the same RTX 50 samples that were pegging 107°C at the hotspot, replacing the thermal interface material brought hotspot readings down to around 100°C and eliminated repeated throttle events, restoring the performance owners expected from day one. On the RTX 5070 Ti, repasting lowered hotspot temperature by 7°C; that drop was enough to stop thermal throttling so the GPU could sustain maximum performance again, even though the chip still ran hot overall. In other words, when users can compare hotspot and average temperatures, they can identify defective cooling and use thermal paste replacement on the GPU as an effective remedy instead of shipping the card out for repair.
A Design Misstep NVIDIA Needs to Reverse
Hiding the hotspot sensor on RTX 50 GPUs is not a harmless UI simplification; it is a step backward for enthusiast diagnostics and long‑term hardware health. NVIDIA gives its data‑center products a detailed diagnostic toolkit, including hotspot and airflow monitoring, while consumer cards are now blind to the very metric that best reveals cooler misalignment and paste defects. The evidence from real repair benches is blunt: several RTX 50 graphics cards with high hotspot readings, silent throttling, and fan noise symptoms all traced back to cooling contact issues that the average sensor masked. Once mods and MODS exposed the RTX 50 hotspot temperature, the path to a GPU thermal throttling fix—thermal paste replacement and cooler re‑mounting—became clear. NVIDIA should re‑enable hotspot access in mainstream tools, not to scare users with three‑digit numbers, but to give them the information they need to keep their hardware performing as advertised.
